ABB

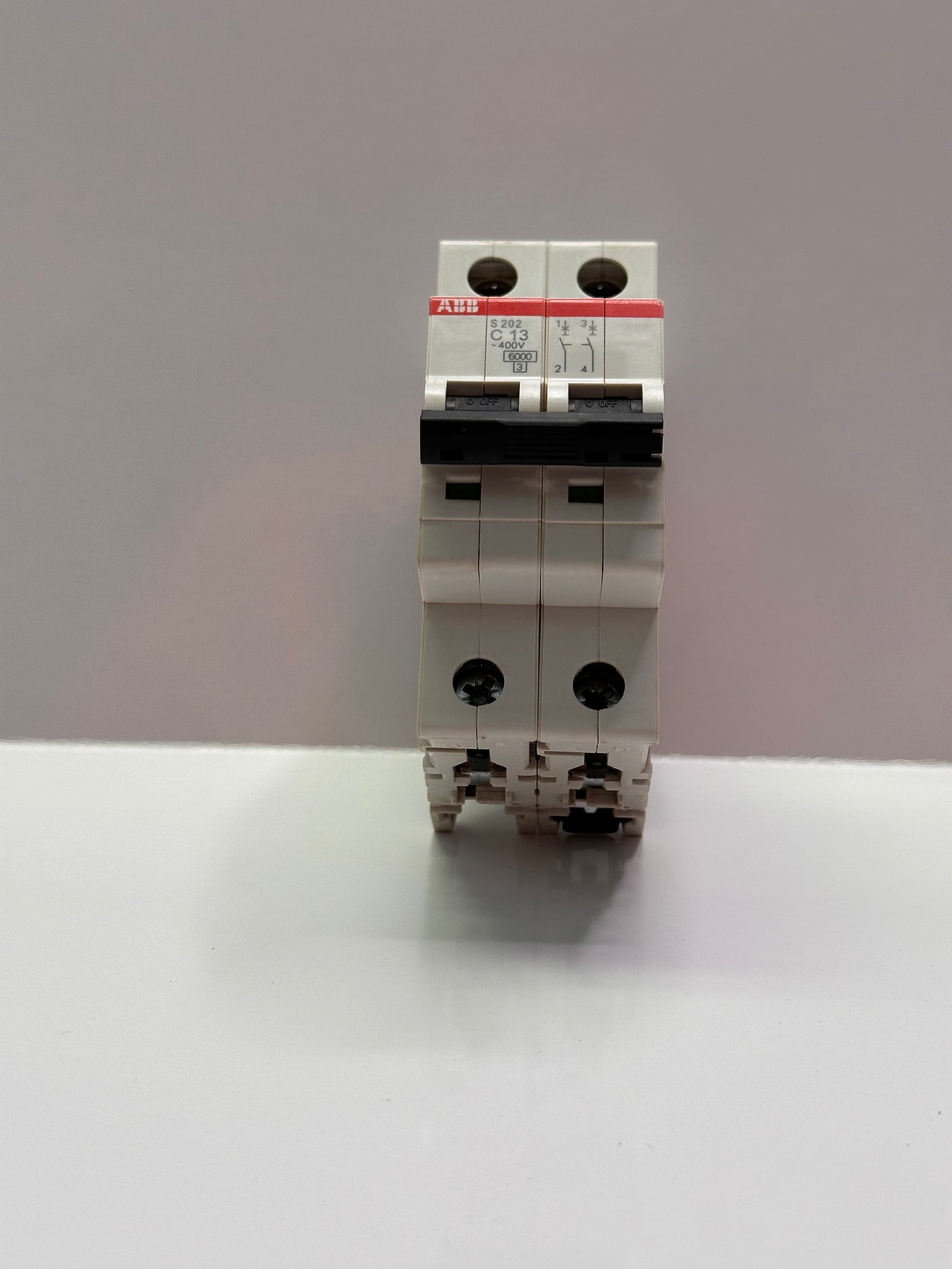

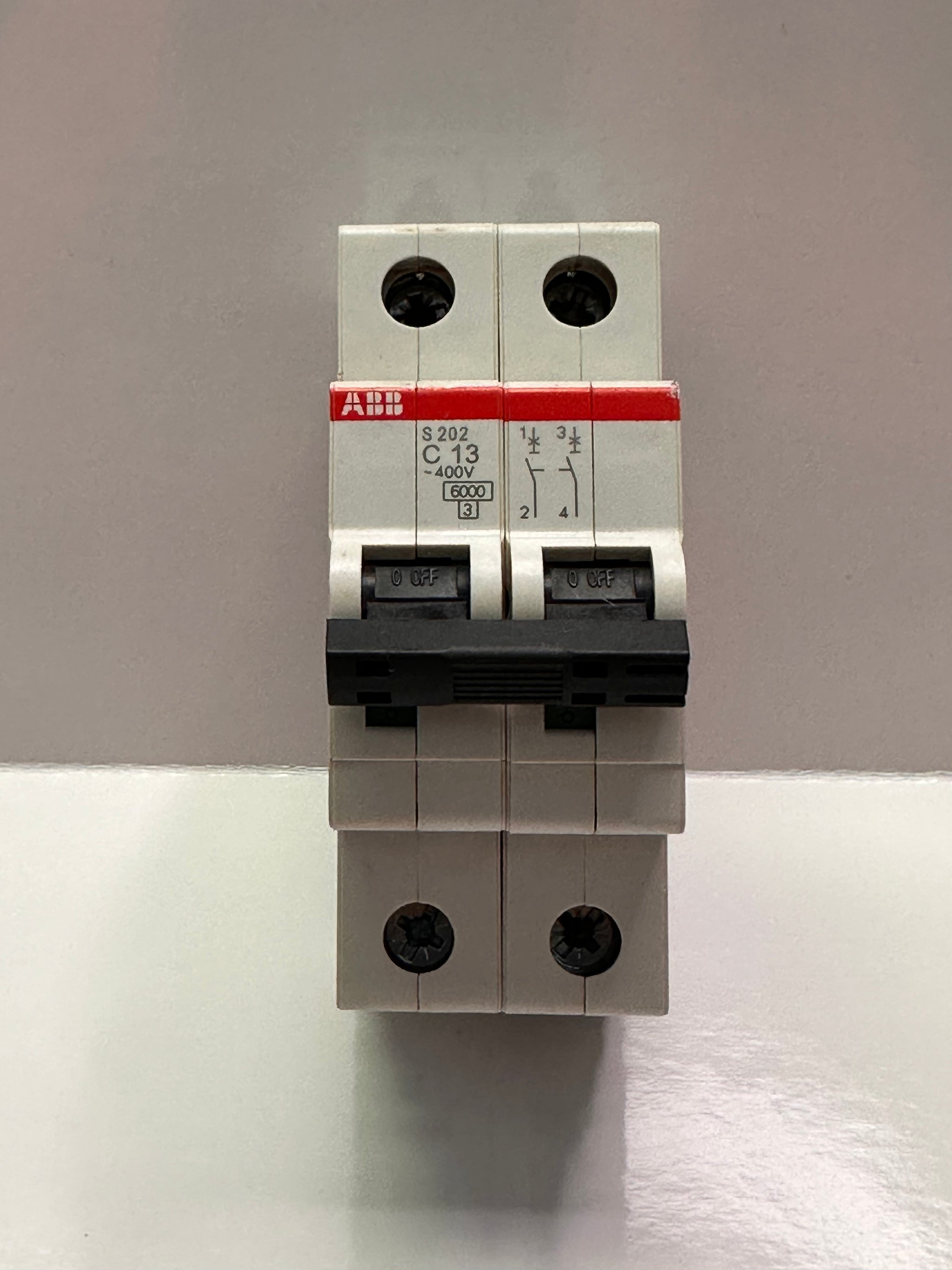

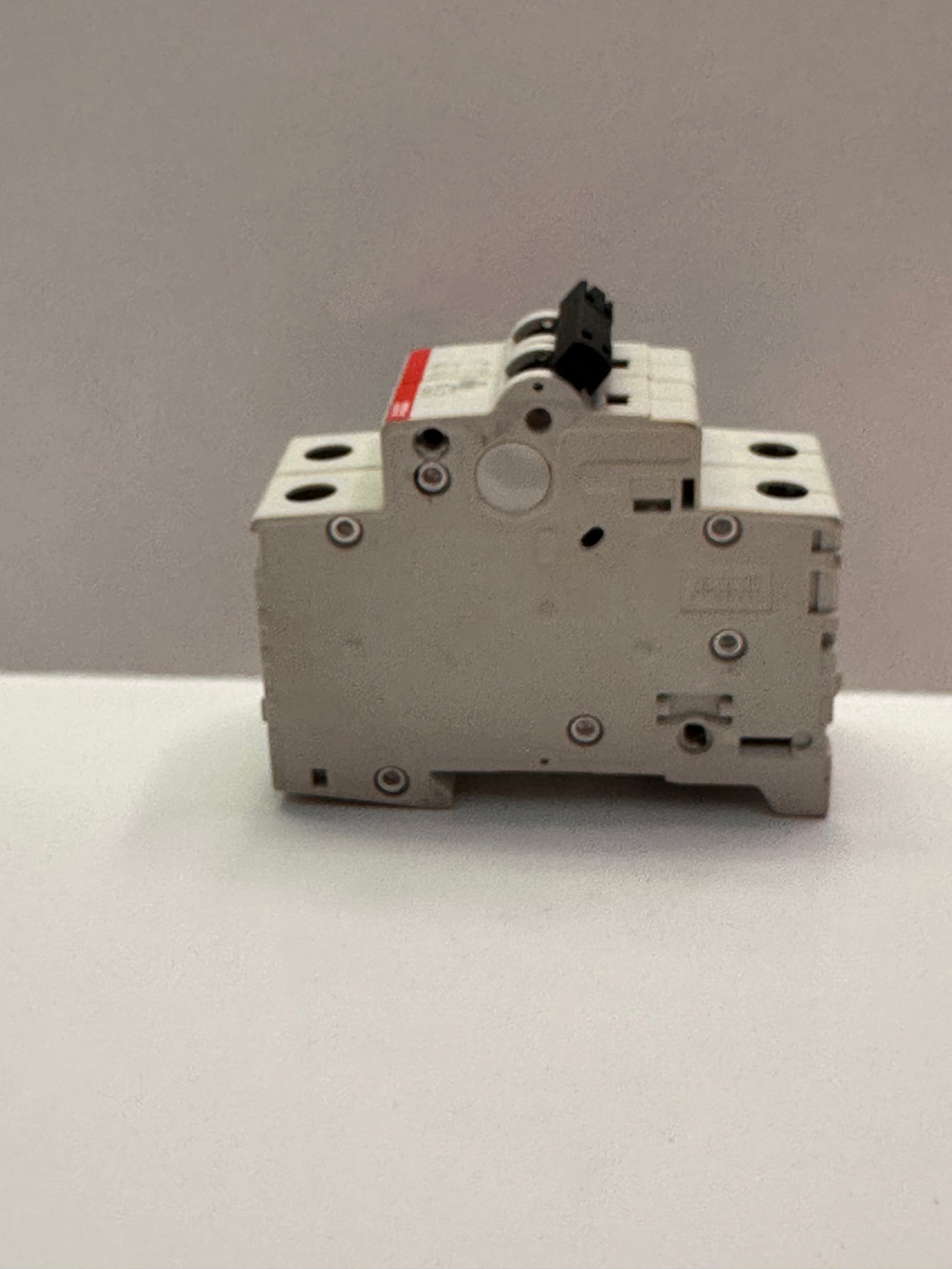

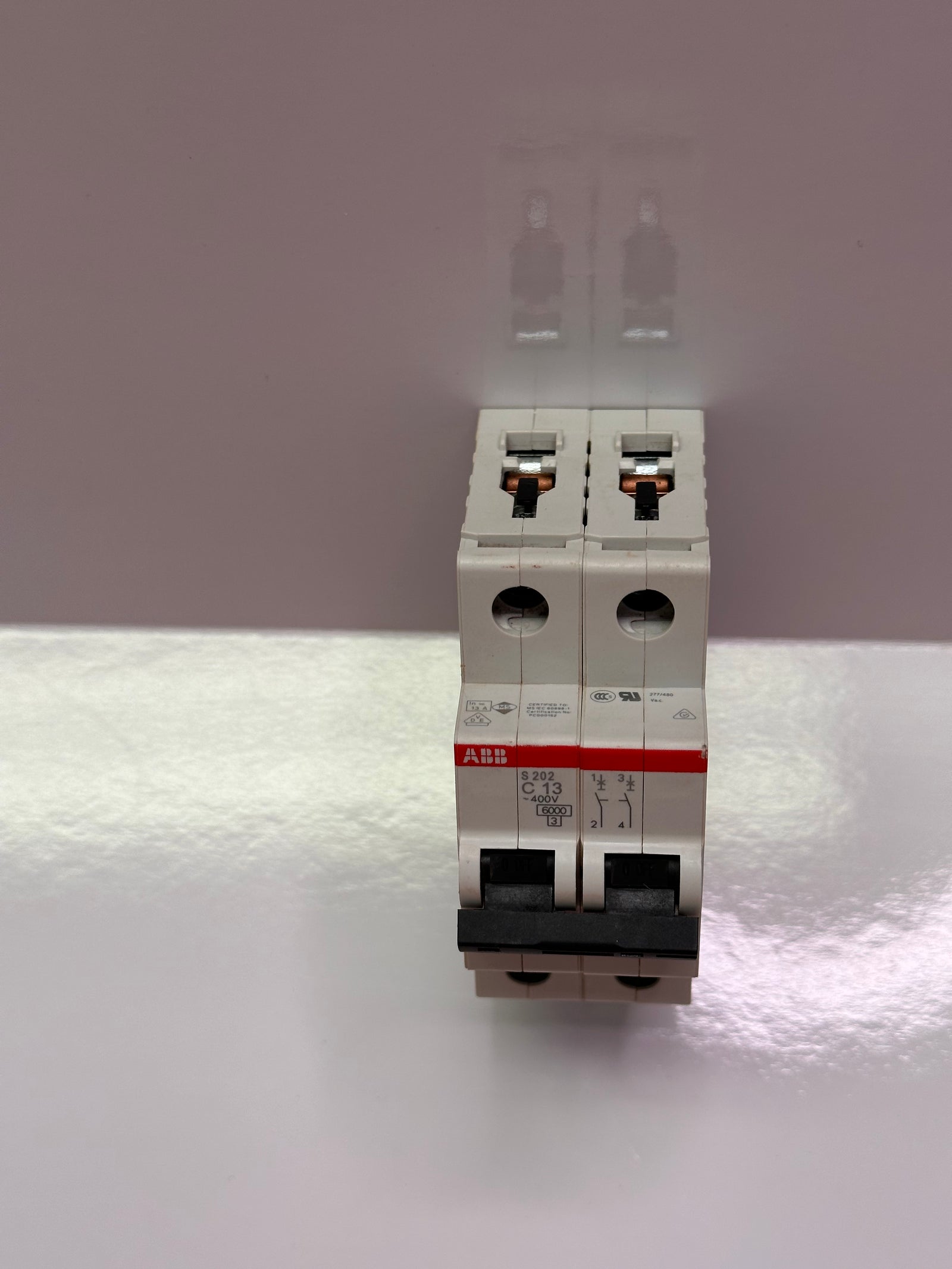

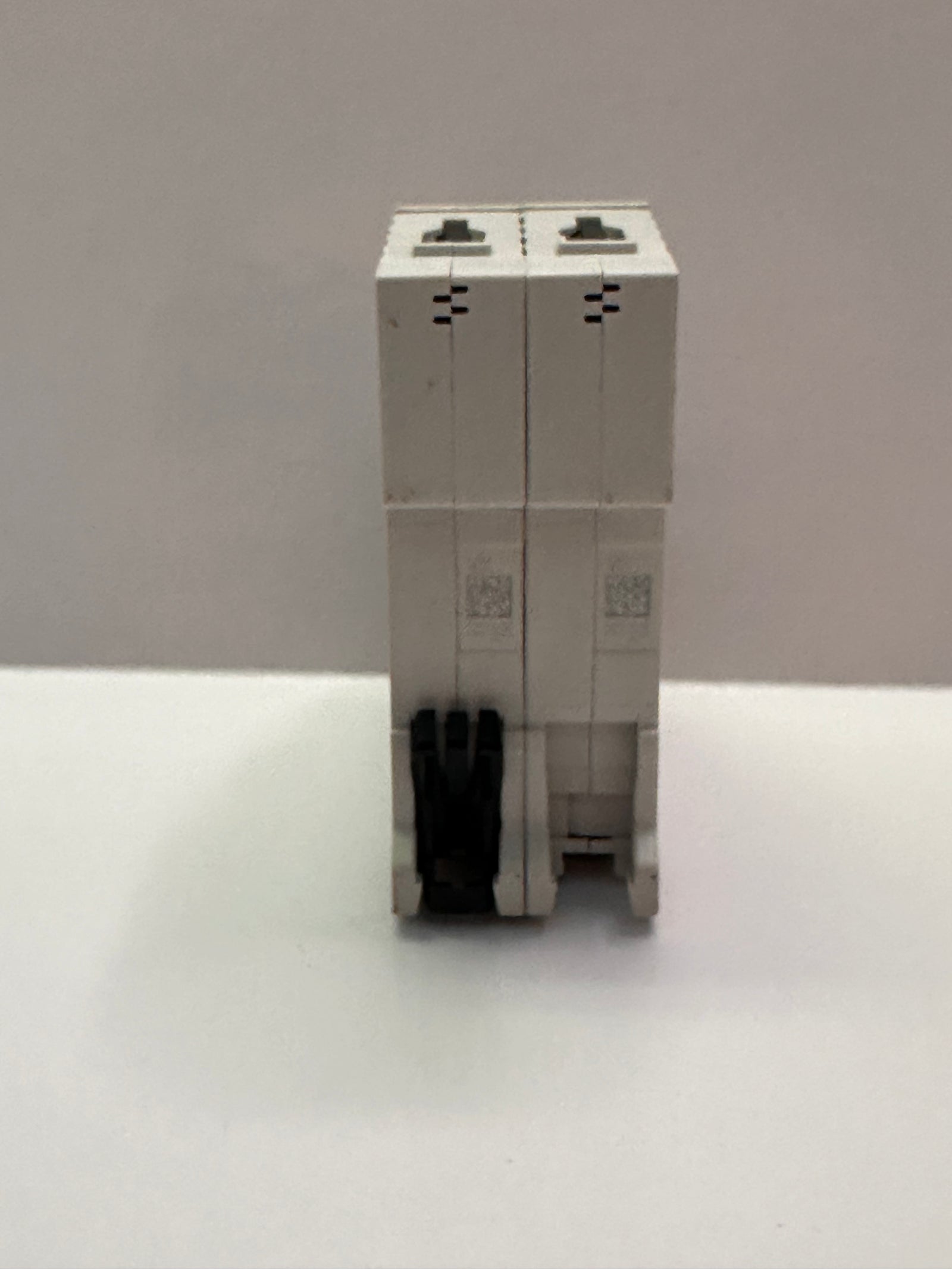

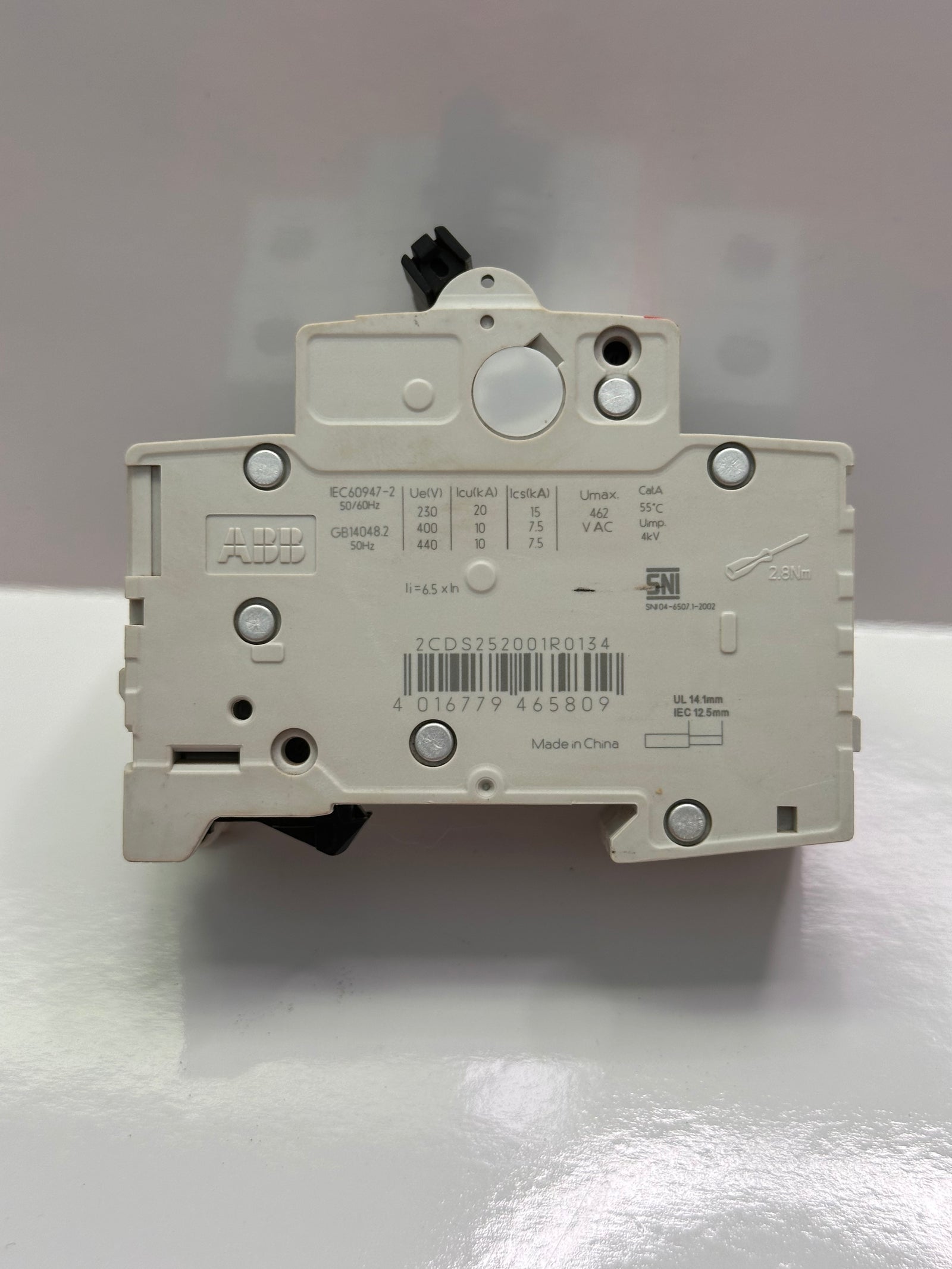

ABB S202-C13 Pro M Compact S200 MCB, 2P, 13A Curve C, 440V AC, 125V DC, 6 kA Breaking Capacity 2CDS252001R0134
- SKU
- P-AB-A-4893
$45.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 1.0 kg
Specifications
| Manufacturer | ABB |
|---|---|
| Product type | Electrical |
| SKU | P-AB-A-4893 |
| Weight | 1.0 kg |
Description
Number of Poles
2P
Current Rating
13A
Tripping Characteristics
Type C
Rated AC Voltage
440V
Rated DC Voltage
125V
Breaking Capacity at Maximum Voltage Rating
6 kA
Range
System Pro M Compact
Series
S200
Circuit Breaker Type
MCB
Width
35mm
Length
88mm
Mounting Style
DIN Rail Mount
Depth
69mm
Model Number
S202-C13
Tripping Mechanism
Thermal, Electro mechanic
Application
Commercial, Industrial
Special Features
Short Circuit Protection
Terminal Contact Type
Screw
Country of Origin
Germany
