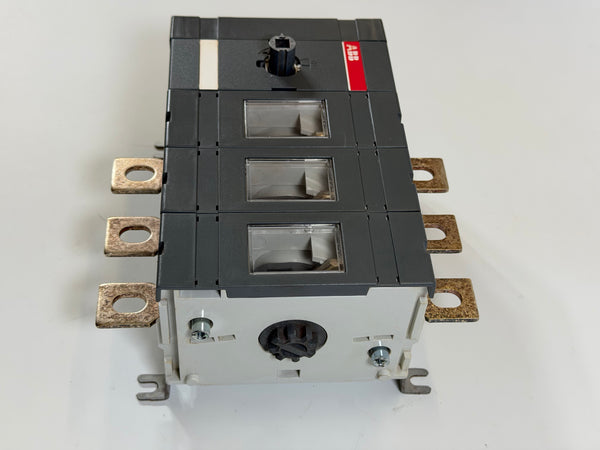

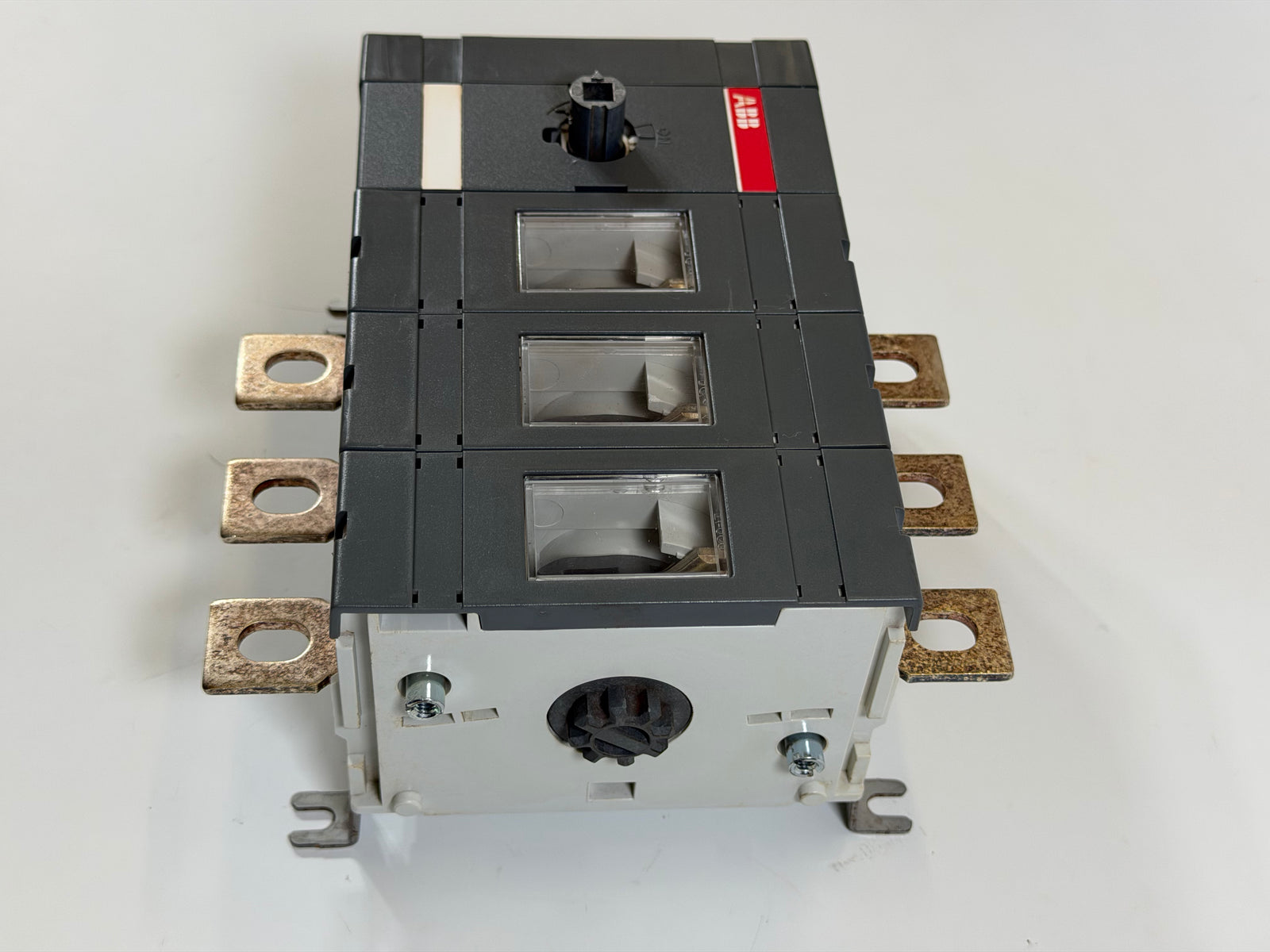

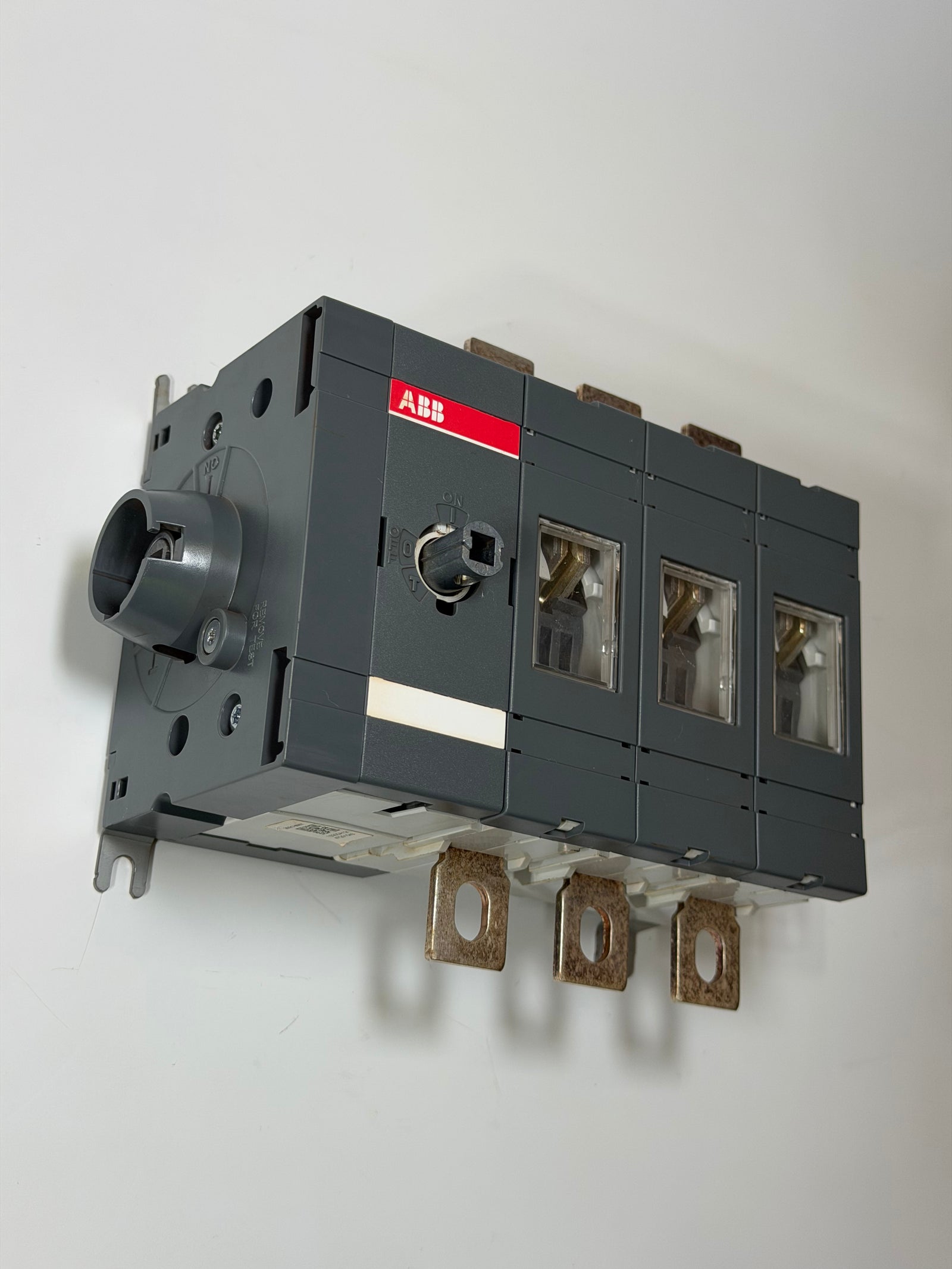

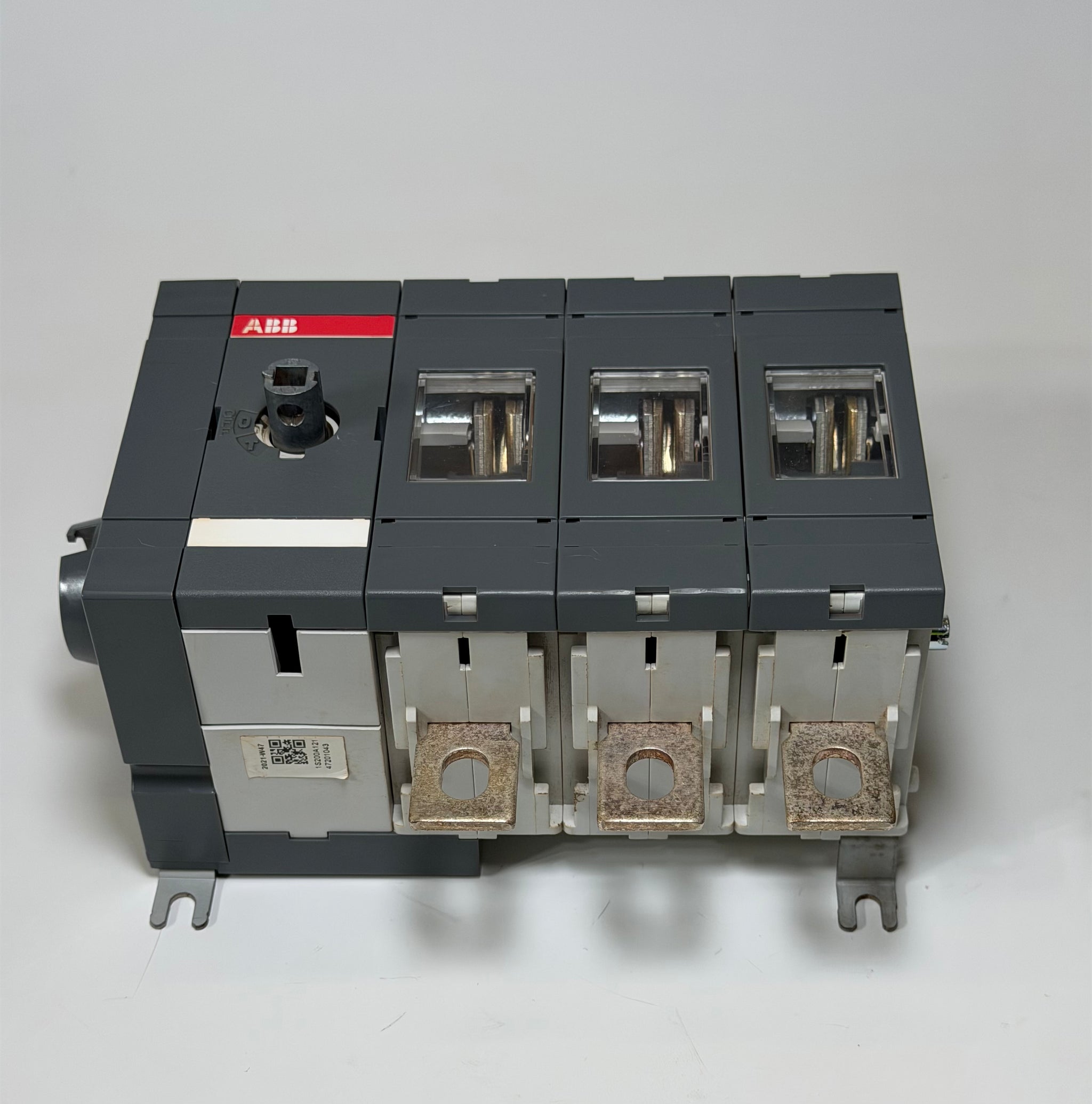

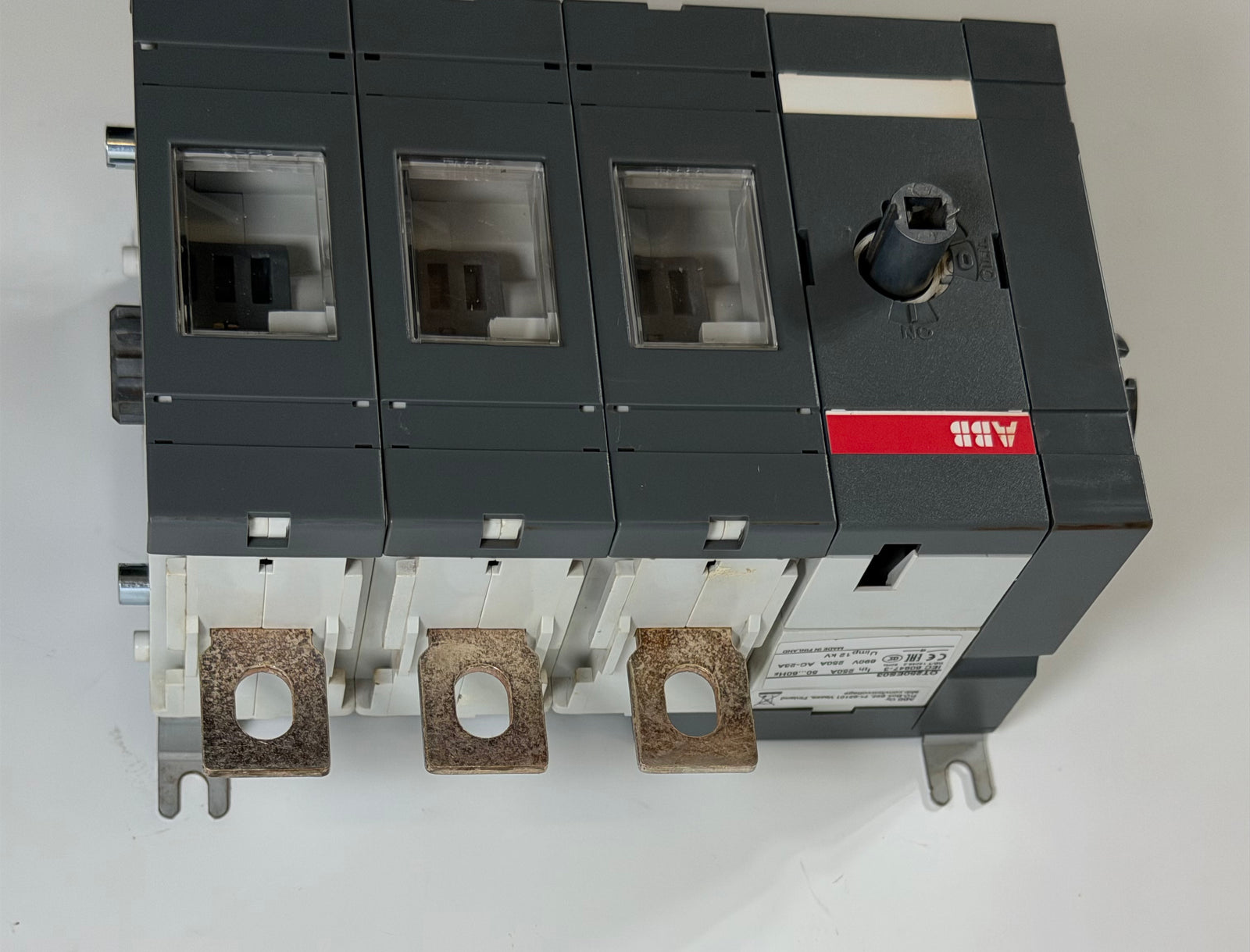

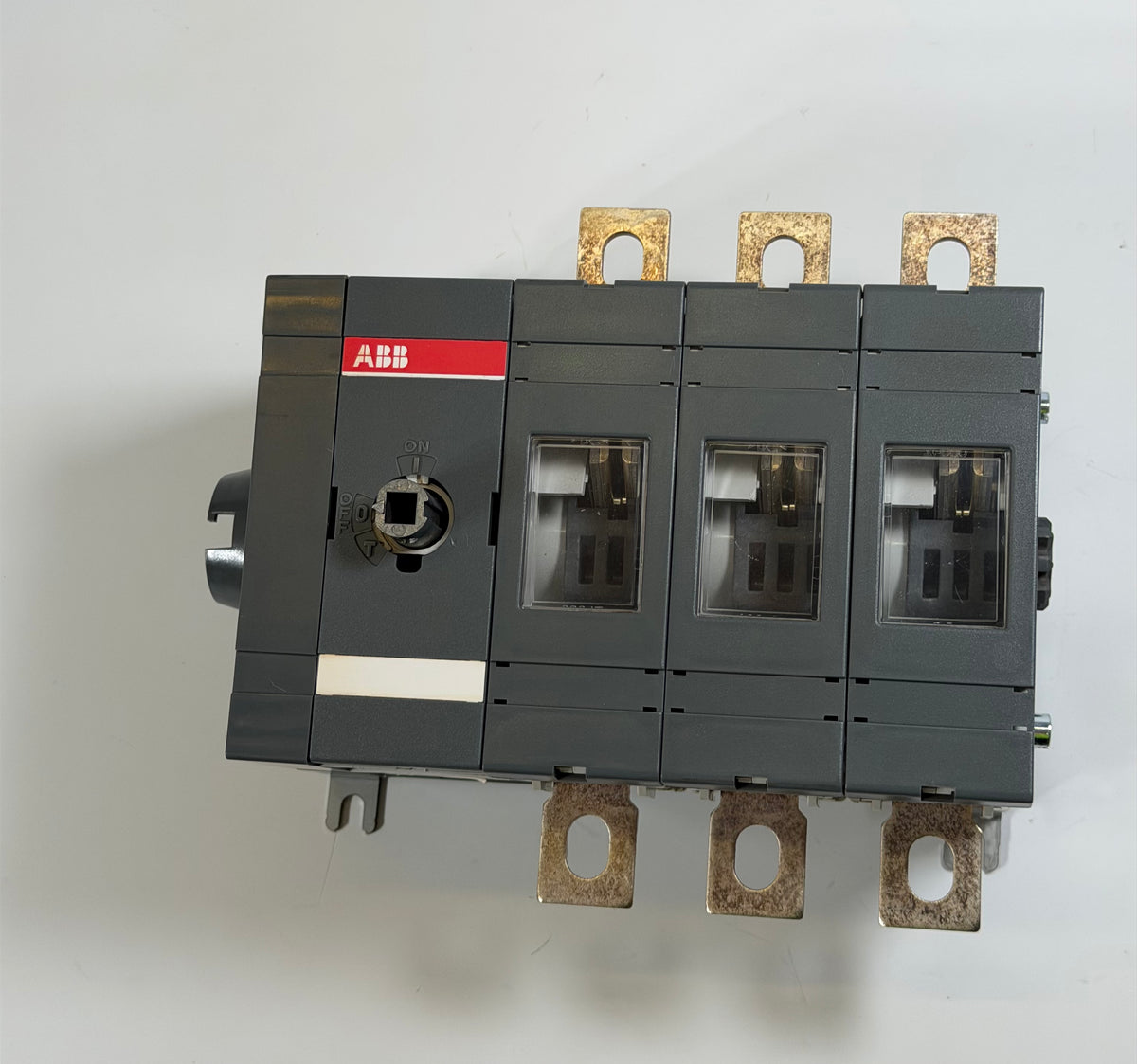

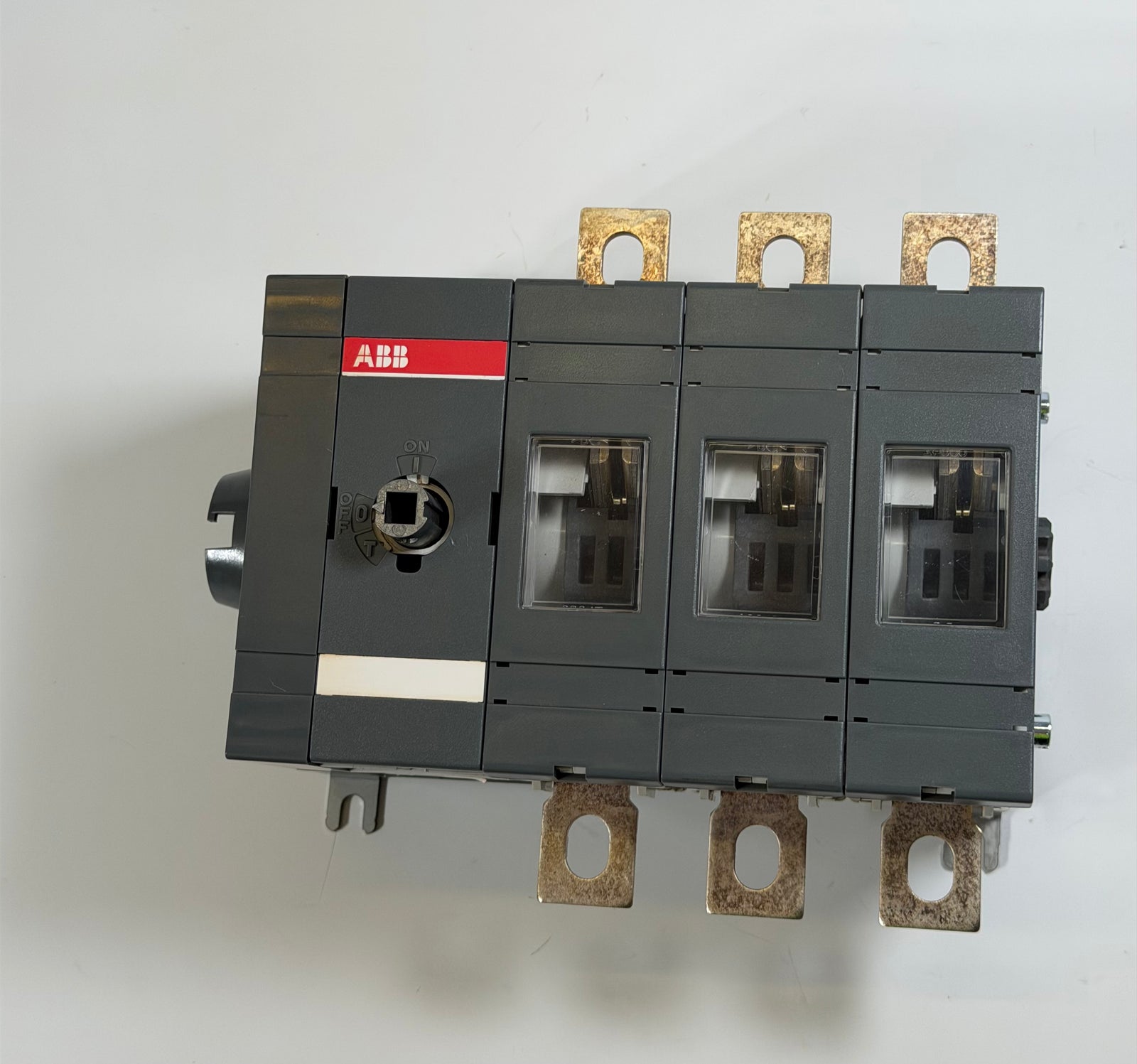

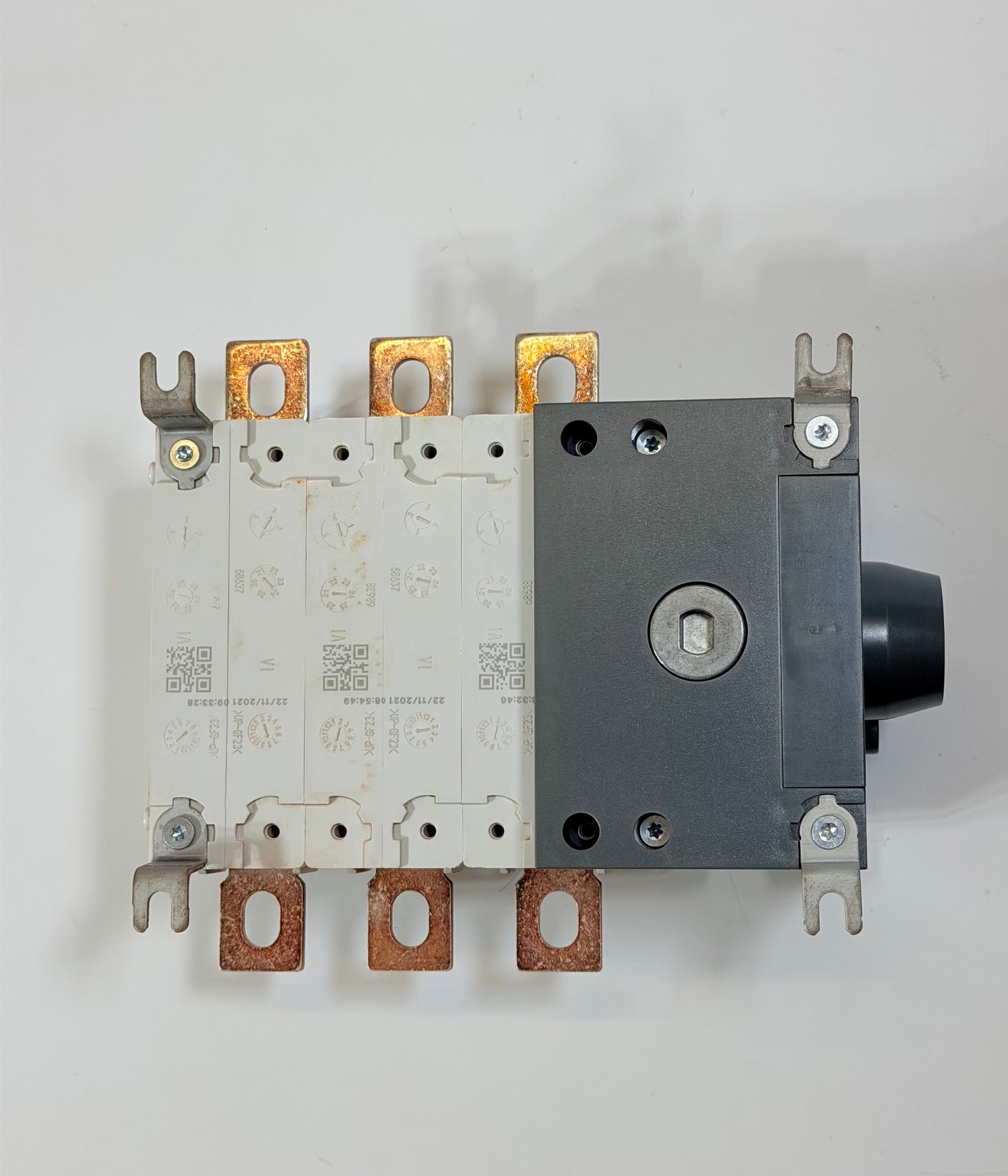

ABB OT250ES03 3 Pole Switch Disconnector - 1SCA022860R0890
- SKU
- P-AB-A-8437
$325.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 4.0 kg
Specifications
| Manufacturer | ABB |
|---|---|
| Product type | Electrical |
| SKU | P-AB-A-8437 |
| Weight | 4.0 kg |
Description

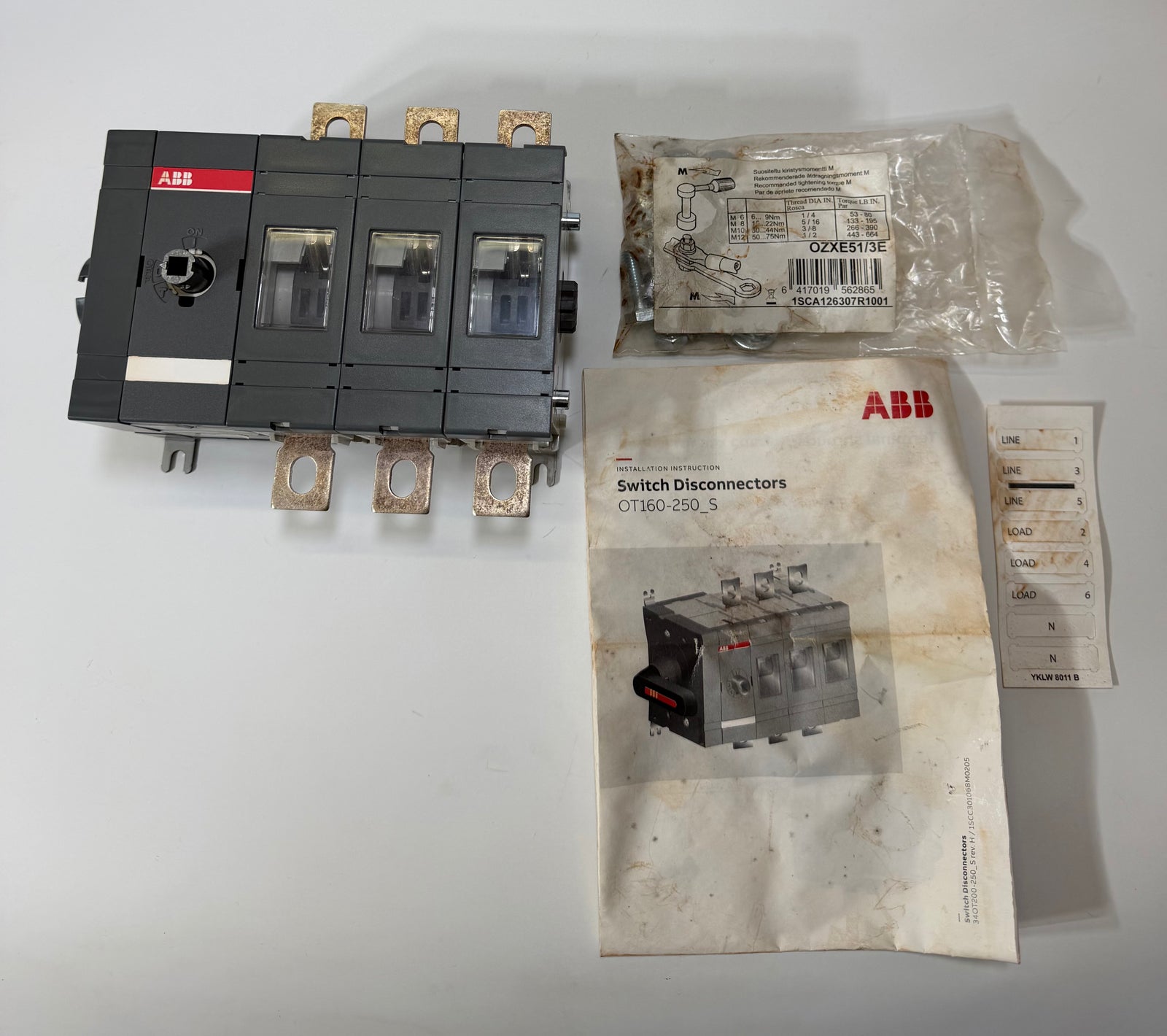

3-pole, side operated, base mounted switch-disconnector, handle and shaft are not included, terminal bolt kit included.
| Product Type | Base Mount Switch Disconnector |
| Brand | ABB |
| Degree of Pollution | IP3 |
| Degree of Protection | IP65 |
| Depth | 82 mm |
| Electrical Connection | Bolt |
| Height | 150 mm |
| Mode of Operation | Side |
| Mounting Type | Base |
| NEMA Rating | NEMA 1 |
| Number of Poles | 3 |
| Operating Mechanism | Left, Side |
| Operation Position | Side |
| Power Loss | 6.5 W |
| Rated Current | 250 A |
| Rated Impulse Withstand Voltage | 12 kV |
| Rated Insulation Voltage | 1000 V |
| Rated Power | 250 kW |
| Rated Short Time Withstand Current | 8 kA |
| Rated Voltage | 1000 VAC |
| Size | 181.5 mm W x 150 mm H x 82 mm D |
| Standards and Approvals | IEC 60947-3 |
| Suitable For Use With | Distribution Board Installation |
| Terminal Type | Lug |
| Width | 181.5 mm |
