ABB

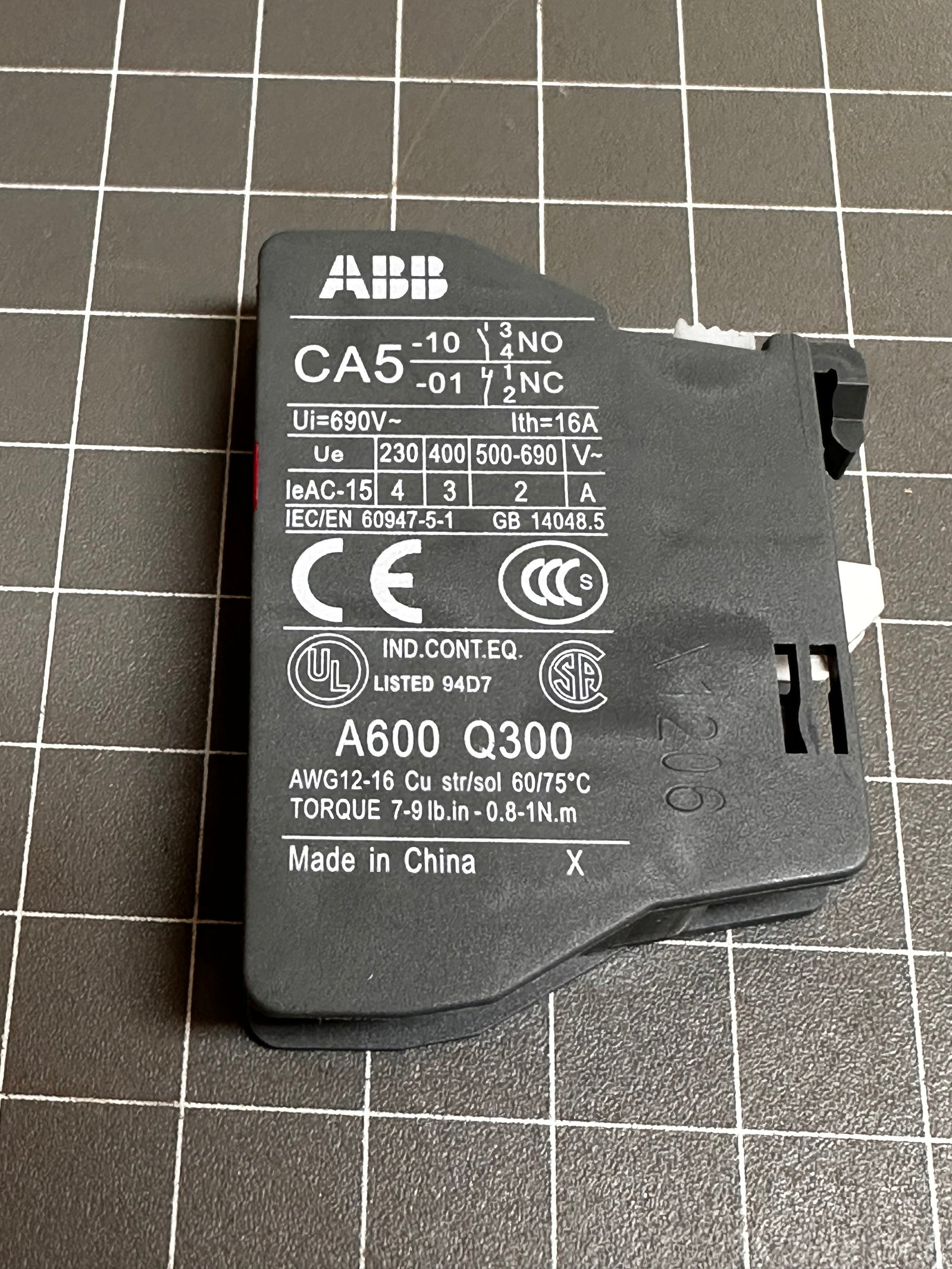

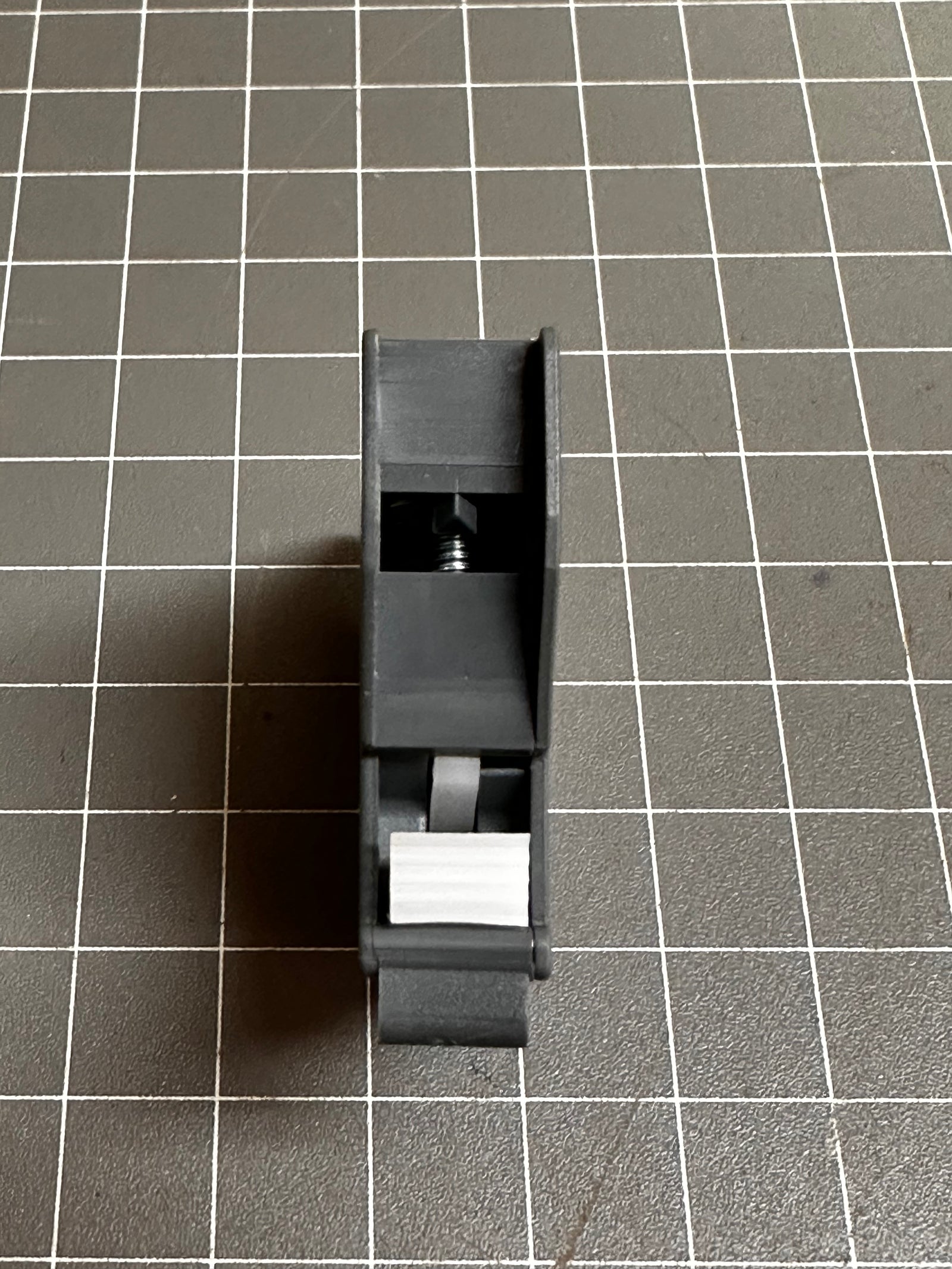

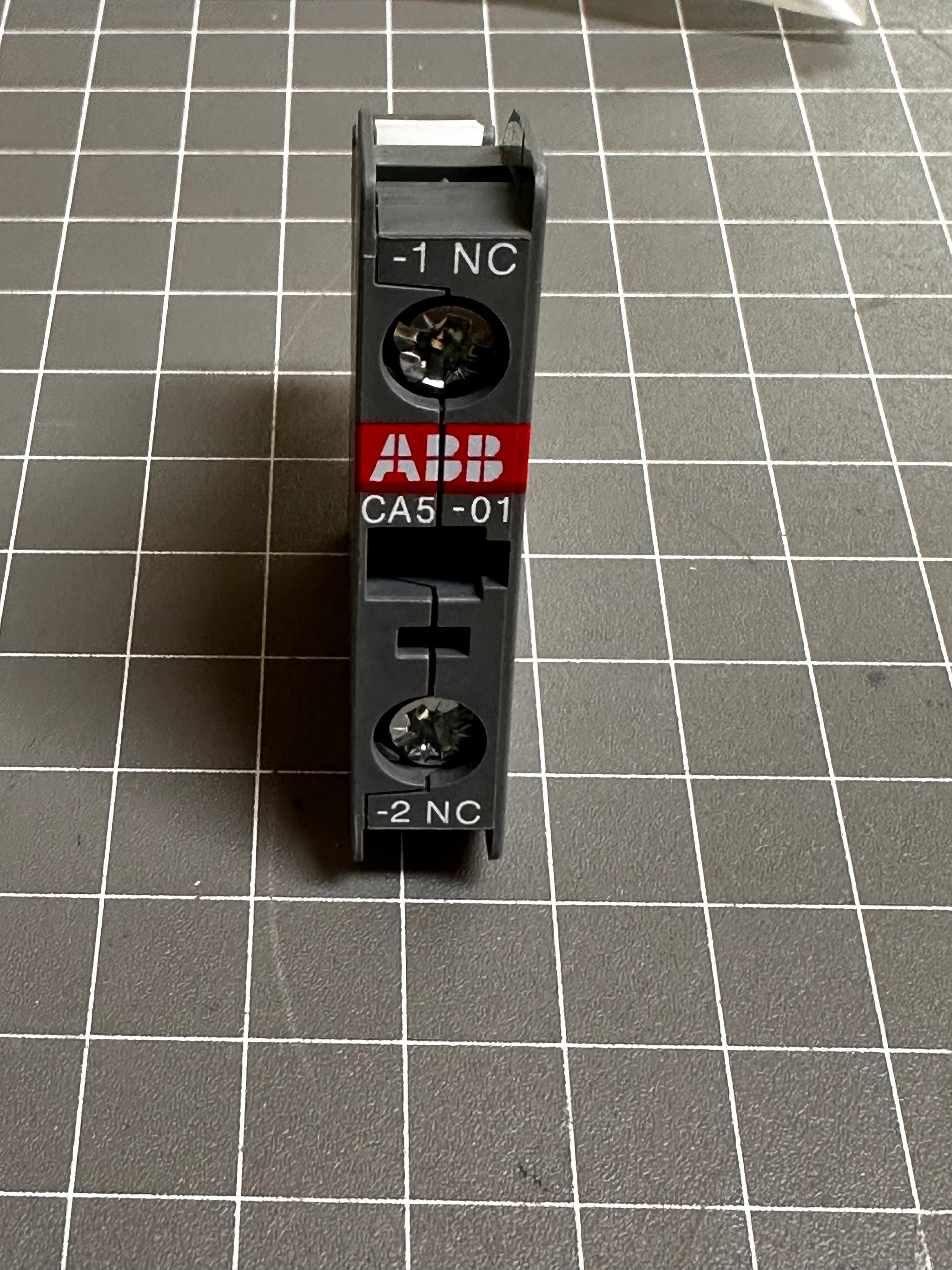

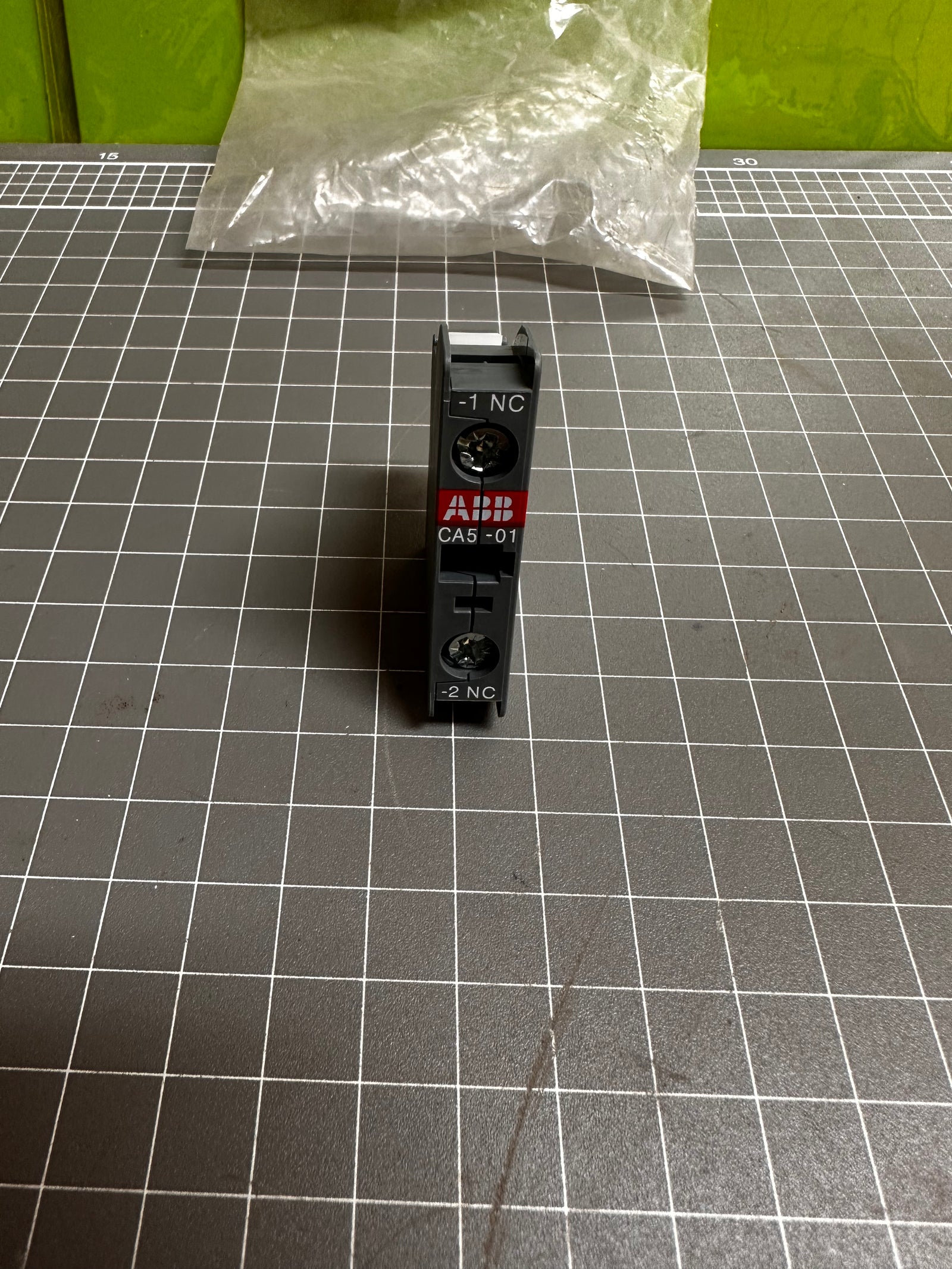

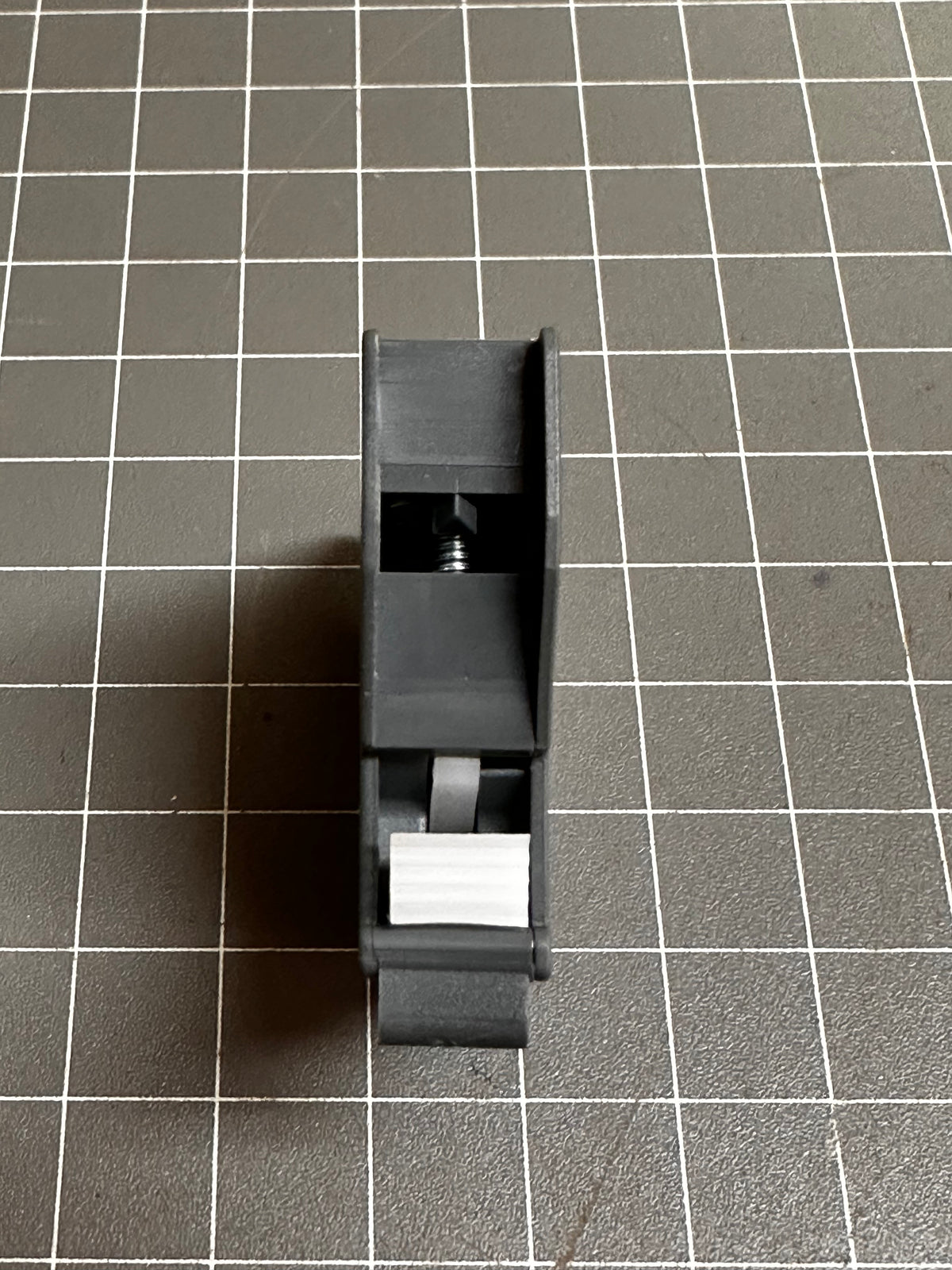

ABB CA5-01 Front-Mount Auxiliary Contact Block - 1NC
- SKU
- P-AB-A-2423
$5.00
Price includes GST.
Sold out
Warehouse pickup available
This one has sold, but we regularly land similar stock and can often source an equivalent.
Request this part or an equivalent- Weight
- 0.1 kg
Specifications
| Manufacturer | ABB |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-AB-A-2423 |
| Weight | 0.1 kg |
Description
-
- Maximum Electrical Switching Frequency:
- 1200 cycles per hour
-
- Maximum Mechanical Switching Frequency:
- 3600 cycles per hour
-
- Mechanical Durability:
- 10 million
3 million
-
- Minimum Switching Capacity:
- A9 ... A75 17 / 5 VLT4K
A95 ... A110 24 / 50 VLT4K
-
- Mounting Position:
- Front face
-
- Mounting Type:
- Front mounting
-
- Number of Auxiliary Contacts NC:
- 1
-
- Number of Auxiliary Contacts NO:
- 0
-
- Power Loss:
- at Rated Operating Conditions per Pole 0.1 W
-
- Rated Insulation Voltage (Ui):
- acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V
acc. to UL/CSA 600 V
-
- Rated Operational Current AC-15 (Ie):
- (500 V) 2 A
(690 V) 2 A
(24 / 127 V) 6 A
(220 / 240 V) 4 A
(380 / 400 V) 3 A
-
- Rated Operational Current DC-13 (Ie):
- (24 V) 6 / 144 A
(48 V) 2.8 / 134 A
(72 V) 1 / 72 A
(125 V) 0.55 / 69 A
(250 V) 0.3 / 75 A
-
- Rated Operational Voltage:
- Auxiliary Circuit 690 V
-
- Rated Short-time Withstand Current Low Voltage (Icw):
- for 0.1 s 140 A
for 1 s 100 A
