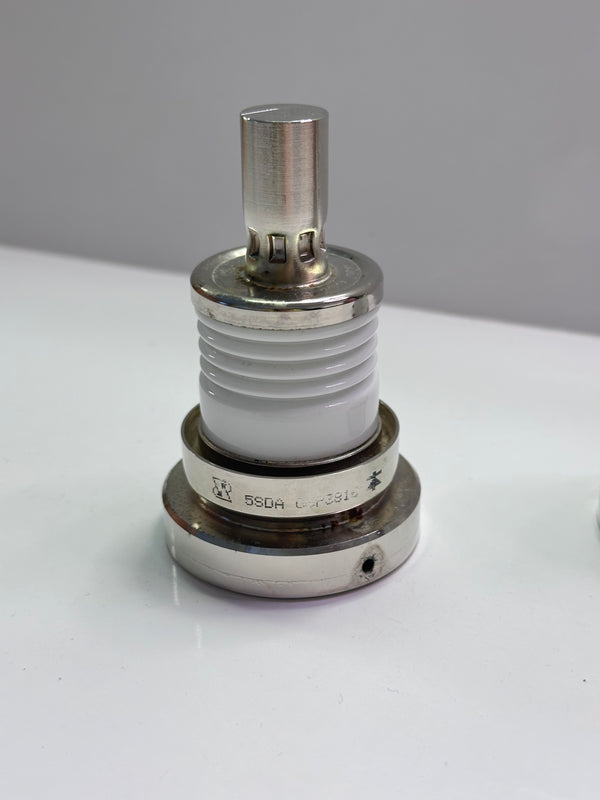

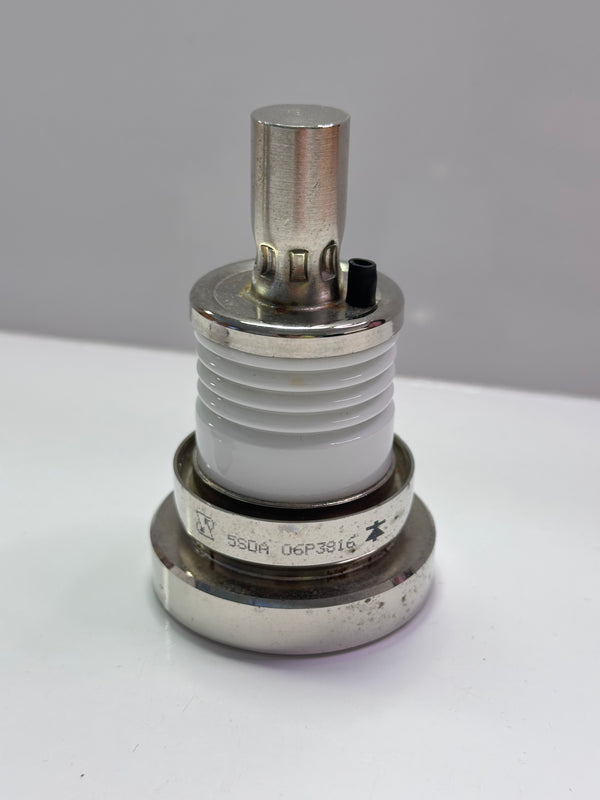

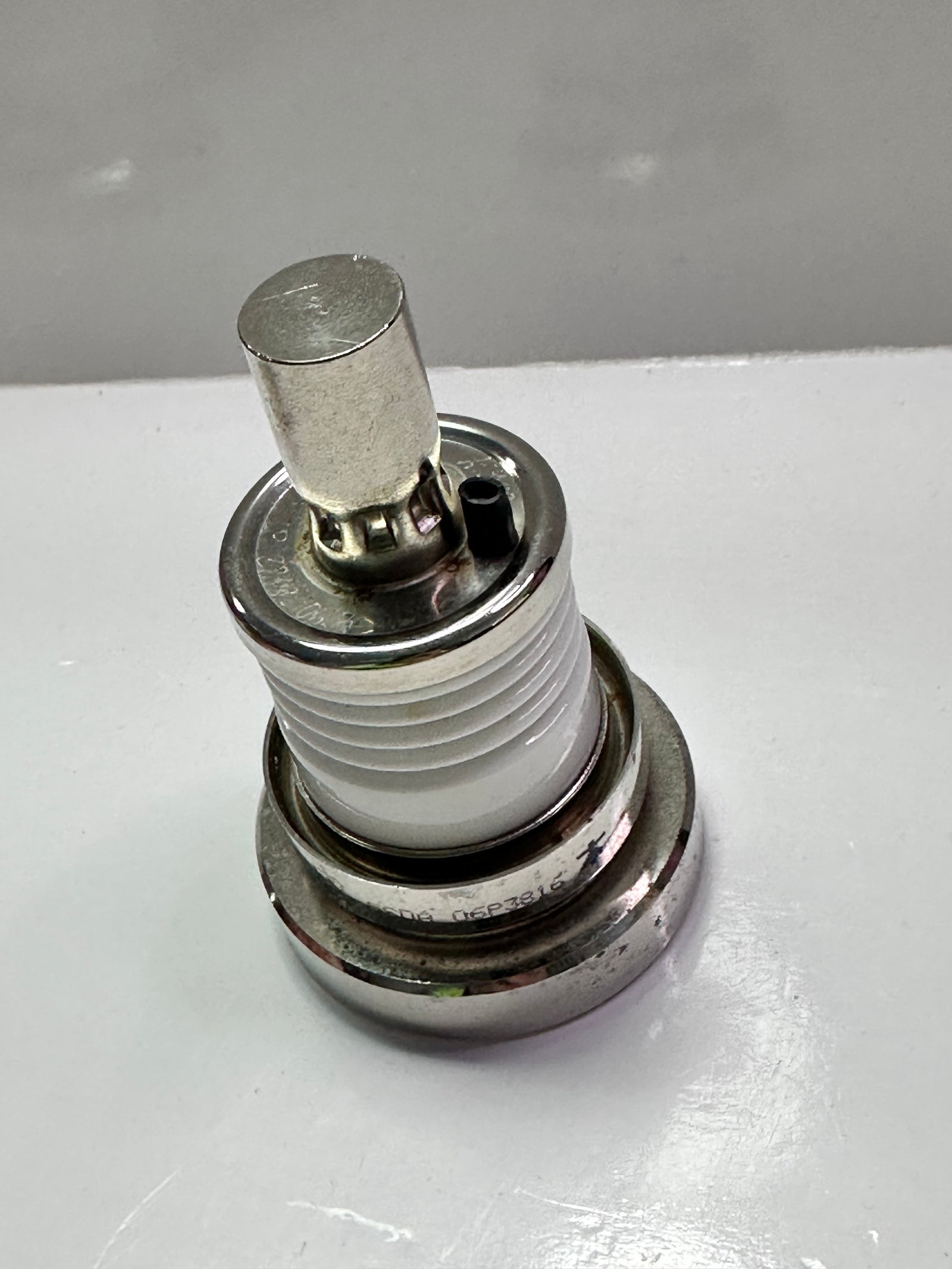

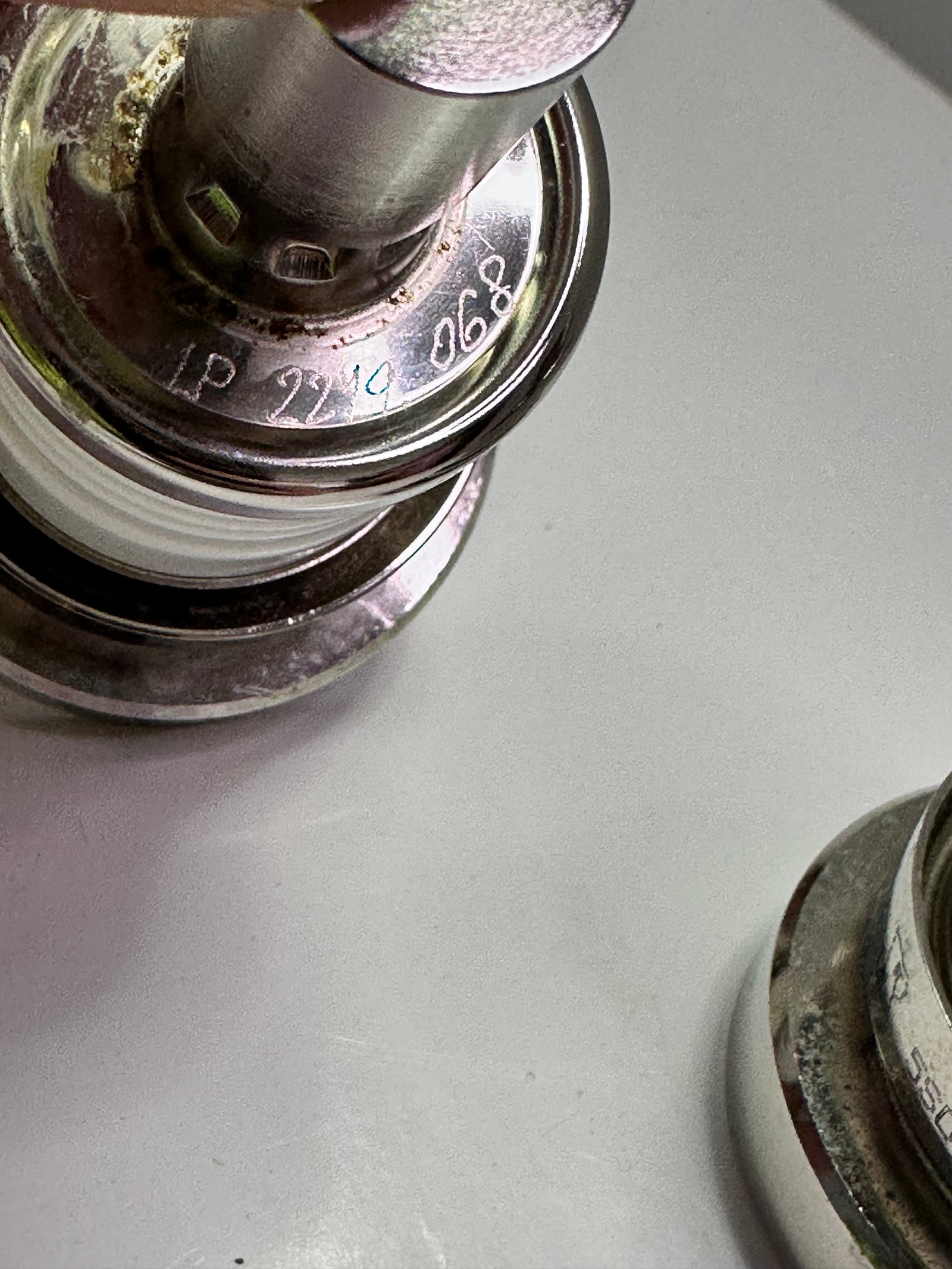

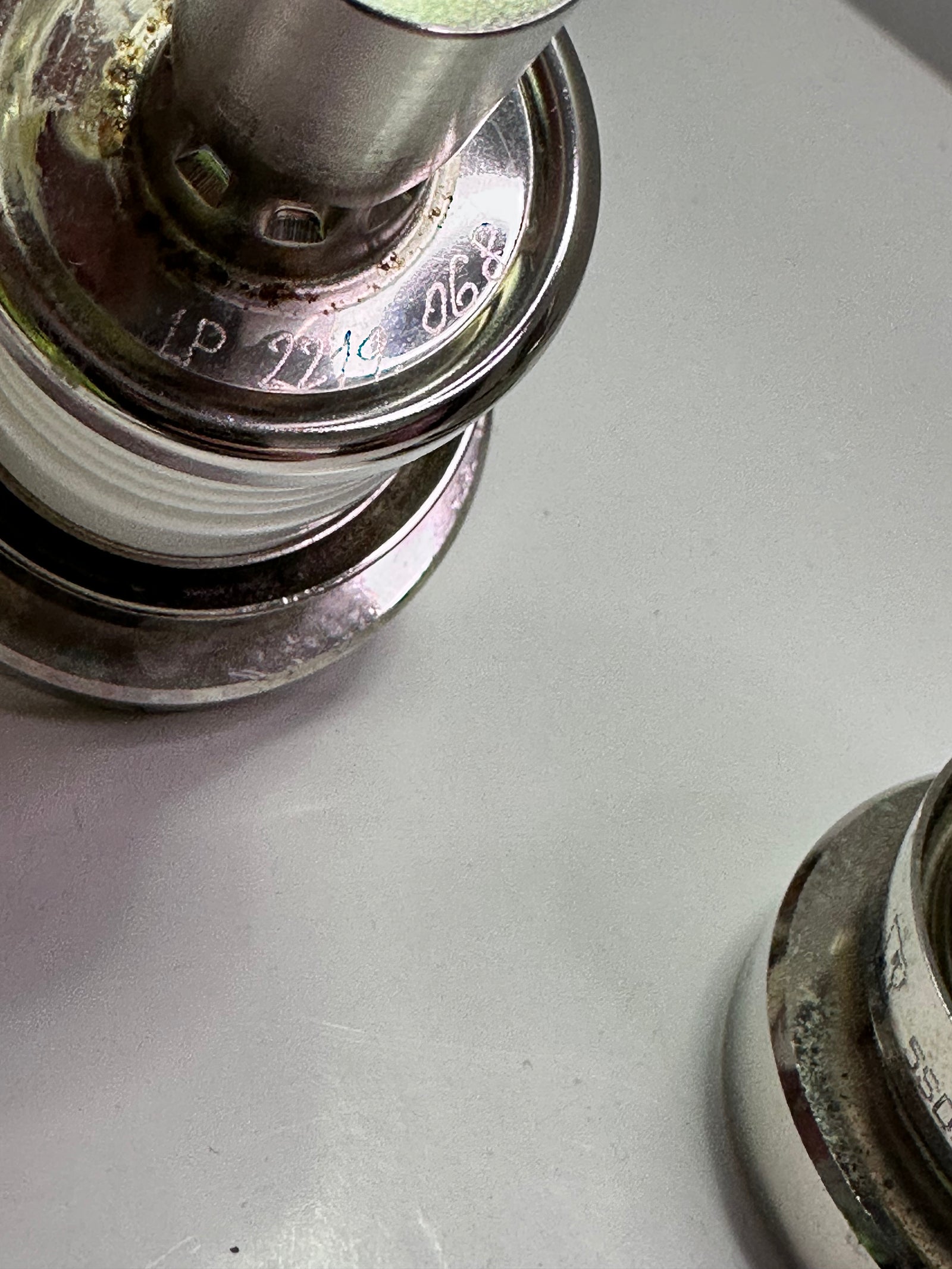

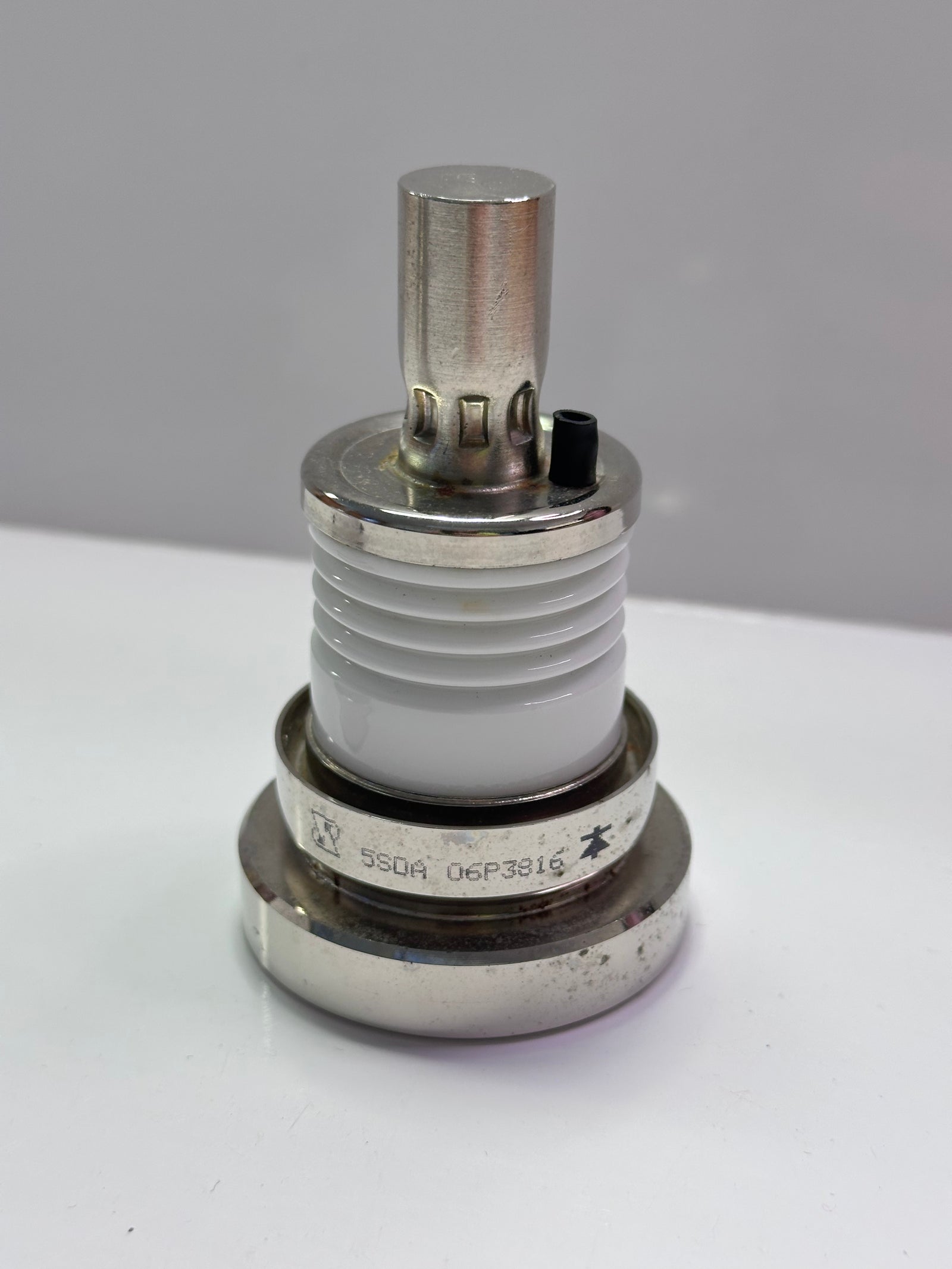

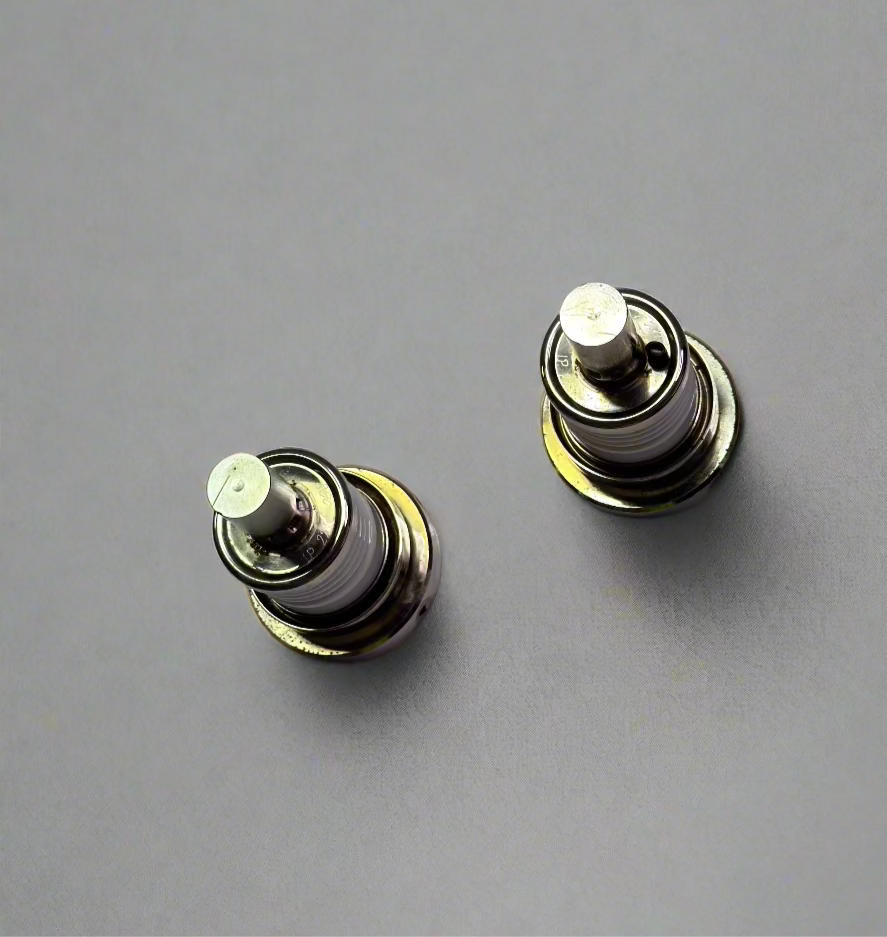

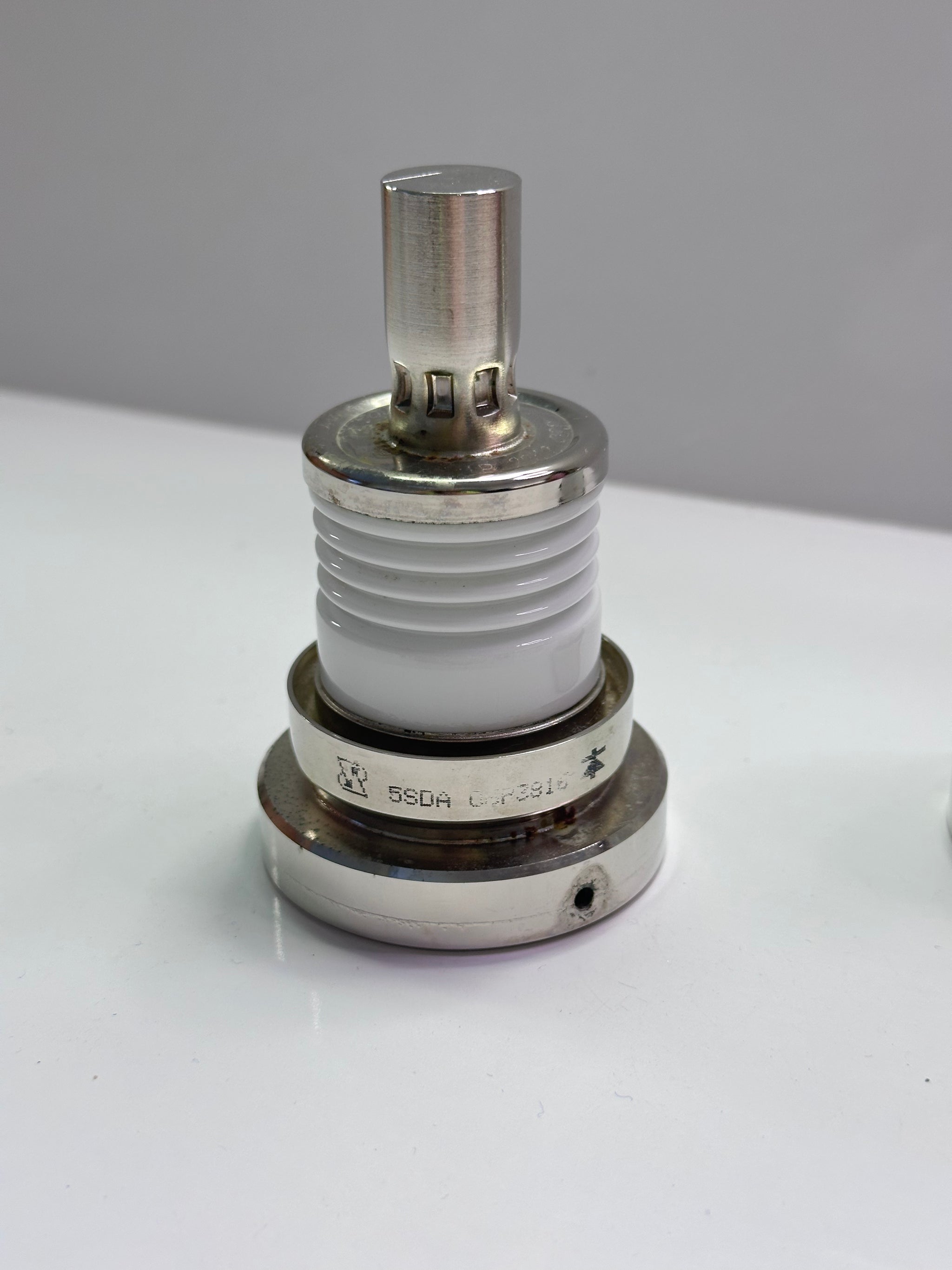

ABB Type Designation:
DSA403-38G (F) Flat-base
Maximum allowable average forward current (Case temperature) IF(AV)M (TC) 600 A (85ºC) Max.
repetitive peak reverse blocking voltage VRRM 3200 V
Surge peak forward current IFSM 7600 A
Threshold voltage VF0 1.010 V Forward slope resistance rF 0.720 mΩ
Max. surge avalanche power dissipation (single pulse) PRSM 50 kW
Temperature of p-n junction Tvj max 160 ºC
Thermal resistance, junction to case Rth(j-c) 60 K/kW
Thermal resistance, case to heatsink Rth(c-h) 30 K/kW
Mounting torque Md 3.5 ± 0.3 N·m
