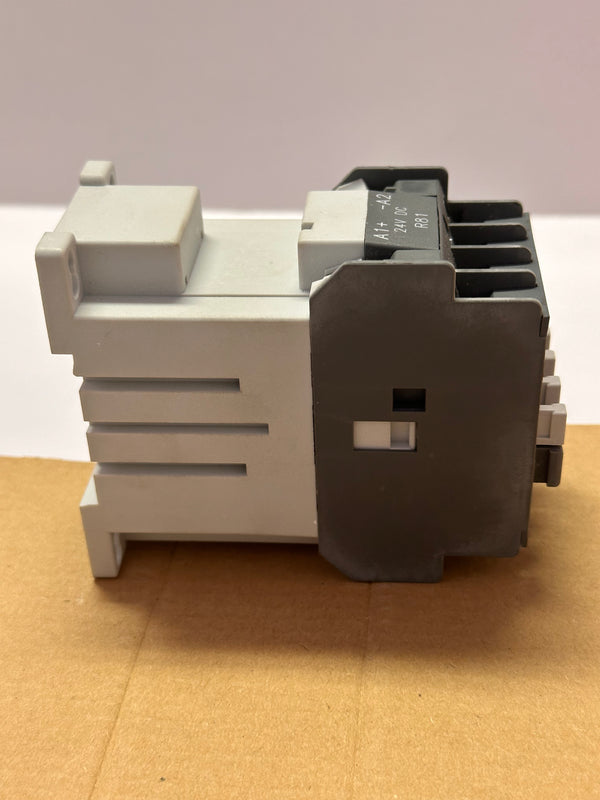

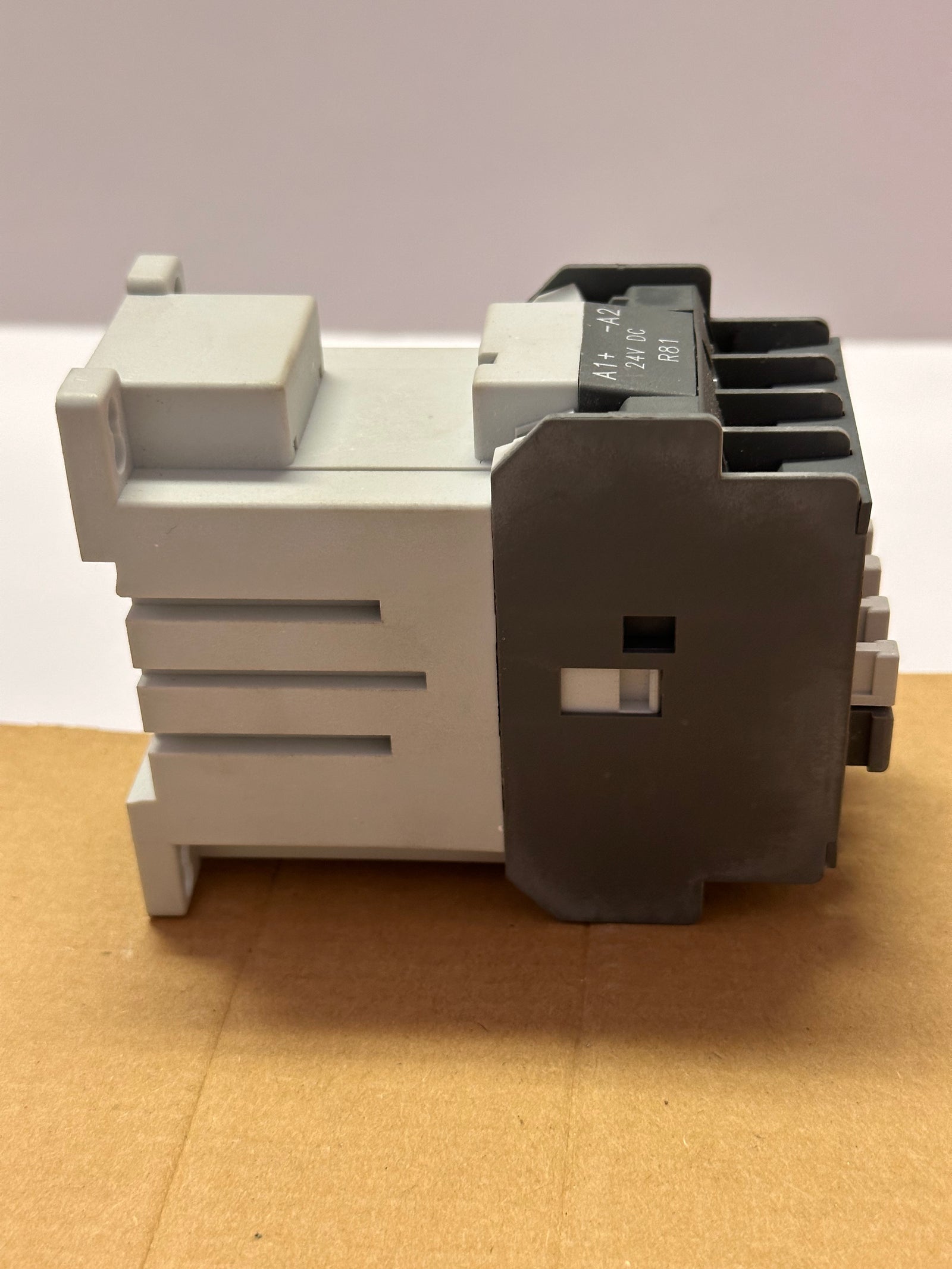

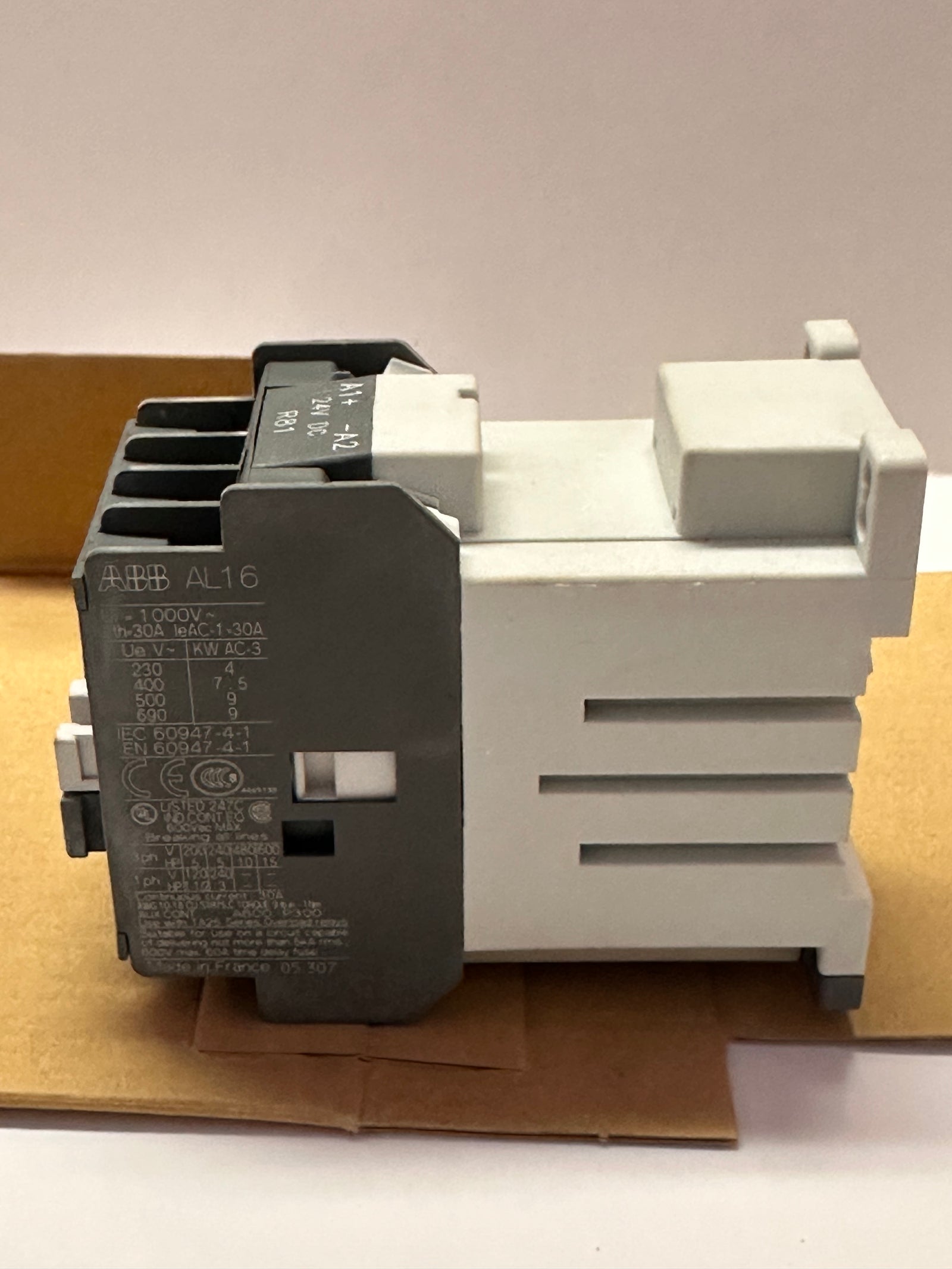

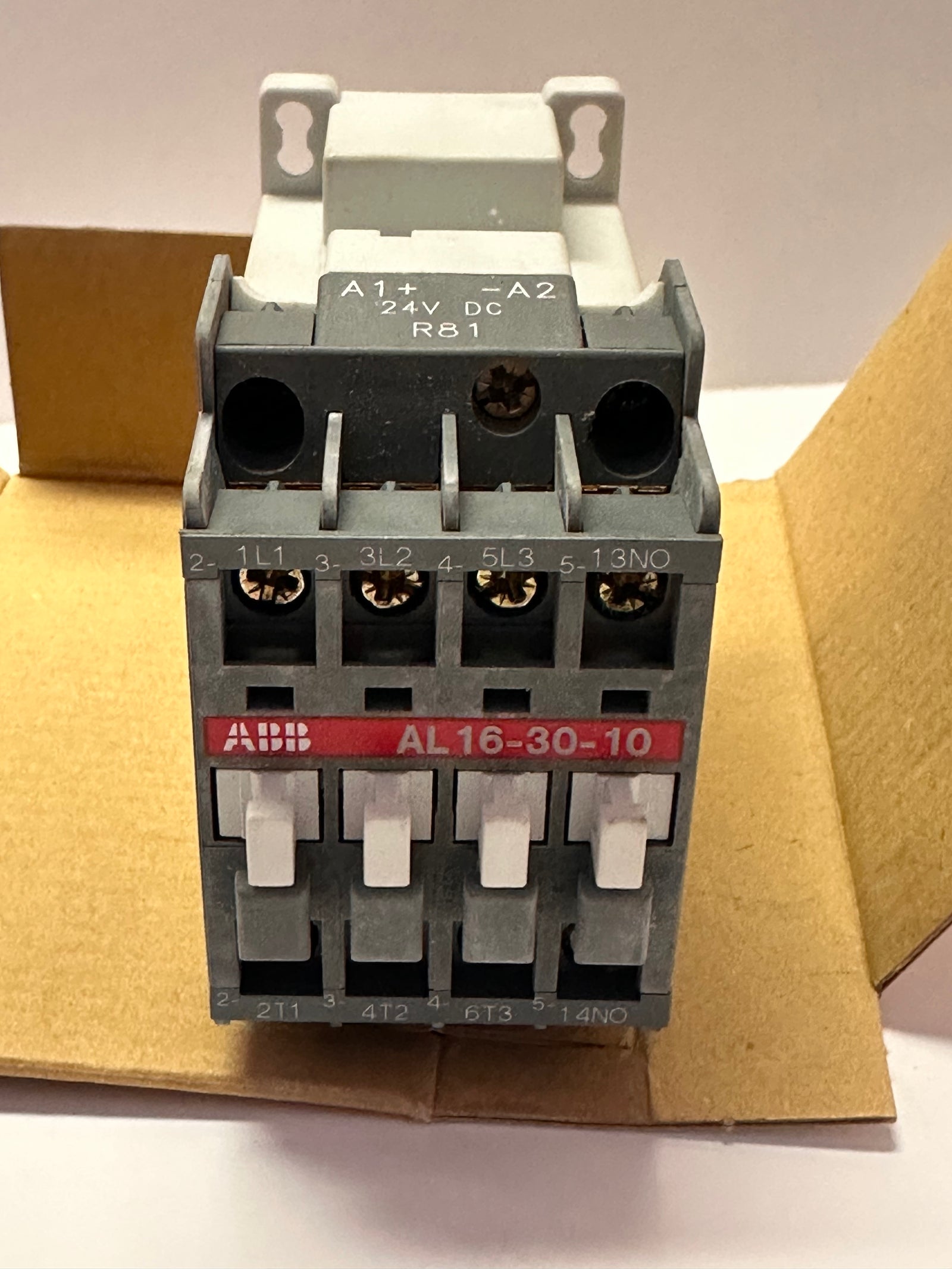

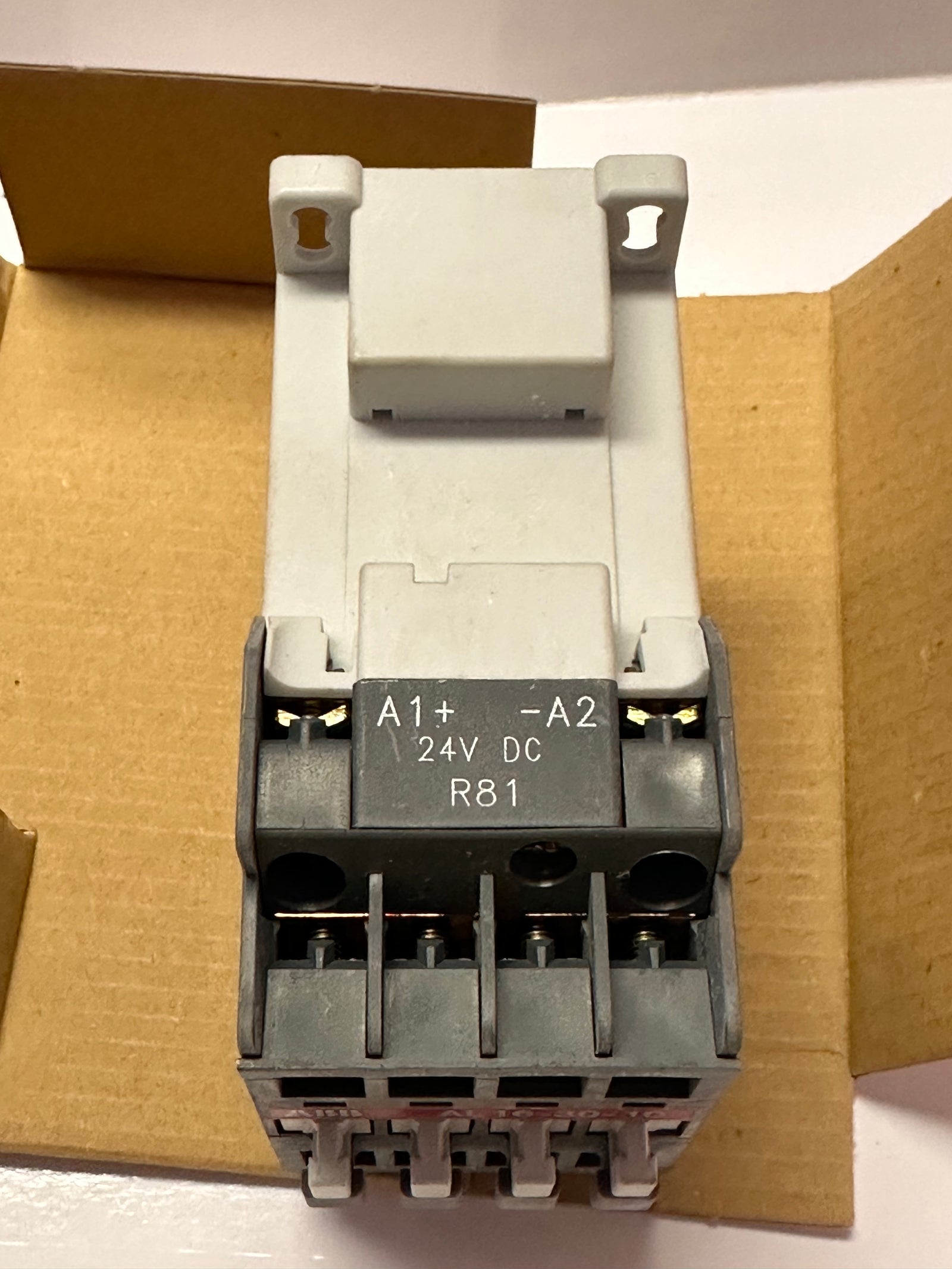

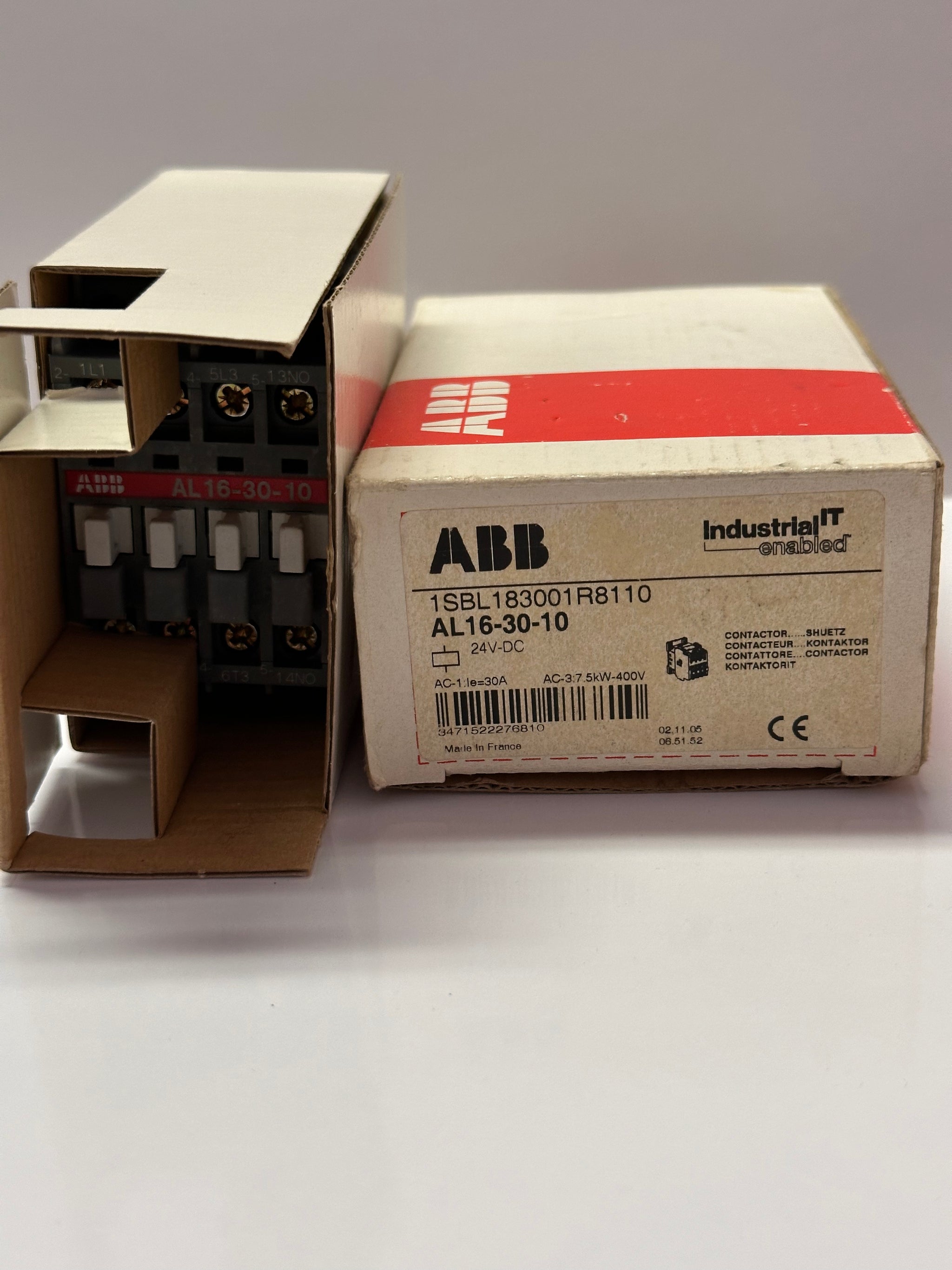

ABB 1SBL183001R8710 DC Contactor (AL16-30-10 125 V DC)

• Number of Main Contacts NO:

  3


• Number of Main Contacts NC:

  0


• Number of Auxiliary Contacts NO:

  1


• Number of Auxiliary Contacts NC:

  0


• Rated Operational Voltage:

  Auxiliary Circuit 690 V
  Main Circuit 690 V


• Rated Frequency (f):

  Auxiliary Circuit 50 / 60 Hz
  Main Circuit 50 / 60 Hz


• Conventional Free-air Thermal Current (I_th):

  acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 30 A
  acc. to IEC 60947-5-1, Θ = 40 °C 16 A


• Rated Operational Current AC-1 (I_e):

  (690 V) 40 °C 30 A
  (690 V) 55 °C 27 A
  (690 V) 70 °C 23 A


• Rated Operational Current AC-3 (I_e):

  (415 V) 55 °C 17 A
  (440 V) 55 °C 16 A
  (500 V) 55 °C 14 A
  (690 V) 55 °C 10 A
  (380 / 400 V) 55 °C 17 A
  (220 / 230 / 240 V) 55 °C 17


• Rated Operational Power AC-3 (P_e):

  (415 V) 9 kW
  (440 V) 9 kW
  (500 V) 9 kW
  (690 V) 9 kW
  (380 / 400 V) 7.5 kW
  (220 / 230 / 240 V) 4 kW


• Rated Breaking Capacity AC-3:

  8 x Ie AC-3


• Rated Making Capacity AC-3:

  10 x Ie AC-3


• Rated Operational Current AC-15 (I_e):

  (500 V) 2 A
  (690 V) 2 A
  (24 / 127 V) 6 A
  (220 / 240 V) 4 A
  (380 / 400 V) 3 A


• Short-Circuit Protective Devices:

  Auxiliary Circuit - gG Type Fuses 10 A
  gG Type Fuses 32 A


• Rated Short-time Withstand Current Low Voltage (I_cw):

  at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 140 A
  at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 30 A
  at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 60 A
  at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 300 A
  at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 80 A
  for 0.1 s 140 A
  for 1 s 100 A


• Maximum Breaking Capacity:

  cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 250 A
  cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 100 A


• Maximum Electrical Switching Frequency:

  (AC-1) 600 cycles per hour
  (AC-2 / AC-4) 300 cycles per hour
  (AC-3) 1200 cycles per hour


• Rated Operational Current DC-13 (I_e):

  (24 V) 6 / 144 A
  (48 V) 2.8 / 134 A
  (72 V) 2 / 144 W
  (125 V) 1.1 / 138 W
  (250 V) 0.55 / 138 W


• Rated Insulation Voltage (U_i):

  acc. to IEC 60947-4-1 1000 V
  acc. to IEC 60947-5-1 690 V
  acc. to UL/CSA 600 V


• Rated Impulse Withstand Voltage (U_imp):

  8 kV


• Mechanical Durability:

  10 million


• Maximum Mechanical Switching Frequency:

  3600 cycles per hour


• Rated Control Circuit Voltage (U_c):

  DC Operation 125 V


• Coil Consumption:

  Average Holding Value, from Warm State 3 W
  Average Pull-in Value, from Cold State 3 W


• Operate Time:

  Between Coil De-energization and NC Contact Closing 16 ... 27 ms
  Between Coil De-energization and NO Contact Opening 10 ... 17 ms
  Between Coil Energization and NO Contact Closing 50 ... 100 ms

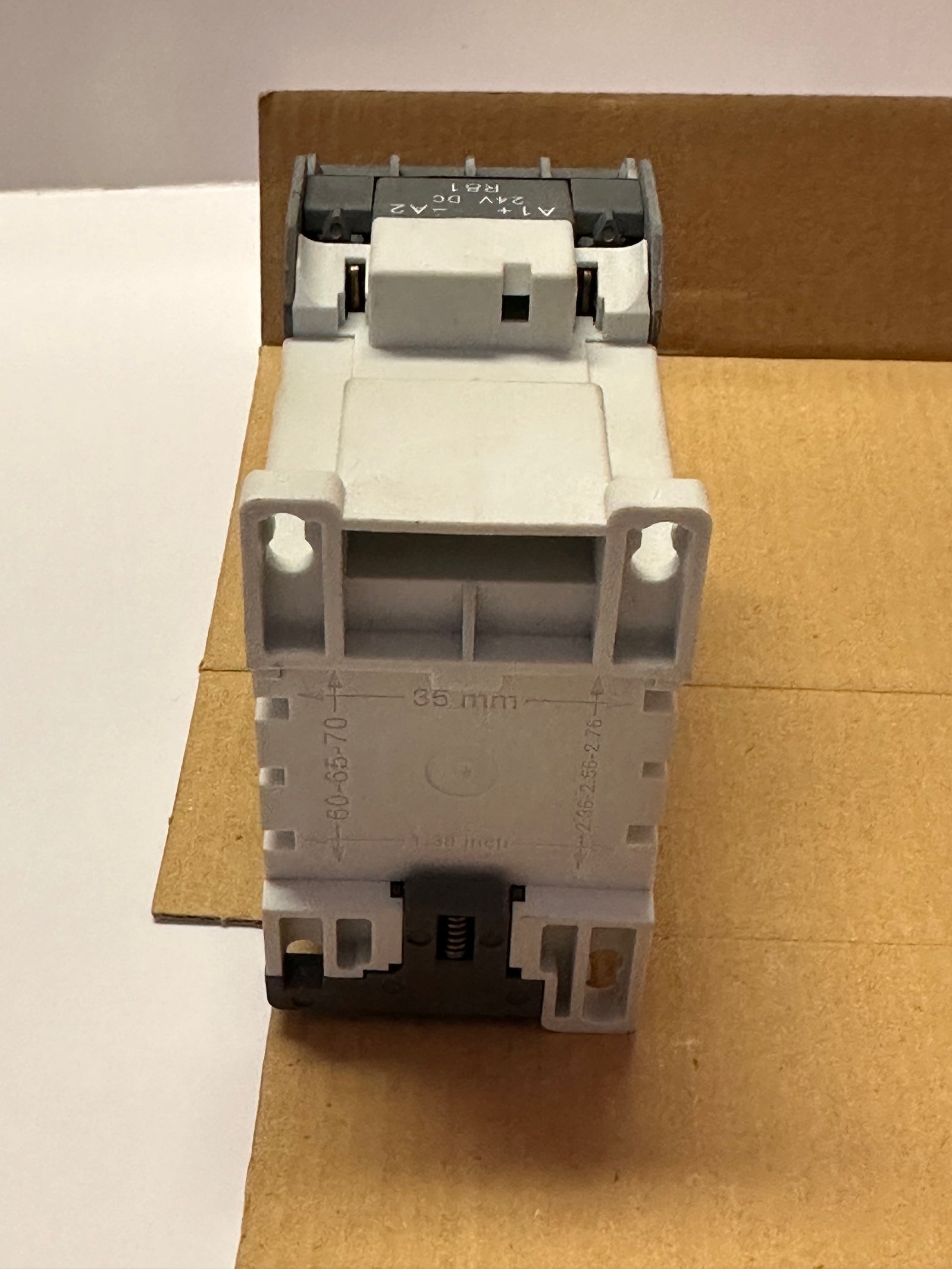

• Mounting on DIN Rail:

  TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
  TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715


• Mounting by Screws (not supplied):

  2 x M4 screws placed diagonally


• Connecting Capacity Main Circuit:

  Flexible with Cable End 0.75 ... 2.5 mm²
  Rigid Cable 1 ... 4 mm²


• Connecting Capacity Auxiliary Circuit:

  Flexible with Cable End 0.75 ... 2.5 mm²
  Rigid Cable 1 ... 4 mm²


• Degree of Protection:

  acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
  acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20
  acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20


• Connecting Terminals (delivered in open position) Main Poles:

  M 3.5 (+,-) pozidriv 2 screw with cable clamp


• Terminal Type:

  Screw Terminals


Technical UL/CSA

• General Use Rating UL/CSA:

  (600 V AC) 30 A


• Horsepower Rating UL/CSA:

  (200 ... 208 V AC) Three Phase 5 hp
  (220 ... 240 V AC) Three Phase 5 hp
  (440 ... 480 V AC) Three Phase 10 hp
  (550 ... 600 V AC) Three Phase 15 hp
