FLUID CONTROL SYSTEMS

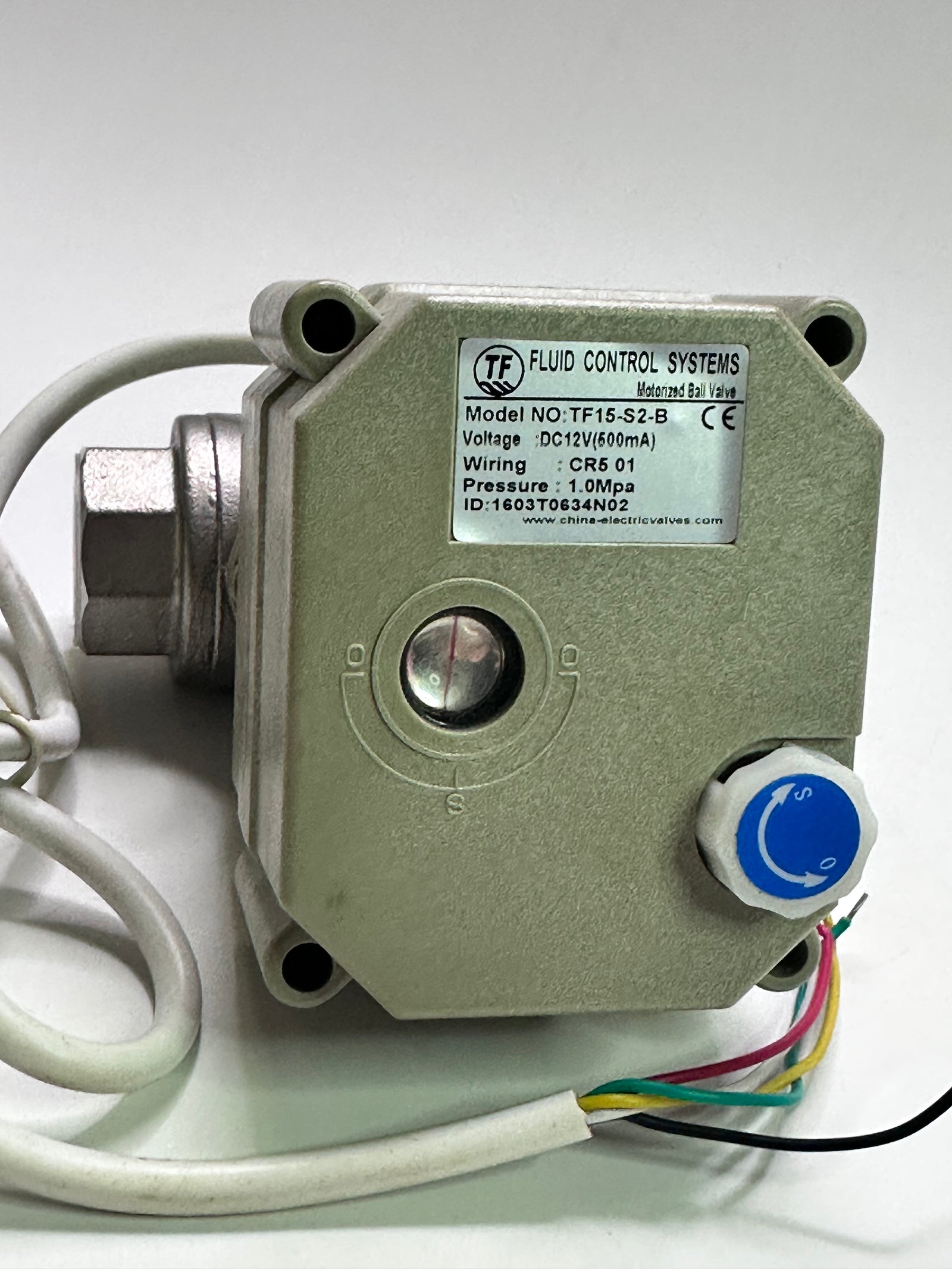

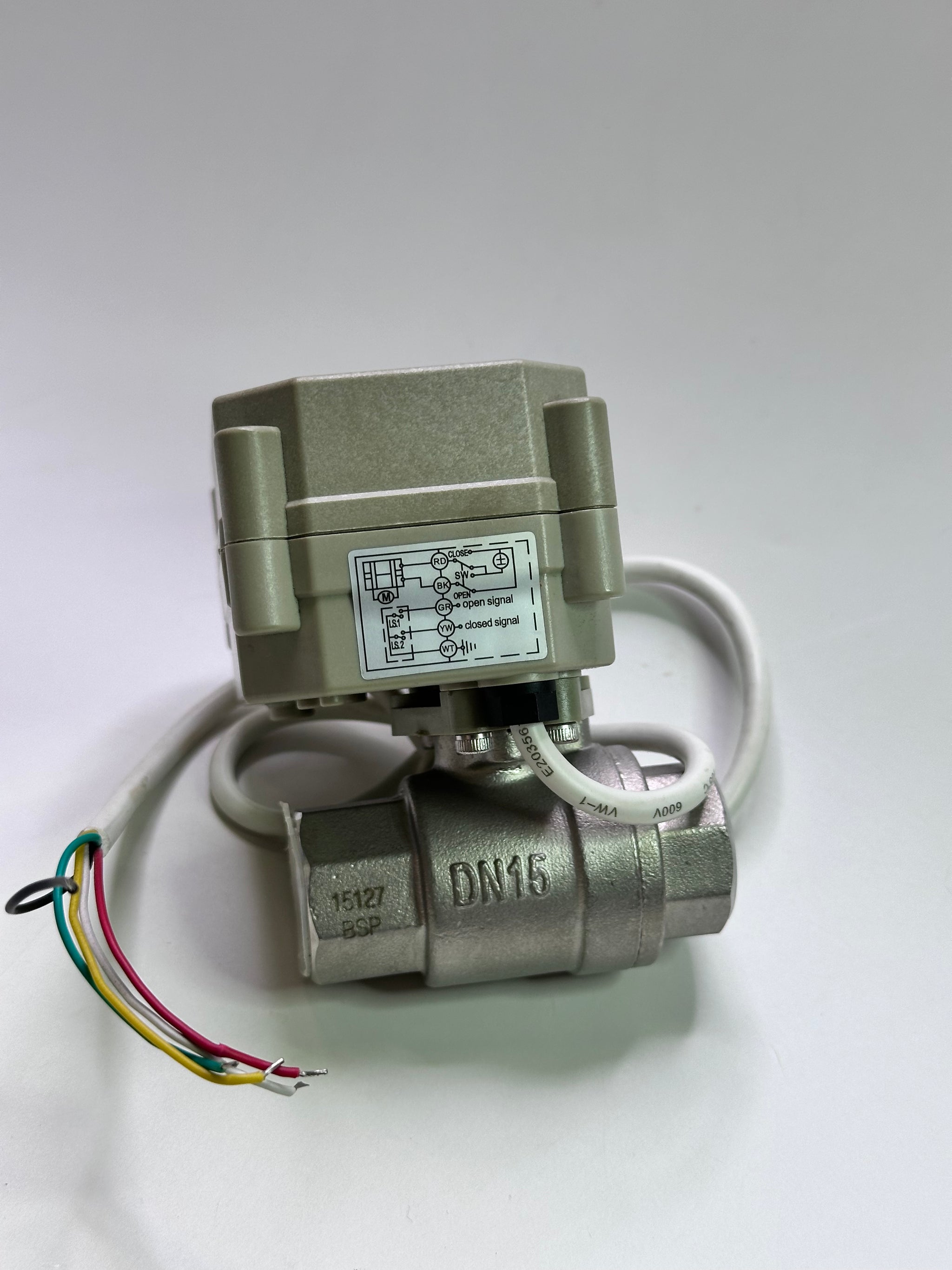

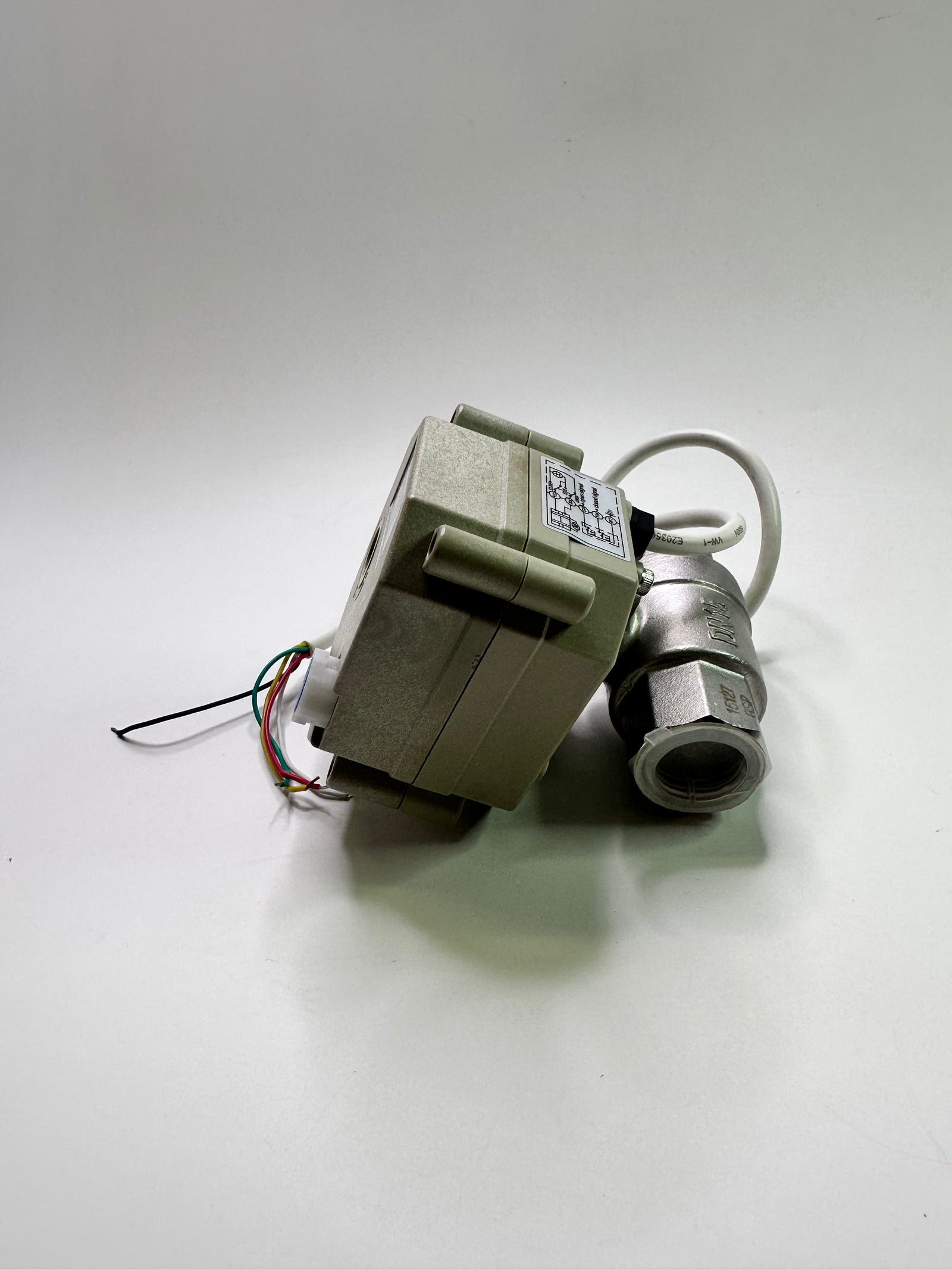

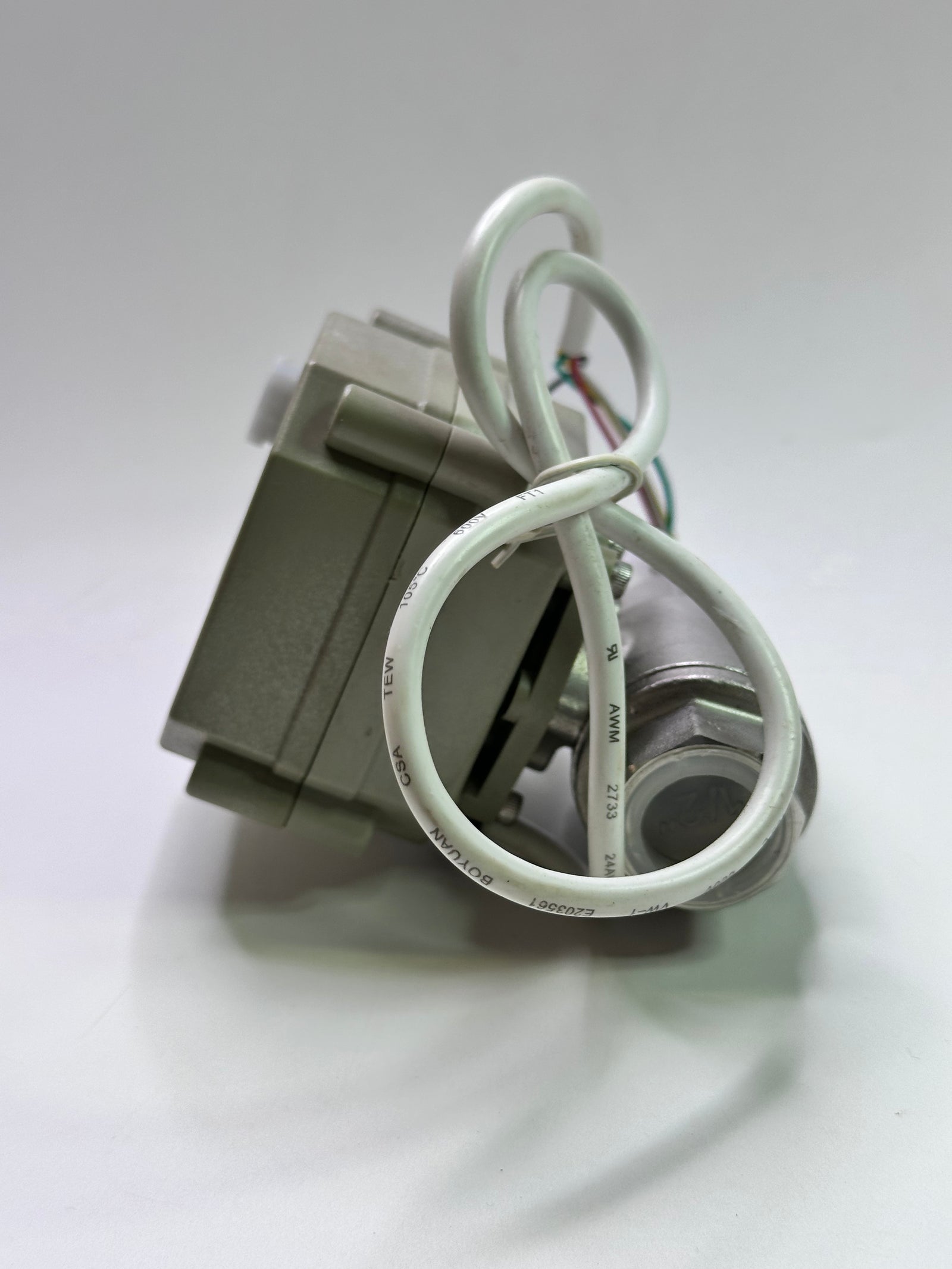

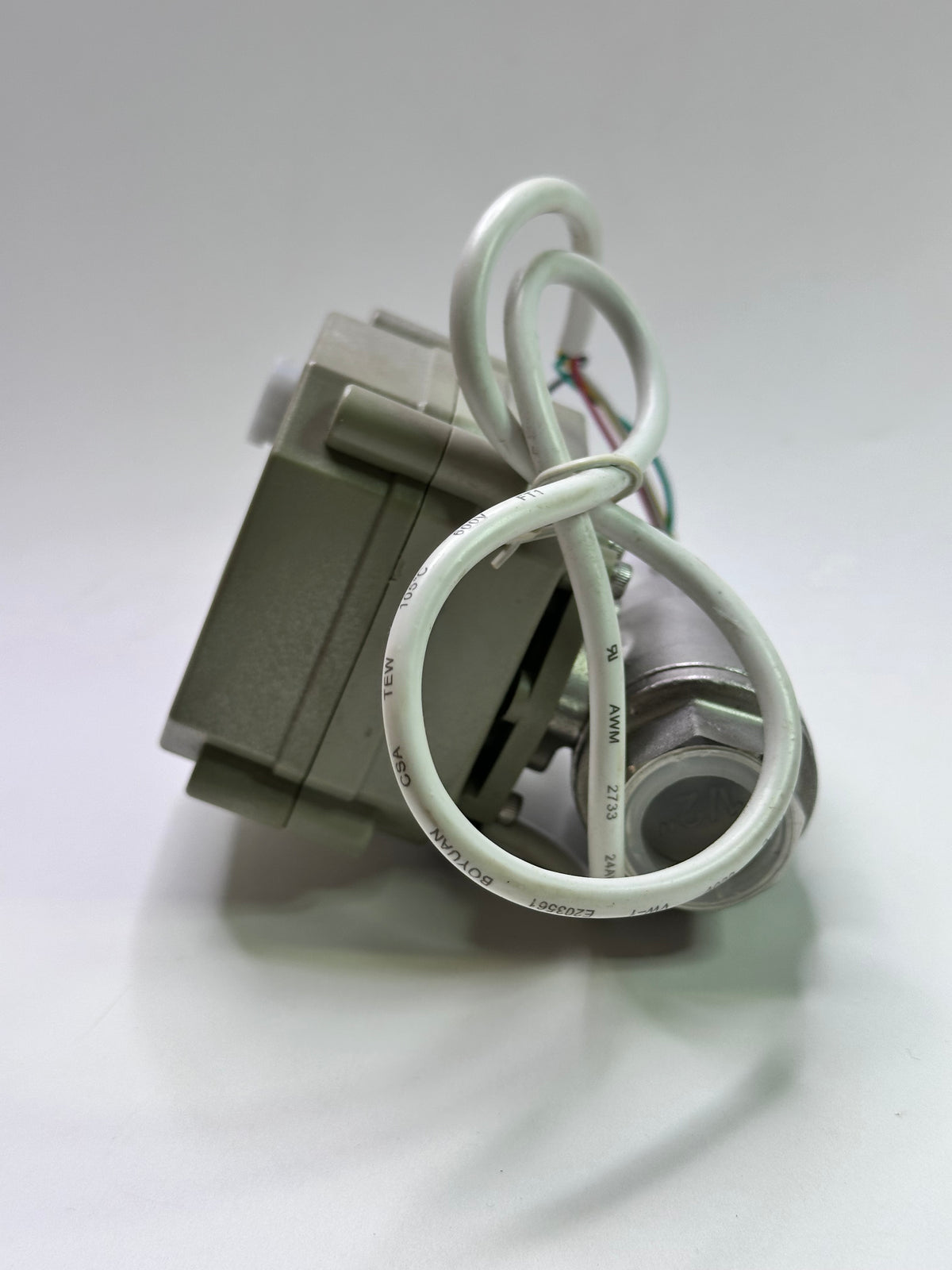

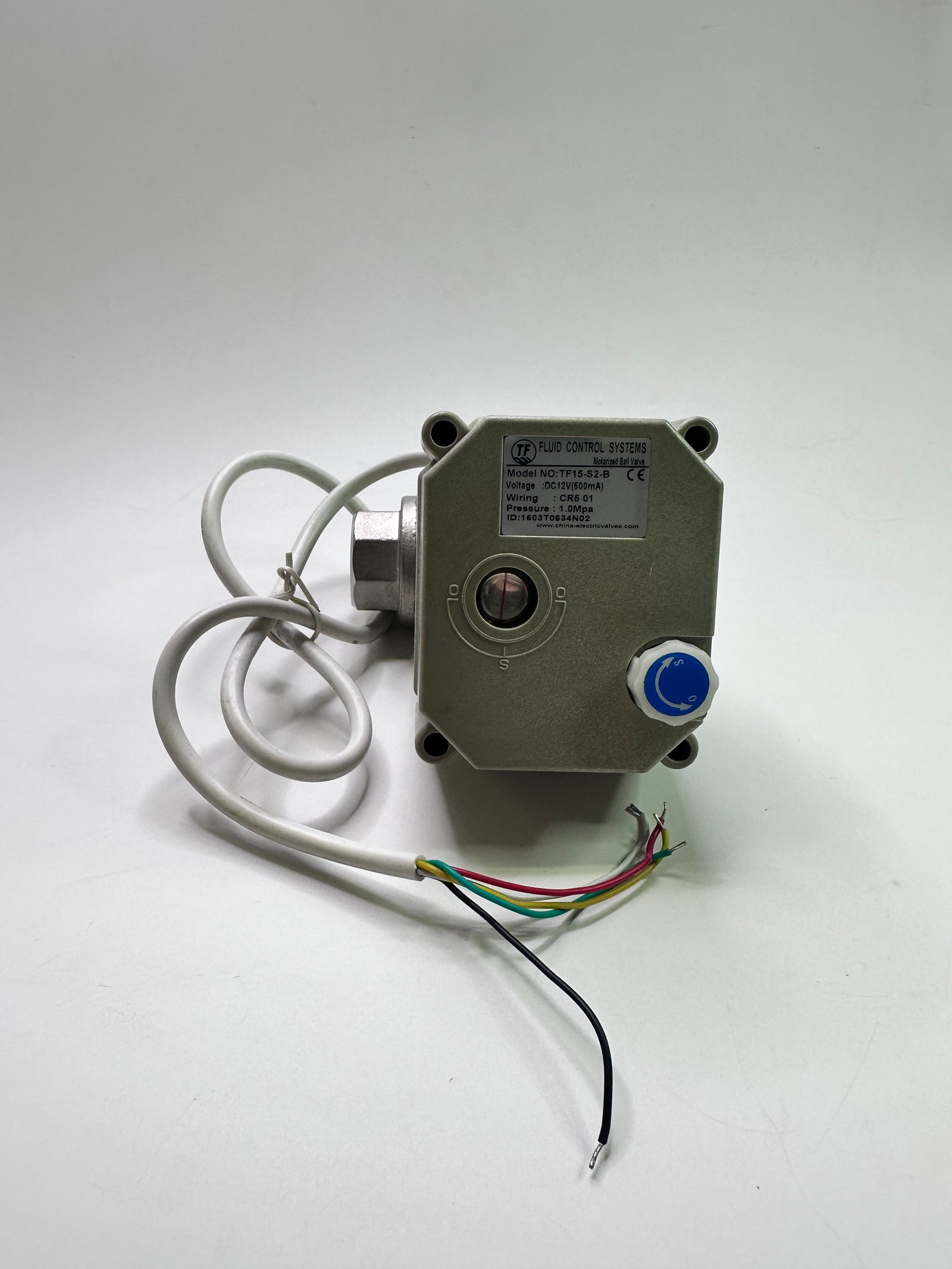

A20-T15-S2-B 2 Way, 1/2" BSP Motorized Ball Valve for Cooling System
- SKU
- P-A--F-7819
$65.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 3.0 kg
Specifications
| Manufacturer | FLUID CONTROL SYSTEMS |
|---|---|
| Product type | Valve |
| SKU | P-A--F-7819 |
| Weight | 3.0 kg |
Description
Maximum working pressure
1.0MPa
Circulation medium
Fluid, air
Working voltage
DC12V
Wiring diagram
CR201 CR202 CR301 CR302 CR303 CR305 CR306 CR501 CR502 CR702 CR701 CR703 CR705 CR706
Working current
≤500mA
Open close time
≤5S
Lifetime
70000times
Valve body material
Brass
Actuator material
PPO
Actuator rotation
90°
Torque force
3N.m
Cable length
0.5M 1.5M
Environment temperature
-15-50℃
Liquid temperature
2-90℃
Manual override
Yes
Open/close indicator
Yes
Protection class
IP67
