FLUID CONTROL SYSTEMS

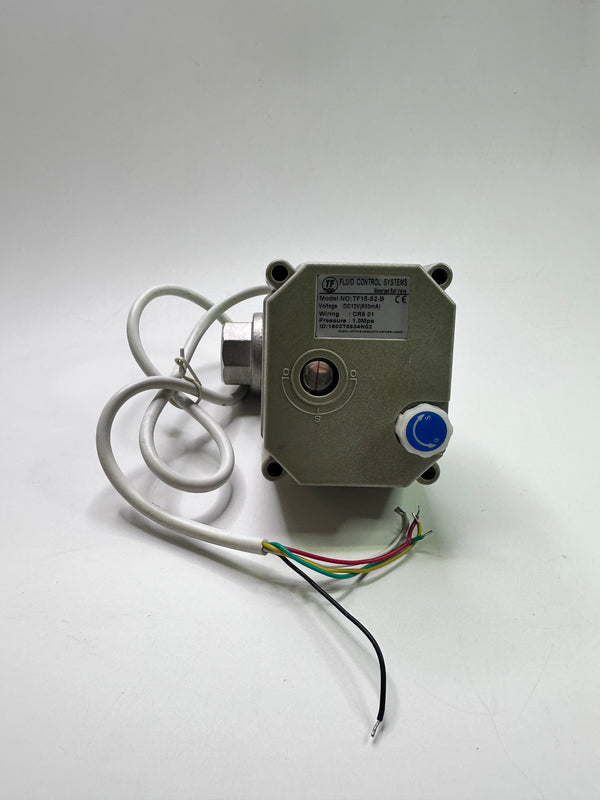

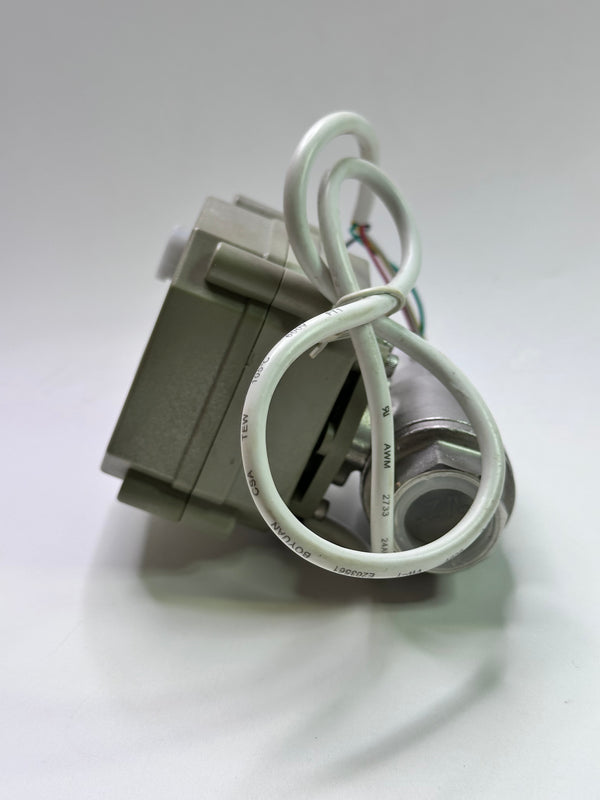

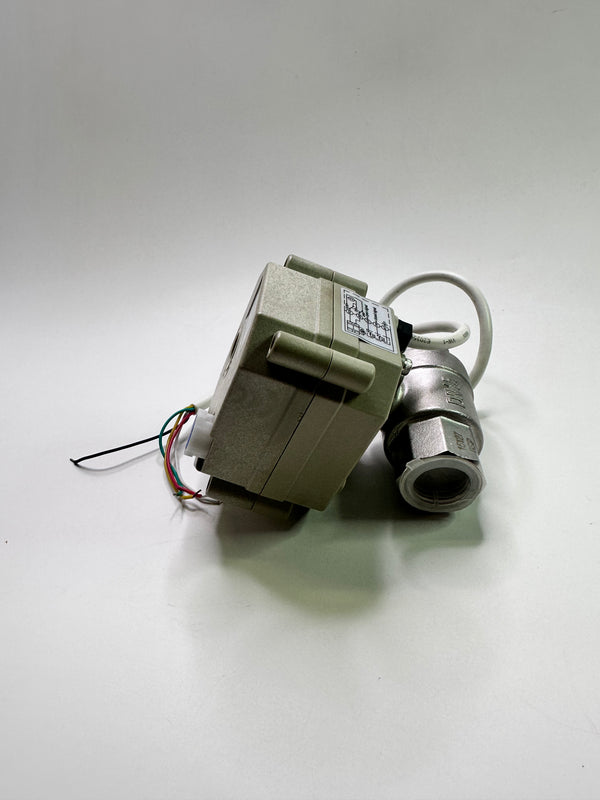

A20-T15-S2-B 12V DC 2-Way Motorised Ball Valve, 1/2" BSP
- SKU
- P-A--F-7819
$65.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 3.0 kg
Specifications
| Manufacturer | FLUID CONTROL SYSTEMS |
|---|---|
| Product type | VALVES |
| SKU | P-A--F-7819 |
| Weight | 3.0 kg |
Description

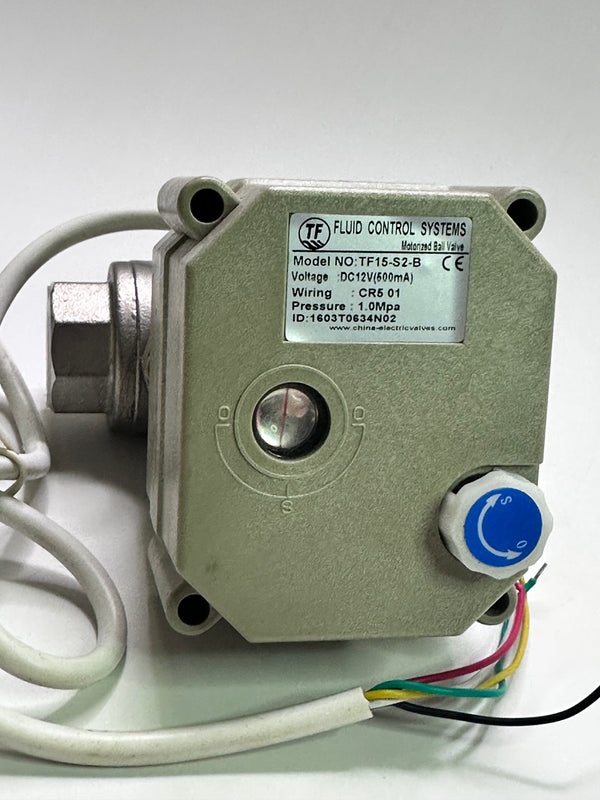

A20-T15-S2-B two-way motorised ball valve for cooling-system applications, 1/2" BSP and 12V DC as recorded in the original listing. Original series/reference terms: A20-T-B SERIES and CR5 01.

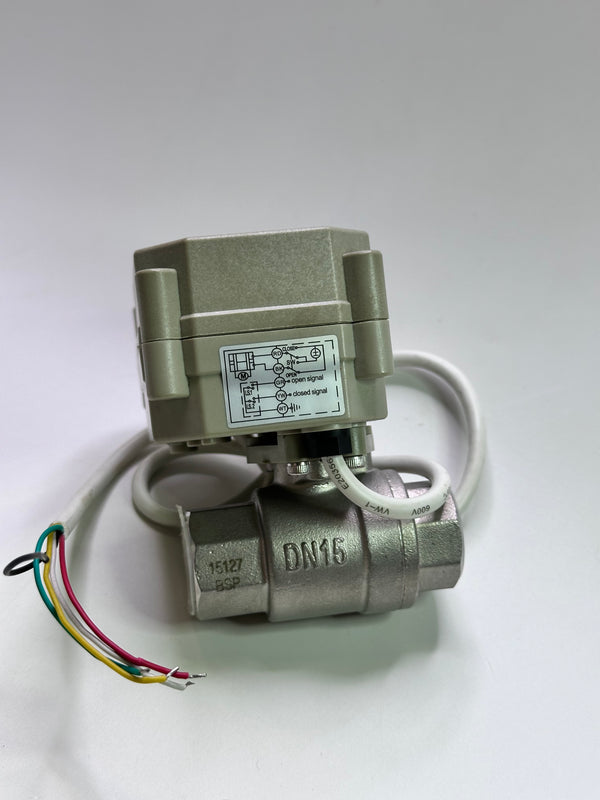

Configuration needs confirmation: the source lists multiple wiring diagrams and both 0.5M and 1.5M cable lengths. CR501 is highlighted in the original wiring list, but the supplied wiring and cable length must be confirmed before ordering.
Original recorded specification table
| Maximum working pressure | 1.0MPa |
|---|---|
| Circulation medium | Fluid, air |
| Working voltage | DC12V |
| Wiring diagram | CR201 CR202 CR301 CR302 CR303 CR305 CR306 CR501 CR502 CR702 CR701 CR703 CR705 CR706 |
| Working current | ≤500mA |
| Open close time | ≤5S |
| Lifetime | 70000times |
| Valve body material | Brass |
| Actuator material | PPO |
| Actuator rotation | 90° |
| Torque force | 3N.m |
| Cable length | 0.5M 1.5M |
| Environment temperature | -15-50℃ |
| Liquid temperature | 2-90℃ |
| Manual override | Yes |
| Open/close indicator | Yes |
| Protection class | IP67 |
The lifetime and IP67 entries above are source specifications, not evidence of remaining service life or current testing. Confirm the exact wiring, cable, medium compatibility and operating limits for the supplied valve. No fail-safe position or potable-water approval is recorded.
