INPRO SEAL

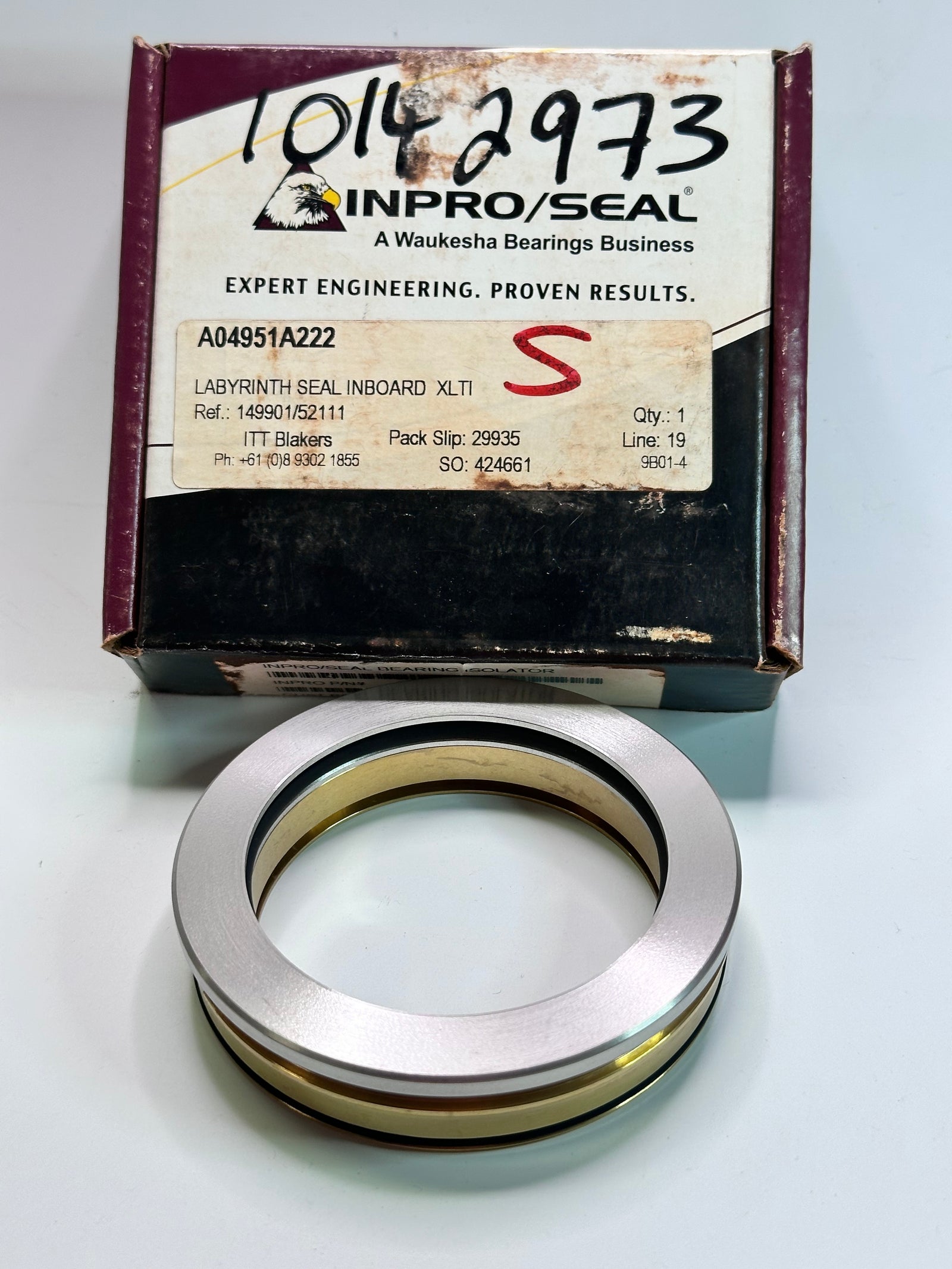

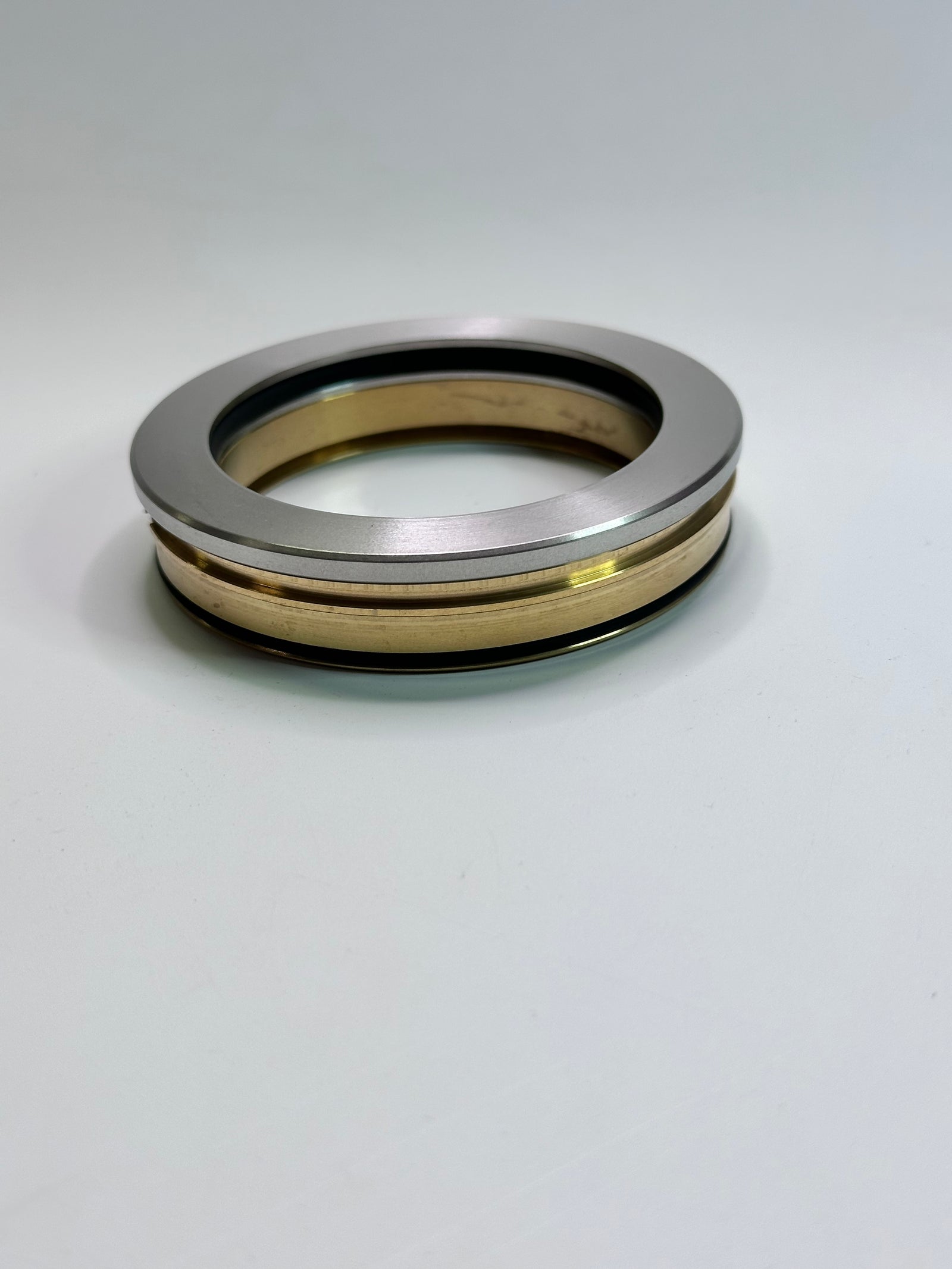

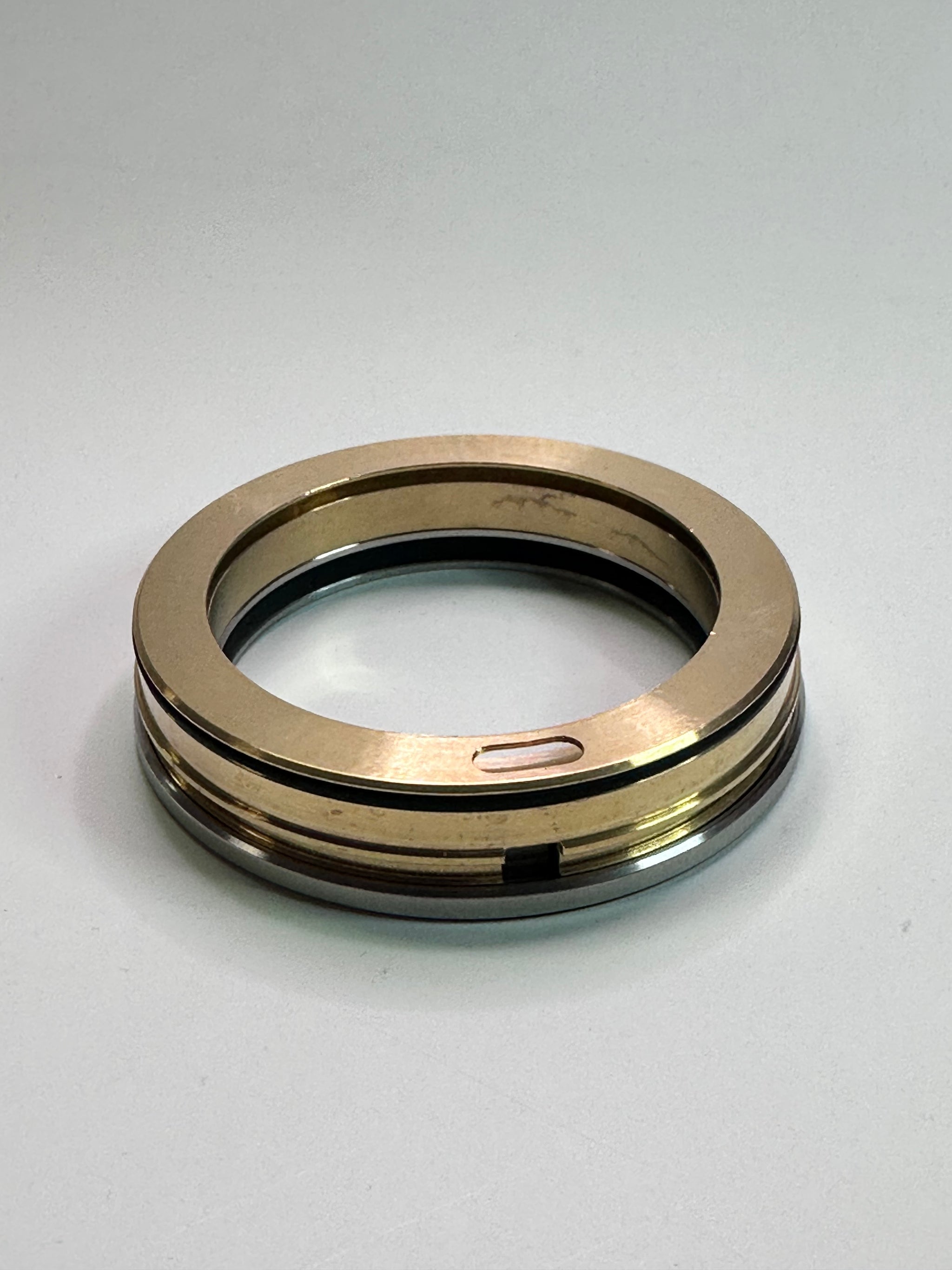

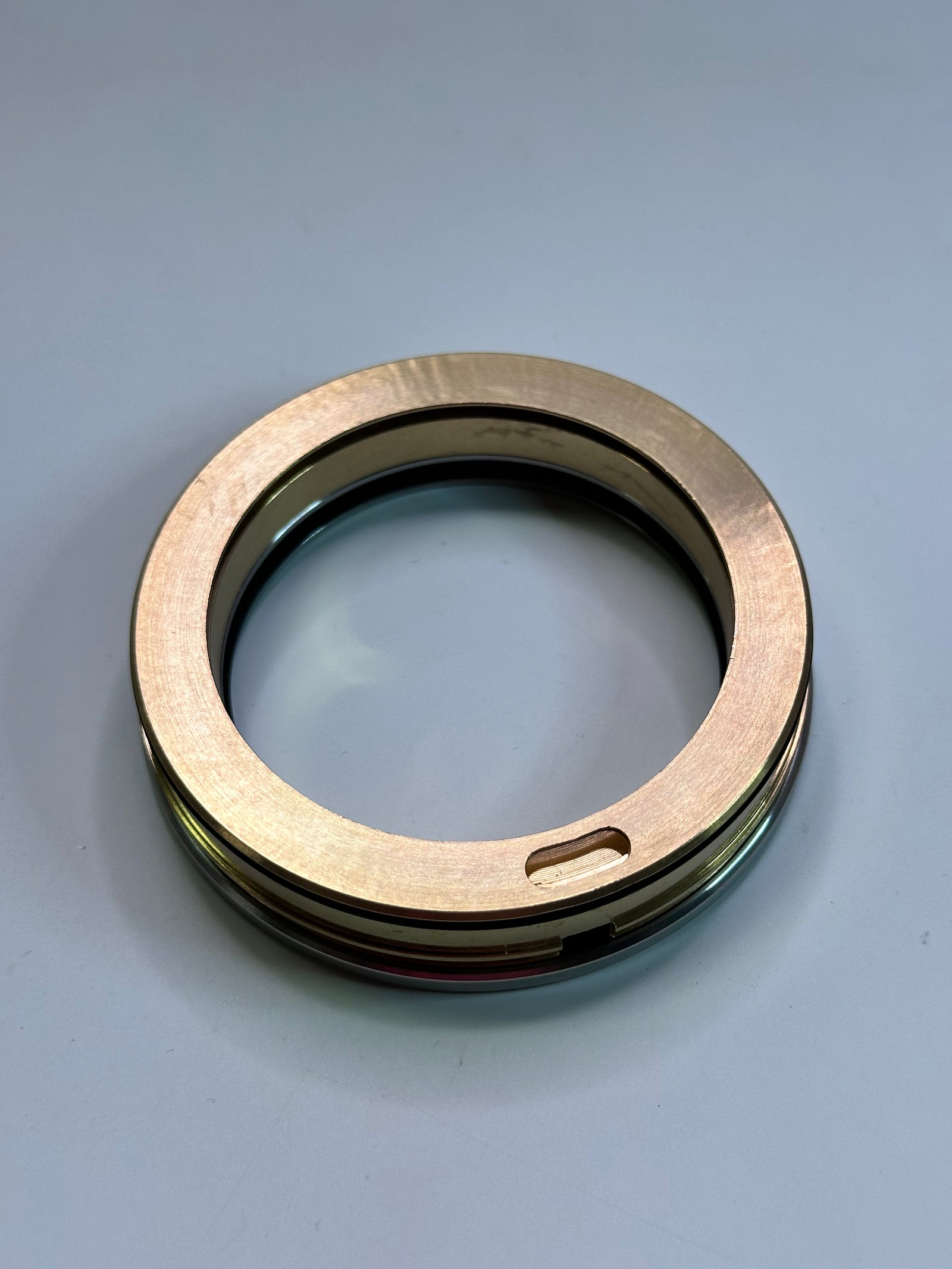

A04951A222 Labyrinth Seal, Inboard XLTI Reference
- SKU
- P-AA-I-7633
$95.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 1.5 kg
Specifications
| Manufacturer | INPRO SEAL |
|---|---|
| Product type | SEALS & GASKETS |
| SKU | P-AA-I-7633 |
| Weight | 1.5 kg |
Description
Labyrinth seal identified in the original title as A04951A222, inboard XLTI.
Identification needs confirmation
The description instead records ITT Goulds Pumps A04951A128, alternate A04951A129 and Inpro-Seal Co 1787-A-P0029-0, with Model/Machine No: Mtx. The relationship to the title's A04951A222 / XLTI is not established; none of these references has been substituted for another.
Source specification entries
| Bore | 2.875 IN |
|---|---|
| Shaft Size | DIA 1.75 IN |
| Type | Oil, Radial |
| Material | VBXX-D Bronze/Viton |
| Equipment Details Info | Model/Machine No: Mtx |
| Supplier Name | Project Receipt Spare |
| Item Name | Labyrinth Seal |
| Application | Centrifugal Pump |
| Alternate Manufacturer Part No | 1787-A-P0029-0 |
| Alternate Manufacturer Part No 1 | A04951A129 |
| Manufacturer Part No | A04951A128 |
| Alternate Manufacturer Name | Inpro-Seal Co |
Confirm the actual seal identification, bore, shaft size, inboard position and pump model before ordering. The listed dimensions and VBXX-D Bronze/Viton material remain source information pending that identity check. This is a seal, not a complete centrifugal pump.
