Gas Turbine and compressor parts.

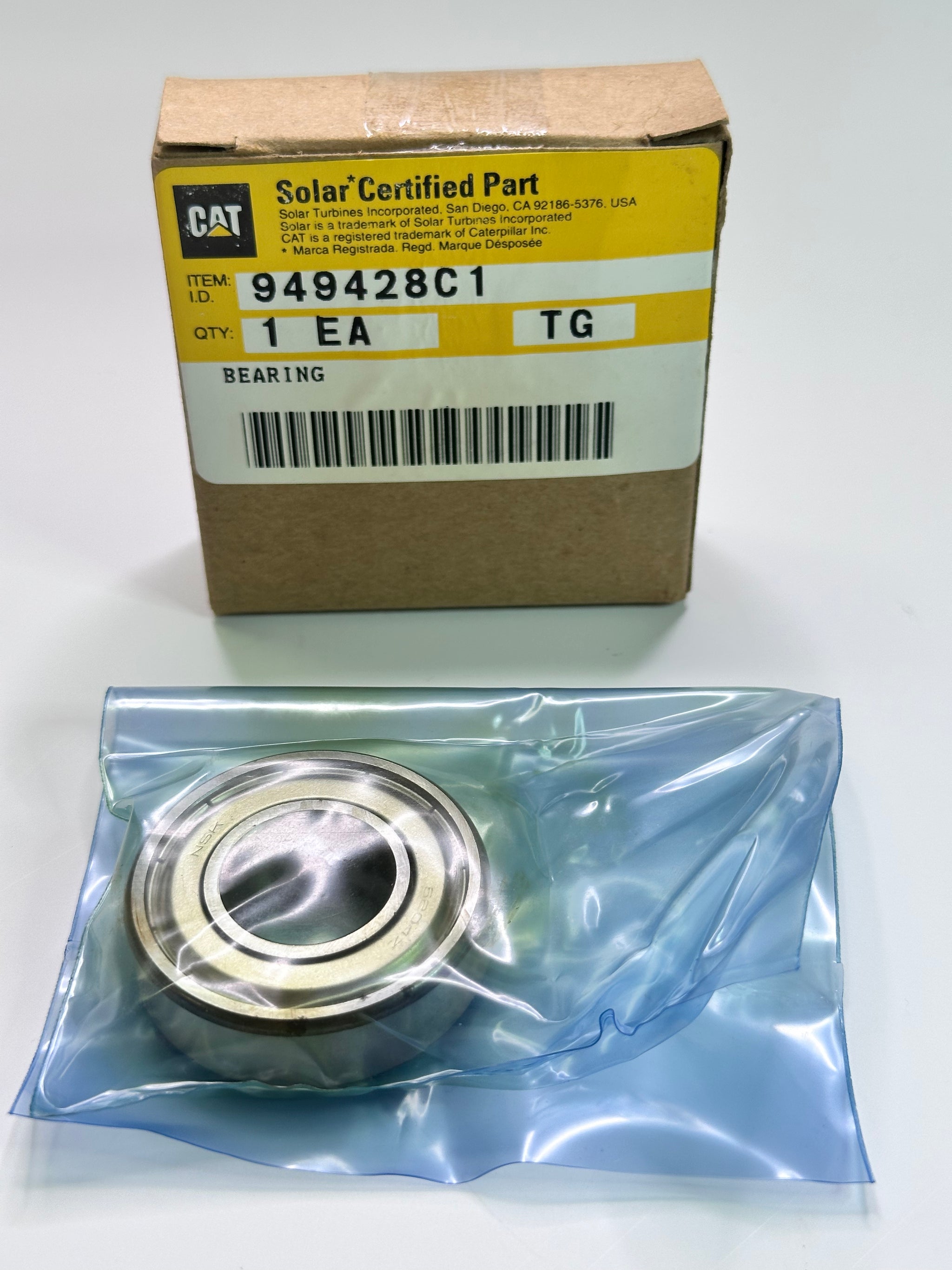

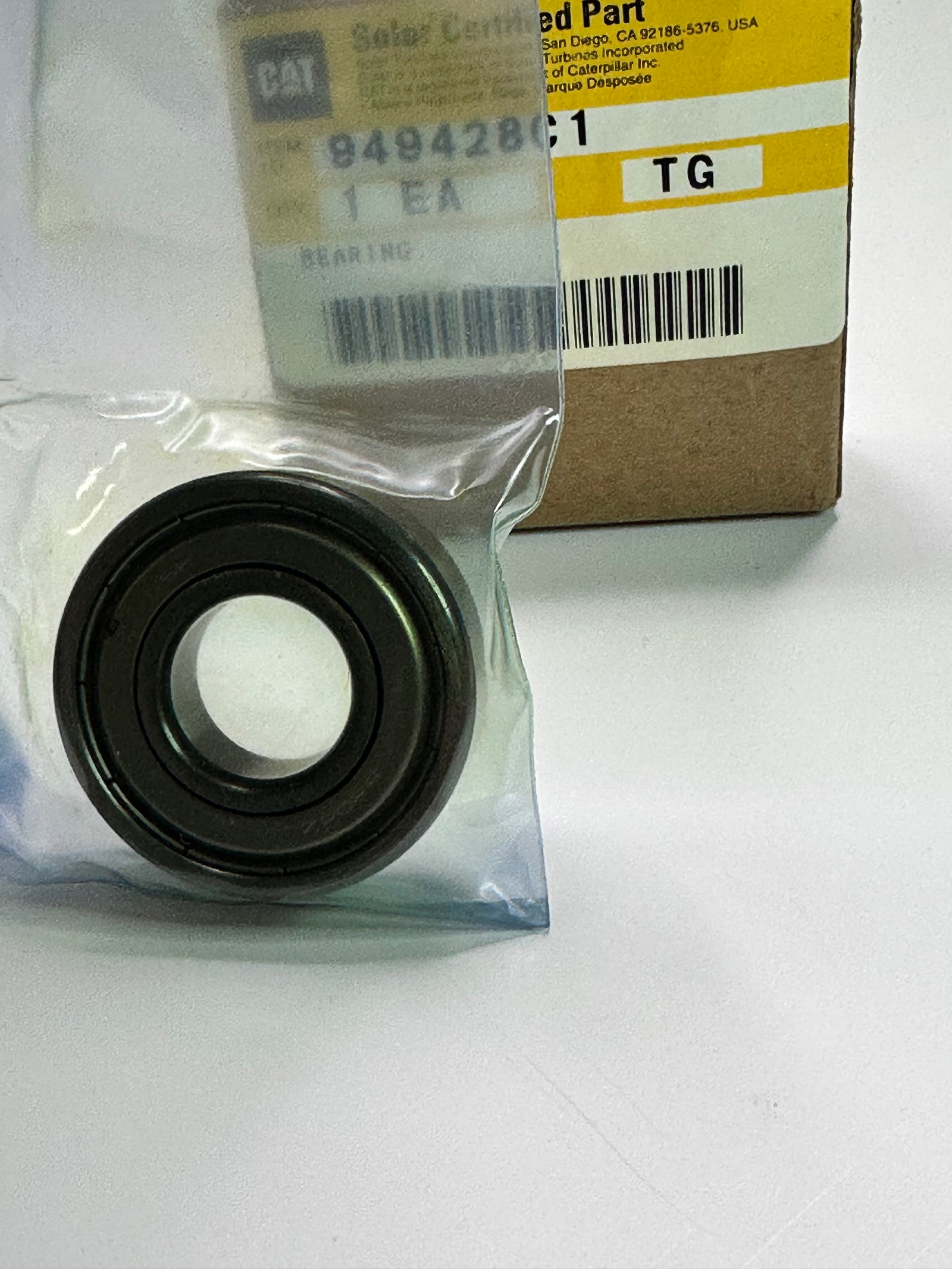

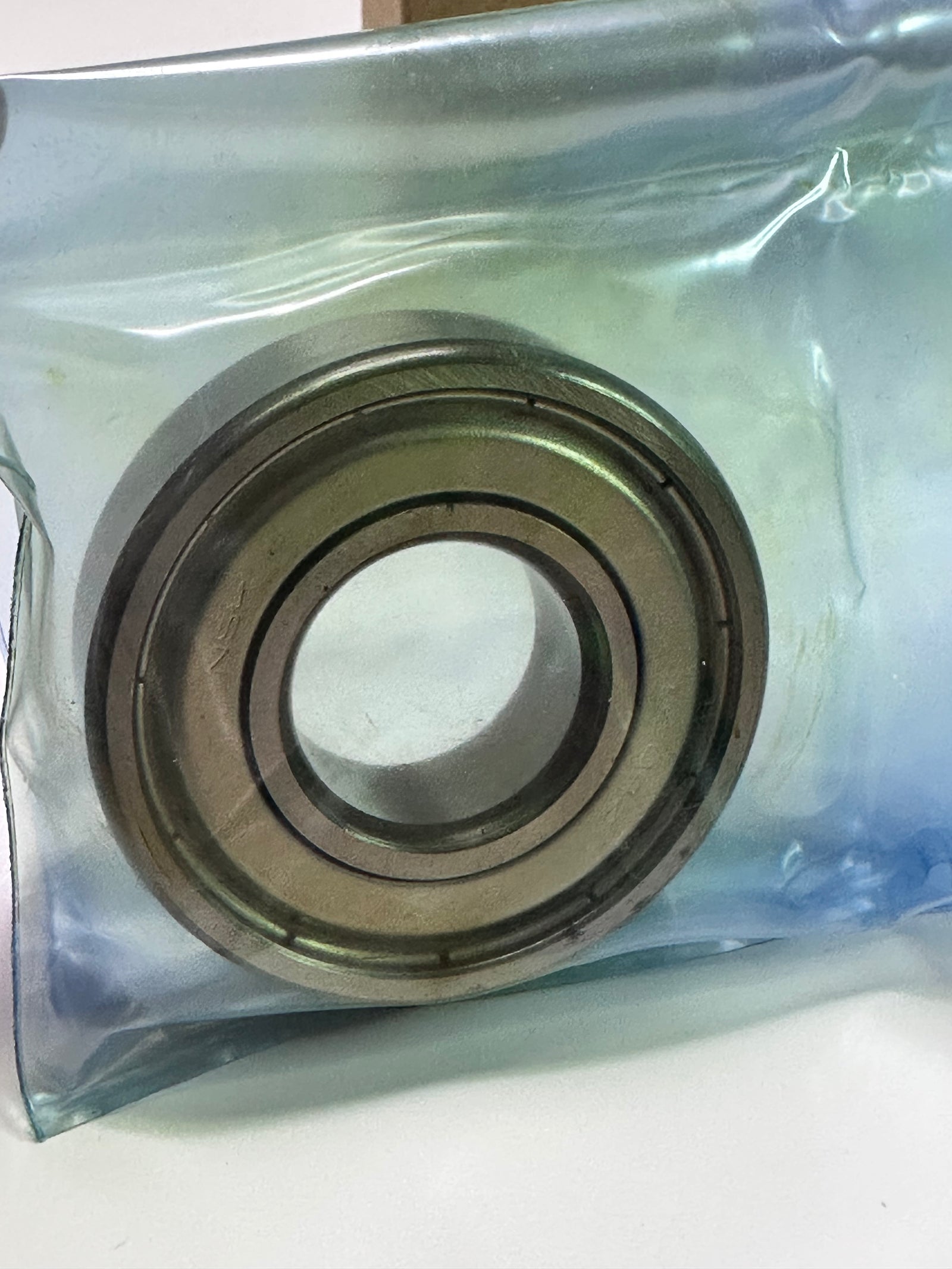

NSK 6204 ZZ
Boundary Dimensions
| d | 20 | mm | Bore diameter |
| D | 47 | mm | Outside diameter |
| B | 14 | mm | Width |
| r (min.) | 1 | mm | Chamfer dimension |
Basic Load Ratings
| Cr | 14100 | N | Basic dynamic load rating |
| C0r | 6600 | N | Basic static load rating |
Speeds
| Grease | 17000 | min-1 | Grease lubrication |
Abutment and Fillet Dimensions
| da (min.) | 25 | mm | Diameter of shaft abutment |
| da (max.) | 26.5 | mm | Diameter of shaft abutment |
| Da (max.) | 42 | mm | Diameter of housing abutment |
| ra (max.) | 1 | mm | Radius of shaft or housing fillet |
| Dx (min.) | 0 | mm | Diameter of snap ring recess in the housing |
| Cy (max.) | 0 | mm | Distance from outer ring side face to snap ring back face |
Calculation factors
| fo | 13.1 | Factor |
Additional information
| z | 8 | Number of Balls | |
| Dw | 7.938 | mm | Ball Diameter |
