PARKER HANNIFIN
Parker 932612Q Hydraulic Filter Element – 15CN-1-10Q
- SKU
- P-QR-P-7373
- Weight
- 2.0 kg
Specifications
| Manufacturer | PARKER HANNIFIN |
|---|---|
| Product type | FILTERS |
| SKU | P-QR-P-7373 |
| Weight | 2.0 kg |
Description

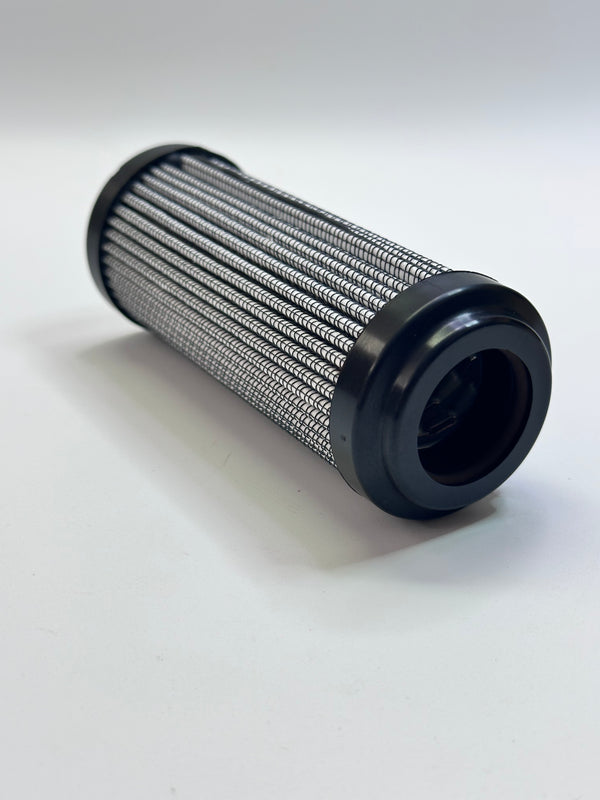

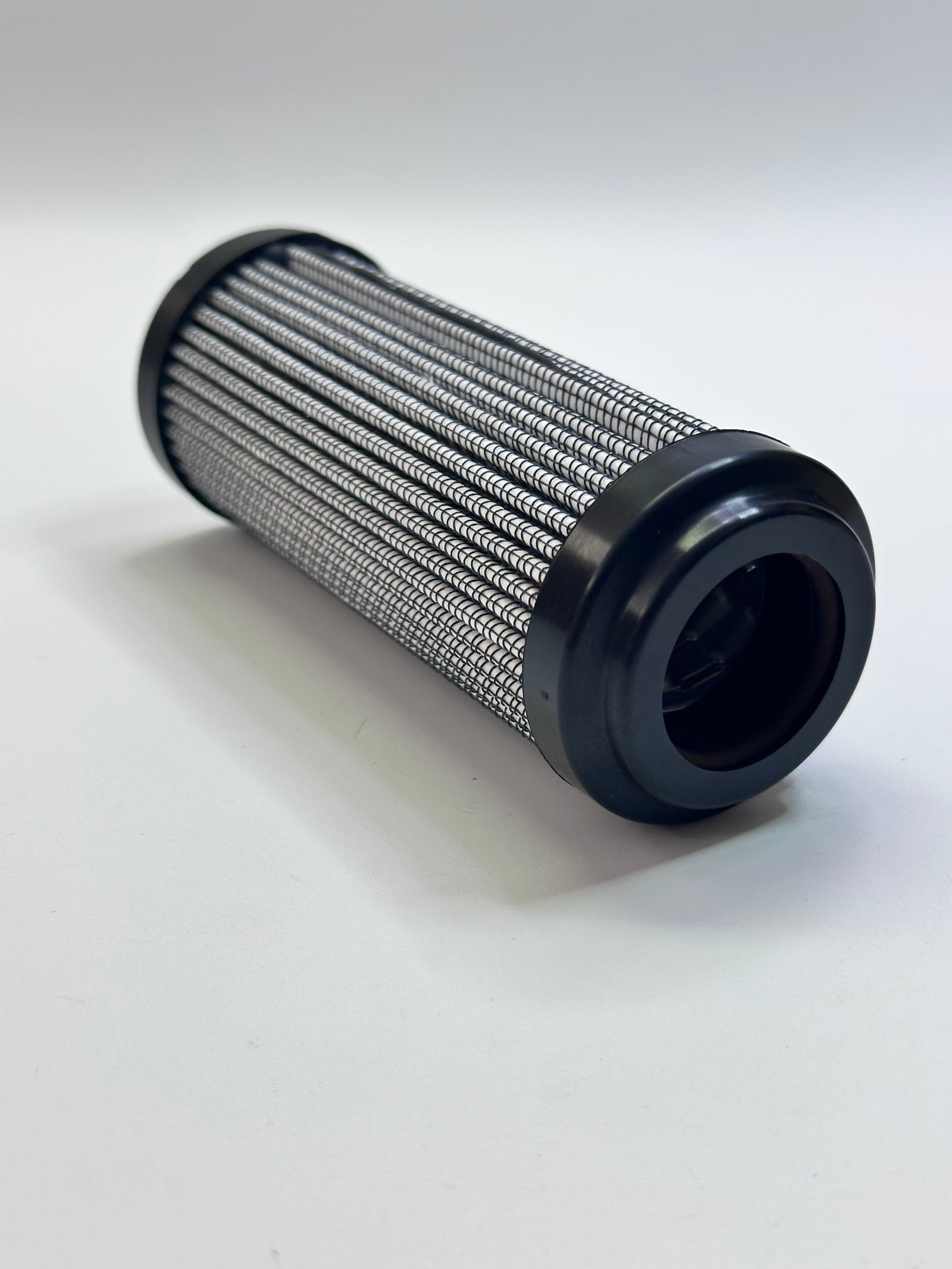

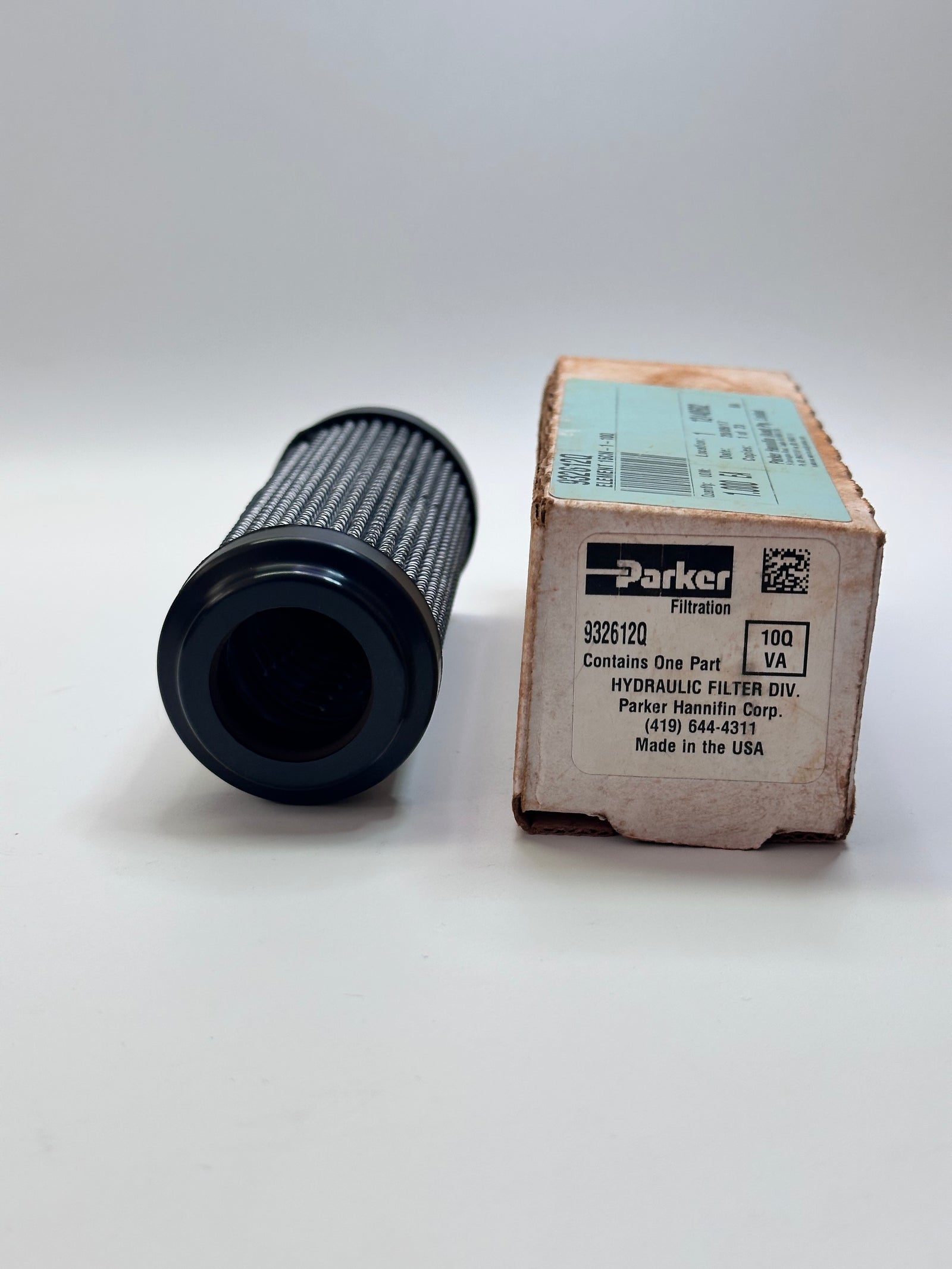

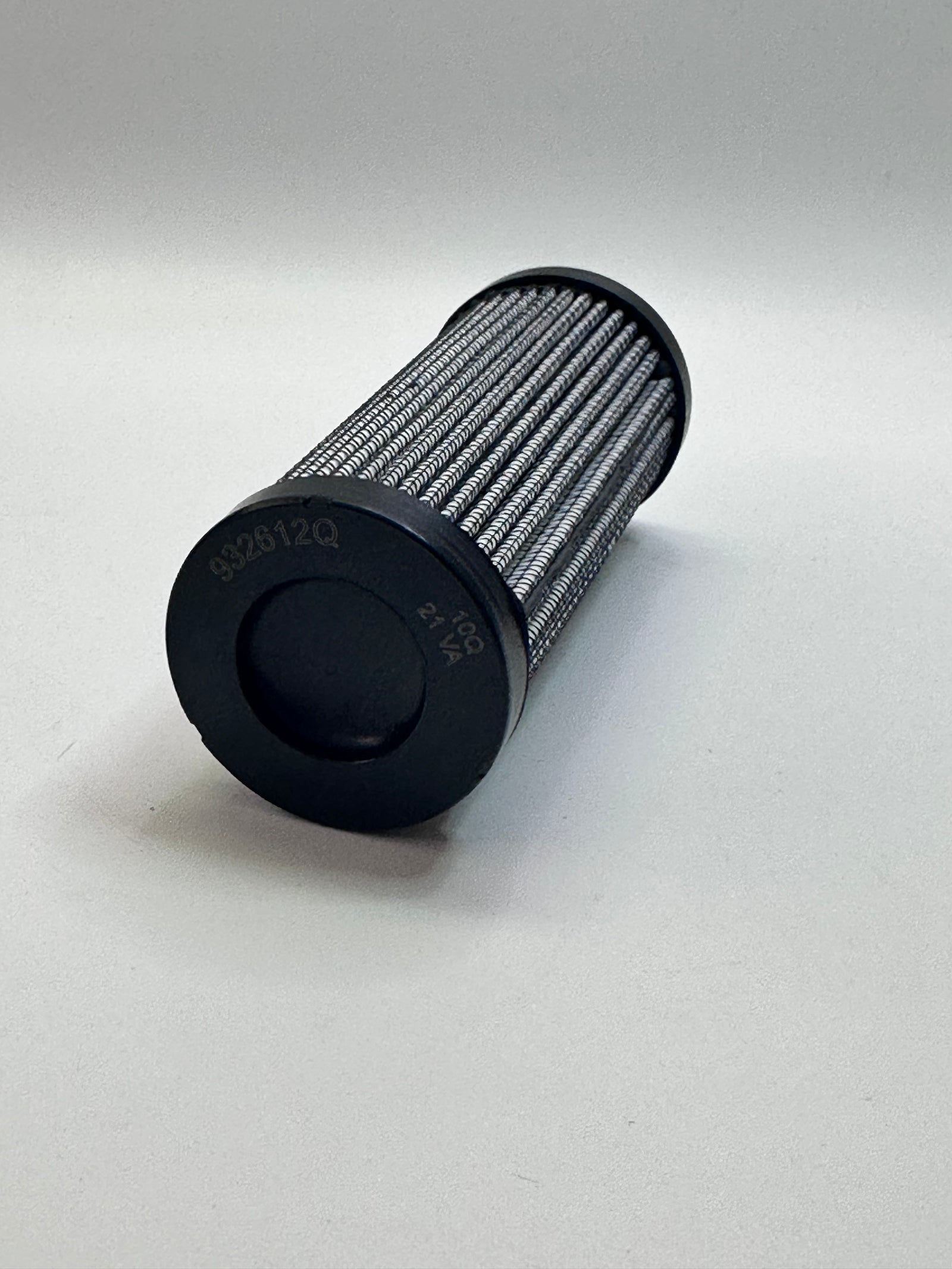

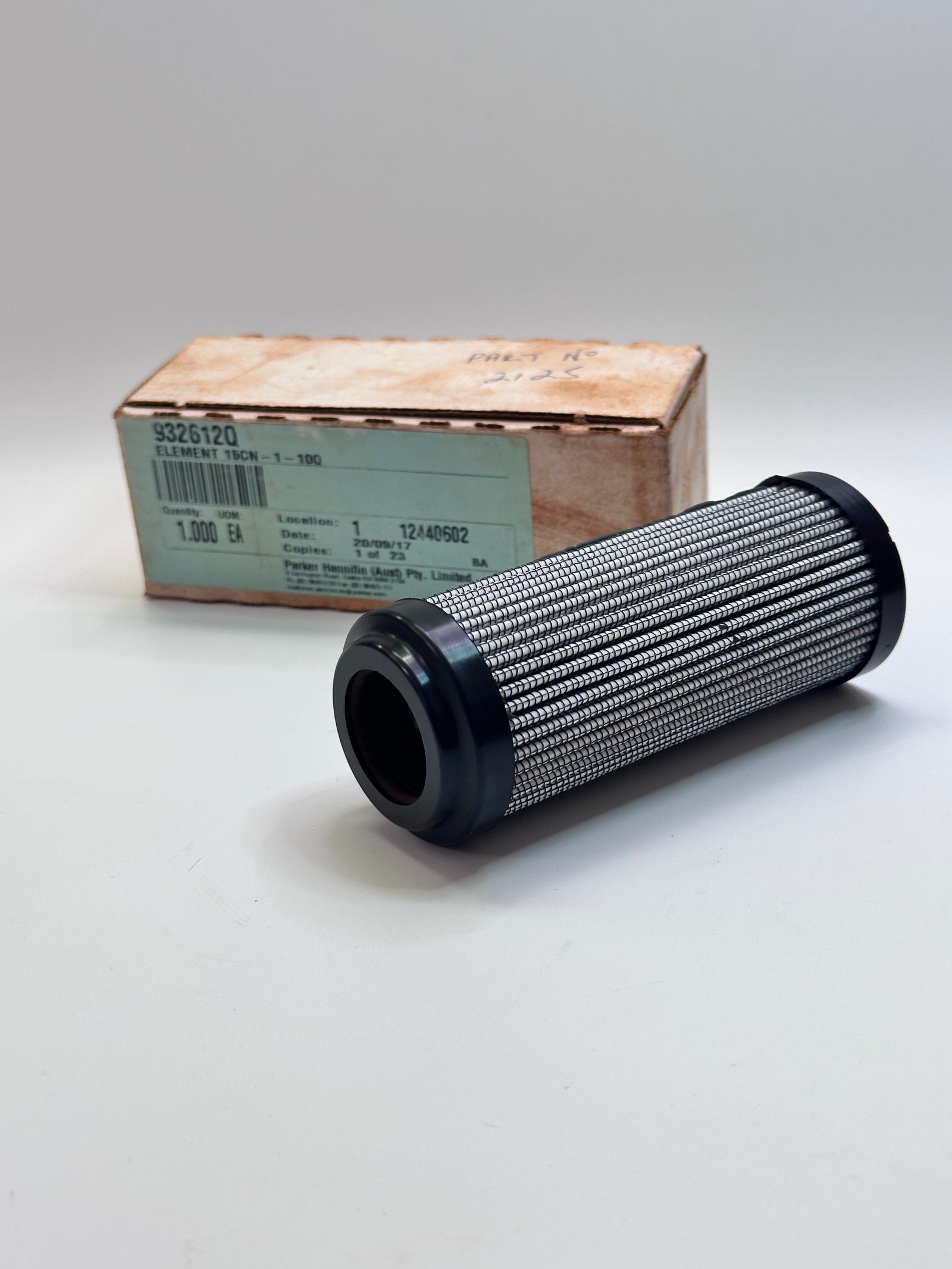

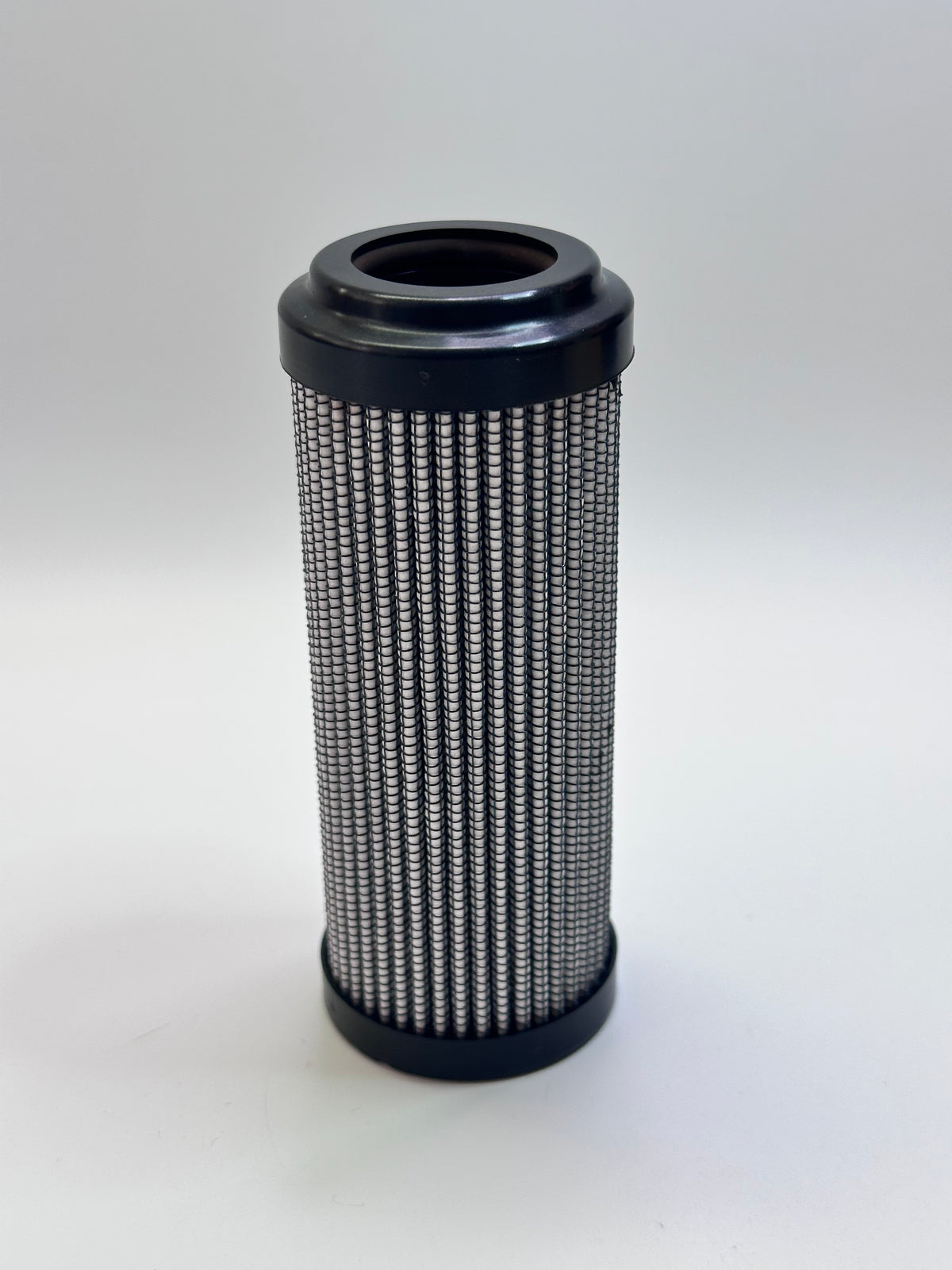

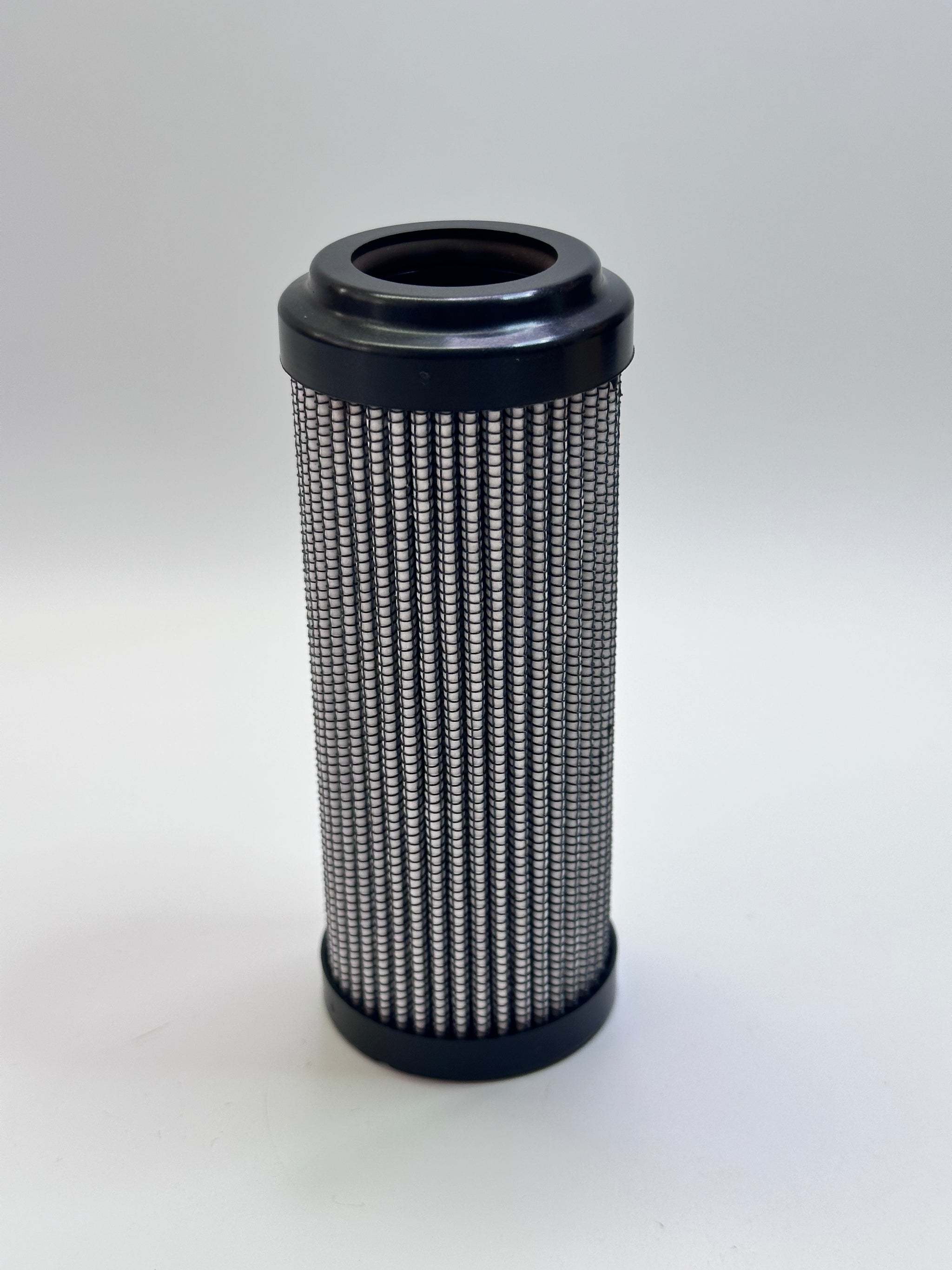

Parker 932612Q replacement hydraulic filter element, identified in the source title as 15CN-1-10Q. The source specifies 15CN use, Length 1, 10Q Microglass media, 10 µm filtration and fluoroelastomer seals.
This listing is for a replacement element, not a complete filter housing.
Original CN-series reference data
The source describes high-efficiency genuine replacement elements for Parker 15/40/80CN Series medium-pressure hydraulic filters. The table below includes series-wide applications and operating data; do not treat every figure as verified for this exact element.
| Division: | Hydraulic & Industrial Process Filtration Division EMEA |
| For Use With: | 15CN |
| Length: | Length 1 |
| Brand: | Parker |
| Filter Element Type: | 10Q Microglass |
| Technology: | Filtration |
| Product Type: | Hydraulic Oil Filter |
| Seal Material: | Fluoroelastomer |
| Micron Rating: | 10 µm |
| Filter Type: | Medium Pressure Inline Filter |
| Product Series: | Replacement Elements - CN Series |
| Industry: | • Industrial Manufacturing Equipment - Automotive - Food & Beverage - Rubber & Plastics - Metals • Off-road Machinery - Agriculture - Construction - Forestry - Lawn & Turf - Mining - Materials Handling • Government - Military - Defence • Power Generation & Renewable Energy • Transportation - Rail - Trucks & Buses |
| Application: | • Compressor Lube Oil • Off-line Filter Loops • Machine Tools (Automotive Standard) • Hydrostatic Drive Charge Pumps • Mobile Equipment • Pilot Lines for Servo Controls • Oil Patch Drilling Equipment • Injection Molding |
| For Fluid Type: | Suitable for use with mineral and vegetable oils, and some synthetic oils. |
| Flow Rate: | 0 to 600 L/min |
| Operating Pressure: | 70 bar Maximum, 1015 psi Maximum |
| Operating Temperature: | -40 to 100°C (-40 to 212°F) (Seal material Nitrile), -20 to 120°C (-4 to 248°F) (Seal material Fluoroelastomer), -40 to 100 °C (Seal material Fluoroelastomer) |
Ratings and references to confirm
Existing tags state 150psi, 15GPM and high pressure, whereas the table describes medium pressure and lists 70 bar Maximum, 1015 psi Maximum and 0 to 600 L/min. It also lists two different fluoroelastomer temperature ranges. Confirm the exact element and housing limits before selection.
Additional catalogue references: 15CN-1-100 and HC9020FKS4H. Neither is confirmed as equivalent to 15CN-1-10Q. Confirm fluid compatibility against the exact seal and operating conditions.
