WEIDMULLER
Weidmuller 8950720000 TERMOPTO Solid-State Relay - 24V DC Control
- SKU
- P-SO-W-7945
- Weight
- 0.6 kg
Specifications
| Manufacturer | WEIDMULLER |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-SO-W-7945 |
| Weight | 0.6 kg |
Description

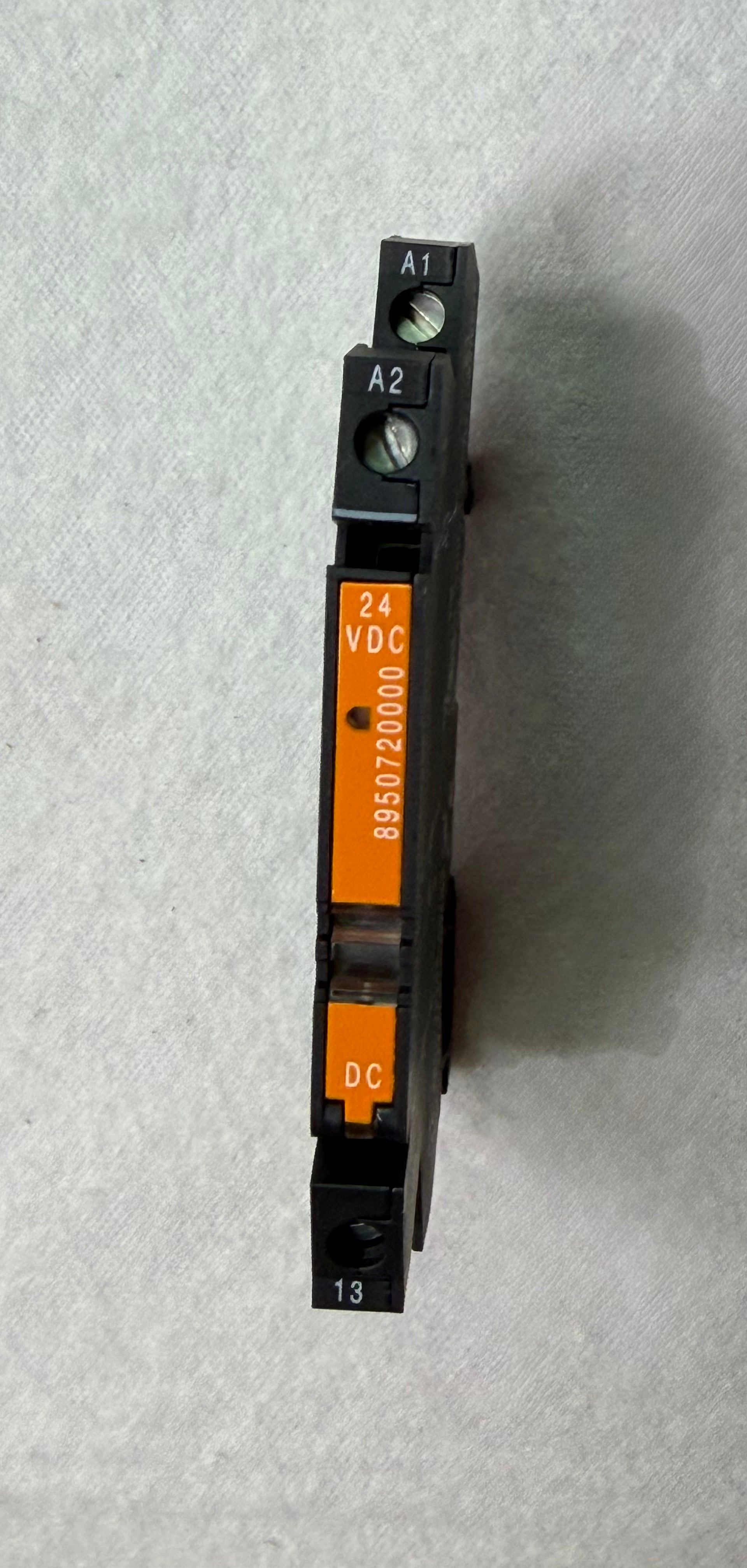

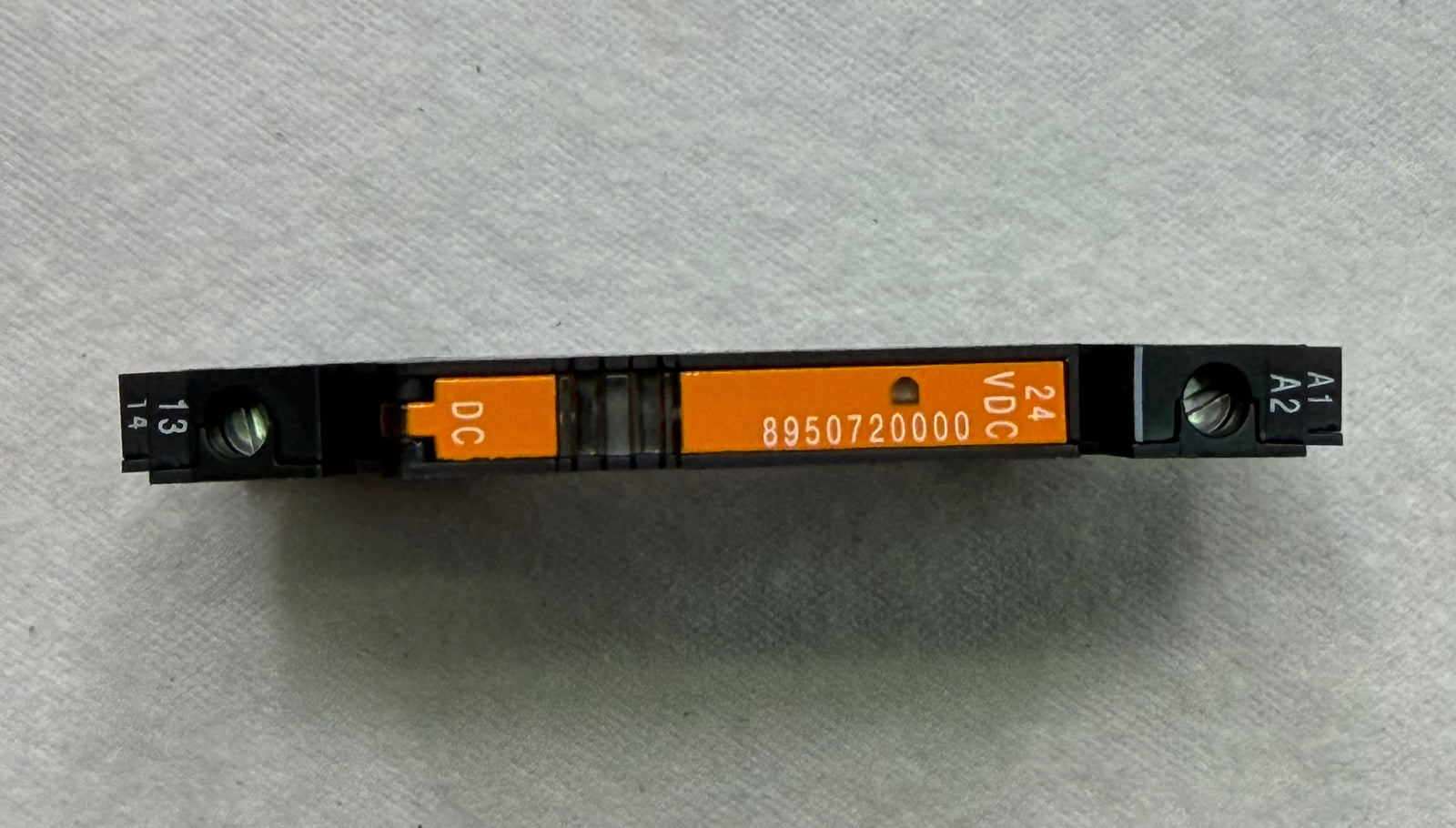

Weidmuller TERMOPTO solid-state relay

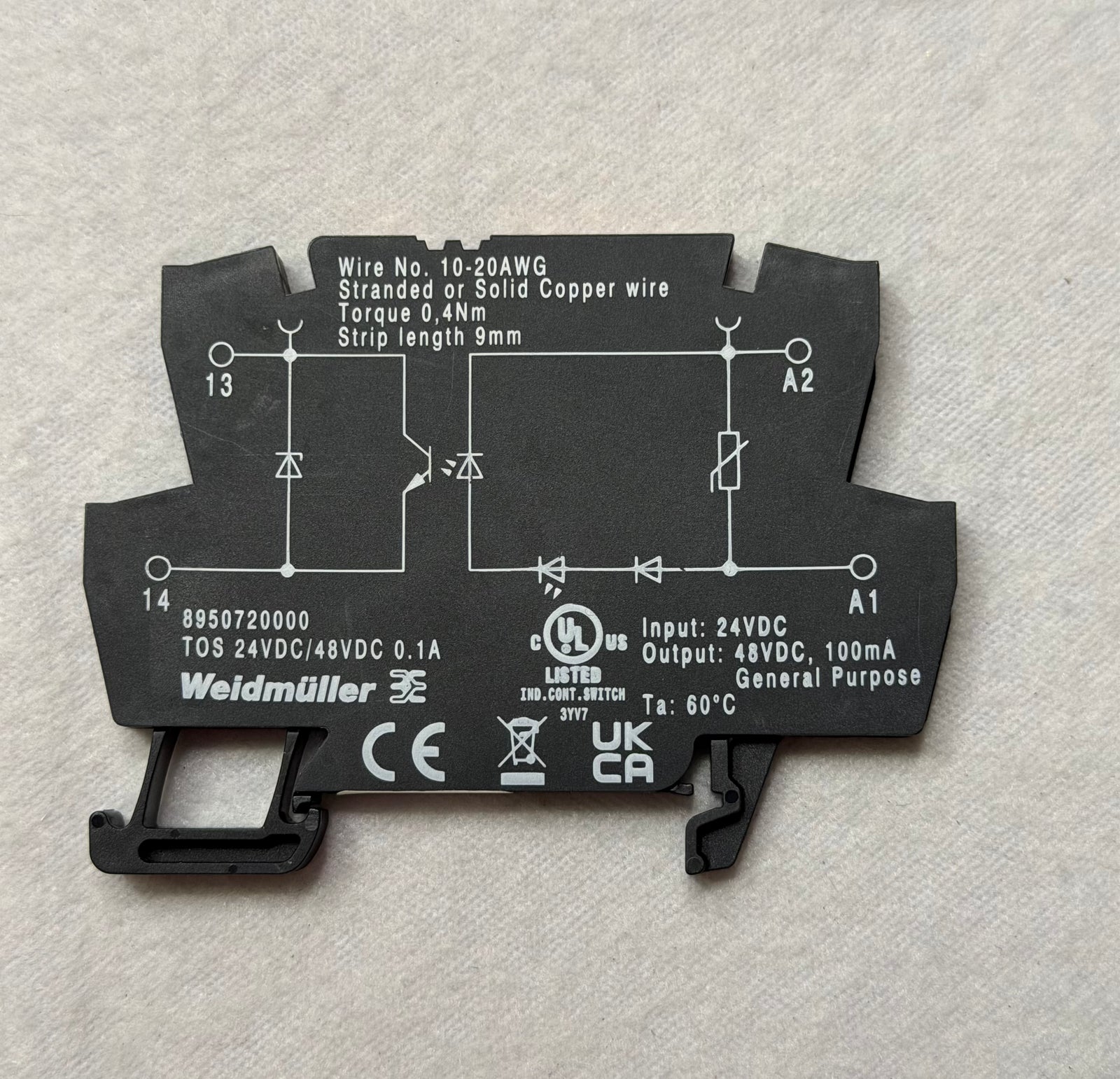

Weidmuller 8950720000 solid-state relay with a normally open transistor output (SPST-NO). The recorded control input is 24V DC ±20%, with nominal control current 7mA DC. The separate output switching range is 5–48V DC at a rated 100mA; 48V is not the control-input rating.
Recorded specifications
TERMOPTO Series
8950720000 is a solid-state relay.
- 1 NO contact (transistor)
- Ensures wear- and maintenance-free potential separation in compact terminal block format
- Integrated protective circuit for inputs and outputs

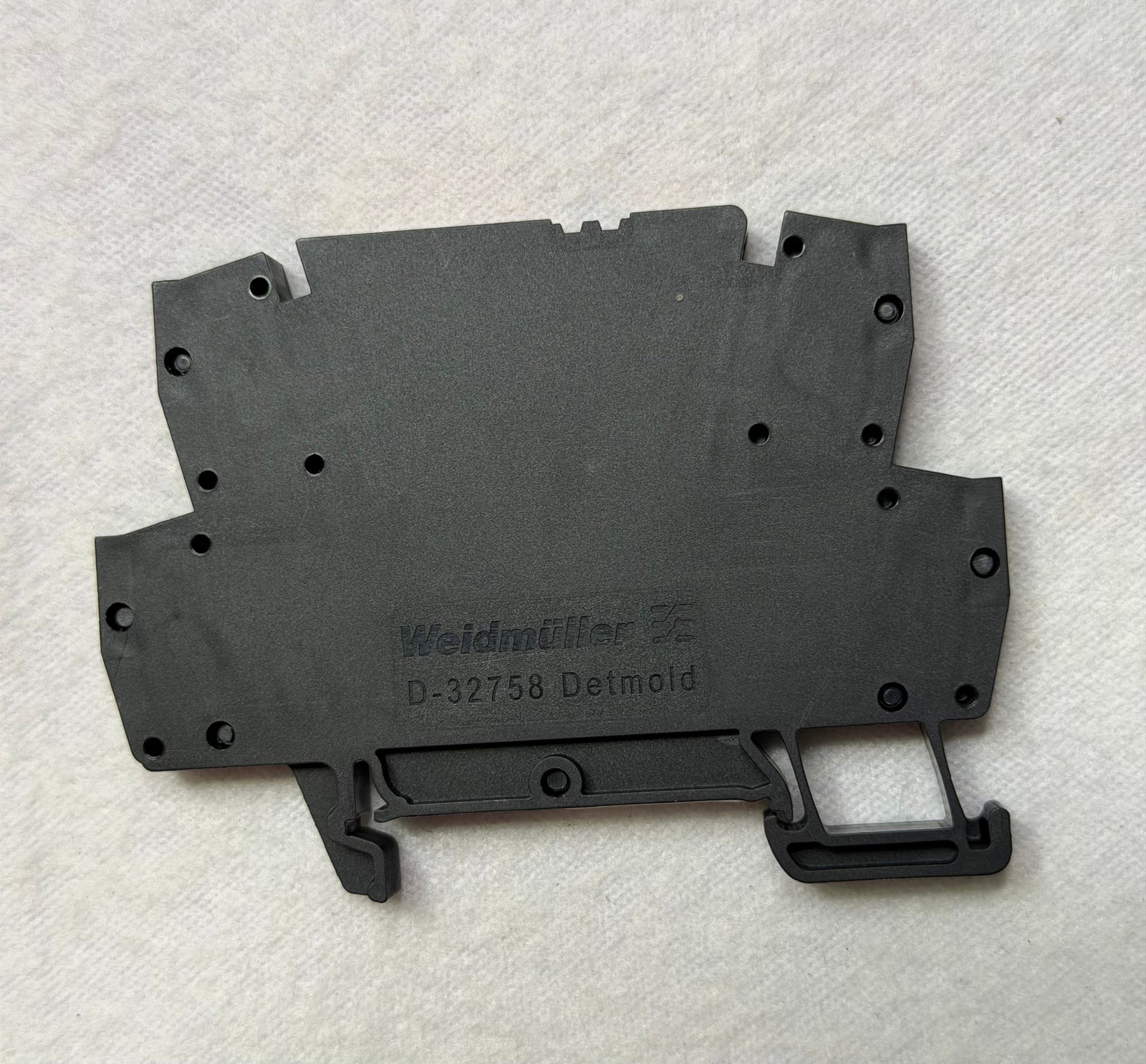

- 55mm depth, 74.4mm height, 6.1mm width
- Ambient temperature range from -20°C to 60°C
- 24V DC ±20% rated control voltage, 7mA DC nominal control current
- 5 to 48V DC rated switching voltage
- 100mA rated switching current
- Screw wire connection, black colour
- IP20 protection degree
Before ordering
Match the exact order number, control supply, output load and terminal arrangement. The 55mm depth, 74.4mm height and 6.1mm width are retained as specified. IP20 does not establish outdoor or washdown suitability. The source's maintenance-free wording describes the solid-state switching design, not a guarantee of the condition or service life of this stock.
No complete control system or additional mounting accessories are included by implication.
