AGASTAT

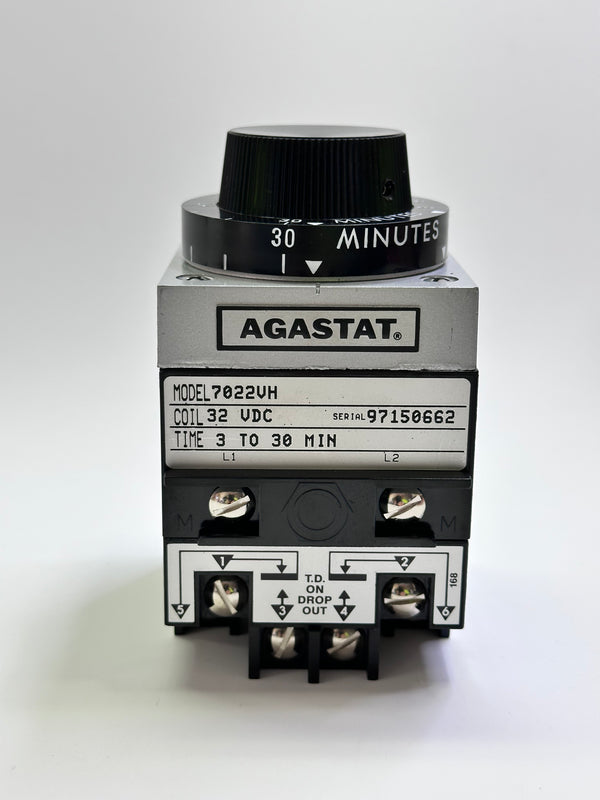

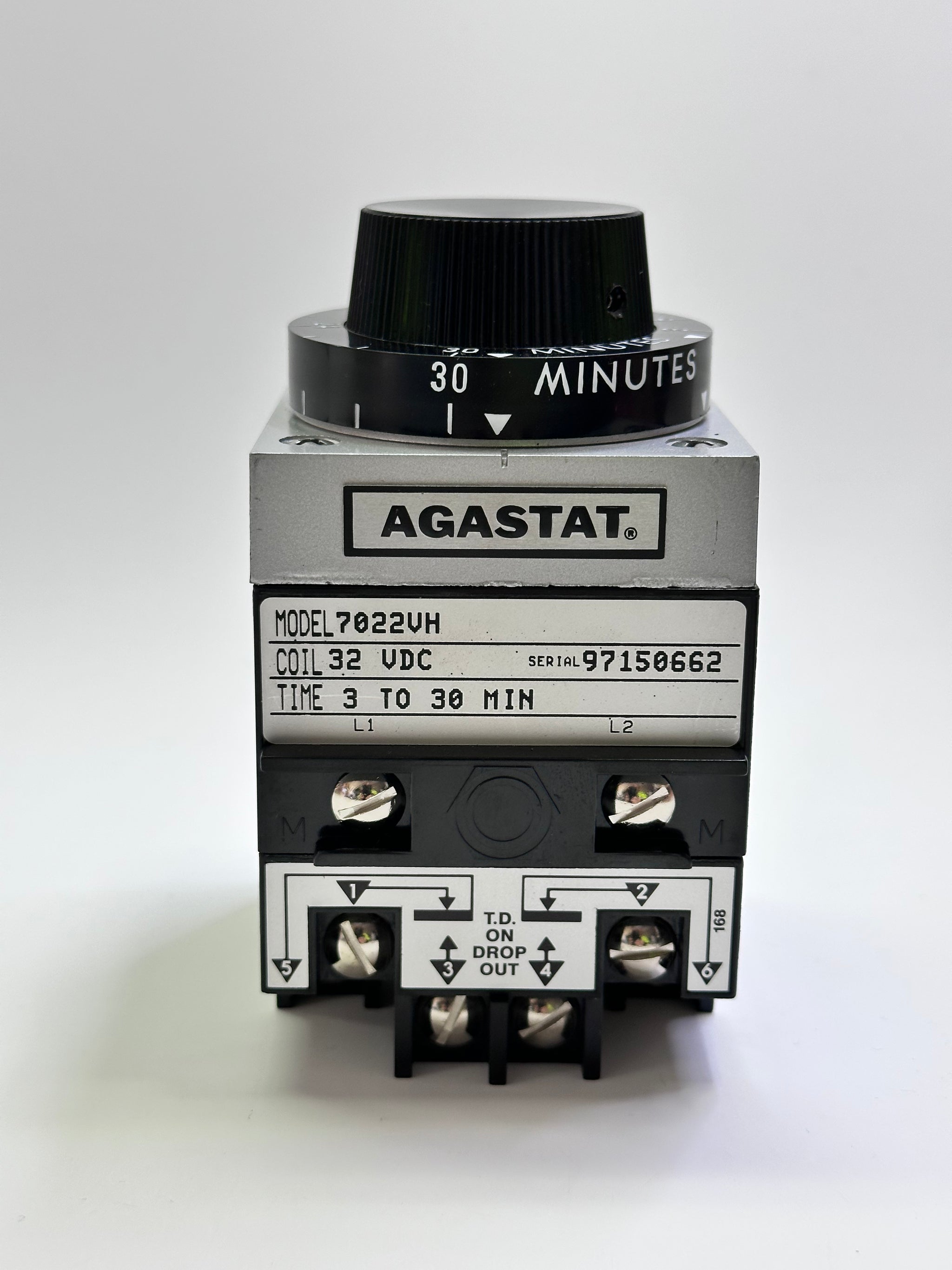

Agastat 7022VH Off-Delay Timing Relay, 2PDT, 3–30 Minutes
- SKU
- P-VH-A-7249
- Weight
- 2.0 kg
Specifications
| Manufacturer | AGASTAT |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-VH-A-7249 |
| Weight | 2.0 kg |
Description
Agastat 7022VH 7000 Series electromechanical timing relay. The source model breakdown identifies off-delay operation, 2PDT (2 form C), 32V DC and a 3–30 minute range.
Original series description and model breakdown

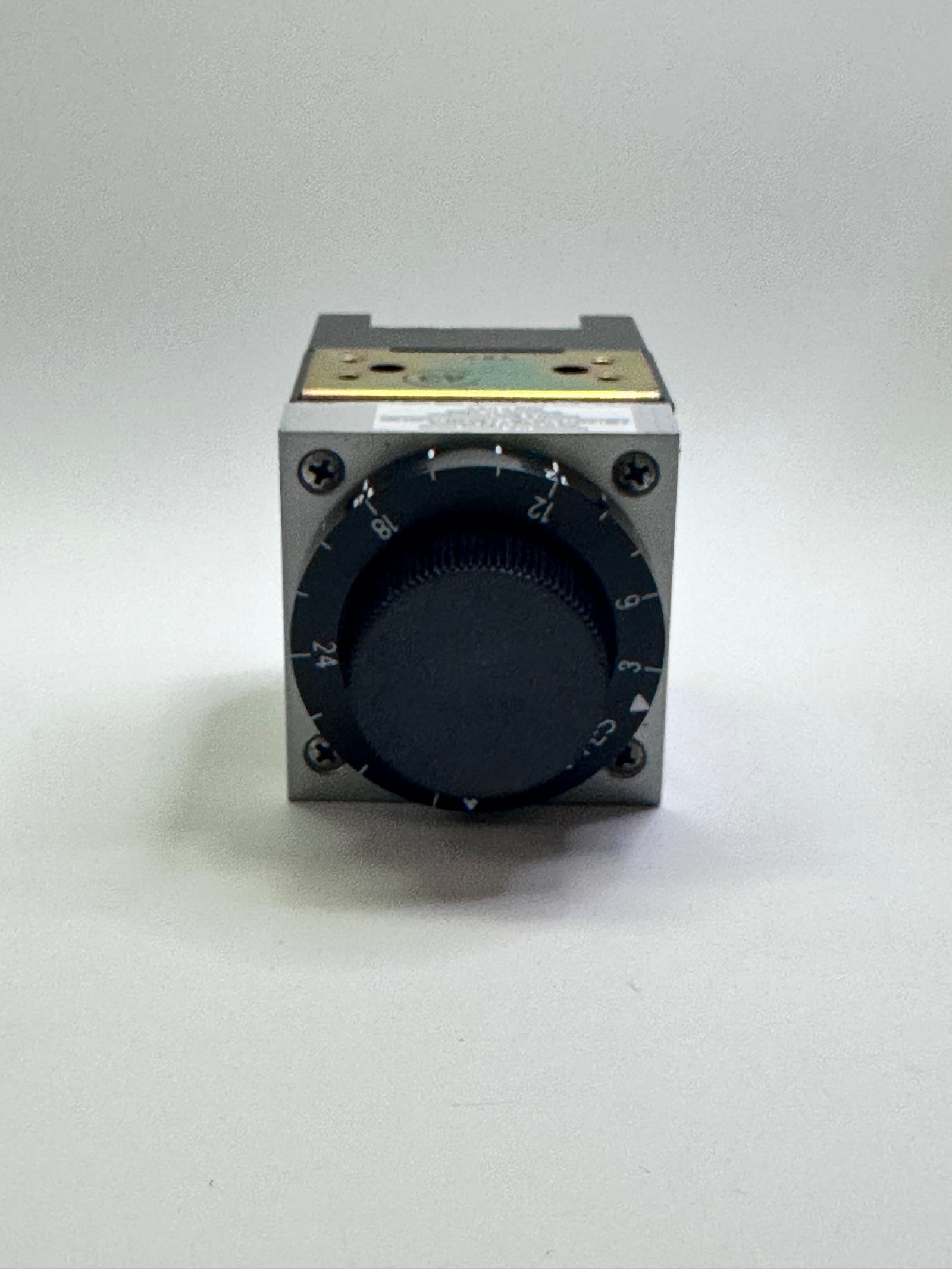

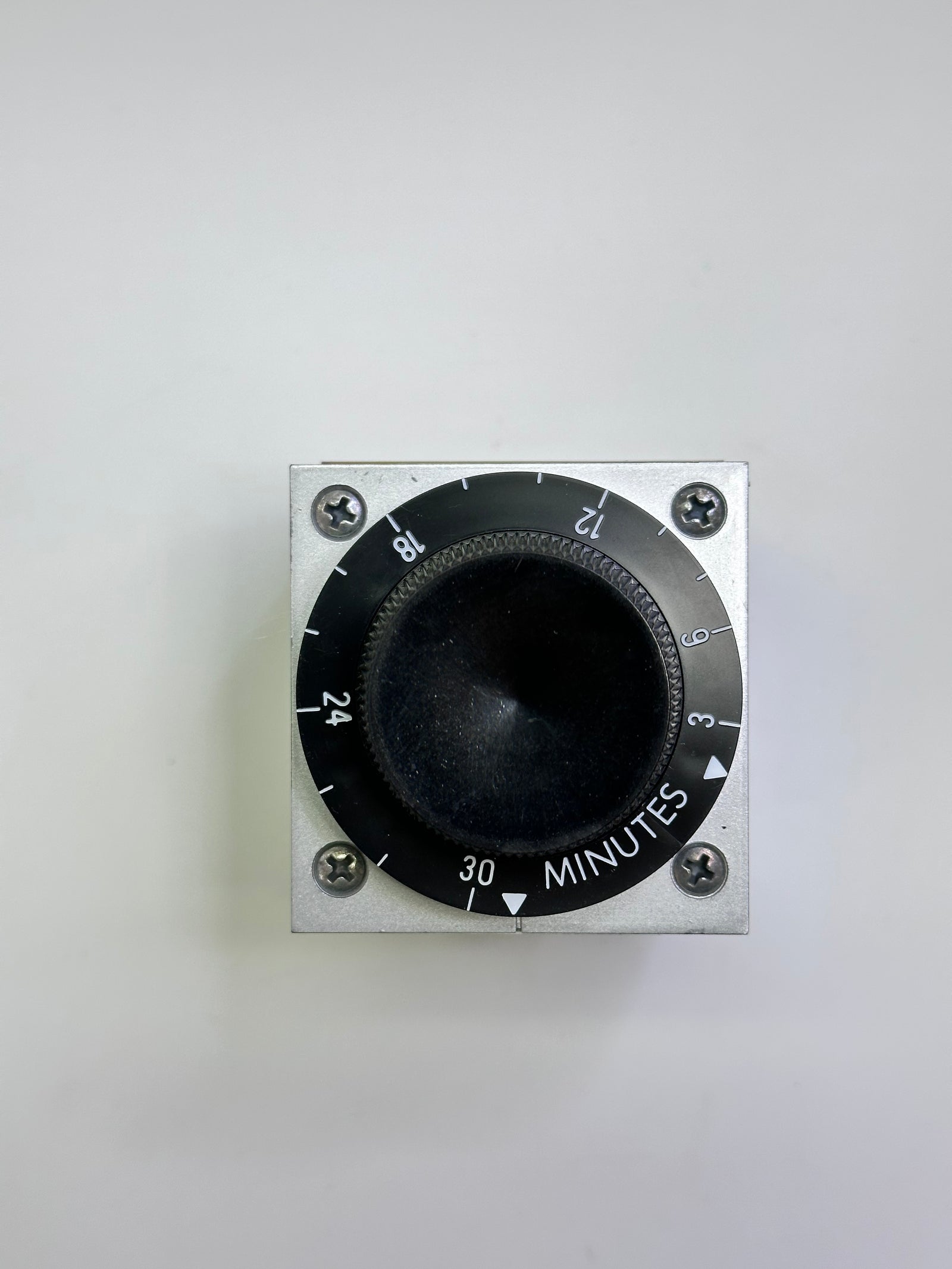

Each Agastat 7000 Series relay is a precise timing instrument which balances pneumatic, electrical, and mechanical forces using a minimum of moving parts. Oversize time calibrated adjustment knobs, serrated with high resolution markings visible from all angles makes the timer easy to set timers.
70 - 7000 Series
2 - Off Delay
2 - 2PDT (2 form C)
V - 32V DC
H - 3-30 min.
Voltage confirmation required

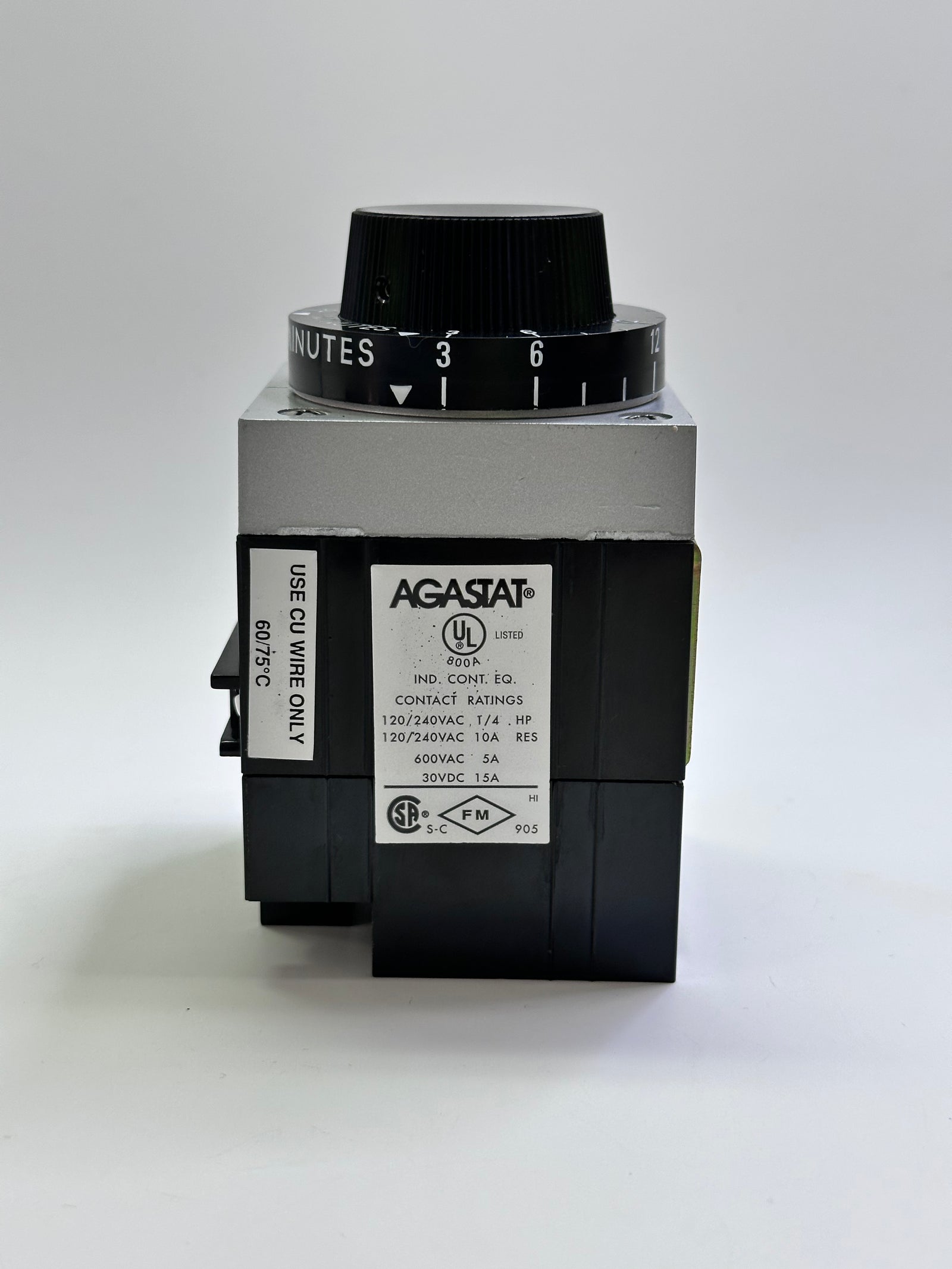

The source tag 120-240V conflicts with the model breakdown V - 32V DC (also tagged 32vdc). It has not been assumed to describe the coil or contact circuit. Confirm the actual markings and rating conditions before connection.
The family timing/adjustment description is retained source information, not a current calibration or accuracy certificate. Contact current/load ratings, pinout and mounting accessories are not specified. No socket or complete control panel is promised.
