AGASTAT

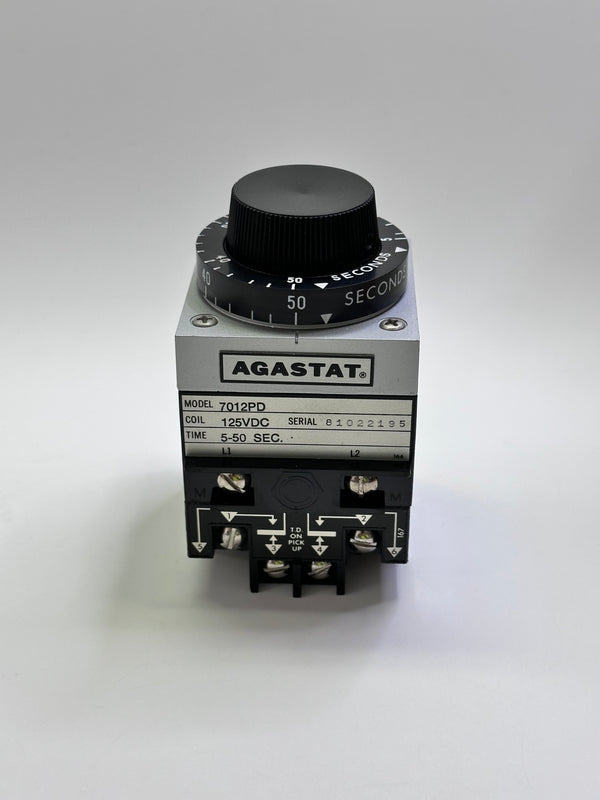

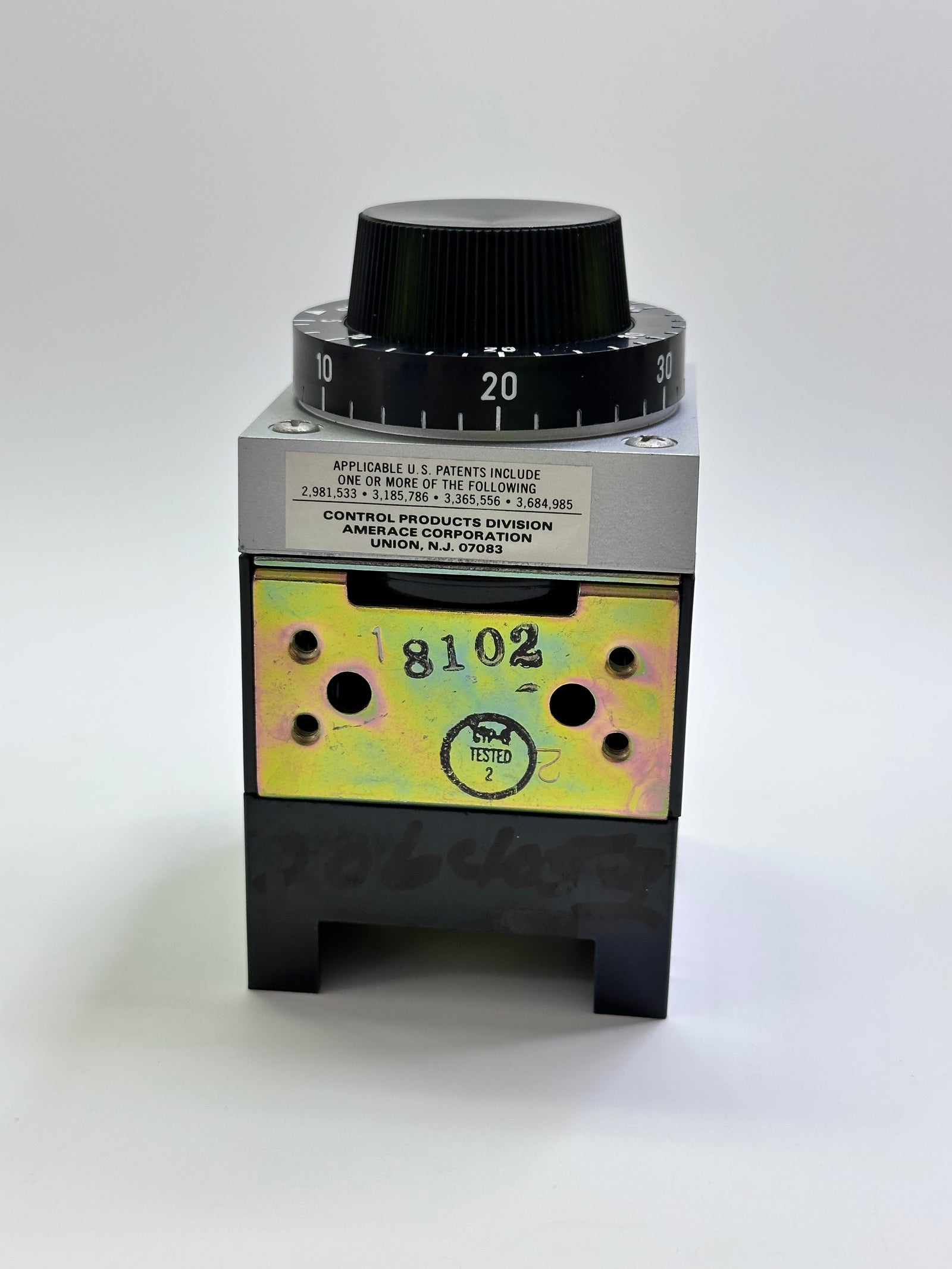

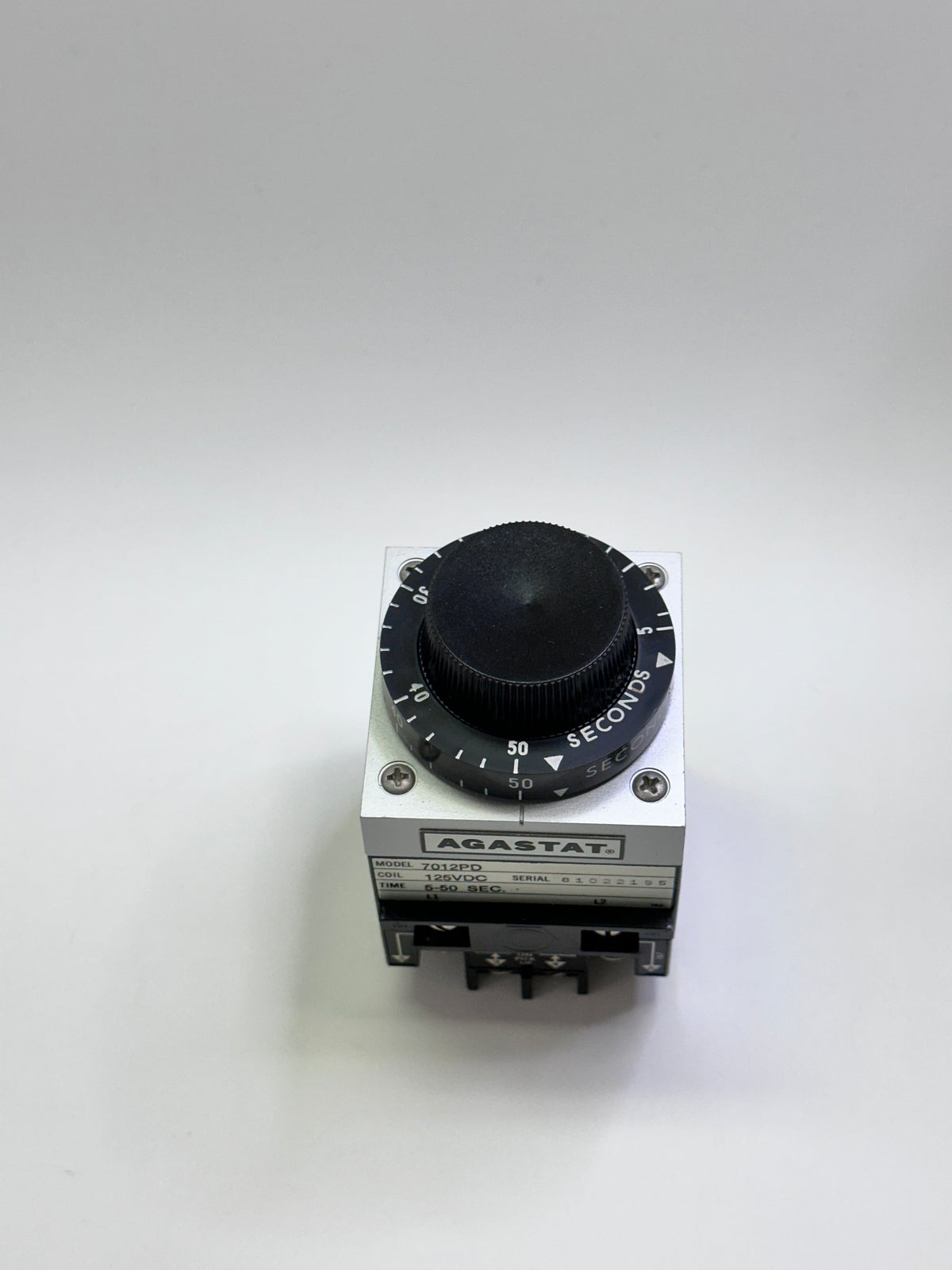

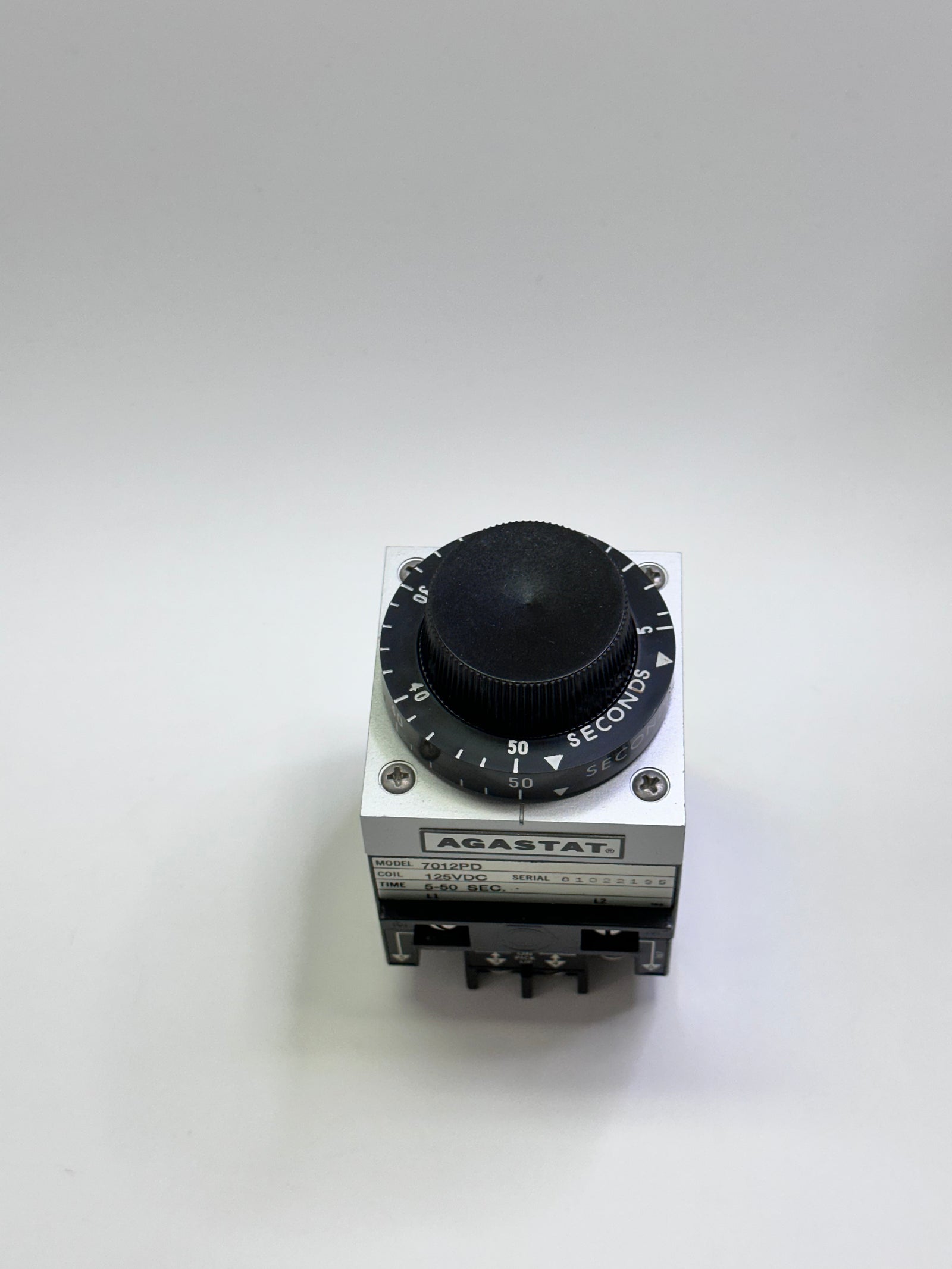

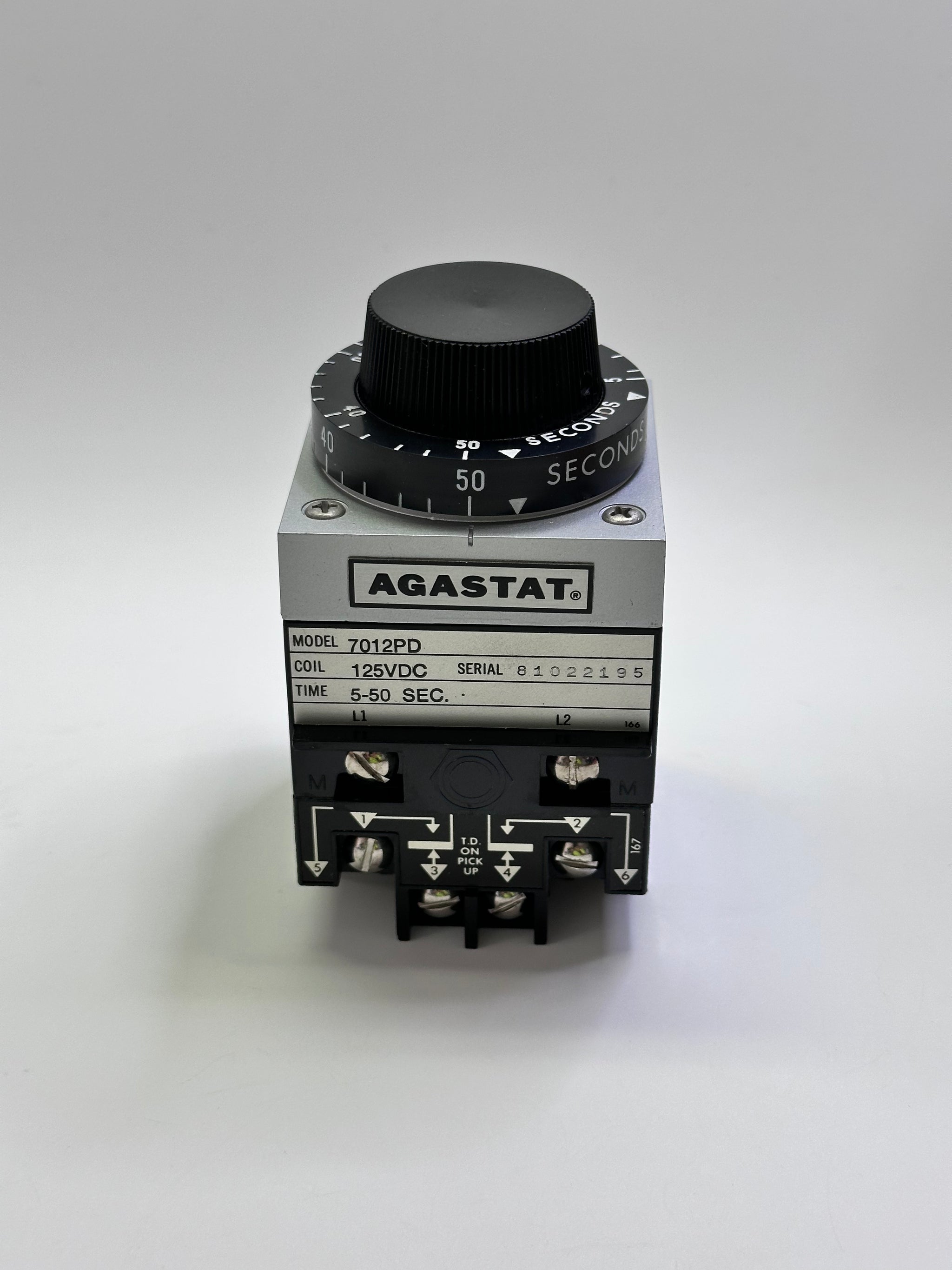

Agastat 7012PD 7000 Series DPDT Time-Delay Relay
- SKU
- P-PD-A-7250
$650.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 2.0 kg
Specifications
| Manufacturer | AGASTAT |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-PD-A-7250 |
| Weight | 2.0 kg |
Description
Agastat 7012PD 7000 Series time-delay relay, recorded as 2 Form C / DPDT-CO.
Supply-voltage discrepancy: the original title states 240 V, while the detailed source below states 125 V DC and DC operation. Confirm the exact coil/input rating from the unit's nameplate before selection or connection.

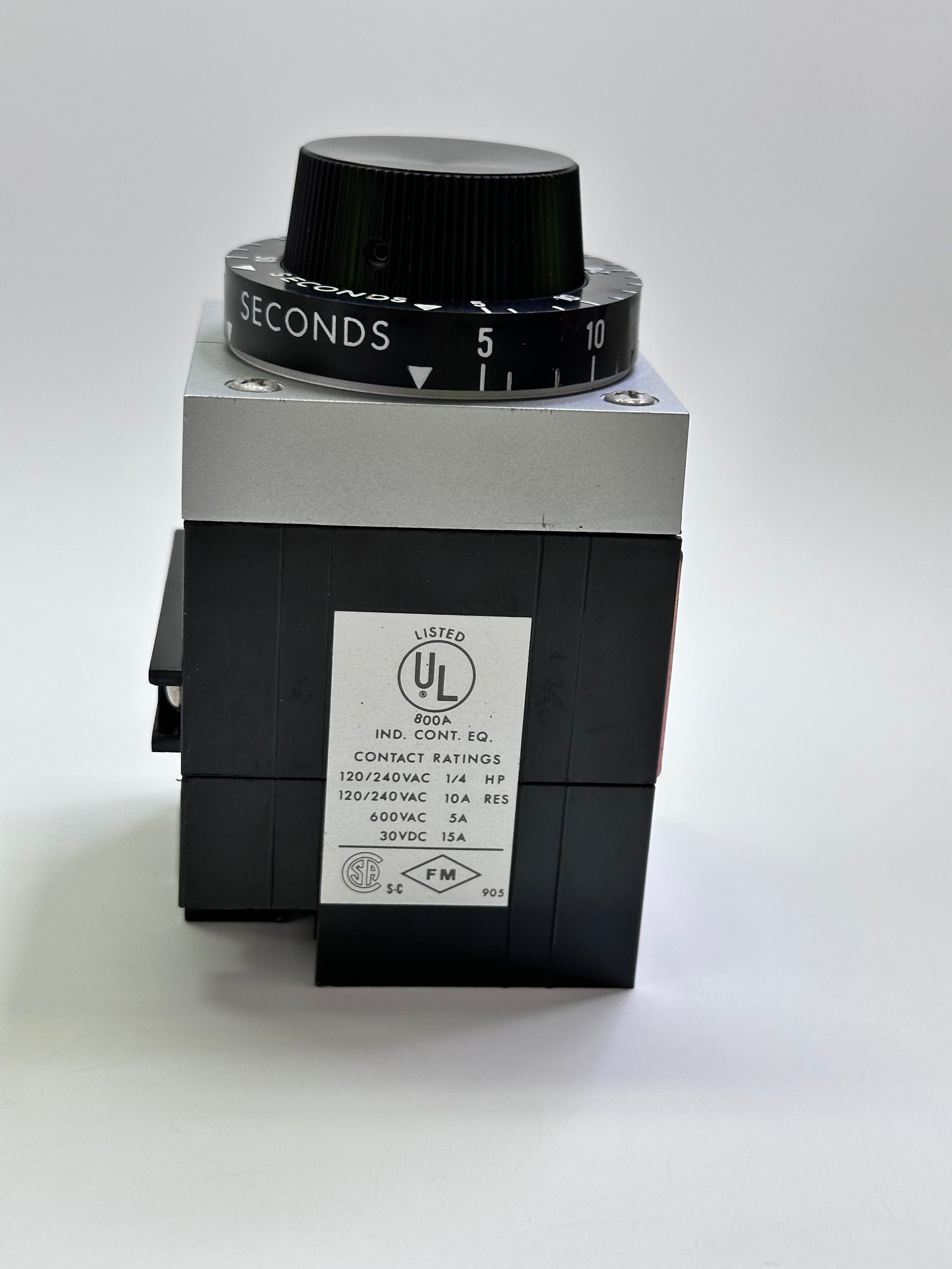

The source records knob-controlled on-delay operation over 5–50 seconds and 10 A contacts; confirm the applicable contact load/voltage conditions. Full recorded specifications follow.
-
Relay & Contactor Type: Time Delay Relay
Configuration Features
-
Contact Arrangement: 2 Form C DPDT-CO
Electrical Characteristics
-
Input Voltage (VDC): 125
-
Contact Current Rating (A): 10
Termination Features
-

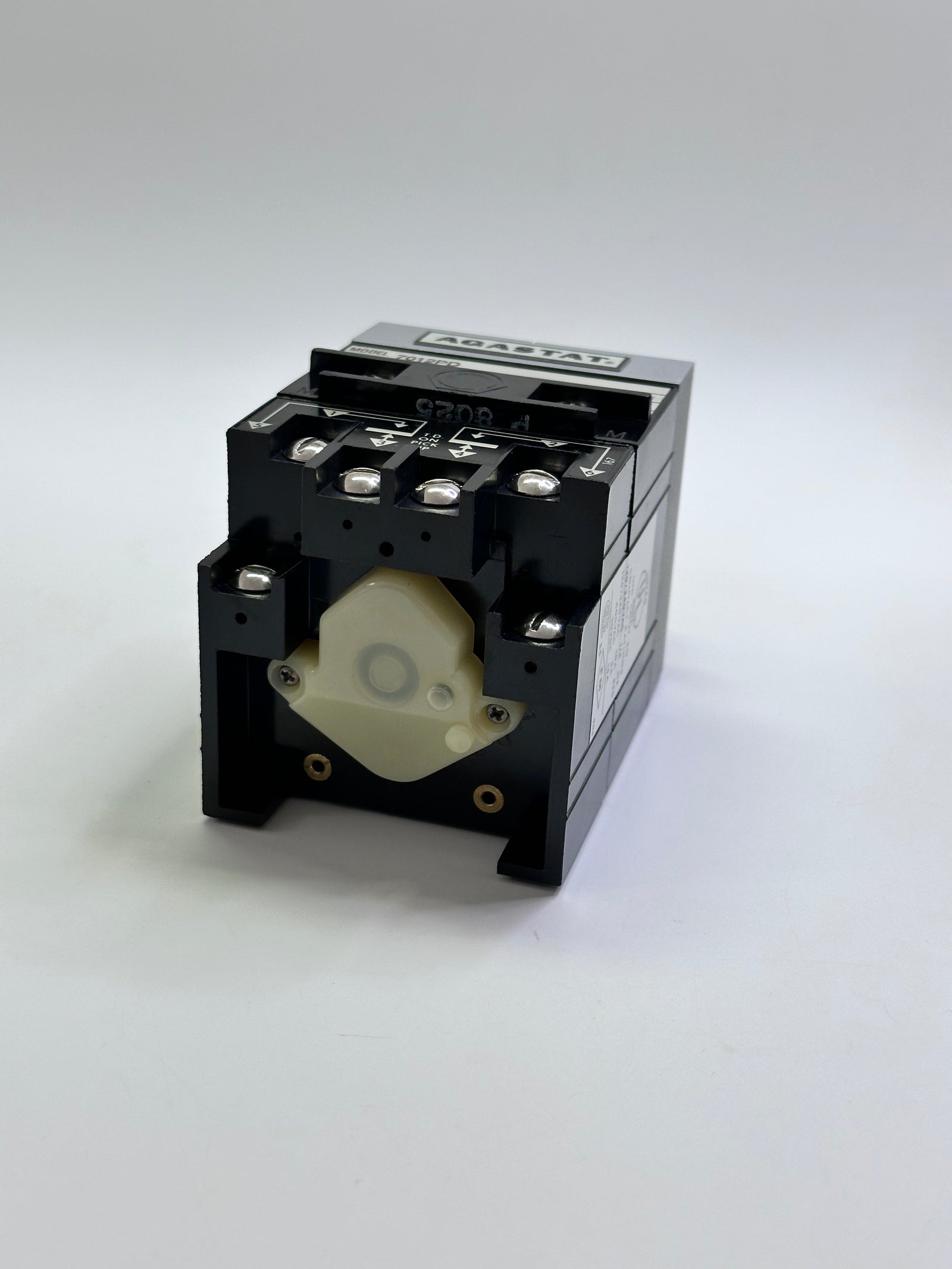

Main Termination & Connection Type: Screw Terminals
-
Coil Termination & Connection Type: Screw Terminals
Mechanical Attachment
-
Product Mounting Feature Type: Mounting Brackets
-
Product Mount Type: Chassis Mount
Dimensions
-
Product Height: 78.4 mm [ 3.09 in ]
-
Product Length: 114.8 mm [ 4.52 in ]
-
Product Width: 82.55 mm [ 3.25 in ]
Usage Conditions
-
Operating Temperature Range (°C): -30 – 75
-
Environmental Ambient Temperature (Max) : 75 °C [ 167 °F ]
Operation/Application
-
Repeatability (Max): ±5%
-

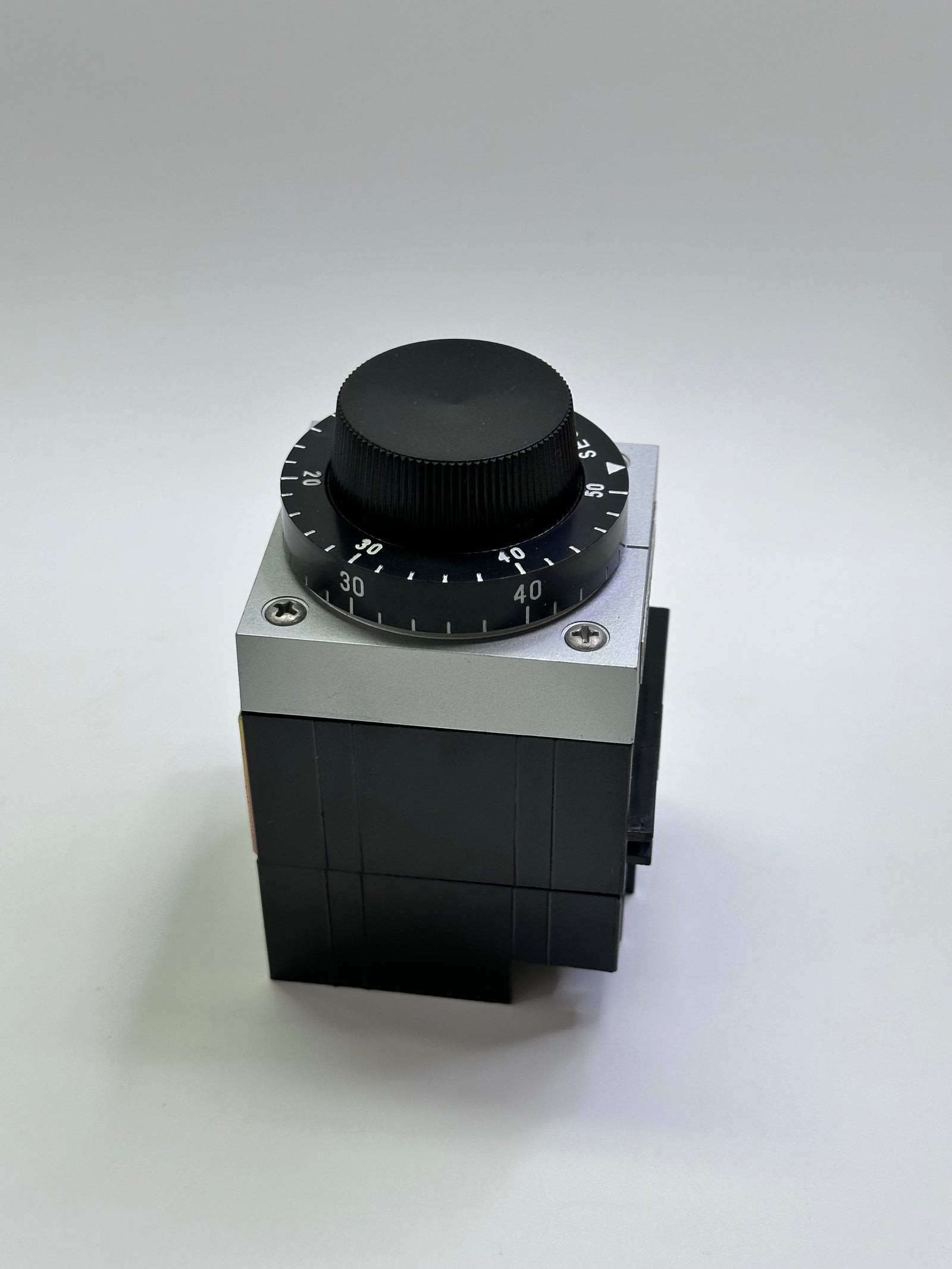

Type of Control: Knob
-
Mode of Operation: On-Delay
-
Delay Time: 5 – 50 seconds
-
Current Type: DC
