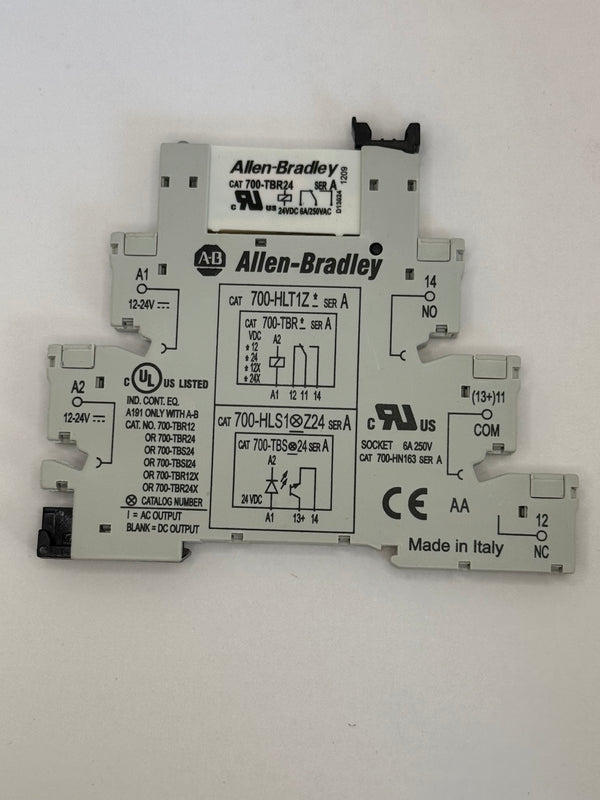

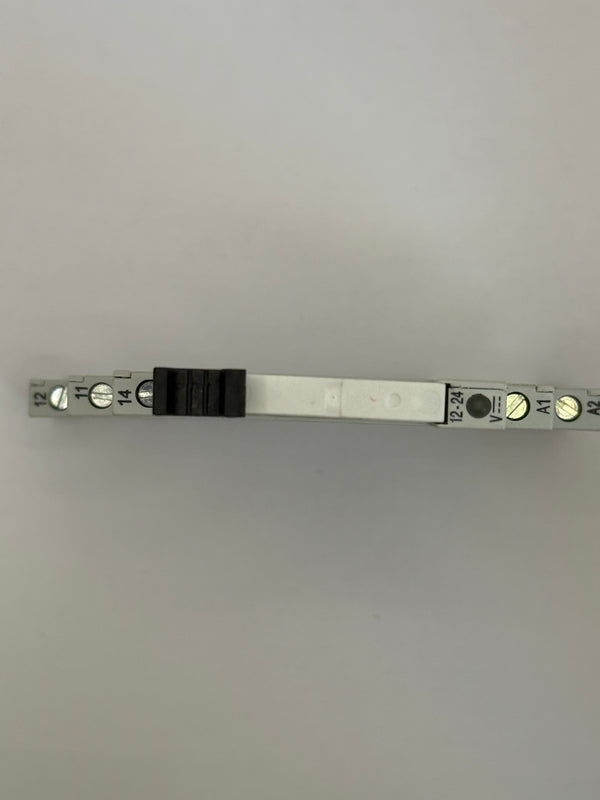

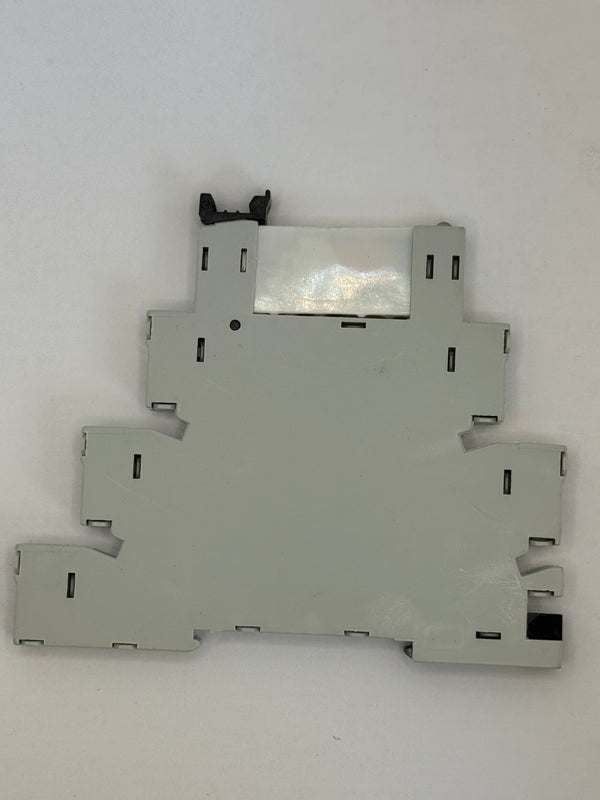

Allen-Bradley 700-HLS1Z24 Terminal Block Relay SERIES A

ALLEN-BRADLEY SKU: P--H-A-2917

$30.00

Tax included

Only 5 left!

700-HLT1Z24, 700-TBR24, 700-HLS1Z24



Number of contacts as change-over contact 1
Nominal current 6 A
Complete with socket Yes
With LED indication Yes
Voltage type for actuating DC
Rated control supply voltage at AC 50 Hz 24 V
Rated control supply voltage at AC 60 Hz 24 V
Rated control supply voltage at DC 24 V
Type of electric connection Screw connection
Rated thermal current (Ith) 0.25
Power consumption 0.5 W @ DC, 2-poles
Electrical life cycle 6 A resistive: 100000 minimum, 1 A inductive: 200000 minimum @ 24V DC, 1 A inductive: 300000 minimum @ 120V AC
