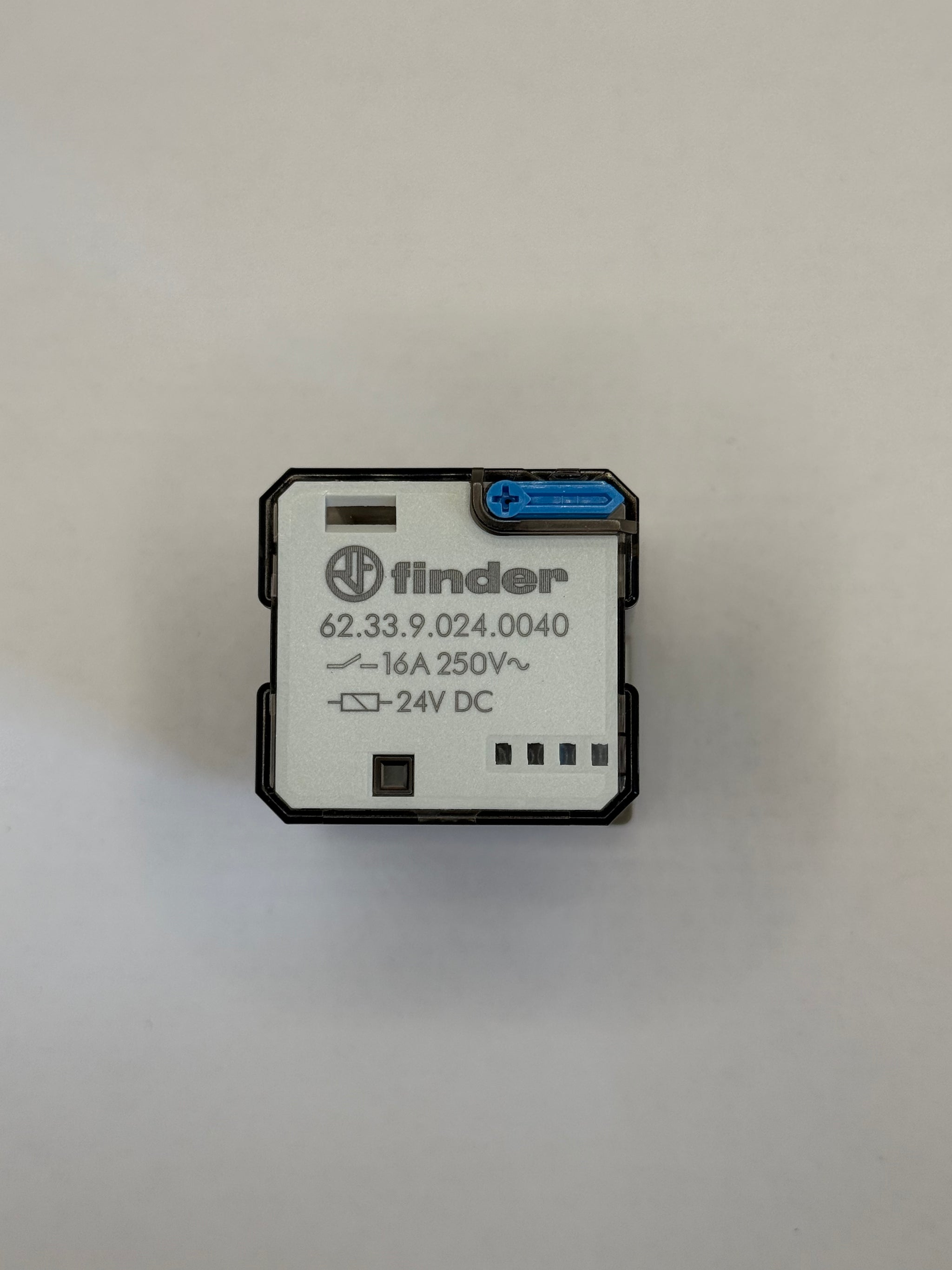

Finder 62.33.9.024.0040 Plug-In Power Relay 24V DC 3PDT 16A
- SKU
- P-..-F-7938
- Weight
- 1.0 kg
Specifications
| Manufacturer | FINDER |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-..-F-7938 |
| Weight | 1.0 kg |
Description
Finder 62.33.9.024.0040 62-series plug-in power relay: 24 V DC coil, three changeover poles (3PDT / 3CO), recorded 16 A switching current. Alstom reference 70049KR0; additional catalogue reference 292-8449.
Recorded technical specification:

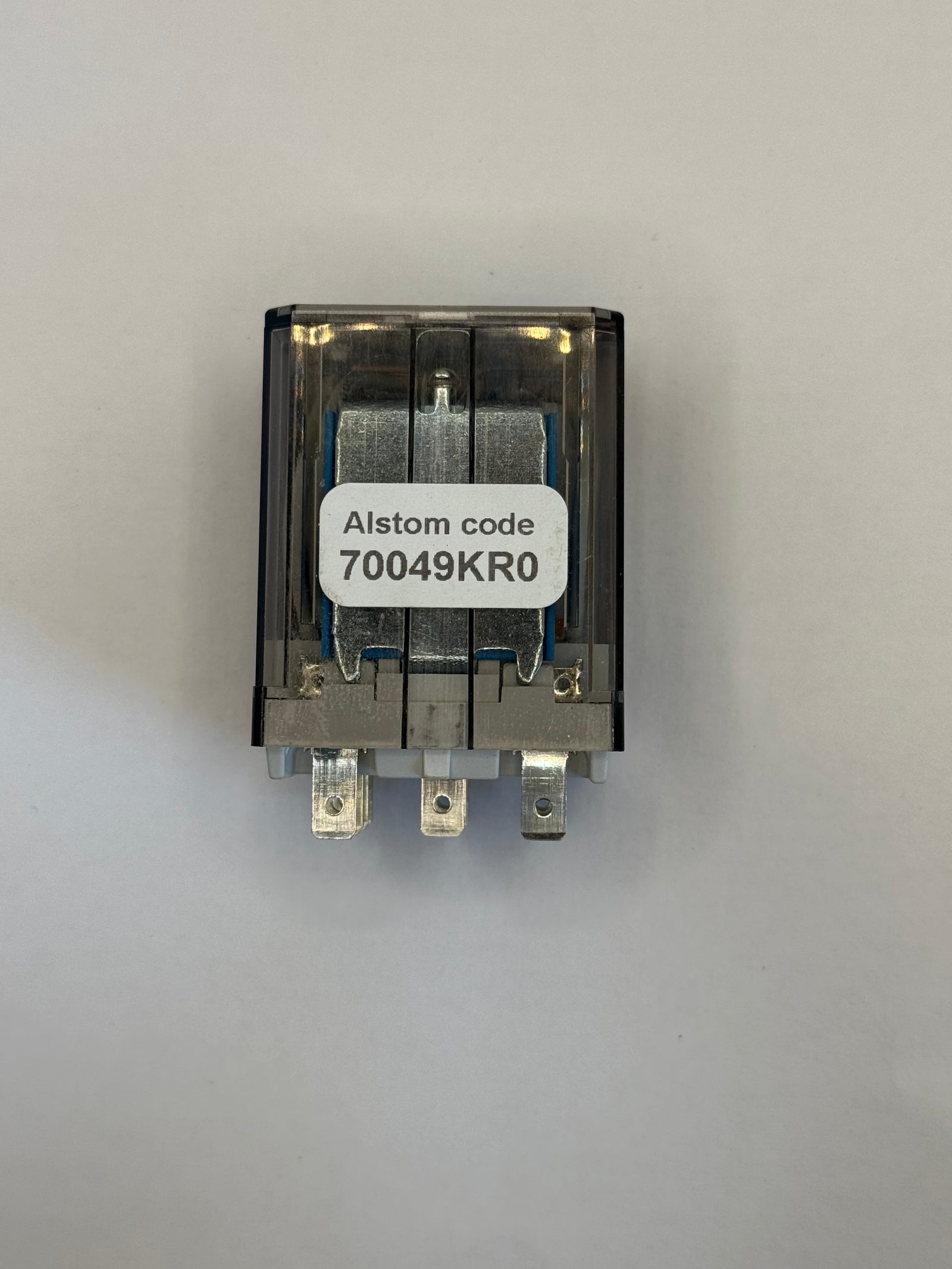

ALSTOM CODE: 70049KR0

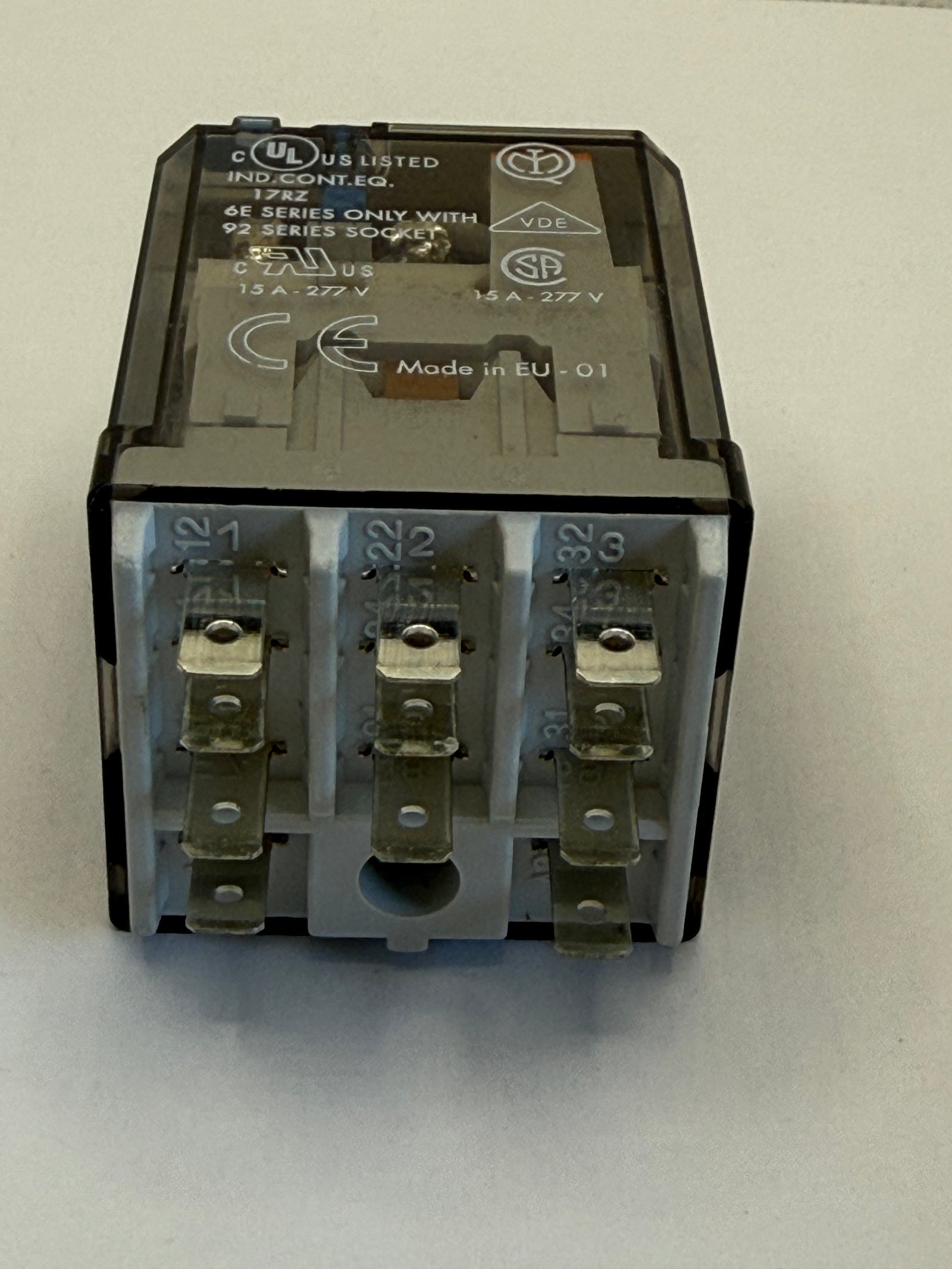

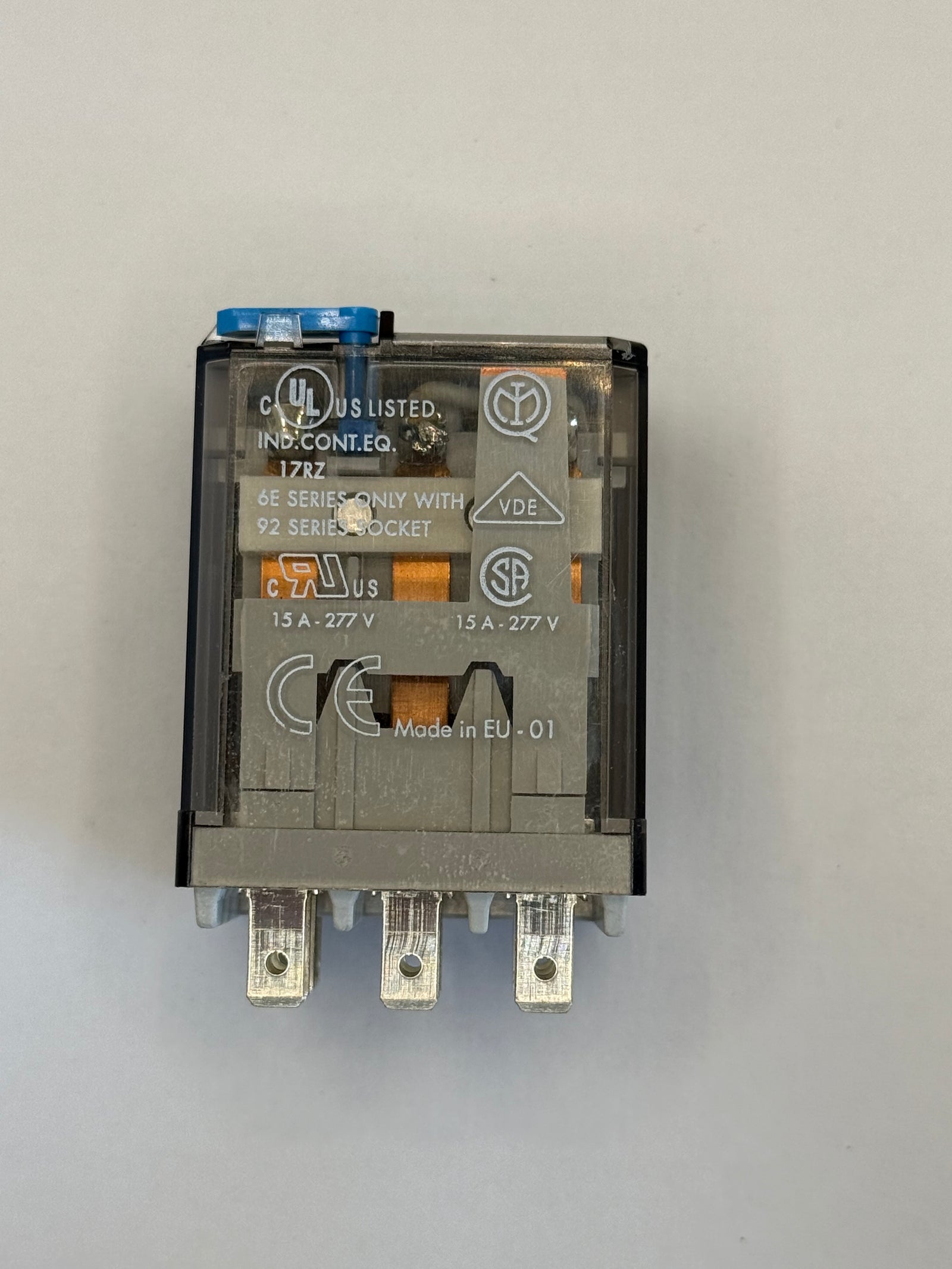

The 62.33.9.024.0040 is a 3-pole Power Relay with DC coil, 62.33 series. 3CO (3PDT) contact configuration, AgCdO2 contact. Reinforced insulation between coil and contacts according to EN 60335-1, with 6mm clearance and 8mm creepage distance. Plug-in (92 series sockets) mounting. Lockable test button and mechanical indicator.
- 6kV (1.2/50μs) Isolation, coil contacts
- RT I Environmental protection rating
Applications
Industrial, Power Management, Automation & Process Control
|
|
Brand | Finder |
|
|
Coil Voltage | 24V dc |
|
|
Contact Configuration | 3PDT |
|
|
Mounting Type | Plug In |
|
|
Switching Current | 16A |
|
|
Number of Poles | 3 |
|
|
Latching | No |
|
|
Terminal Type | Quick Connect |
|
|
Maximum Switching Voltage AC | 400V ac |
|
|
Length | 38.2mm |
|
|
Coil Resistance | 445 Ω |
|
|
Coil Power | 1.3W |
|
|
Height | 35.8mm |
|
|
Series | 62 Series |
|
|
Minimum Operating Temperature | -40°C |
|
|
Standards Met | CE, EAC |
|
|
Depth | 49.1mm |
|
|
Maximum Operating Temperature | +70°C |
|
|
Isolation Coil To Contact | 6kV |
| Life | 10000000 (AC Mechanical) cycles, 20000000 (DC Mechanical) cycles | |
|
|
Contact Material | Silver Alloy |
| Maximum Switching Power AC | 4 kVA | |
|
|
Application | Powe |
Confirm the required 92-series socket, load utilization ratings and installation conditions before selection. A compatible socket is not stated as included. Source standards, contact-material and life figures are retained as records, not independent certification or a service-life guarantee.
