CLIPSAL
56SW420C0 Four Pole Changeover & Reversing Switch [Grey]
- SKU
- P-SW-C-7527
$150.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
![56SW420C0 Four Pole Changeover & Reversing Switch [Grey]](http://www.miningsurplus.com.au/cdn/shop/files/IMG-7894_775b0deb-2c44-43b1-b7f9-8ae988315e5e.heic?v=1763363698&width=1200)
![56SW420C0 Four Pole Changeover & Reversing Switch [Grey]](http://www.miningsurplus.com.au/cdn/shop/files/IMG-7896_6720bb9d-c666-4b02-aa83-f0e2c841402d.heic?v=1763363698&width=1200)
![56SW420C0 Four Pole Changeover & Reversing Switch [Grey]](http://www.miningsurplus.com.au/cdn/shop/files/IMG-7897_0a2854eb-ba56-48fb-b65b-f00af805f056.heic?v=1763363698&width=1200)
![56SW420C0 Four Pole Changeover & Reversing Switch [Grey]](http://www.miningsurplus.com.au/cdn/shop/files/IMG-7898_9f8aa90e-f262-477d-aae1-cd8761efed97.heic?v=1763363697&width=1200)
![56SW420C0 Four Pole Changeover & Reversing Switch [Grey]](http://www.miningsurplus.com.au/cdn/shop/files/IMG-7899_396beed5-8d63-4d70-91ee-cb829b88fdd5.heic?v=1763363697&width=1200)
![56SW420C0 Four Pole Changeover & Reversing Switch [Grey]](http://www.miningsurplus.com.au/cdn/shop/files/IMG-7900_388634bd-6f78-4cae-9144-57645add1003.heic?v=1763363697&width=1200)
![56SW420C0 Four Pole Changeover & Reversing Switch [Grey]](http://www.miningsurplus.com.au/cdn/shop/files/IMG-7901_534af230-a9eb-4cb5-bca6-e6493cde71bd.heic?v=1763363697&width=1200)
![56SW420C0 Four Pole Changeover & Reversing Switch [Grey]](http://www.miningsurplus.com.au/cdn/shop/files/IMG-7902_c73effa9-7e27-43e7-b0c8-d9b26eb3bfef.heic?v=1763363697&width=1200)
- Weight
- 3.5 kg
Specifications
| Manufacturer | CLIPSAL |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-SW-C-7527 |
| Weight | 3.5 kg |
Description

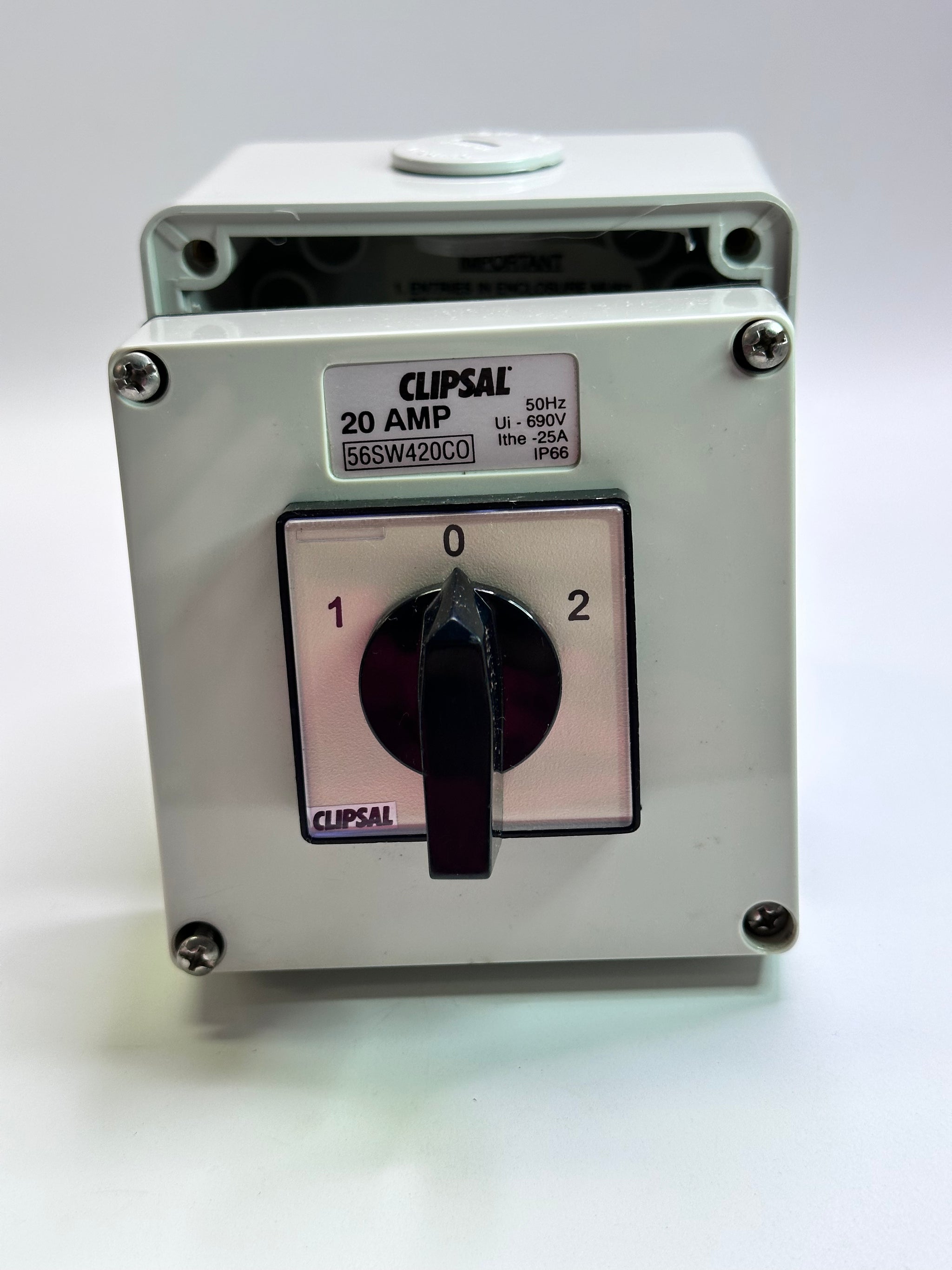

Clipsal 56 Series grey four-pole changeover / reversing switch, title reference 56SW420C0. Catalogue references also include 56SW420CO-GY and 56SW420COGY; confirm letter O versus zero on the unit.
- Rotary knob, surface screw mounting; full cover plate and polycarbonate construction.
- Source operational rating: 20 A, 500 V AC, 50 Hz.
- Dimensions: 107 mm high × 101 mm wide × 124 mm deep; net weight 0.64 kg.
- Source tightening torque: 0.8 Nm; no local signalling.
Rating verification required: tags list 690 V, unlike the body. The source's 20 kA “breaking capacity” entry must not be used as an established fault-interrupting rating; verify it alongside Icm 1.7 kA, Icw 0.8 kA for 1 s and impulse withstand 4 kV in the original details below. Confirm switching arrangement and installation conditions.
| Range of product | Series 56 |
|---|---|
| Range | Clipsal - 56 Series |
| Product brand | Clipsal |
| Product or component type | Switch |
| Assembly Type | Basic element with full cover plate |
| Device application | Control |
| Handle colour | Grey |
| Suitability for isolation | Yes |
| Colour | Cover: grey |
| Poles description | 4P |
|---|---|
| [Icm] rated short-circuit making capacity | 1.7 kA |
| Control type | Rotary knob |
| Number of poles | 4 |
| Installation Type | Surface |
| Material | PC (polycarbonate) |
| tightening torque | 0.8 N.m |
| Local signalling | without |
| [Ue] rated operational voltage | 500 V AC 50 Hz |
| Rated current | 20 A |
| Marking location | Marking on surface |
| Mounting Type | By screws |
| Breaking capacity | 20 kA |
| Targeted country | Australia |
| Height | 107 mm |
| Width | 101 mm |
| Depth | 124 mm |
| Net weight | 0.64 kg |
| [Uimp] rated impulse withstand voltage | 4 kV |
| [Icw] rated short-time withstand current | 0.8 kA for 1 s |
| Switch function | 4-pole |
