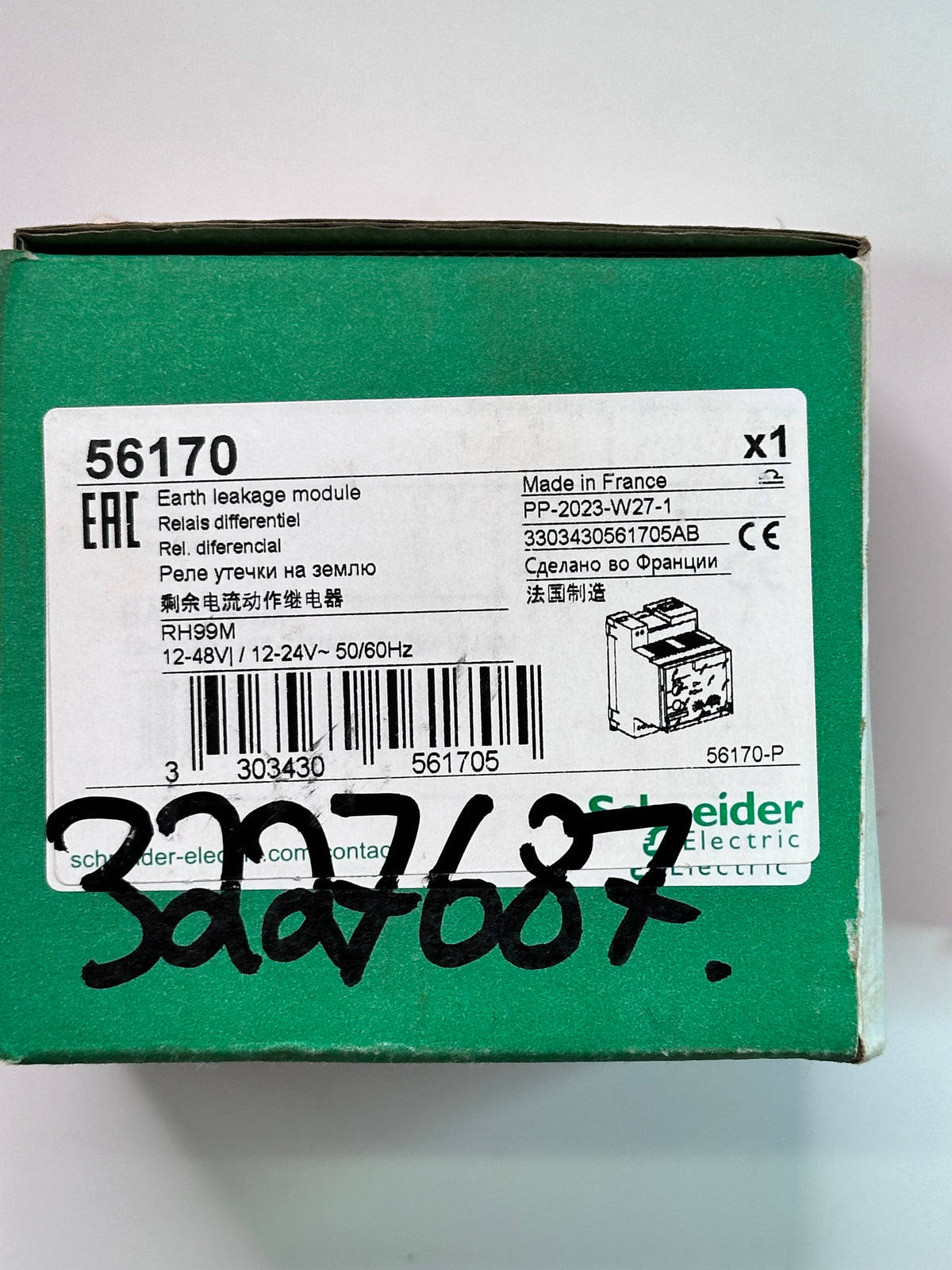

Schneider VigiPacT RH99M 56170 Earth Leakage Monitoring Relay
- SKU
- P-VI-S-7828
- Weight
- 2.0 kg
Specifications
| Manufacturer | SCHNEIDER ELECTRIC |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-VI-S-7828 |
| Weight | 2.0 kg |
Description

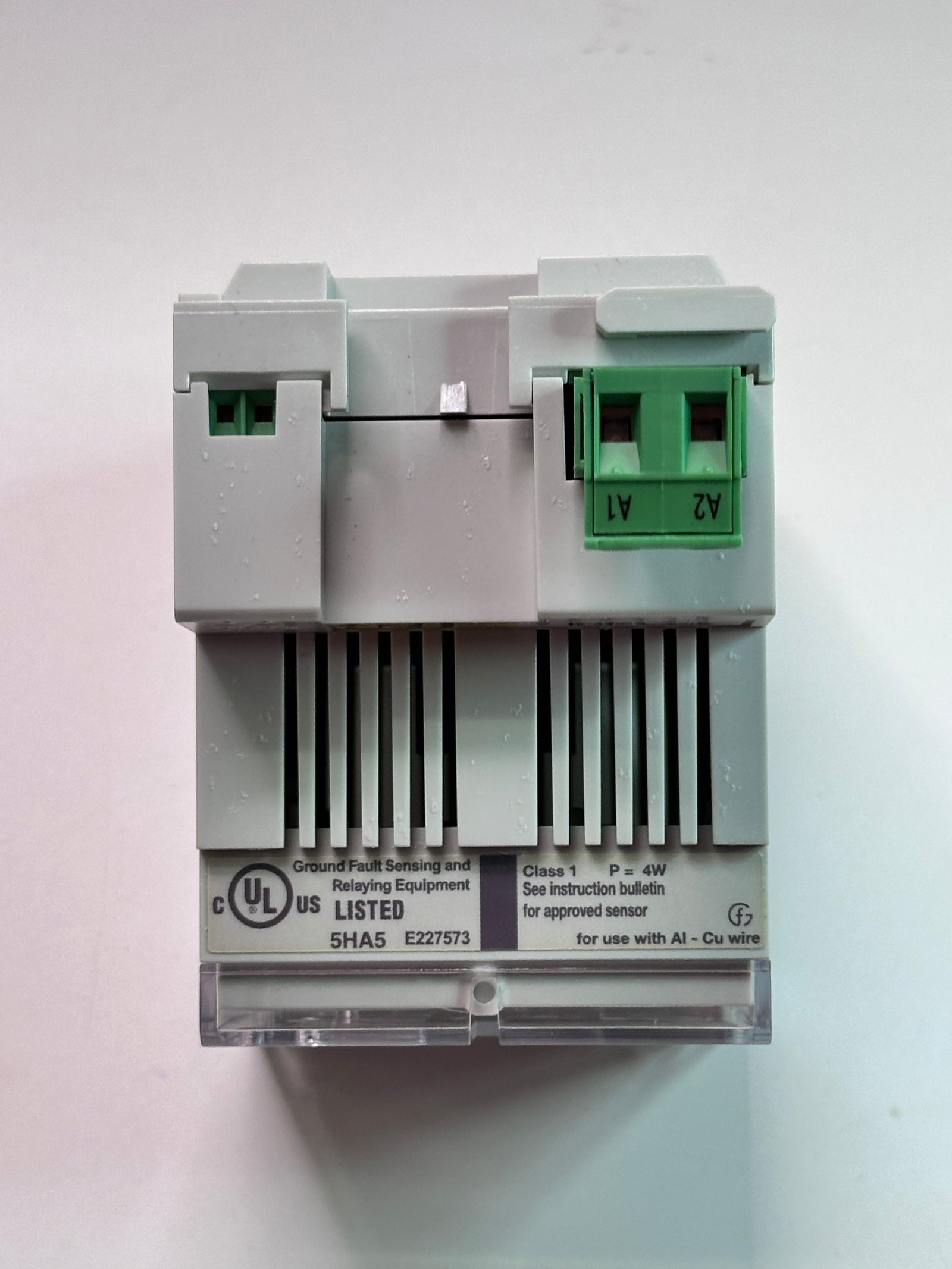

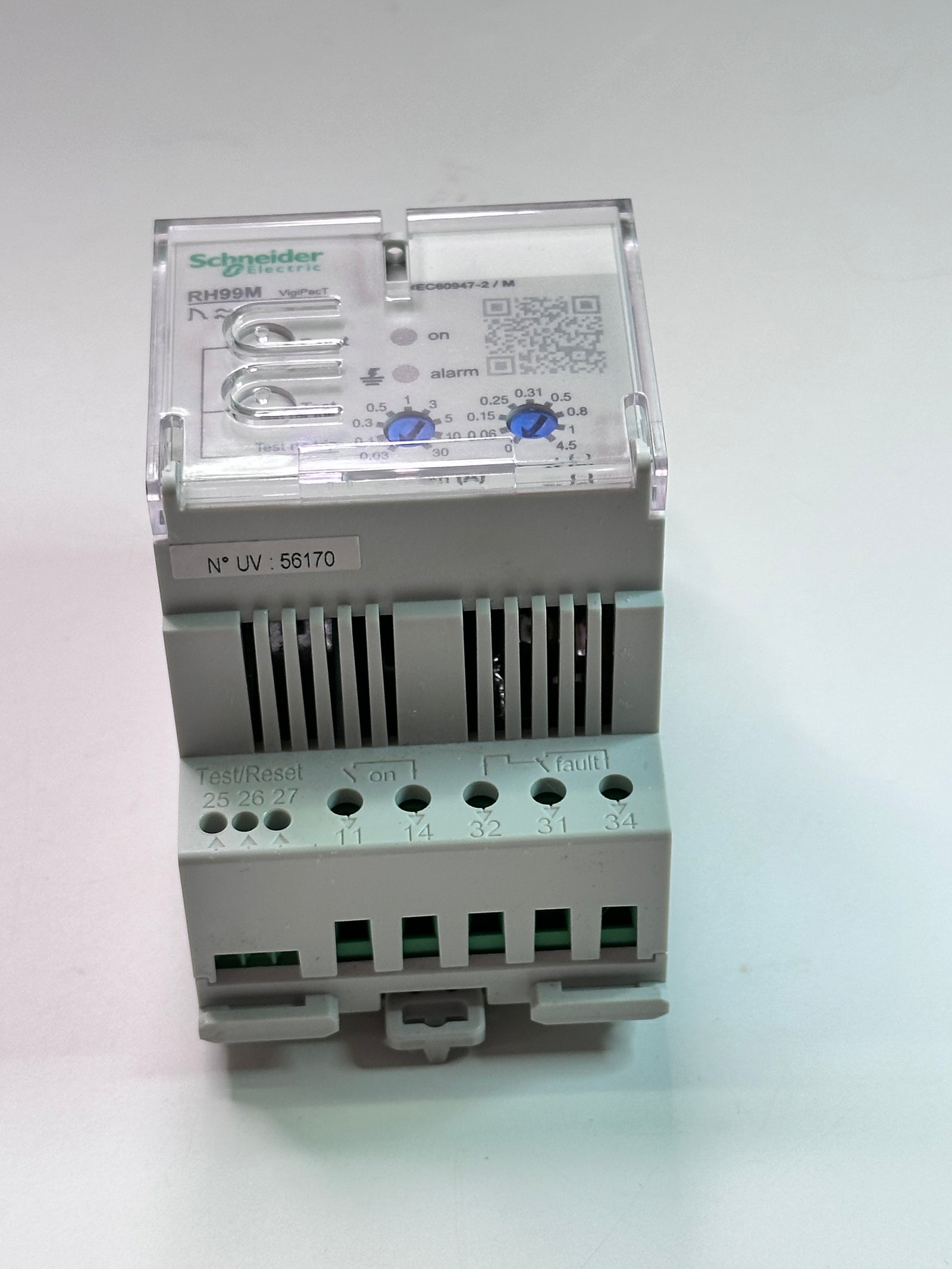

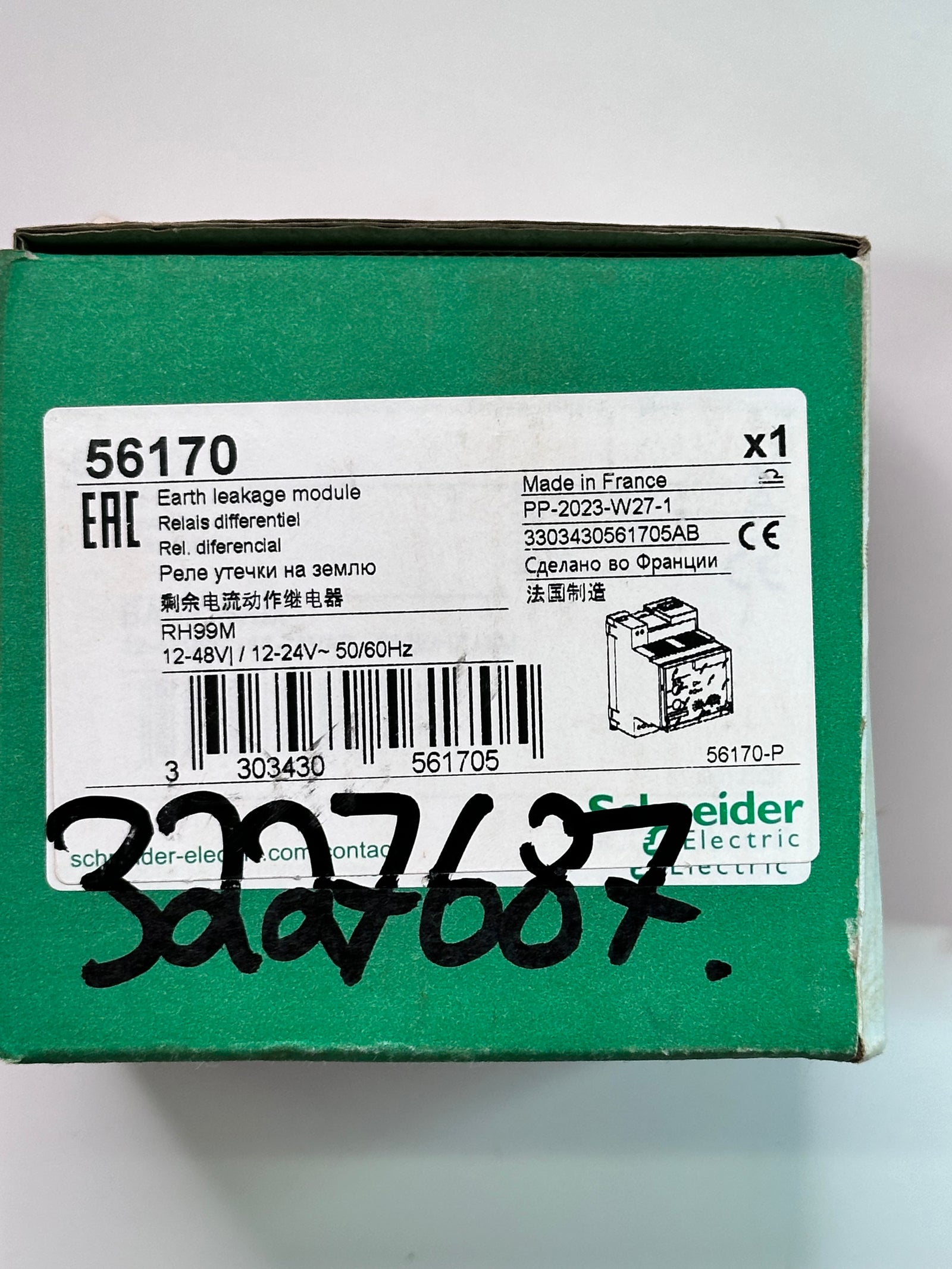

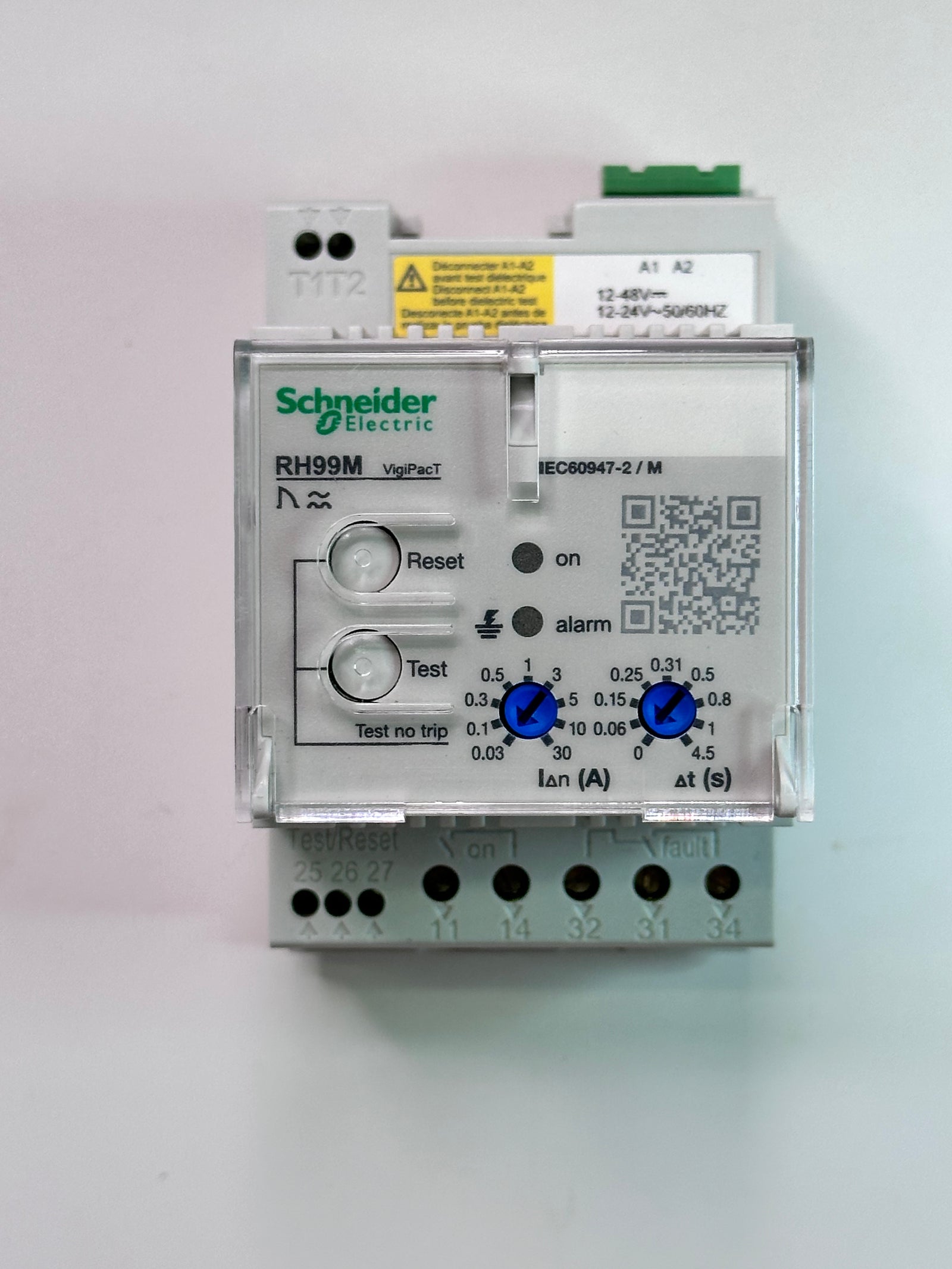

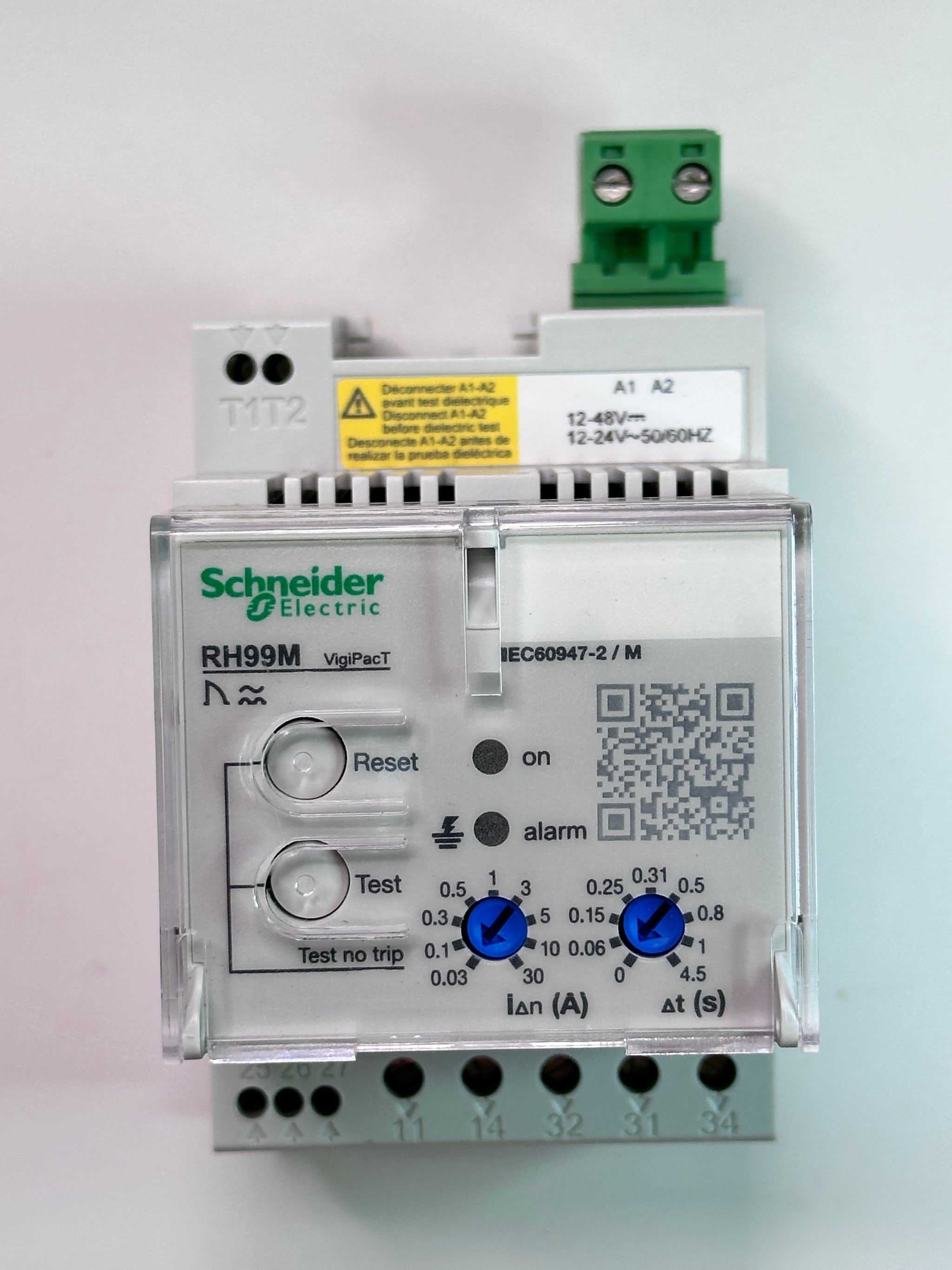

Schneider Electric VigiPacT RH99M residual-current / earth-leakage monitoring relay, reference 56170. Additional catalogue reference: 230-6627.
Recorded supply: 12–24 V AC at 50/60 Hz or 12–48 V DC. External power is required. Source-listed dimensions: 97 mm high × 54 mm wide × 74 mm deep; screw connections.
Original technical data:
Residual current monitoring relay |
|
| Supply voltage AC 60 Hz | 12-24 V |
|---|---|
| Number of contacts as normally open contact | 1 |
| Max. permitted delay-on energization time | 4.5 s |
| Min. adjustable delay-on energization time | 0 s |
| Type of electric connection | Screw connection |
| Height | 97 mm |
| Operating voltage AC 60 Hz | 12-24 V |
| Response value amperage 1 | 0-30 mA |
| Number of contacts as normally closed contact | 1 |
| External power supply required | Yes |
| Indication of difference current | No |
| Function | For three-phase supply system |
| Depth | 74 mm |
| Width | 54 mm |
| Rated operating frequency | 50-400 Hz |
|---|---|
| Current measuring range | 0.015-60 mA |
| With detachable clamps | No |
| Number of contacts as change-over contact | 1 |
| Supply voltage DC | 12-48 V |
| Voltage type (supply voltage) | AC/DC |
| Operating voltage AC 50 Hz | 12-24 V |
| Operating voltage DC | 12-48 V |
| Voltage measuring range | 0-1,000 V |
| Voltage type (operating voltage) | AC/DC |
| Error registration possible | No |
| Supply voltage AC 50 Hz | 12-24 V |
| Response value amperage 2 | 0 mA |
| Rated switch current | 8 A |
The current measuring/response ranges and units in the source require verification before setting protection thresholds. The 8 A figure is a recorded switch-current rating, not a residual-current trip setting.
This is a monitoring relay, not a circuit breaker. Confirm the sensing arrangement, output contacts, timing, supply and complete protection-system design before installation; sensing transformers and switching devices are not stated as included.
