FERRAZ SHAWMUT
Ferraz Shawmut A15QS800-4 Fuse, Epiroc 5535243800
- SKU
- P-EP-F-7659
$150.00
Price includes GST.
Low stock: 2 left
Warehouse pickup available
- Weight
- 1.0 kg
Specifications
| Manufacturer | FERRAZ SHAWMUT |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-EP-F-7659 |
| Weight | 1.0 kg |
Description

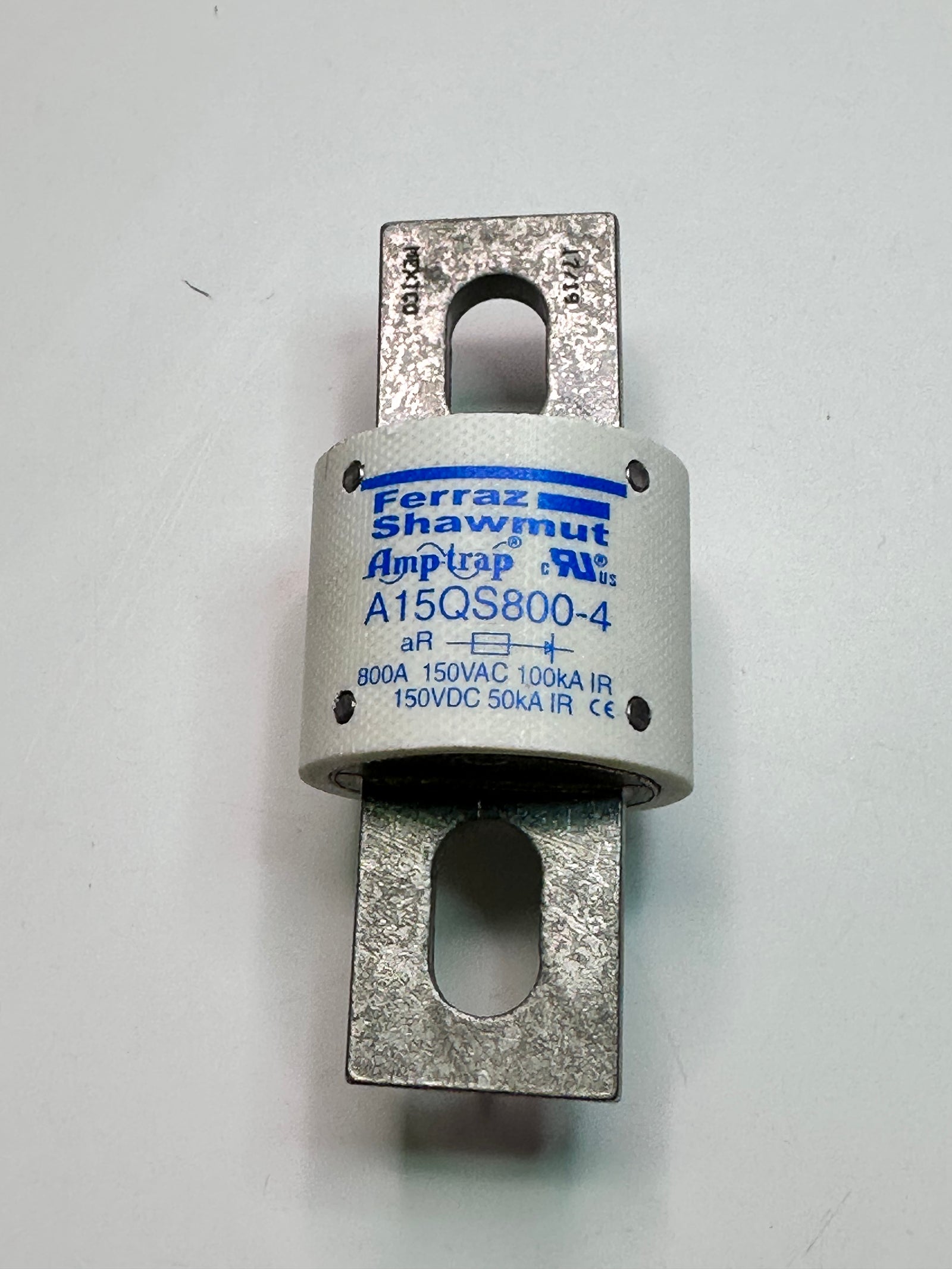

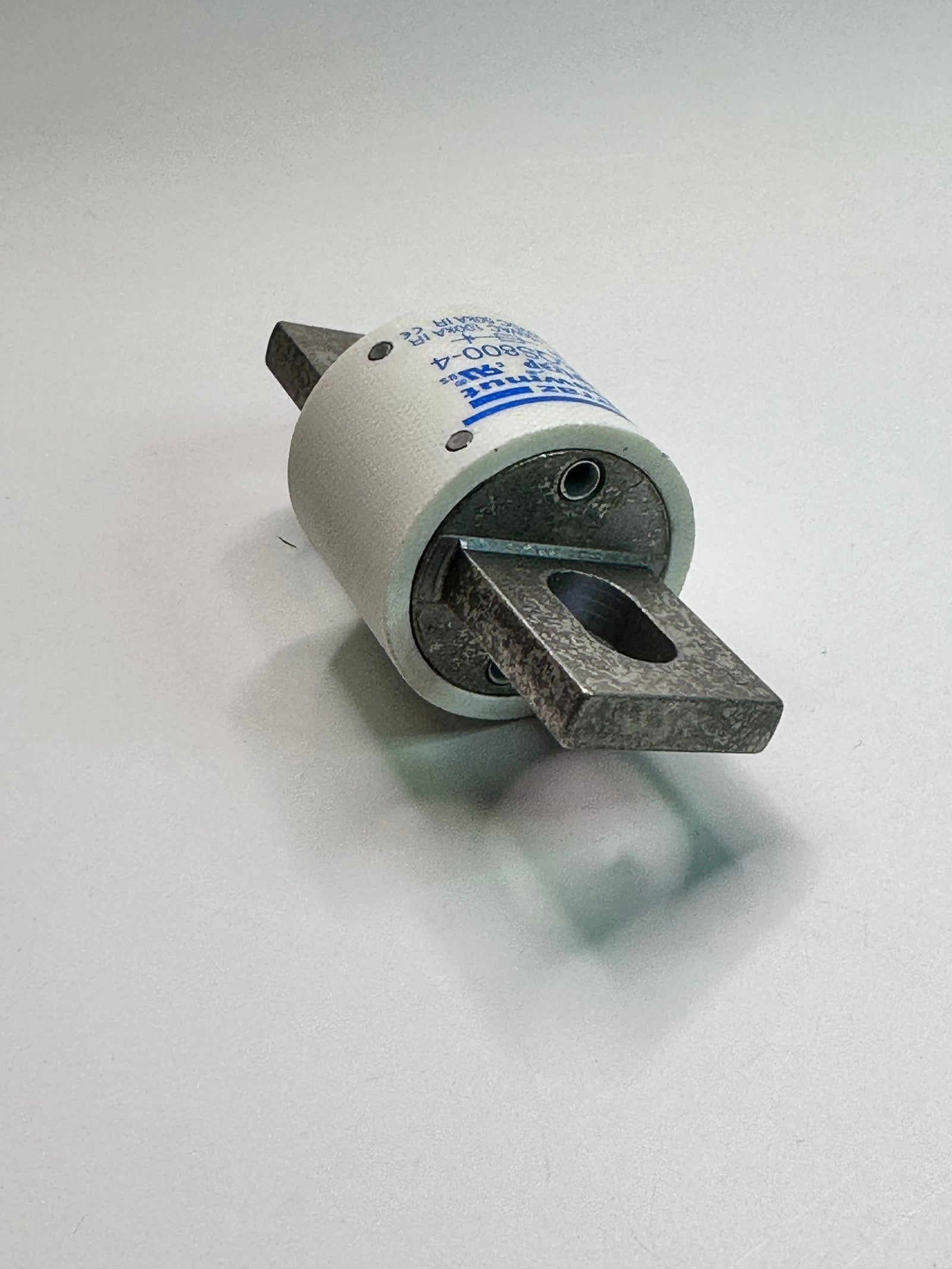

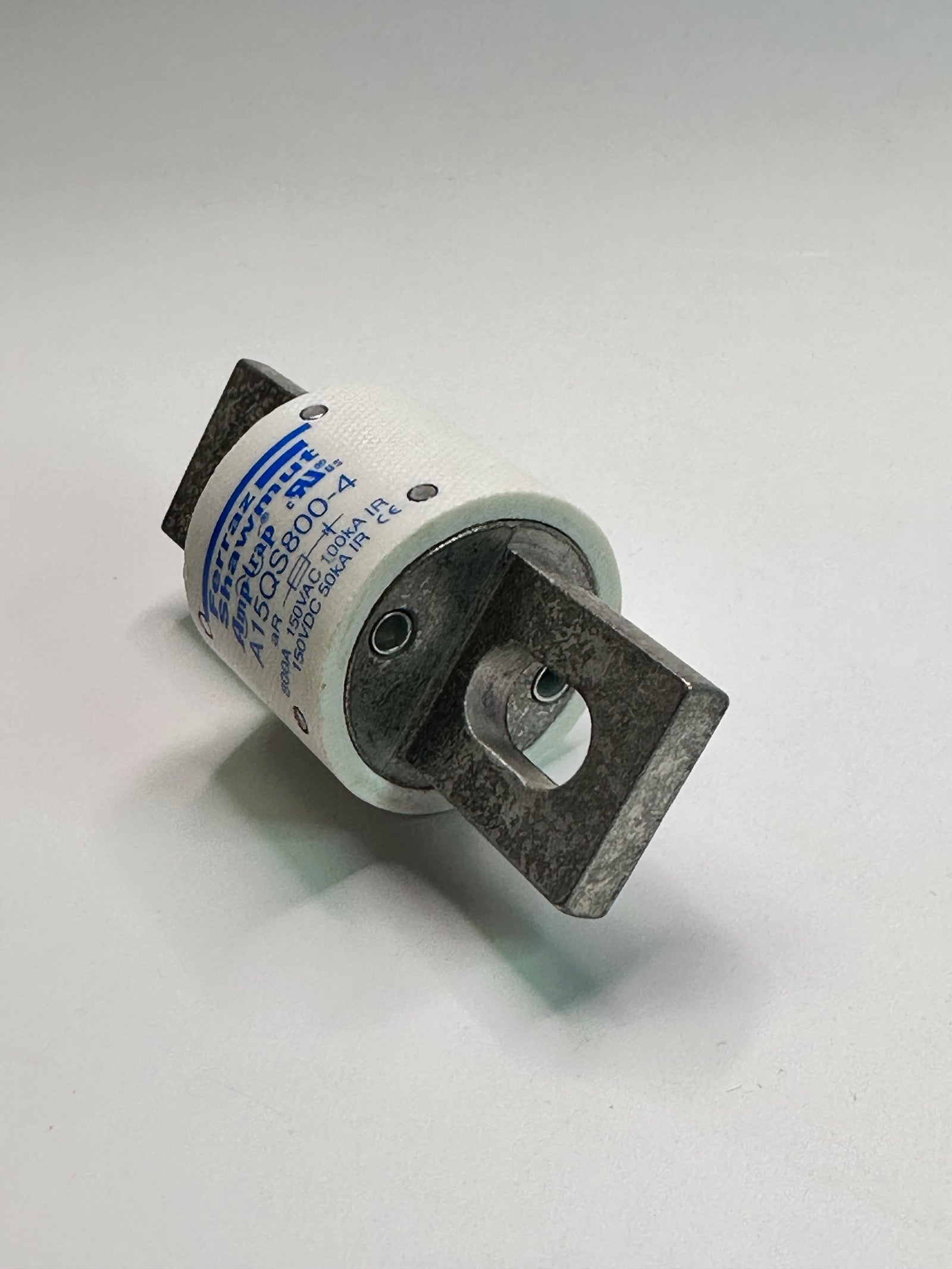

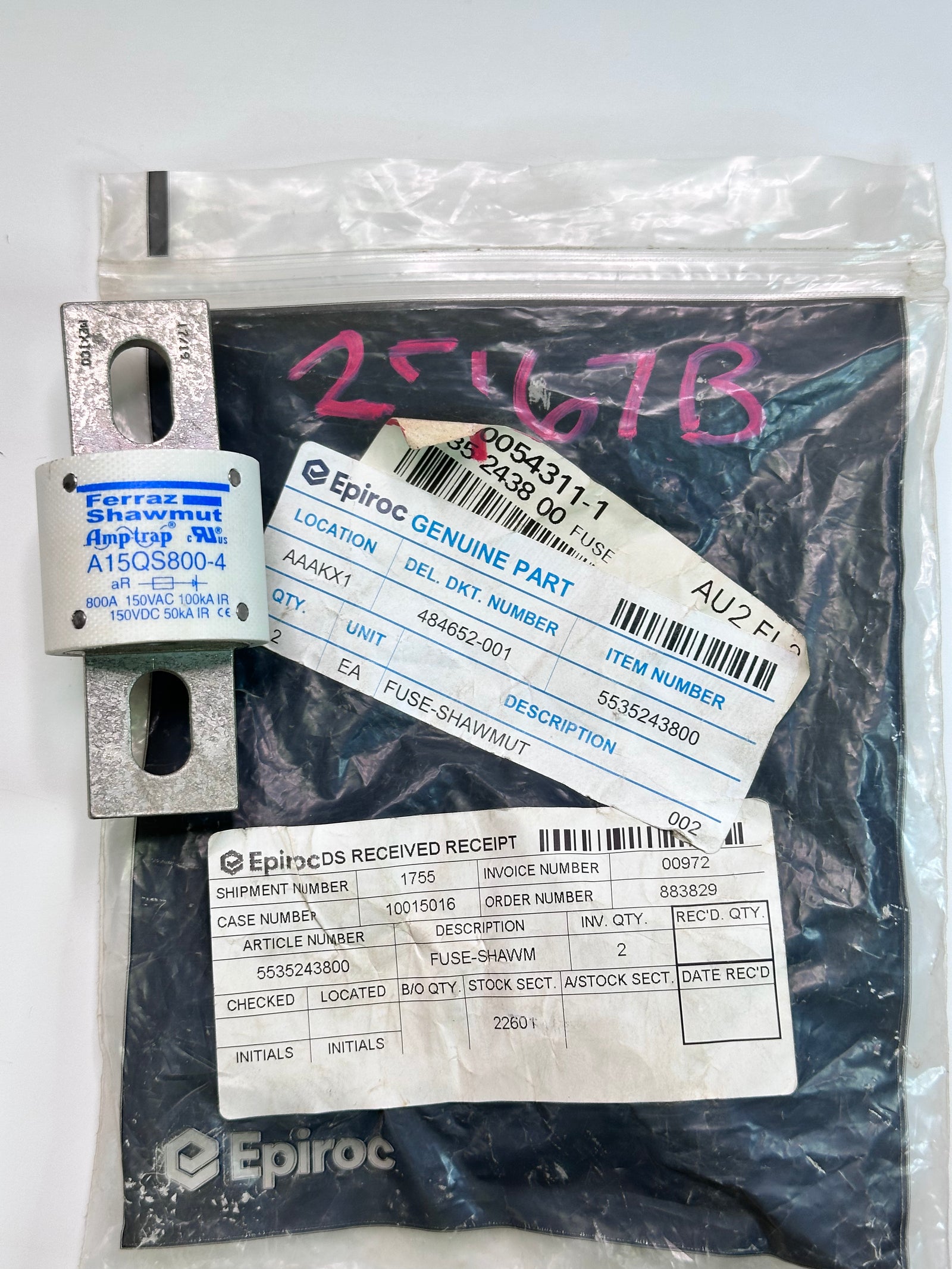

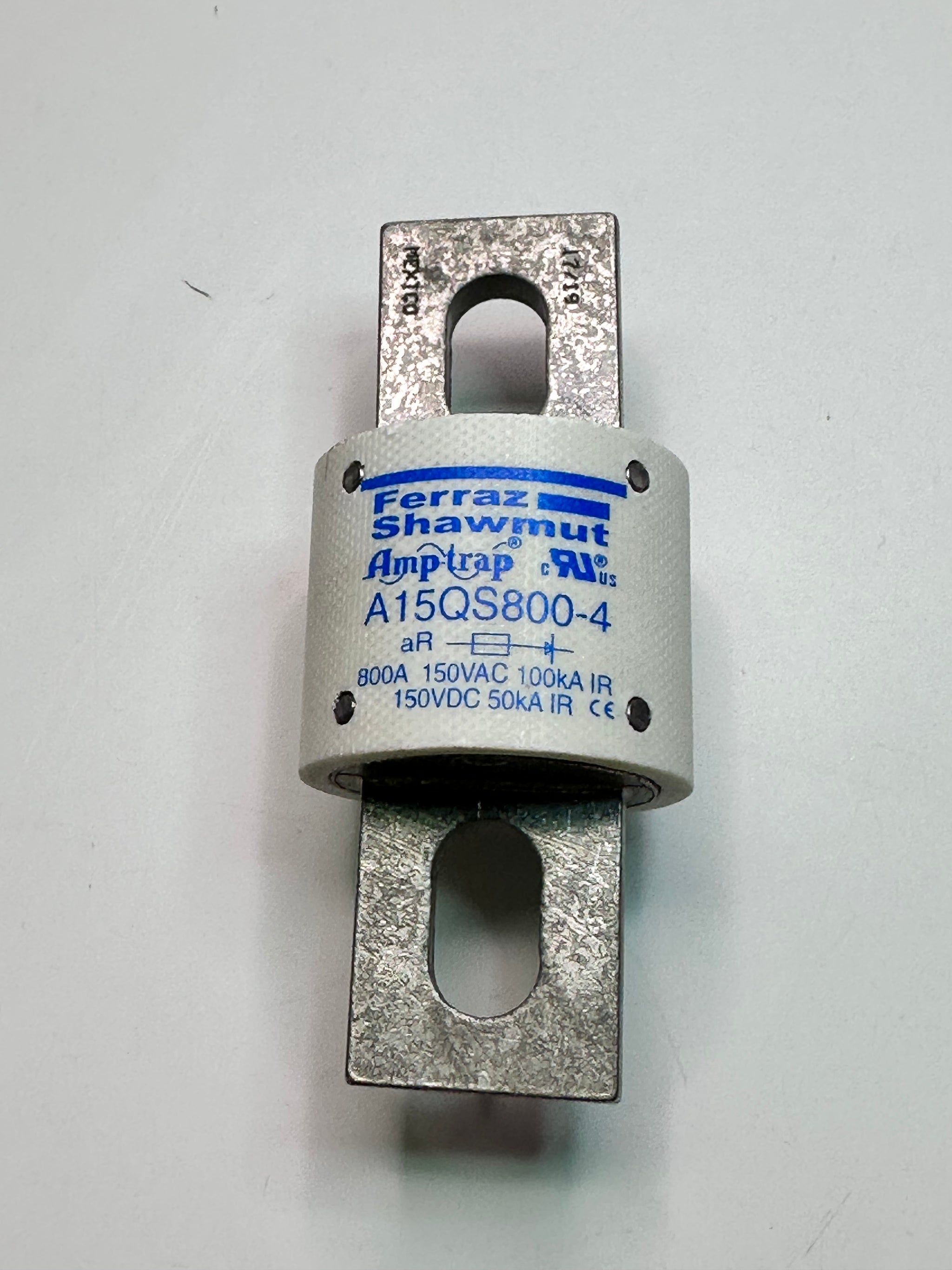

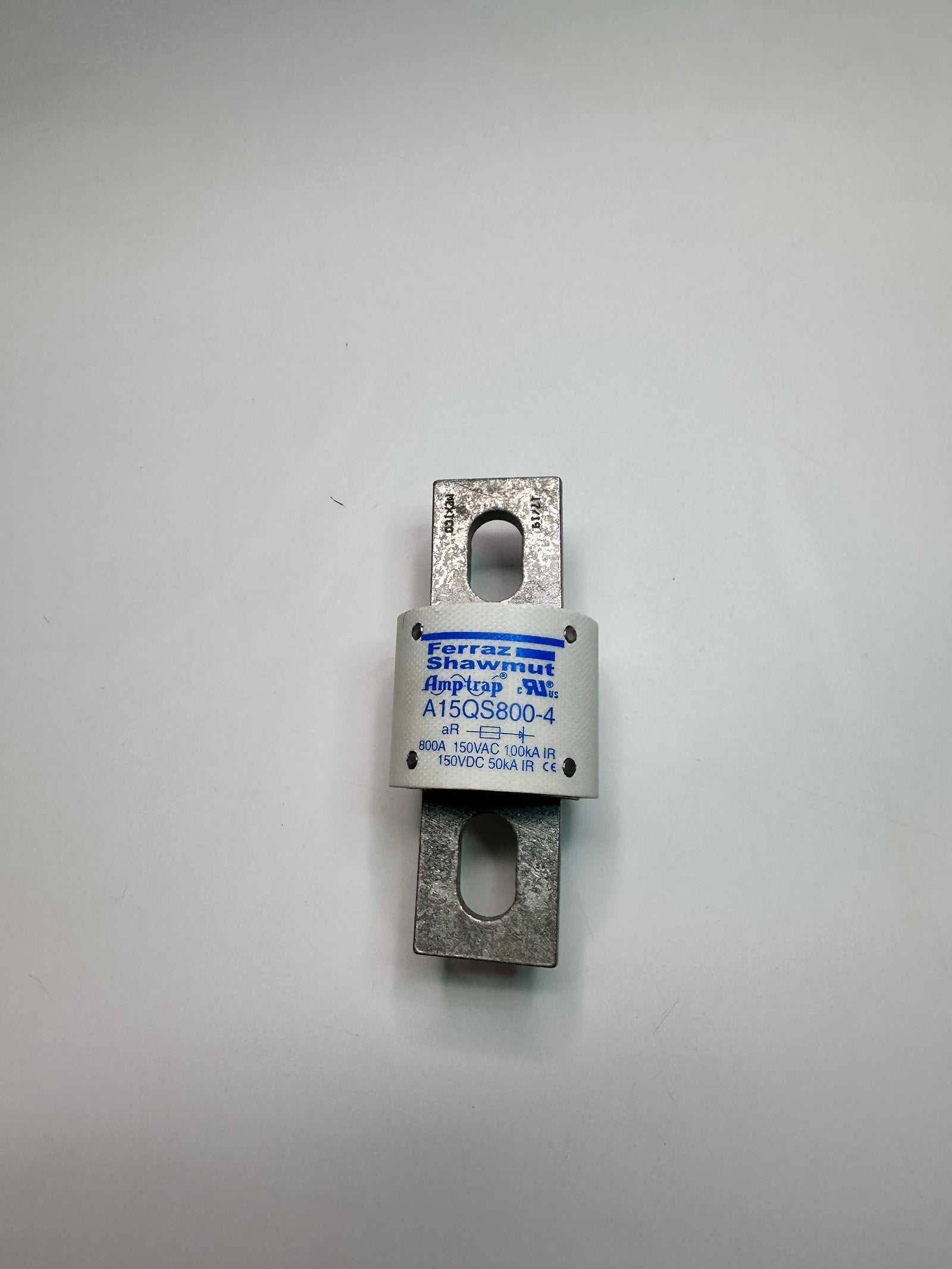

Ferraz Shawmut A15QS800-4 fuse, original Epiroc reference 5535243800. Original tags also record A15QS, AMP TRAP and MERSEN.
Dimensional verification required: the source pairs an 800 A bolt-mounted fuse with a size of 10.32 x 38.1 mm. Confirm the physical dimensions and exact label before selecting a replacement; those values have not been reconciled.
Specifications recorded in the original source
- Supplier: Ferraz Shawmut
- Part No: A15QS800-4
- Unit of Measure: Per Each
- RoHS: No
- ECCN: EAR99
- Type: Protective
- Fuse Size: 10.32 x 38.1 mm
- Acting: Fast
- Current Rating: 800 A
- Maximum AC Voltage Rating: 150 V
- Maximum DC Voltage Rating: 150 V
- Fuse Material: N/A
- Mounting: Bolt
The source records RoHS: No, ECCN: EAR99 and material N/A. These are retained source entries, not current compliance advice or a material specification. The original Atlas Copco/Sandvik and air-compressor tags do not establish equipment fitment. This is a fuse, not a resettable circuit breaker.
