Haldex 5396 40010502 Automatic Brake Adjuster for Mack Trucks
- SKU
- P-AU-H-7954
$145.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 5.0 kg
Specifications
| Manufacturer | HALDEX |
|---|---|
| Product type | AUTOMOTIVE & TRUCK PARTS |
| SKU | P-AU-H-7954 |
| Weight | 5.0 kg |
Description

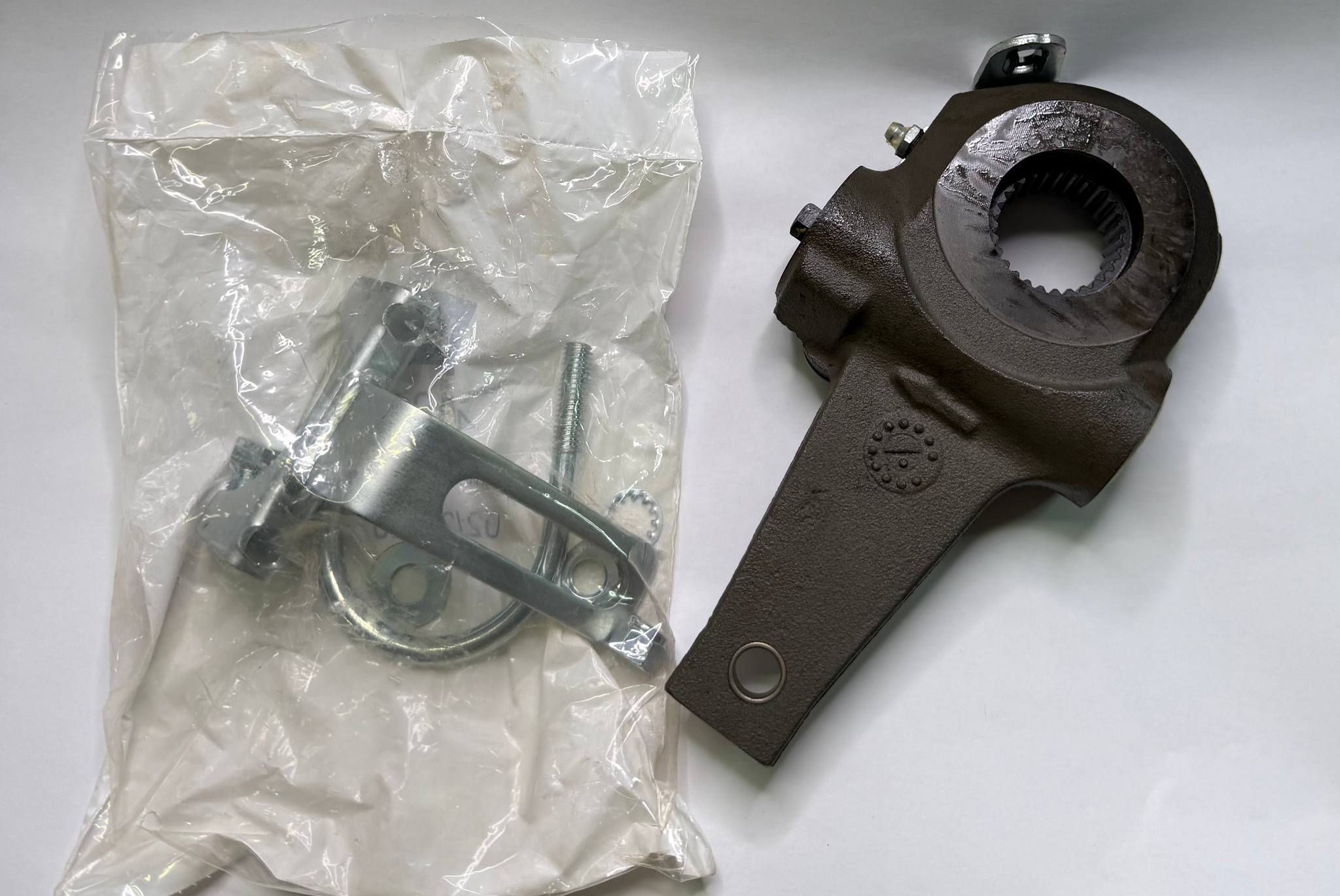

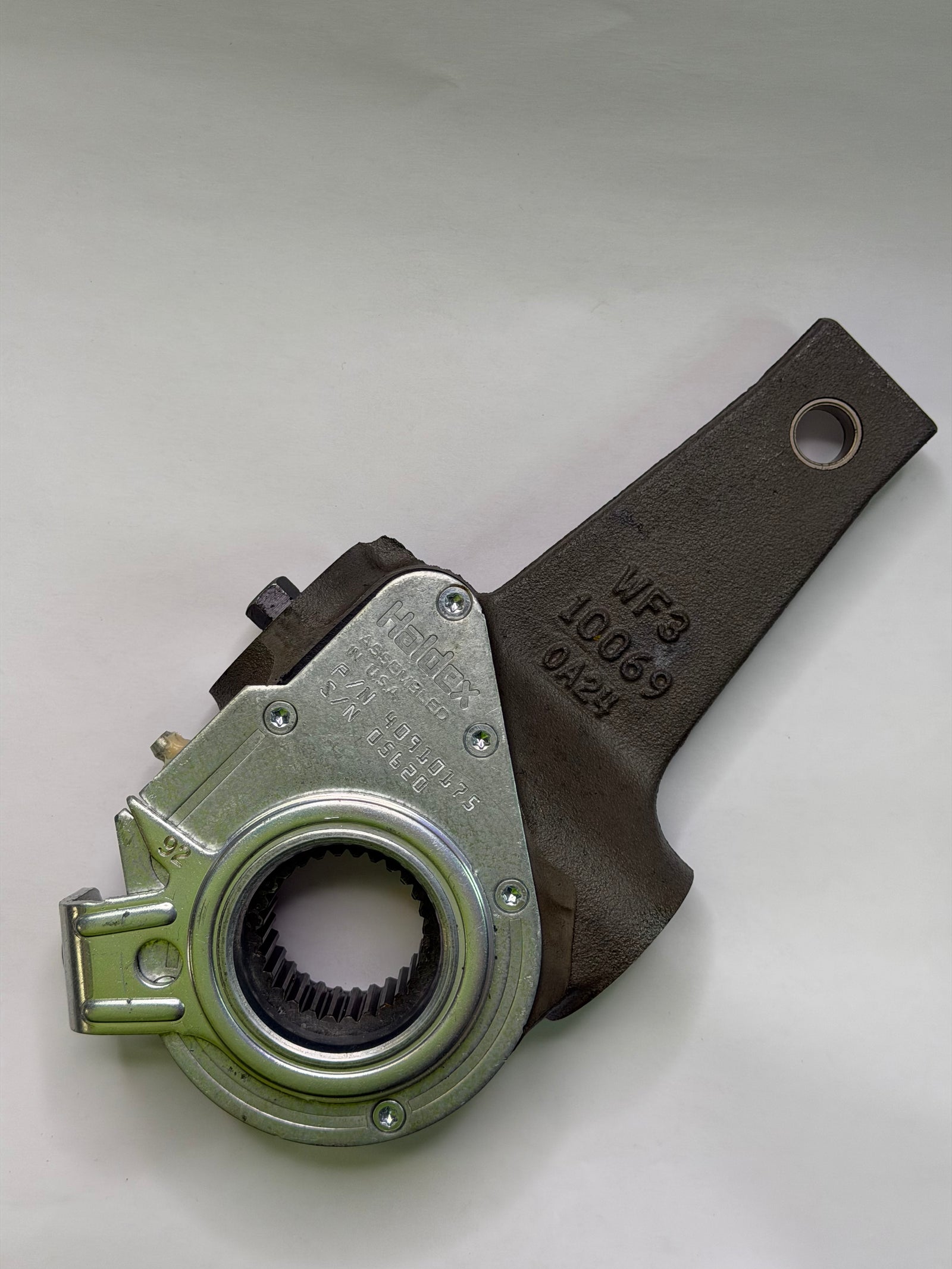

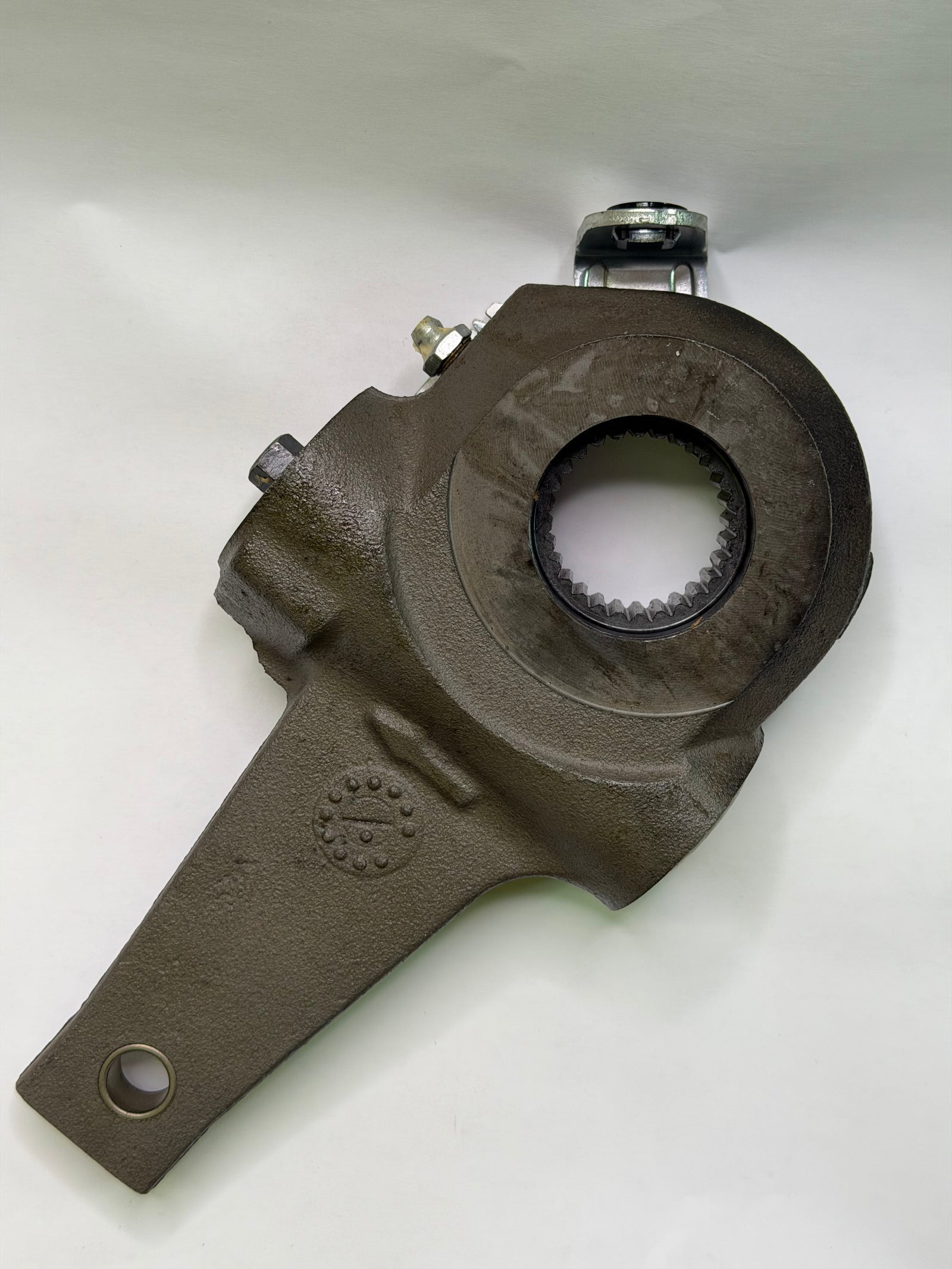

Haldex 5396 40010502 automatic brake/slack adjuster, recorded for Mack trucks. Catalogue reference forms: 5396-40010502 and 539640010502.
Opposite-side reference: 40010501. This identifies the counterpart, not a second adjuster included in this listing.
Recorded specifications
| Spline Diameter-Spline Count | 1-1/2"-28 |
| Arm Length | 6" |
| Body Angle | 0° |
| Offset | 3/8" |
| Arm Hole Diameter | 1/2" |
| Anchor Bracket Style | Clamp |

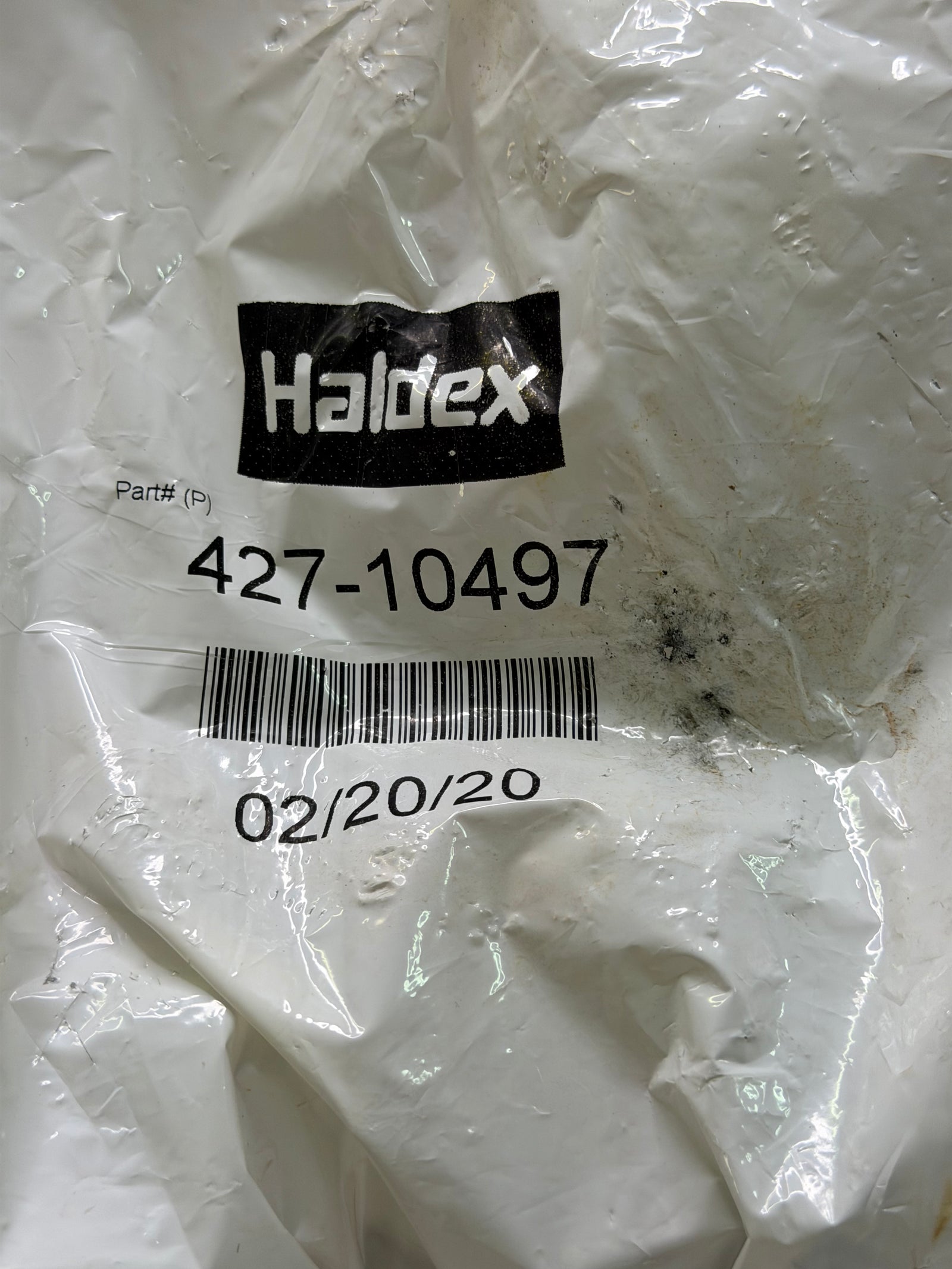

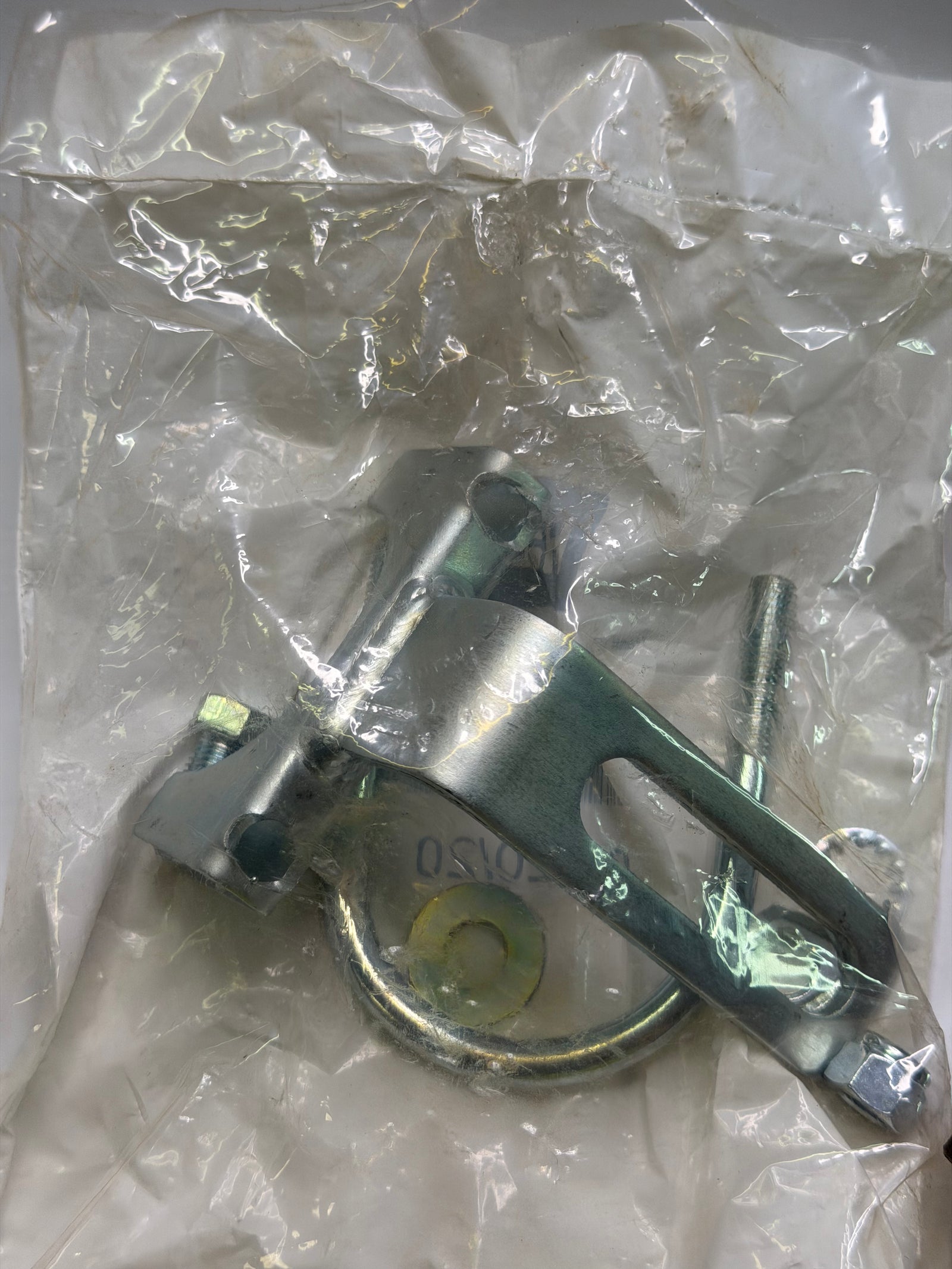

| Bracket Number | 42710497 |

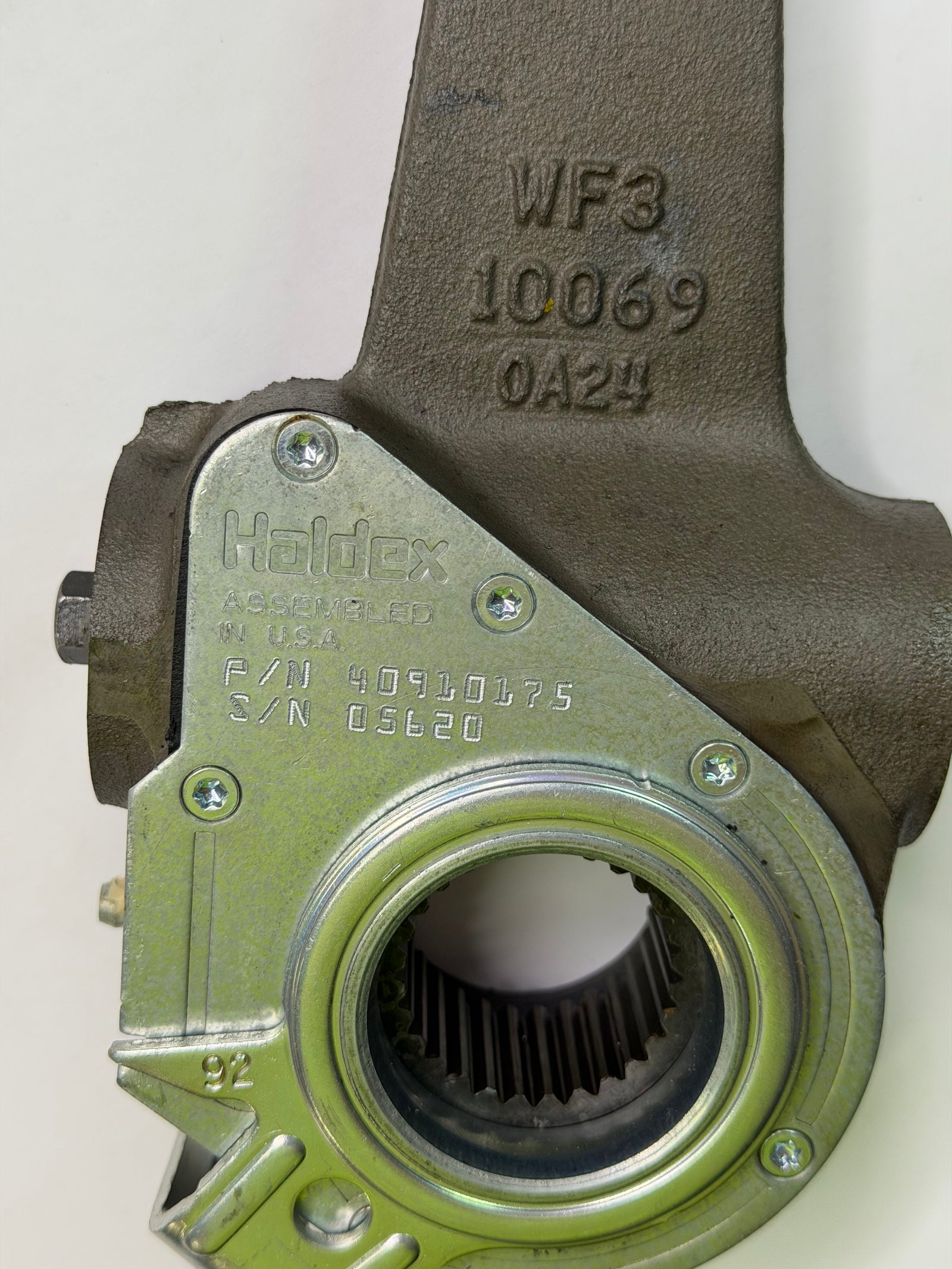

| OEM Part Number | 409-10175 |
| Grease Fitting Location | 180° |
| Grease Fitting Type | Straight |
OEM reference is also recorded as 40910175. Confirm axle/brake configuration, mounting orientation and the required side before ordering. Bracket number 42710497 is a specification reference, not confirmation of additional kit contents.
