ELECTROMECANICA CORMAR

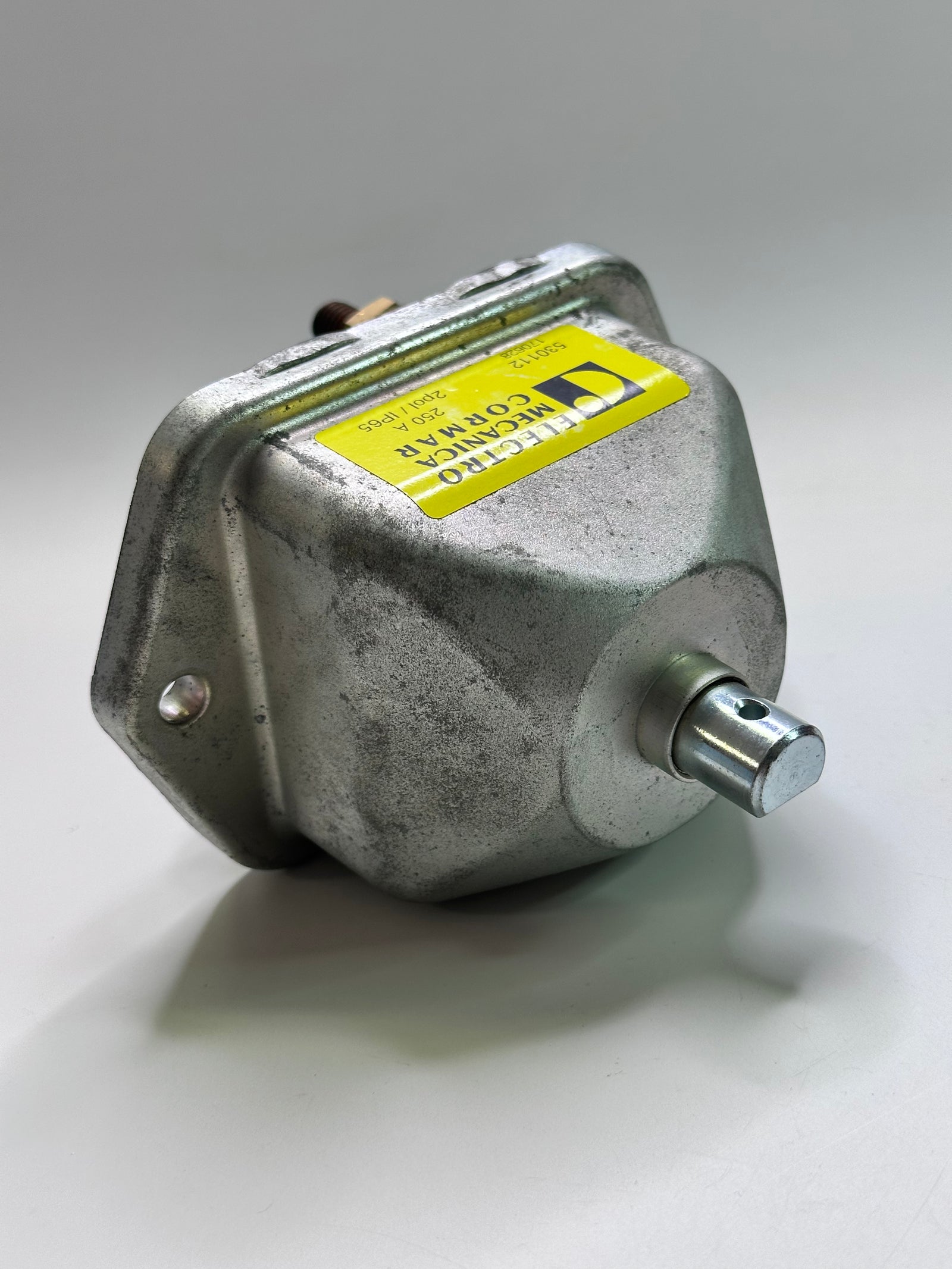

530112 Battery Master Switch, 250A — Handle Pin Missing
- SKU
- P-BA-C-7722
- Weight
- 3.0 kg
Specifications
| Manufacturer | ELECTROMECANICA CORMAR |
|---|---|
| Product type | AUTOELECTRICAL |
| SKU | P-BA-C-7722 |
| Weight | 3.0 kg |
Description

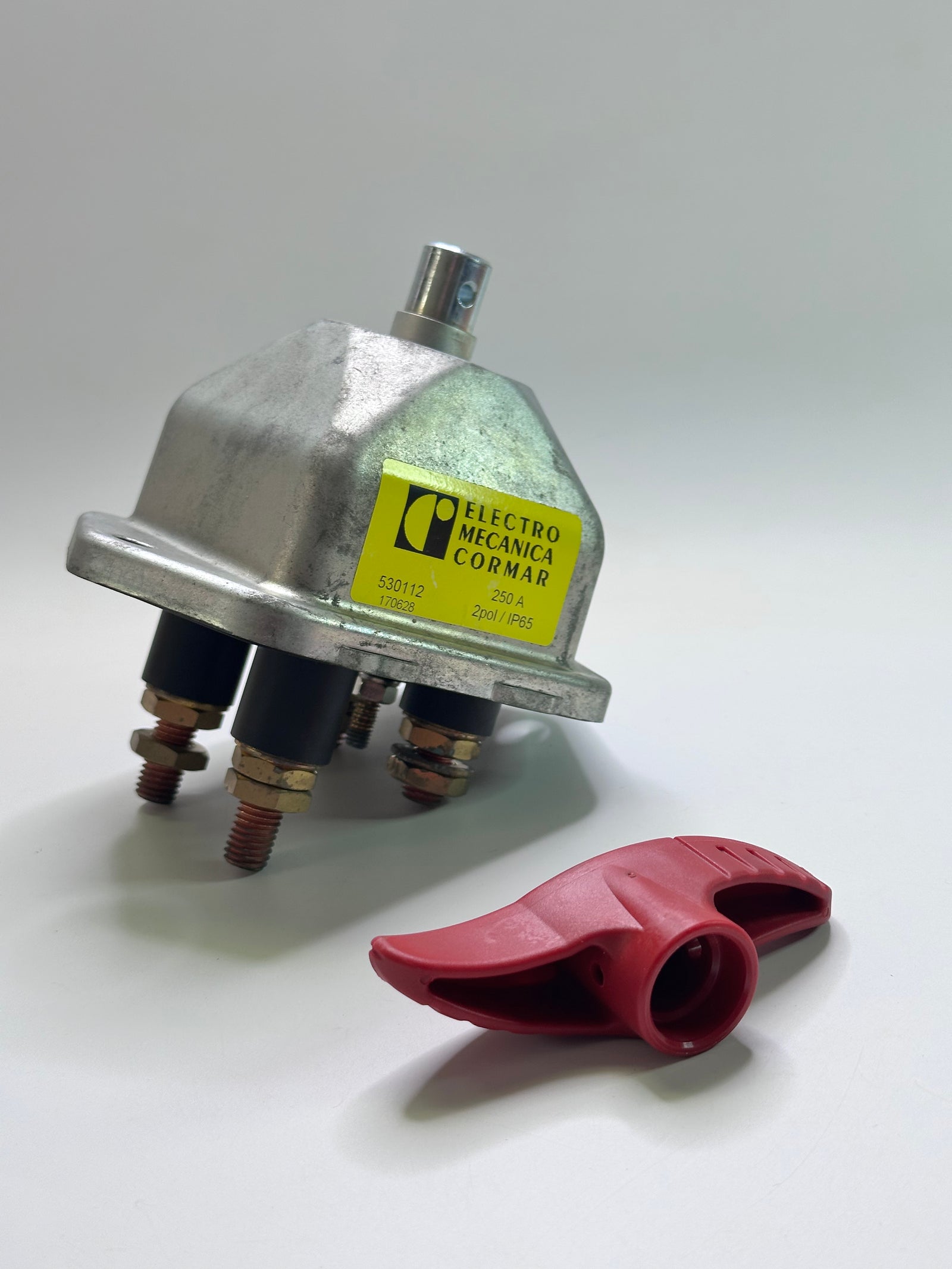

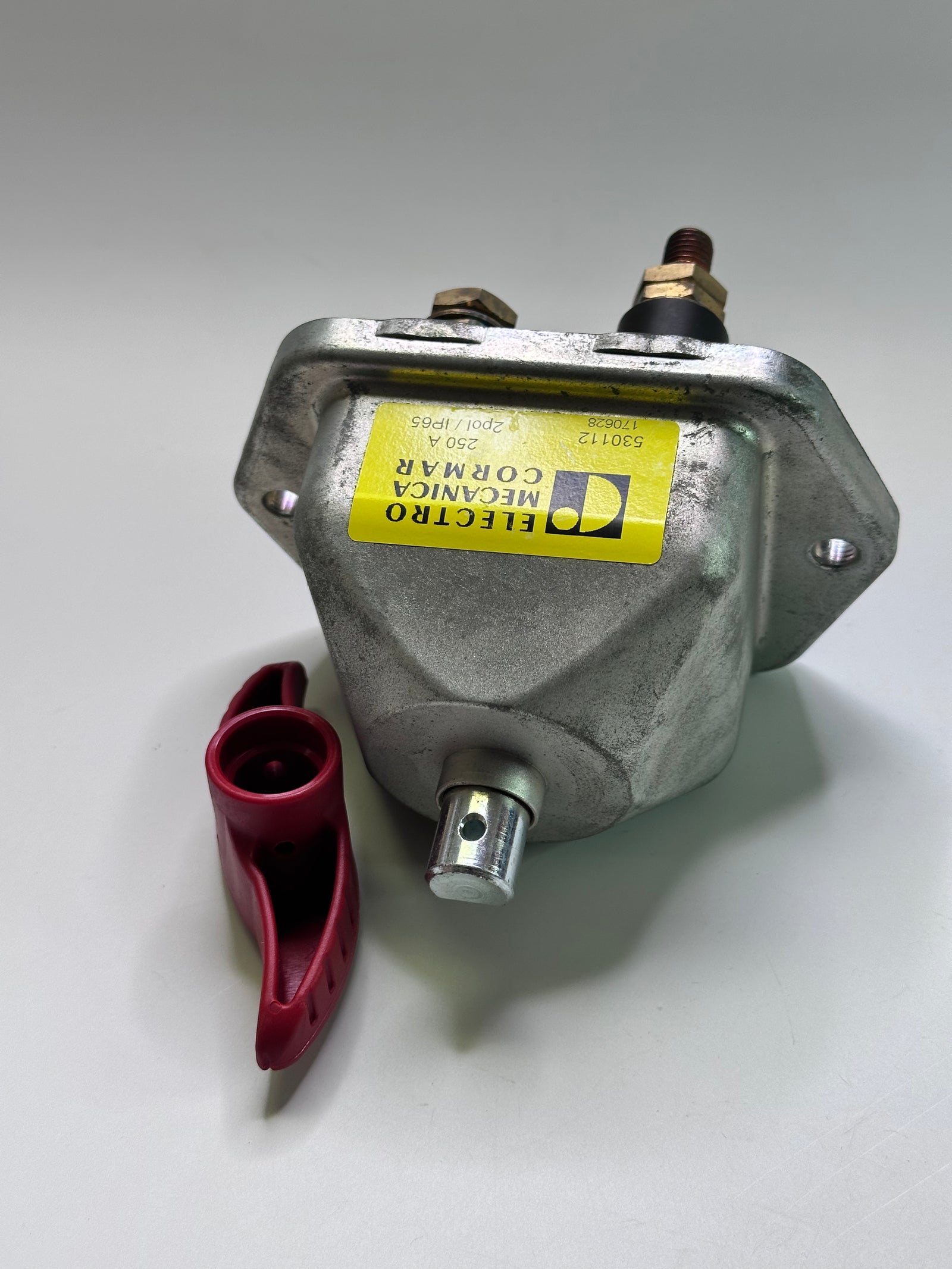

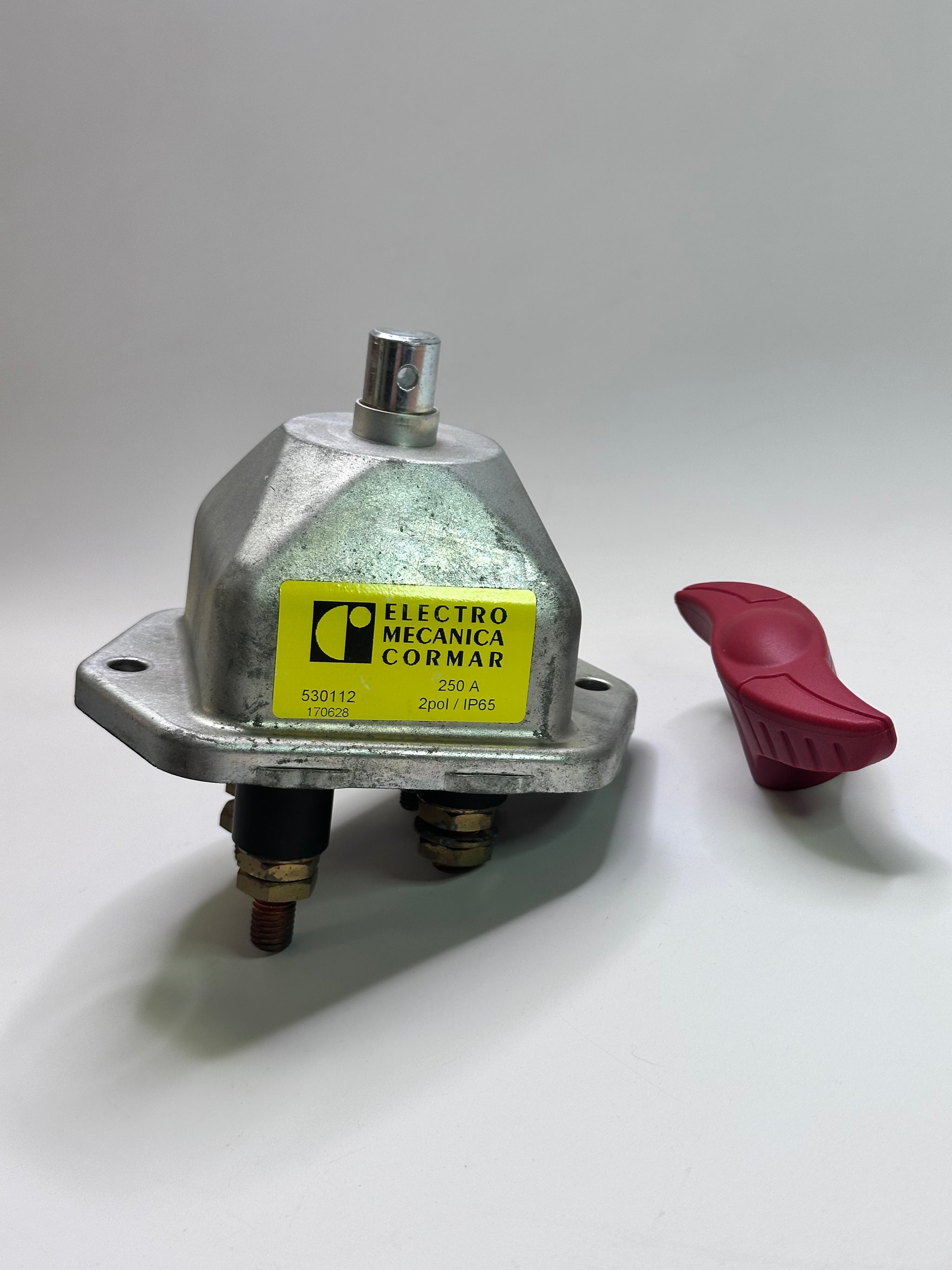

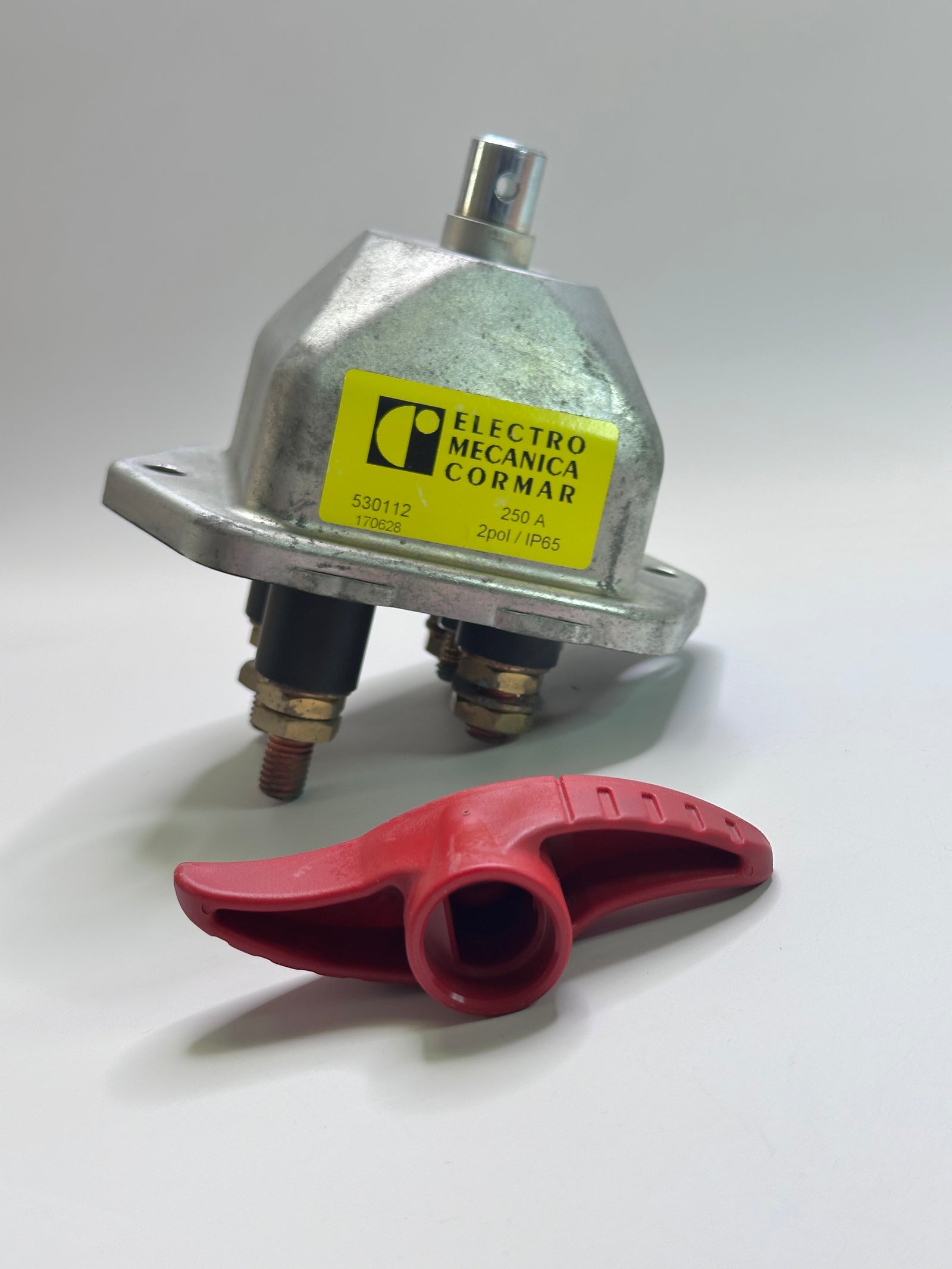

Incomplete: the pin used to attach the handle is missing.

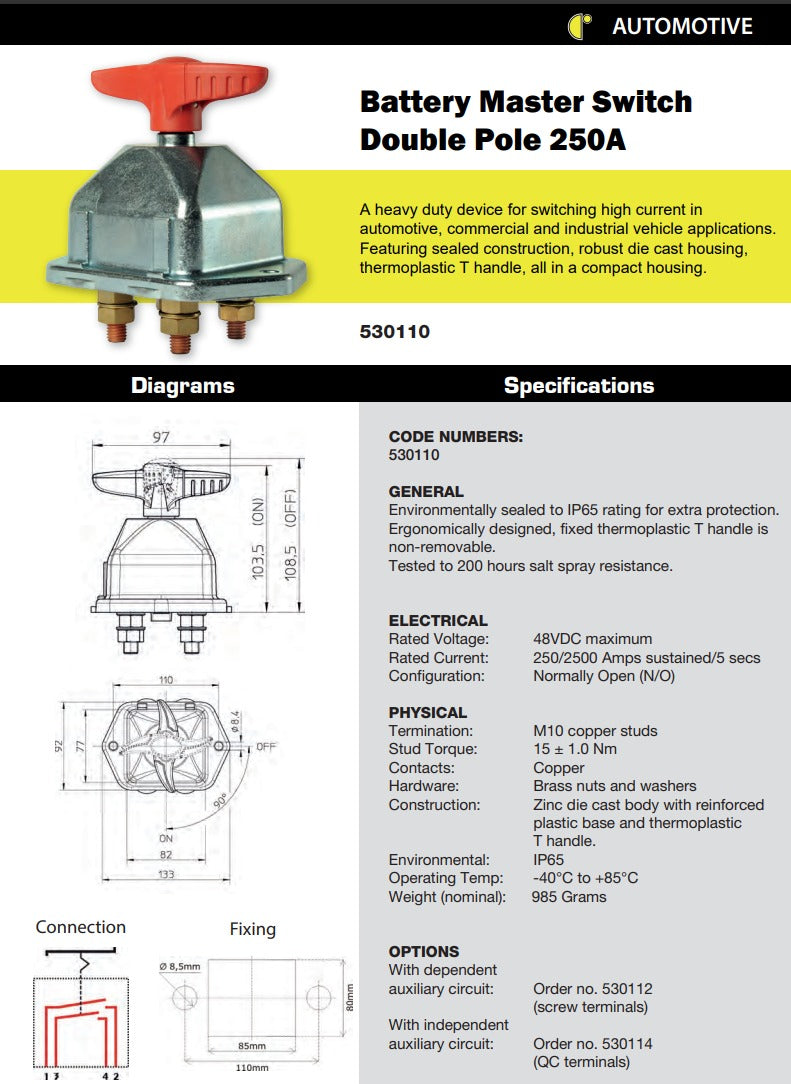

Battery master switch recorded as 530110 with option 530112 and a dependent auxiliary circuit. The original title describes double pole; confirm the contact arrangement and auxiliary rating before installation.
530110 Battery Master Switch with Option 530112 with dependent auxiliary circuit / Screw Terminals.
PIN to attach handle is missing.
ELECTRICAL
| Rated Voltage | 48VDC maximum |
|---|---|
| Rated Current | 250 Amps sustained |
| Peak Current | 2500 Amps / 5 seconds |
| Configuration | Normally Open (N/O) |
PHYSICAL

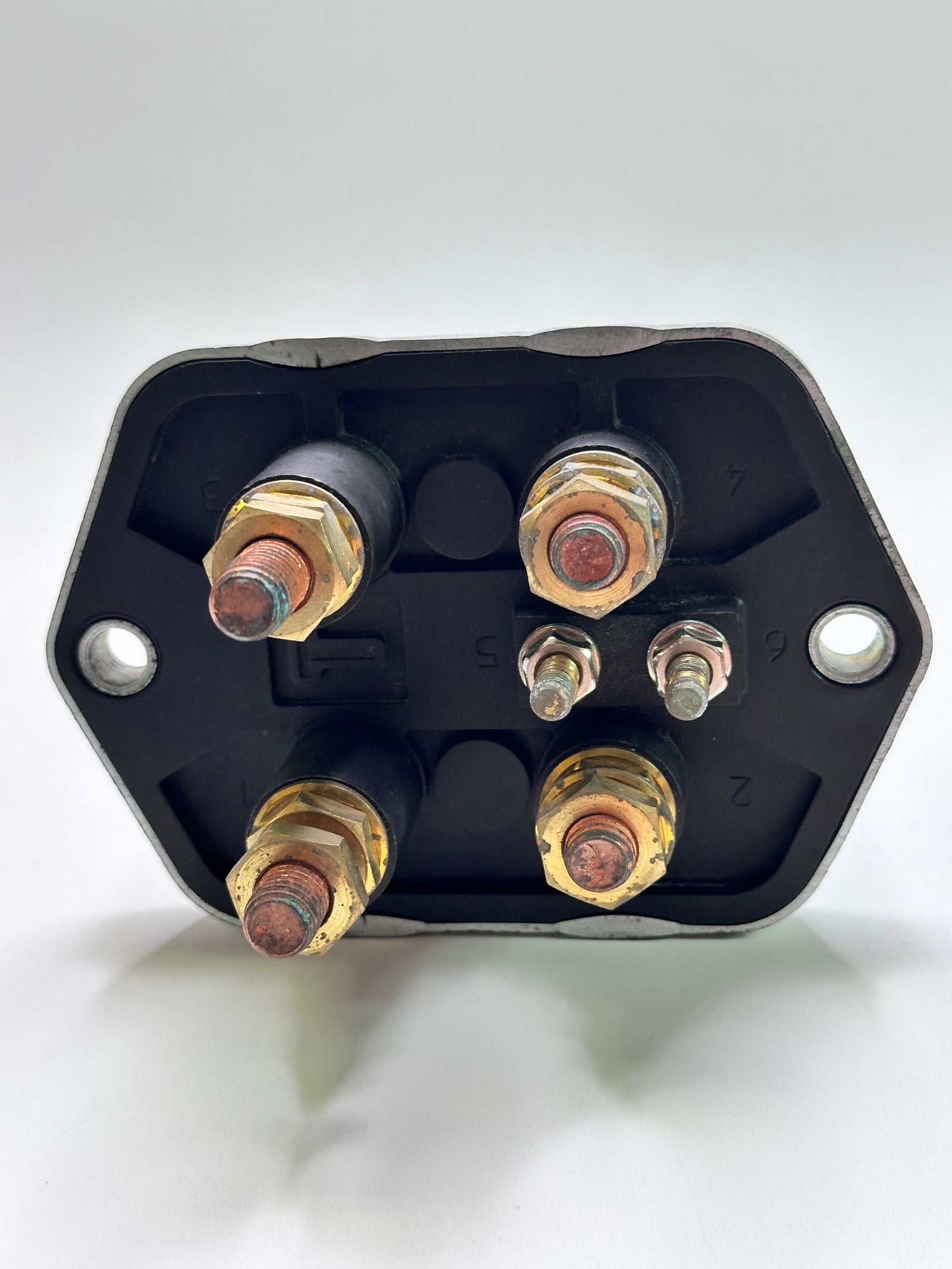

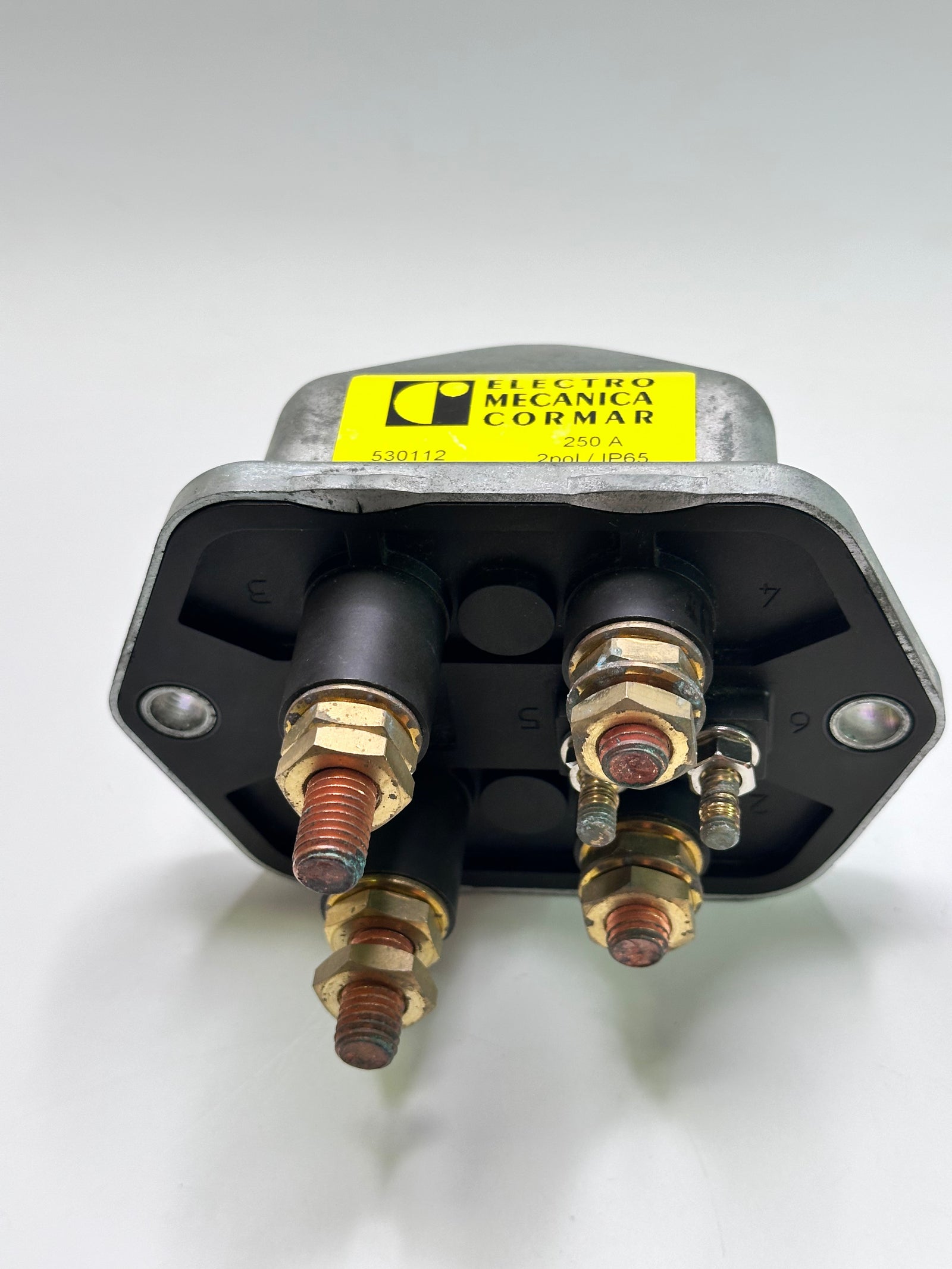

| Termination | M10 copper studs |
|---|---|
| Stud Torque | 15 ± 1.0 Nm |
| Contacts | Copper |
| Hardware | Brass nuts and washers |
| Construction | Zinc die cast body with reinforced plastic base and thermoplastic T handle |
| Environmental | IP65 |
| Operating Temp | -40°C to +85°C |
| Dimensions (overall) | 133mmL x 97mmW x 108.5mmH |
Rating check: The source specifies 48VDC maximum, 250A sustained and 2500A for five seconds. Do not apply the peak figure continuously or assume the auxiliary circuit carries the main-contact rating. Legacy reference 039936 is unconfirmed. IP65 and the stated construction describe the recorded specification, not a current inspection result. Confirm safe repair of the missing handle pin, terminal details and supplied hardware before use.
