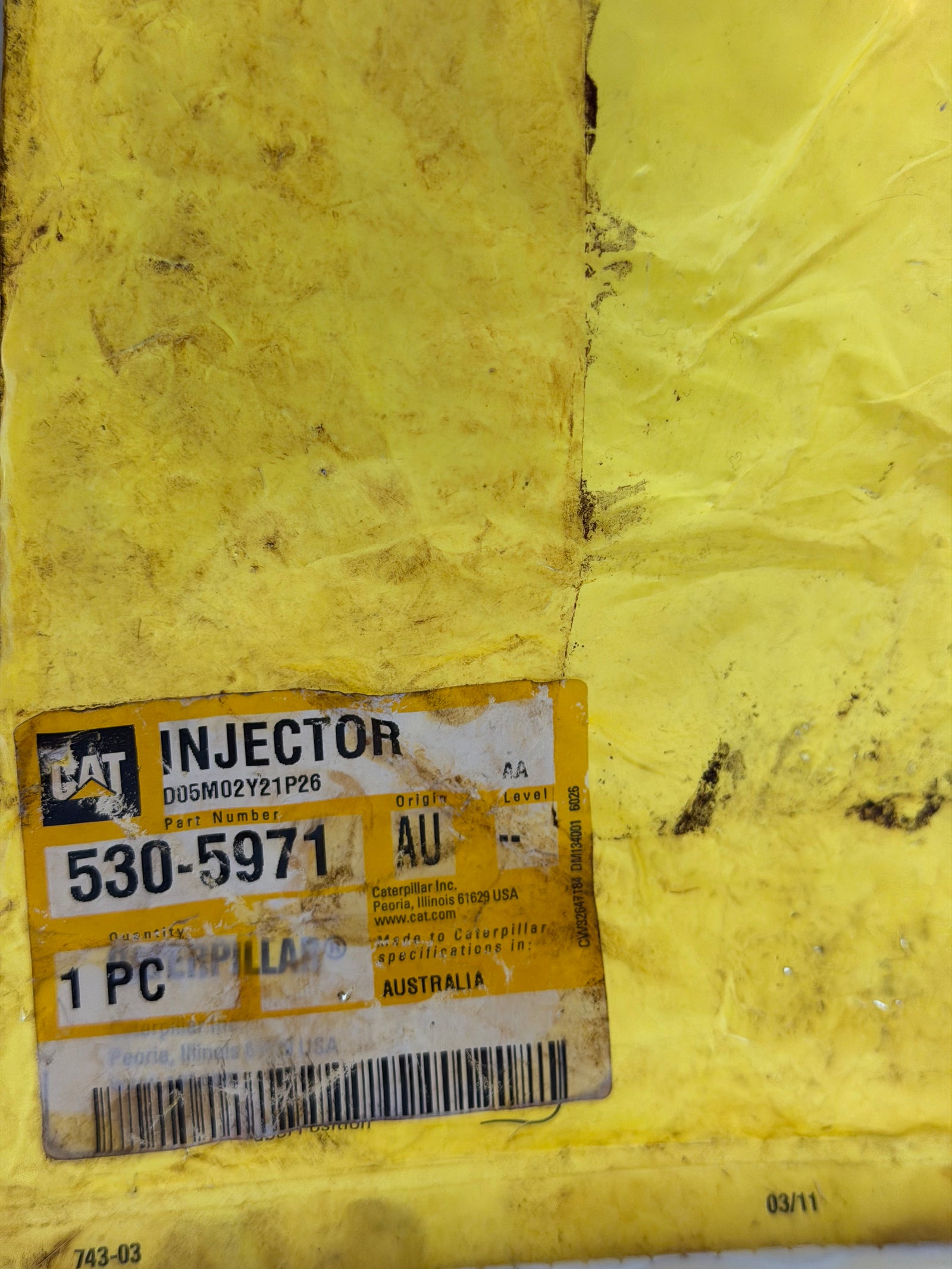

CAT 530-5971 Grease Injector Assembly, Lincoln SL-32
- SKU
- P--I-C-8202
$400.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 2.5 kg
Specifications
| Manufacturer | CAT |
|---|---|
| Product type | EARTHMOVING PARTS |
| SKU | P--I-C-8202 |
| Weight | 2.5 kg |
Description

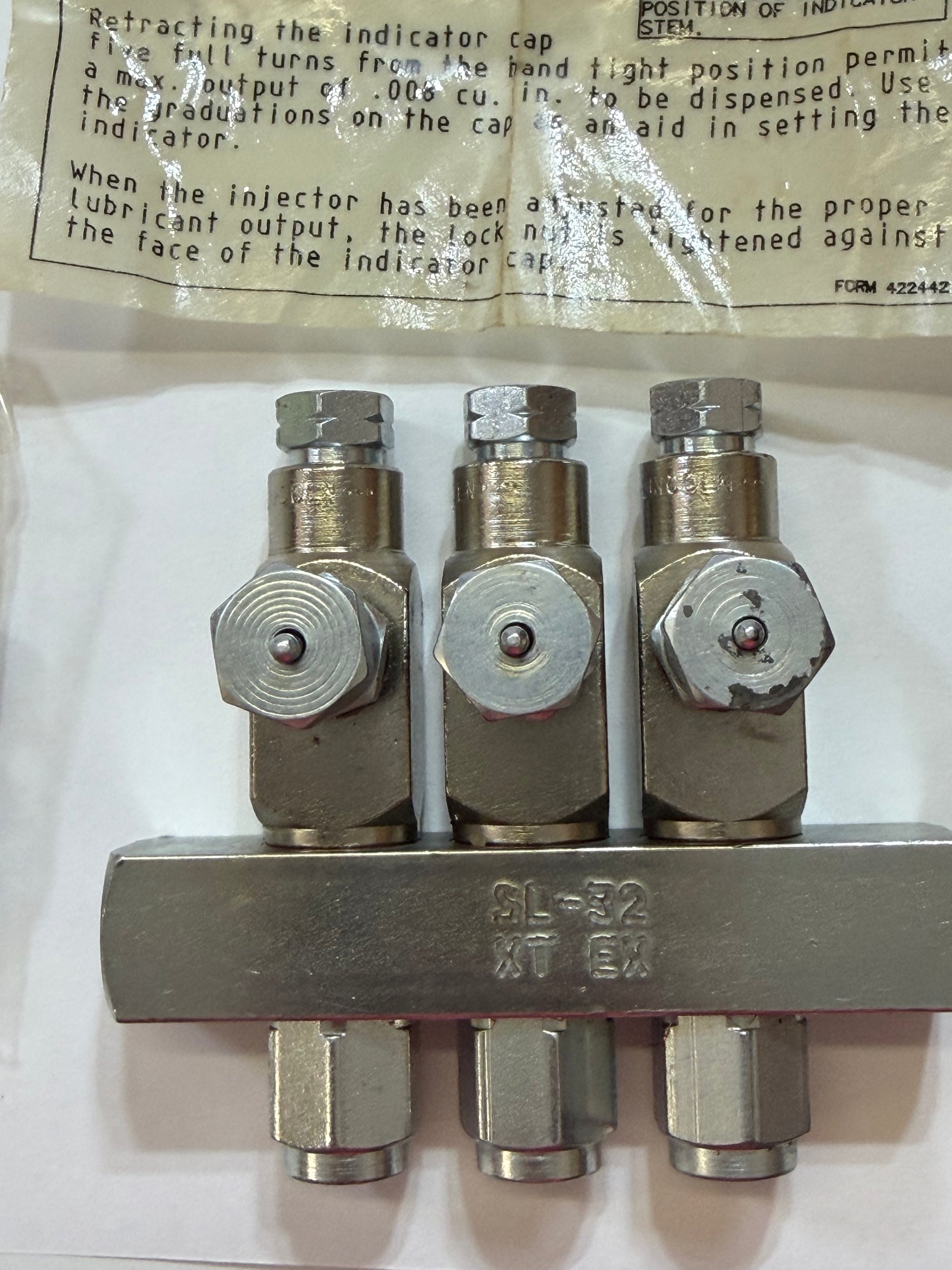

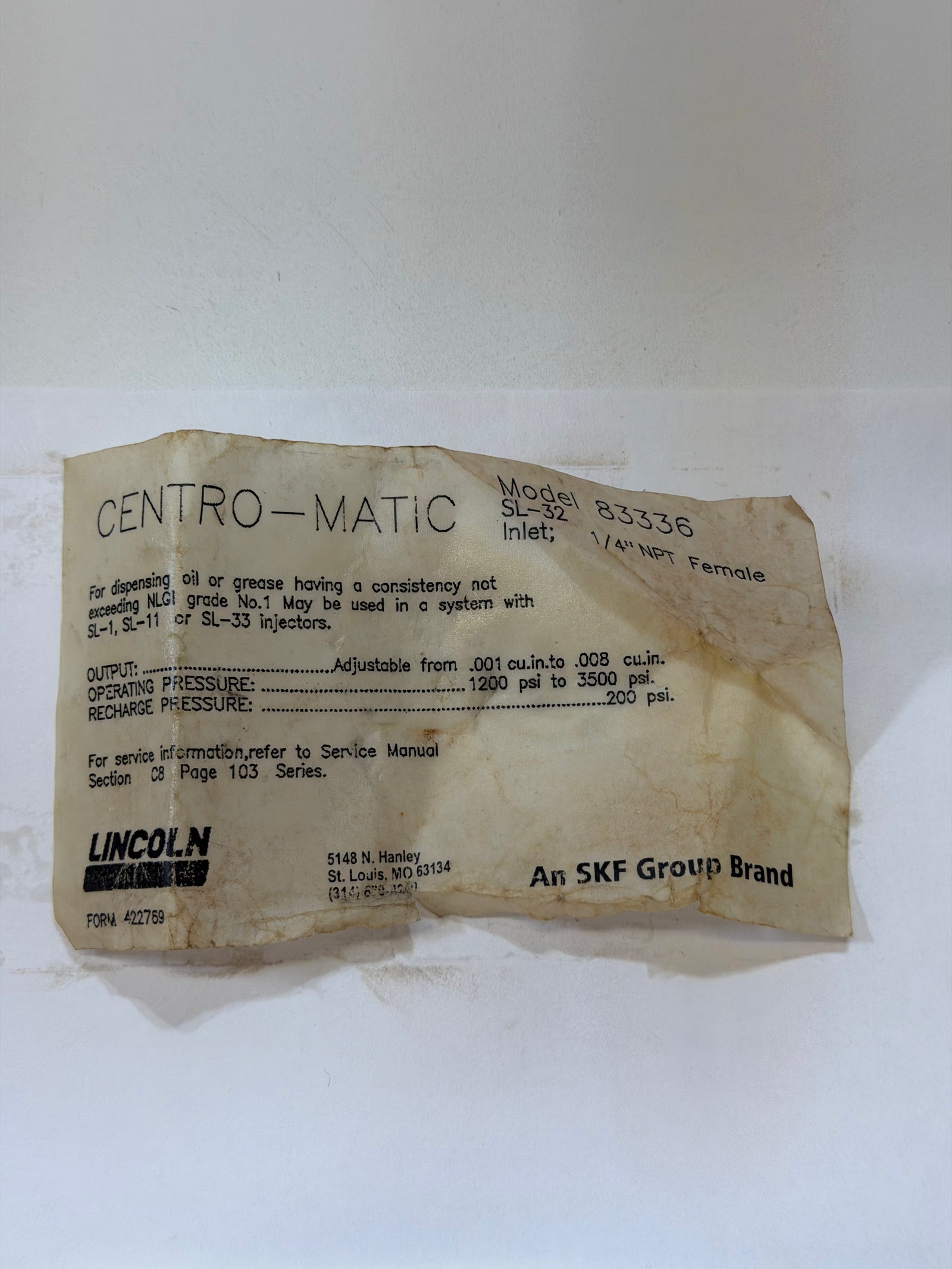

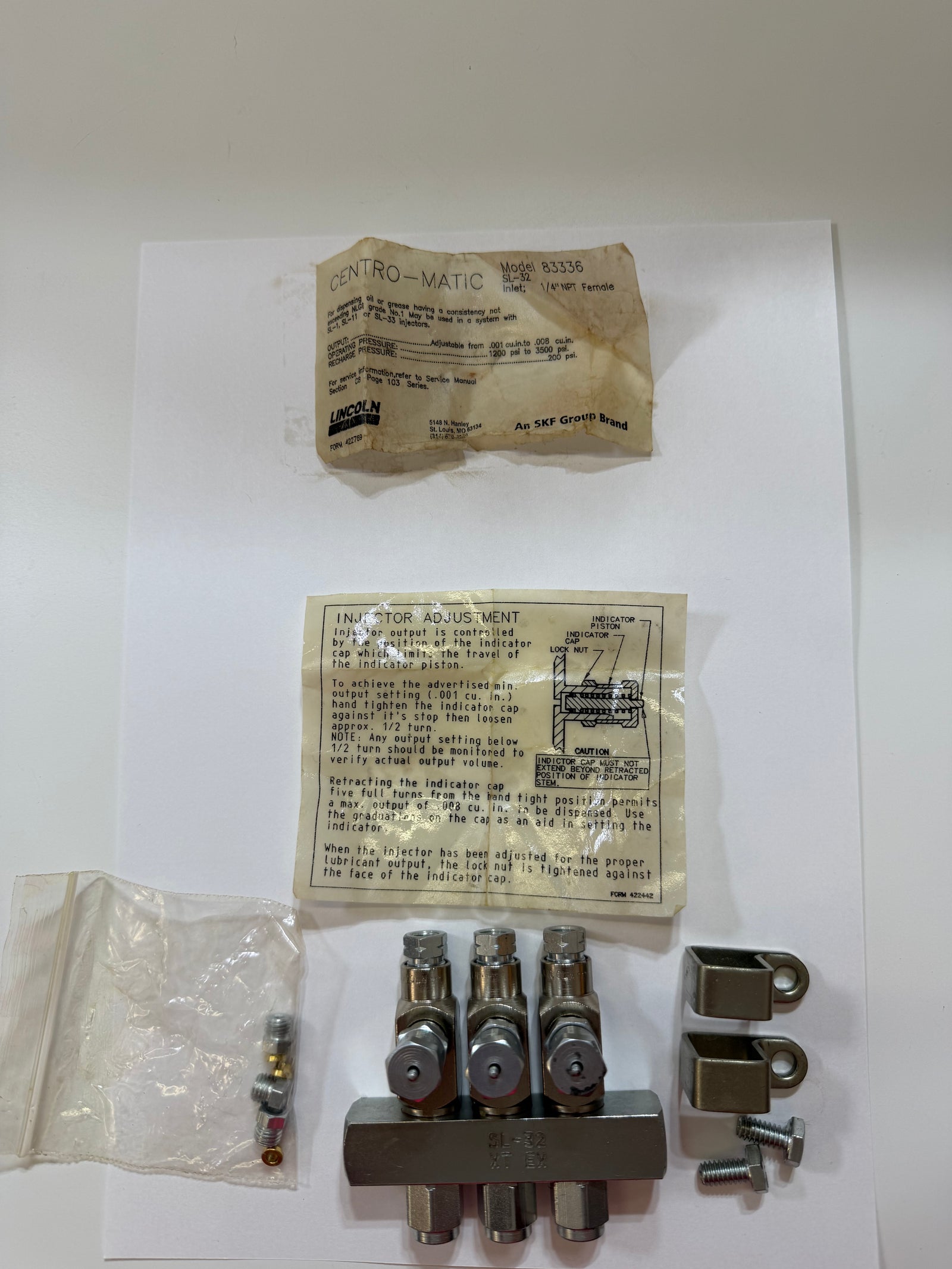

Lincoln Centro-Matic model 83336 SL-32 3-Assembly.
| Lincoln Centro-Matic Grease injector SL32 | |
| Model | 83336-3 |
| Material | Zinc plated |
| Amount of injectors | 3 |
| Diameter outlet injector | Ø 1/8" |
| Connection inlet manifold | 1/4 NPTF |
| Height injector | 79 mm |
| Length injector assembly | 83 mm |
| Output adjustable per outlet | 0,016-0.131 cc per stroke |
| Standard operating pressure | 103 bar |
| Minimum operating pressure | 83 bar |
| Maximum operating pressure | 241 bar |
| Temperature range | 93°C |
| Lincoln Reference | 83336-3 |
