ANDERSON
Anderson-Style Grey Connector Plugs, Listed 50A / 600V, 10 Pack
- SKU
- P-AH-A-7545
- Weight
- 2.0 kg
Specifications
| Manufacturer | ANDERSON |
|---|---|
| Product type | AUTO ELECTRICAL |
| SKU | P-AH-A-7545 |
| Weight | 2.0 kg |
Description

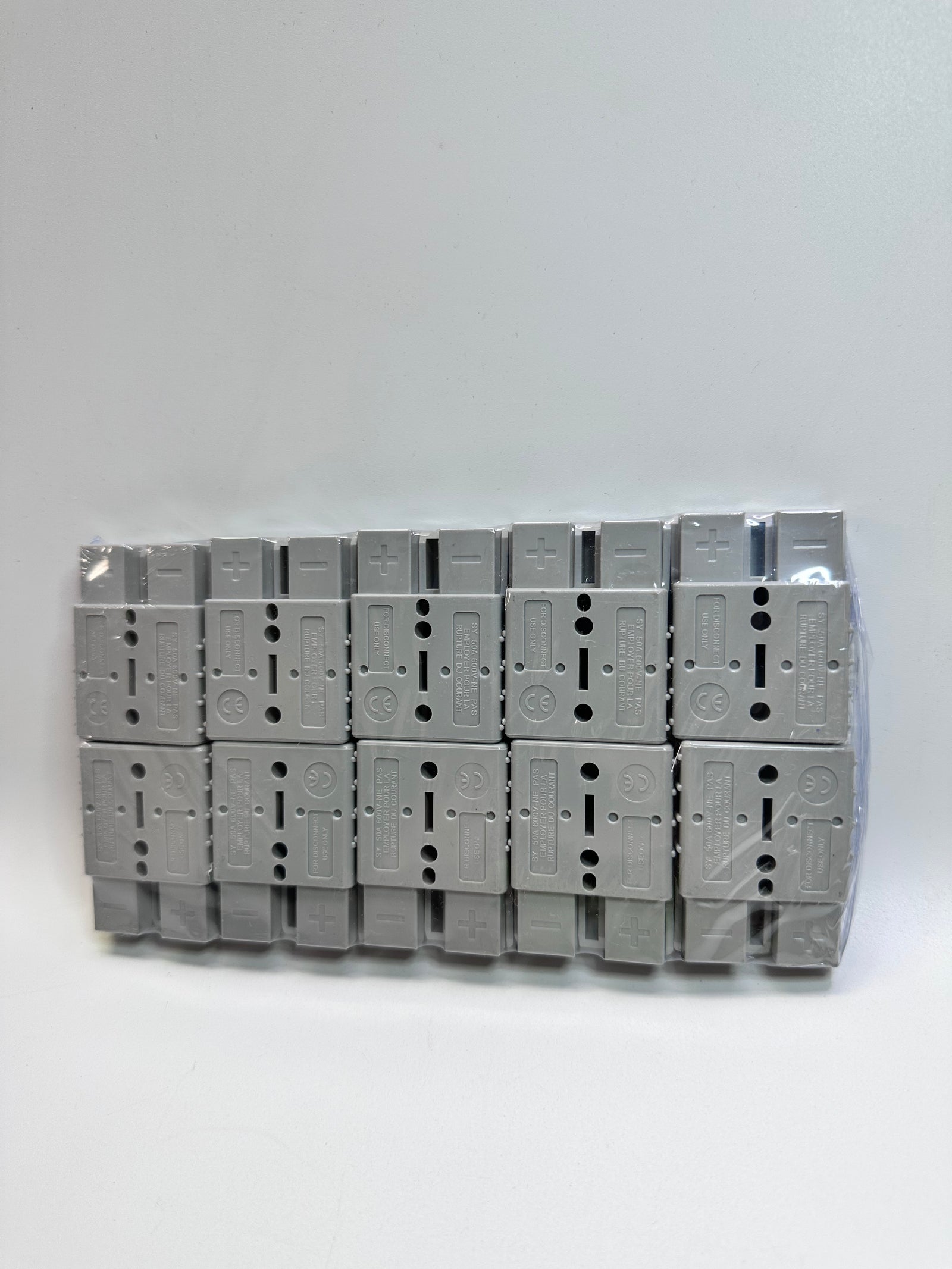

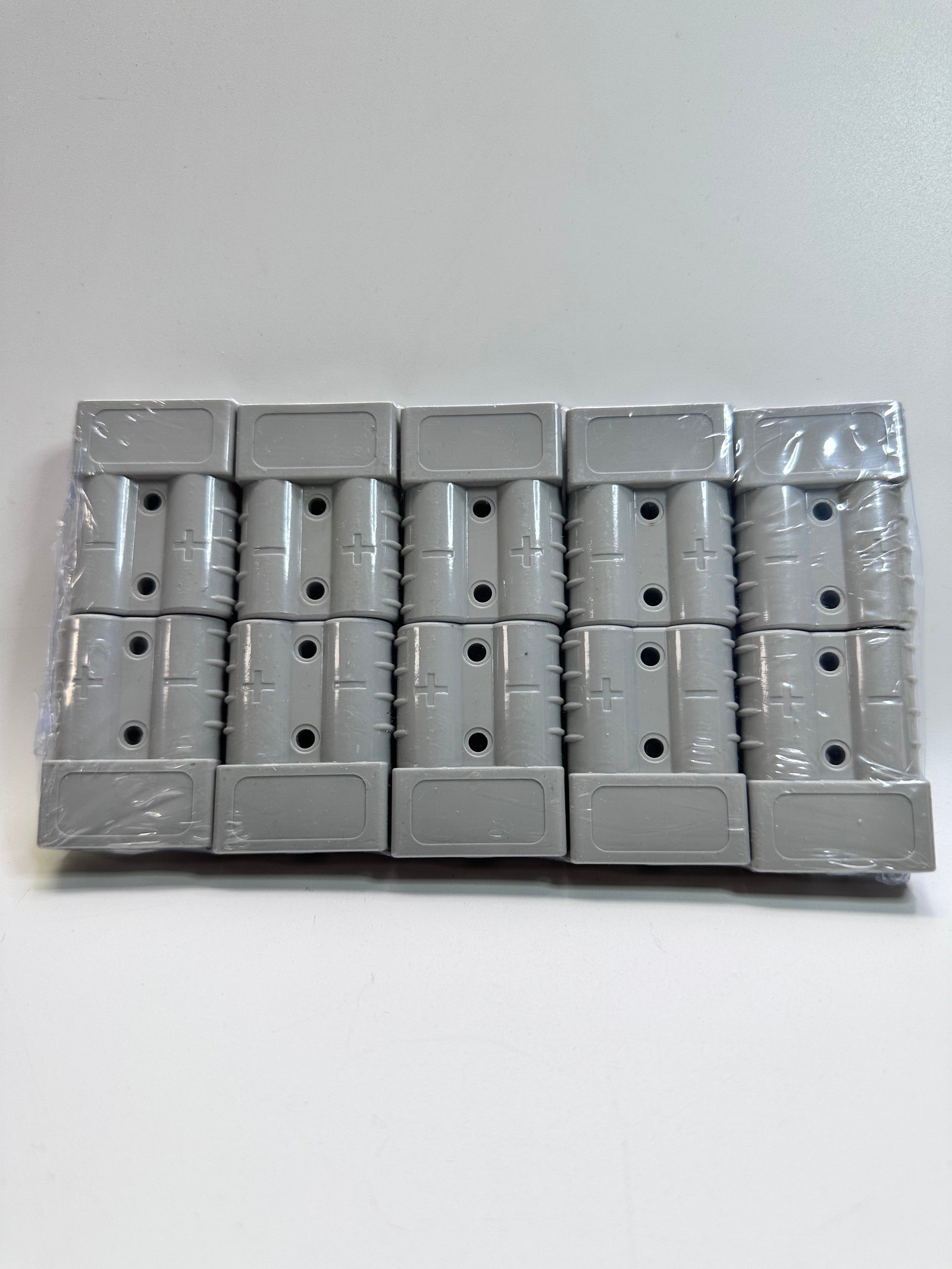

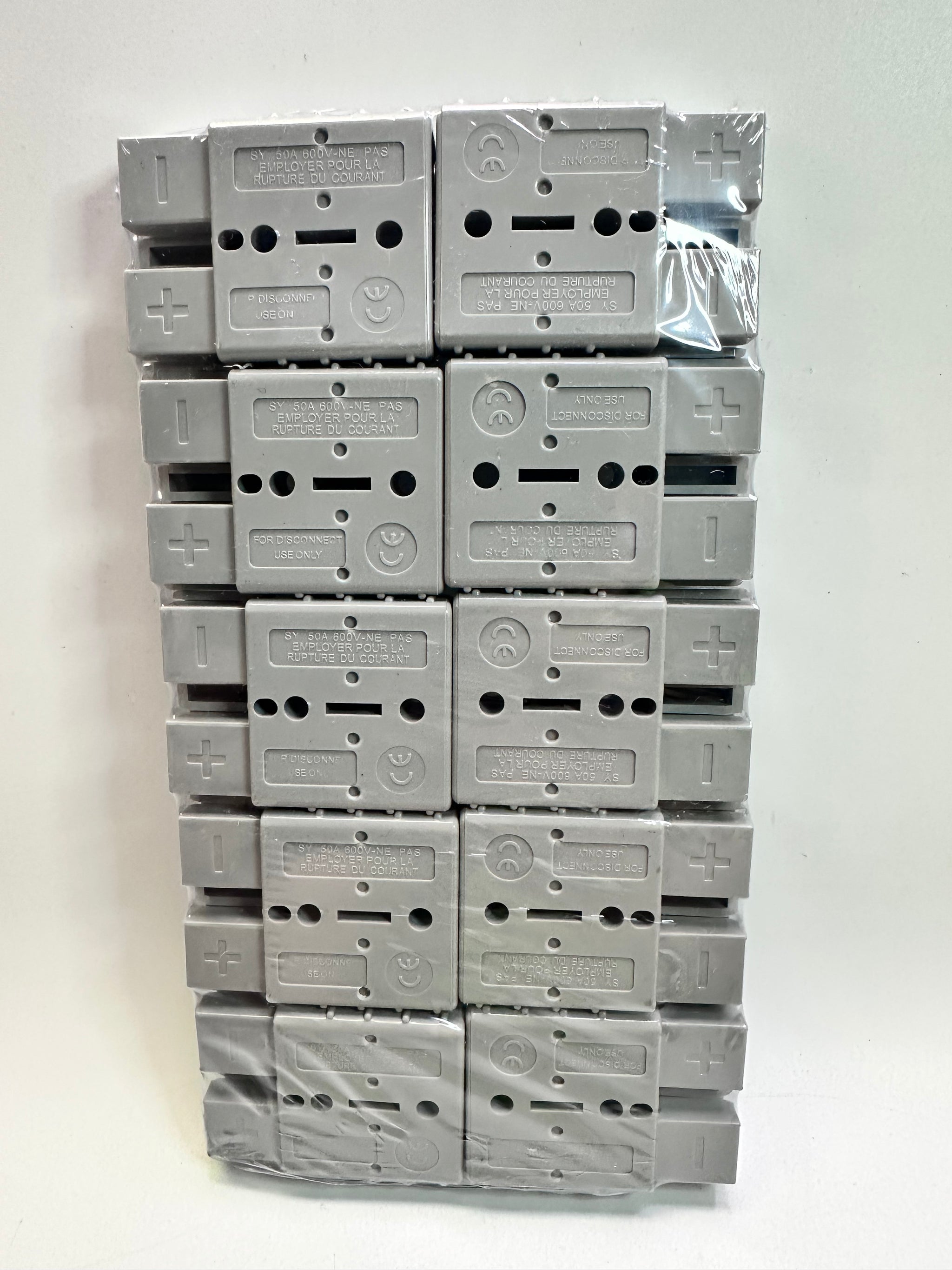

Grey Anderson-style battery connector plugs, listed as 50A, 600V and a pack of 10. Catalogue reference: 50AAND-10PK. The source describes the housing as chemical resistant.
Rating and pack-content checks

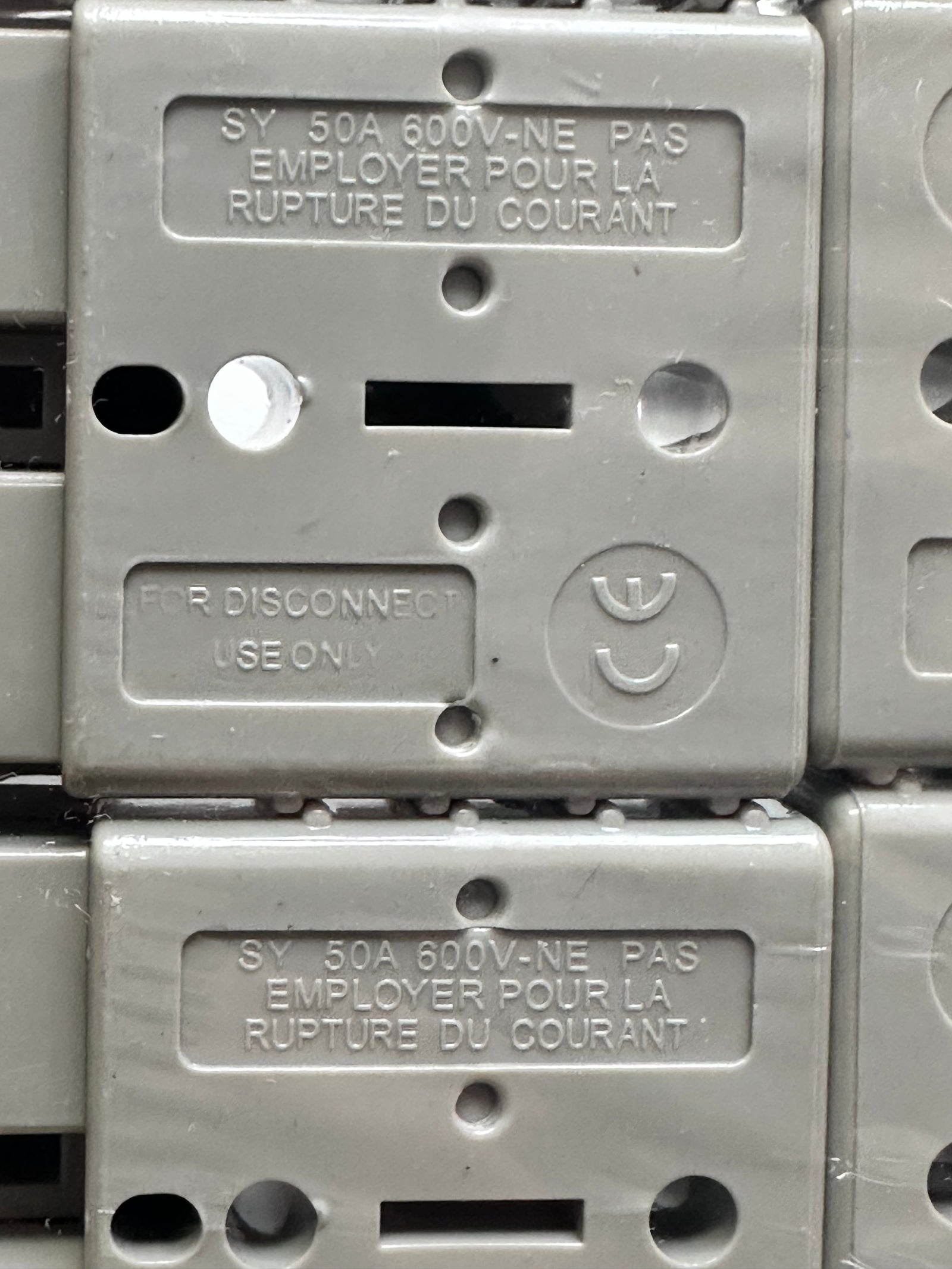

The source uses both Anderson-style wording and an ANDERSON vendor record; genuine manufacturer identity is not established by that alone. Confirm the markings, included contacts and housing/plug count before ordering.
Original family specification table — not verified for this pack
The retained table covers SB®50, SB®120 and SB®175, multiple housing materials and an environmental boot. Its current ratings differ by standard and do not establish a higher rating for these listed 50A plugs. Boot-related protection and mating-cycle figures do not establish that a boot is included. The standard-housing Fahrenheit/Celsius row is inconsistent and must be checked rather than used as an operating limit.
| ELECTRICAL | ||
| Current Rating Amperes | UL 1977 | CSA |
| • SB®50 | 120 | 50 |
| • SB®120 | 240 | 130 |
| • SB®175 | 280 | 175 |
| MECHANICAL | ||
| Environmental Protection | ||
| • SB®50, SB®120 and SB®175 | IP64 | |
| Wire Size Range | AWG | mm² |
| • SB®50 | 16 to 6 | 1.3 to 13.3 |
| • SB®120 | 10 to 1 | 5.3 to 42.4 |
| • SB®175 | 12 to 1/0 | 3.3 to 53.5 |
| Operating Temperature | F | C |
| • SB® Connector Housing | -4° to 221° | 20° to 105° |
| • SB® Connector Housing (CR)* | -40° to 221° | -40° to 105° |
| • SB® Environmental Boot | -40° to 275° | -40° to 135° |
| Mating Cycles | Connector in Boot | |
| • SB®50 | 1,500 | |
| • SB®120 | 1,500 | |
| • SB®175 | 1,500 | |
| MATERIALS - SB®50, SB®120 and SB®175 | ||
| • SB® Connector Housing | PC | |
| • SB® Connector Housing (CR) * | PC/PBT | |
| • SB® Environmental Boot | TPE | |
Confirm the exact connector series, contact/wire size, ratings and mating compatibility. This is not a complete wiring harness; no new certification or chemical-resistance test is asserted.
