MANITOU
Genuine Manitou 476954 Screw-On Oil Filter
- SKU
- P-MA-M-7923
- Weight
- 1.8 kg
Specifications
| Manufacturer | MANITOU |
|---|---|
| Product type | FILTERS |
| SKU | P-MA-M-7923 |
| Weight | 1.8 kg |
Description

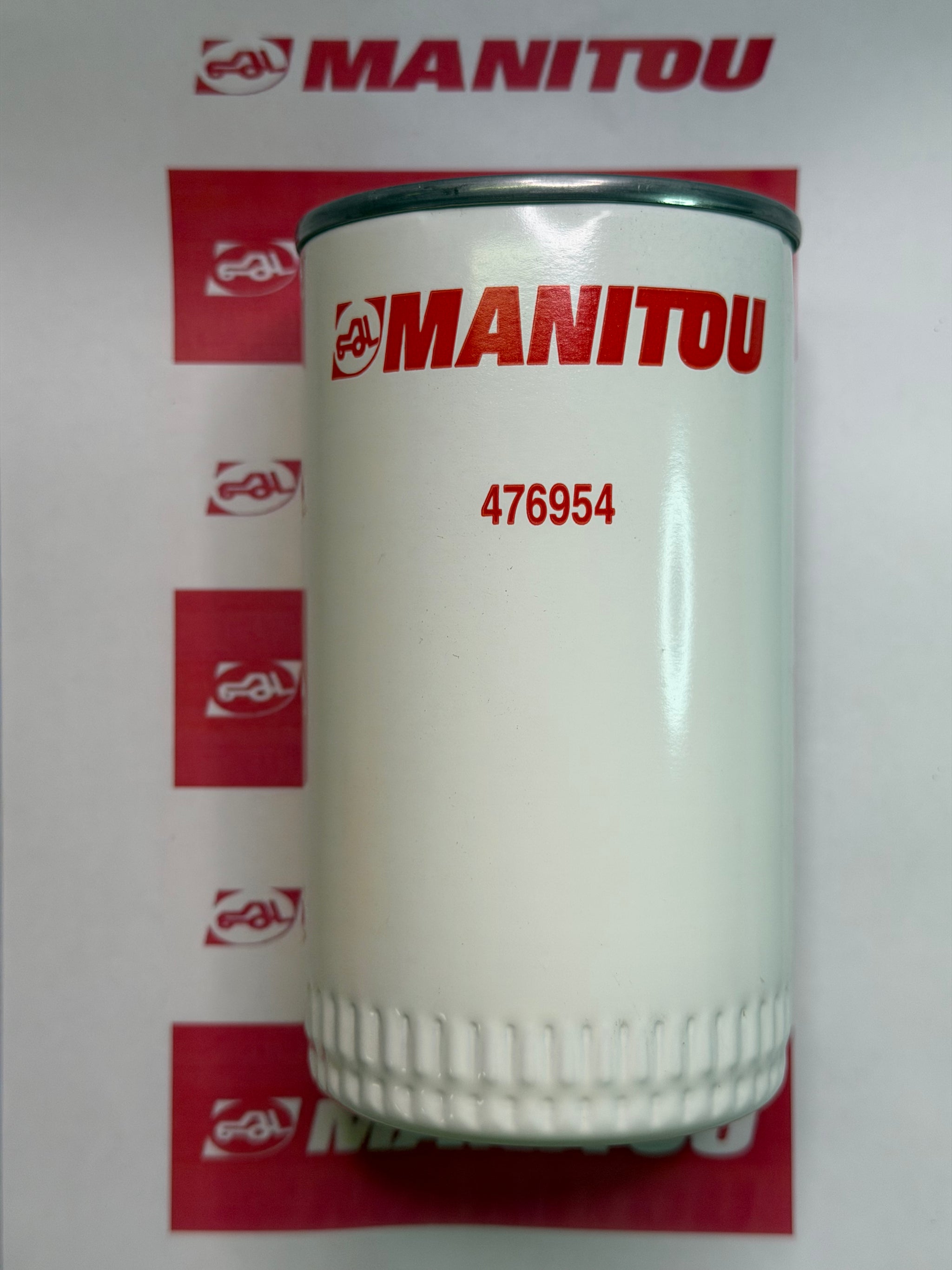

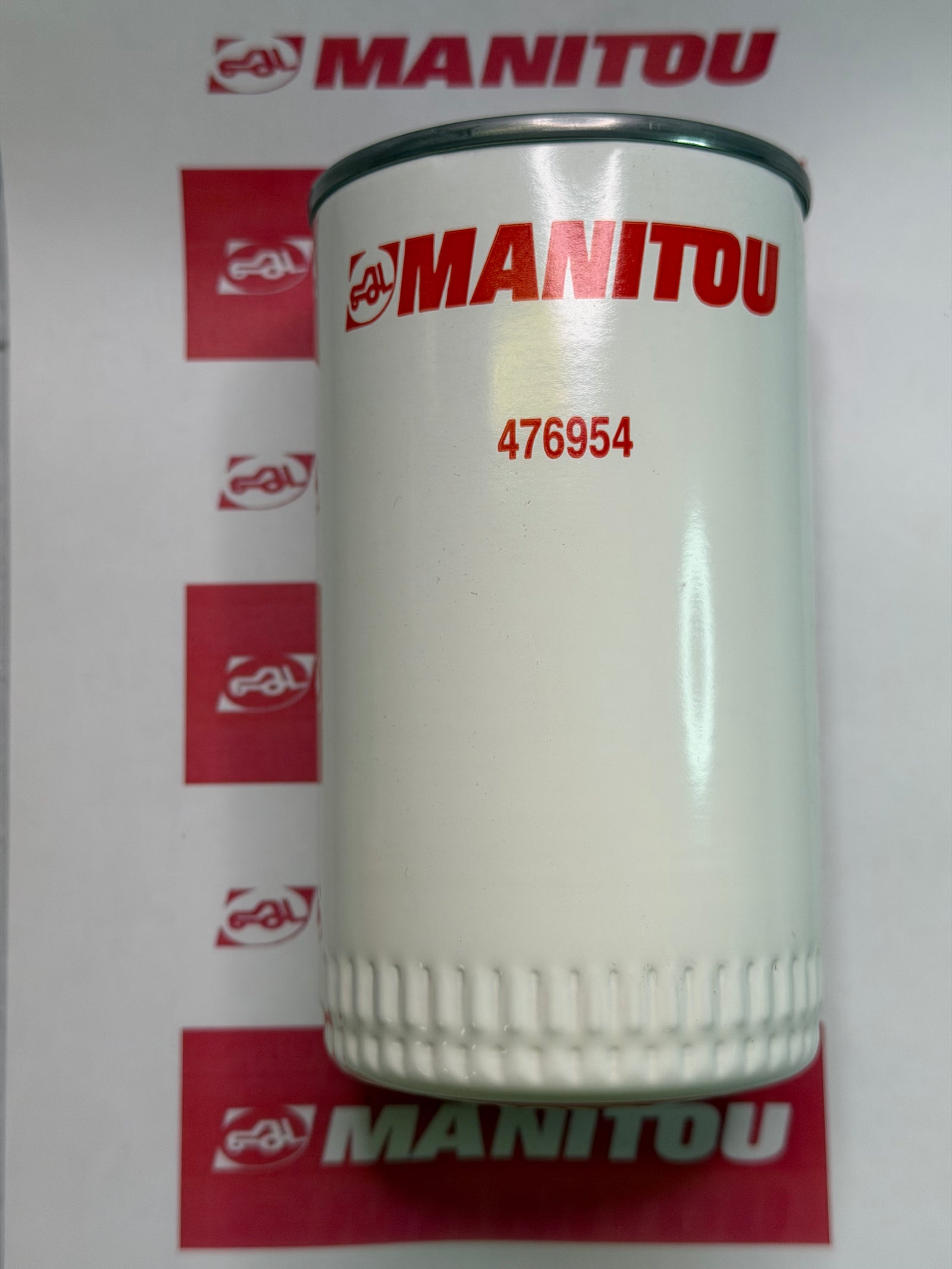

Genuine Manitou 476954 screw-on oil filter.
Source specifications
-
Type: screw-on oil filter
-
Height: approximately 174 mm
-
Outer diameter: approximately 93.7 mm
-
Thread: 3/4"-16
-

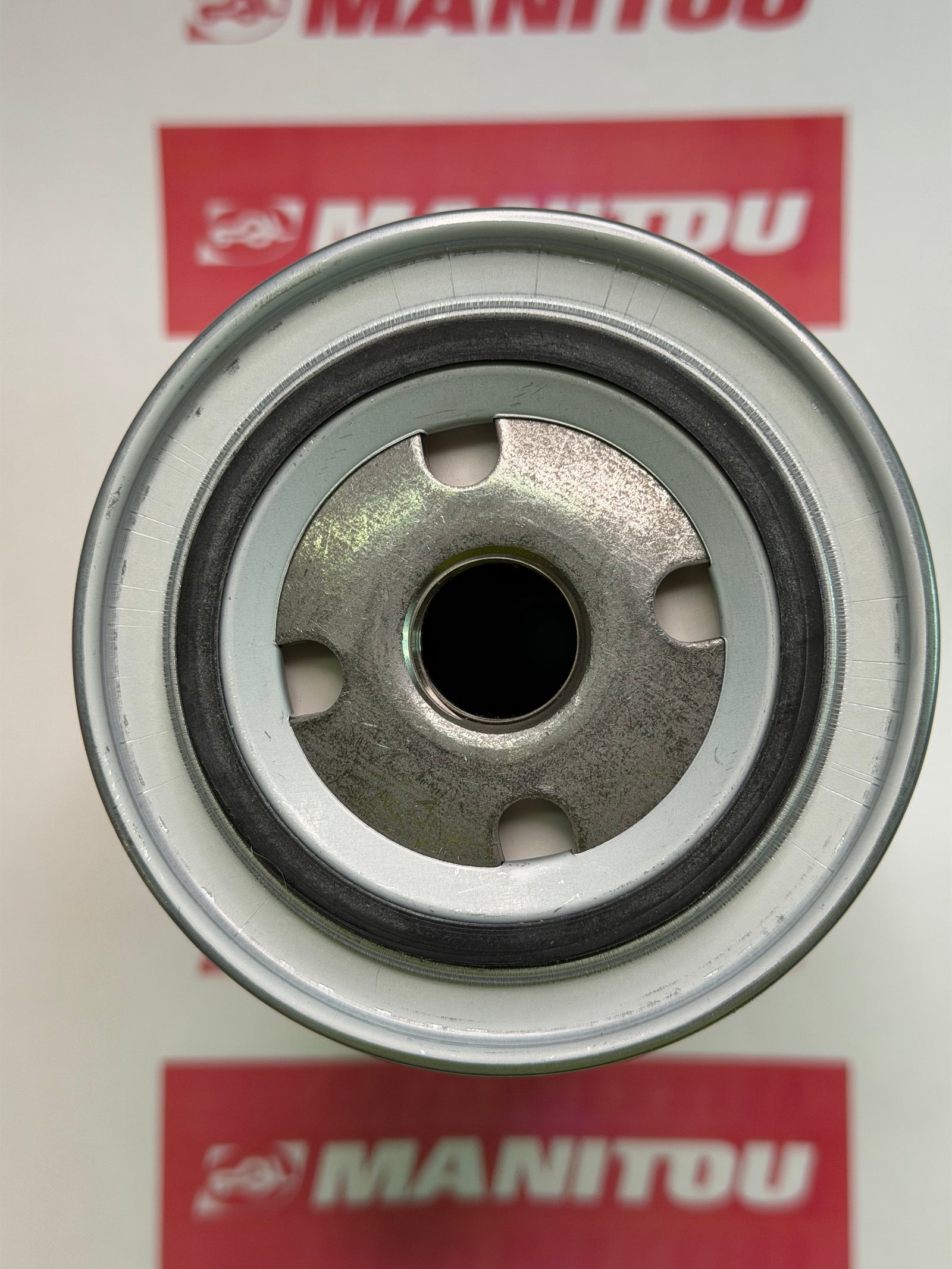

O-ring: diameter 72 mm (outer), 63 mm (inner)
-
Throughput: filtration efficiency 21 microns (Beta 2), 40 microns (Beta 20)
-
Body material: metal
The “Throughput” field records particle-size / beta-ratio data, not a volumetric flow rate. Approximate dimensions remain approximate; the thread notation does not establish an additional thread-standard designation.
Source application
Telescopic Loaders, MT/MTL Series. Perkins E2, E3.
Confirm the filter reference, thread, sealing dimensions and exact equipment configuration before ordering. No additional fitting kit, service interval or independently verified filtration result is stated.
