EATON

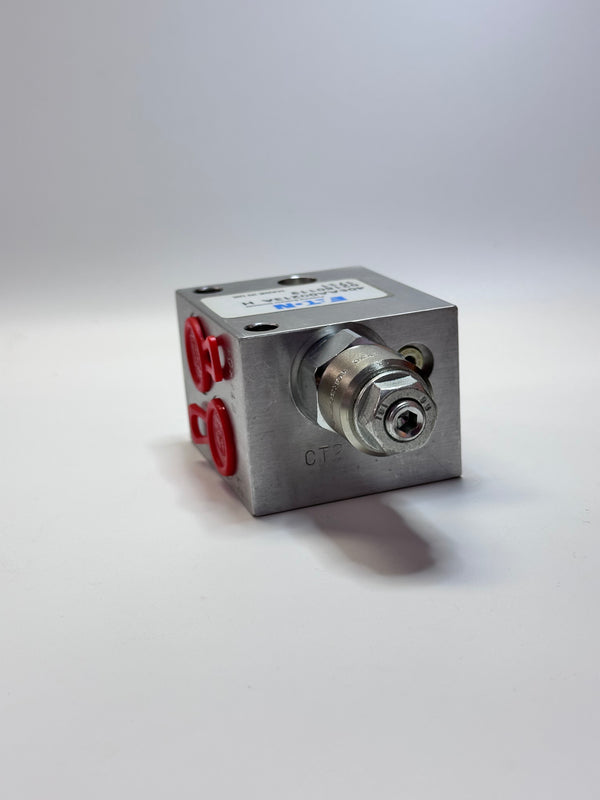

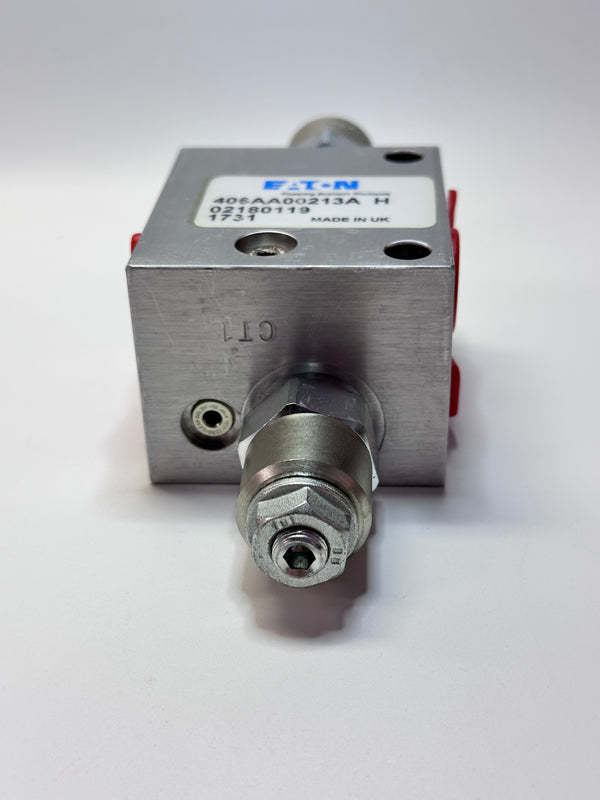

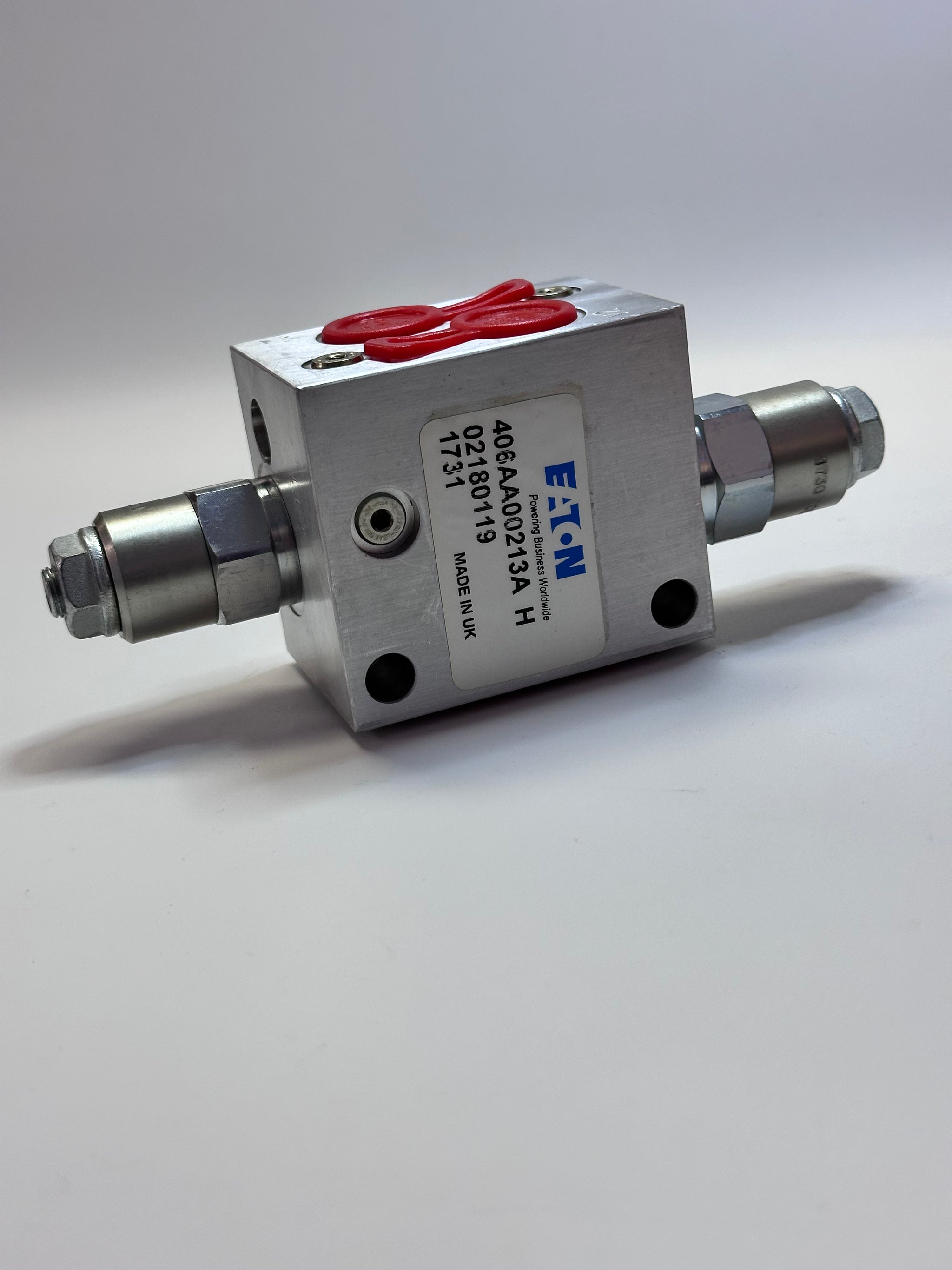

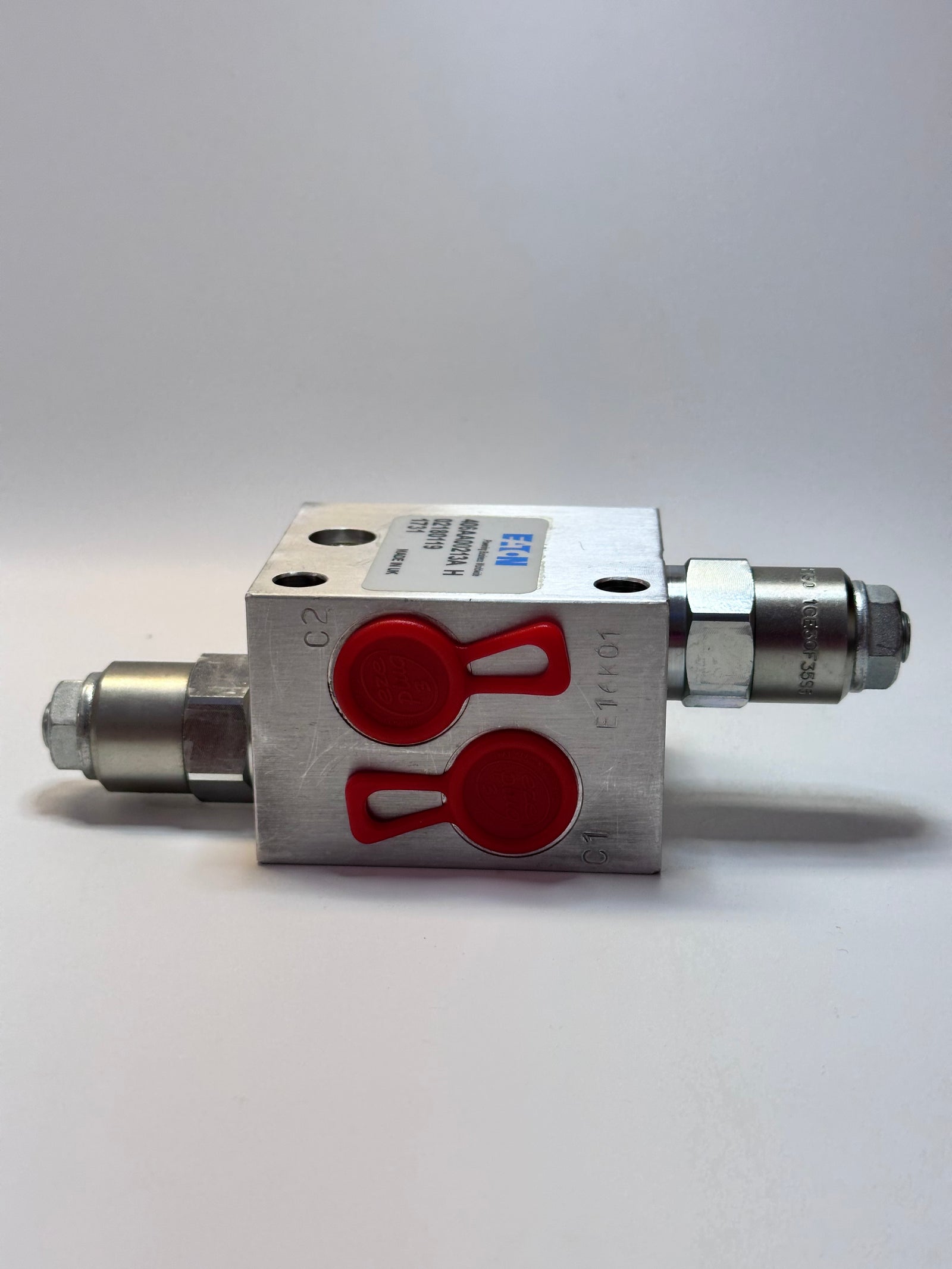

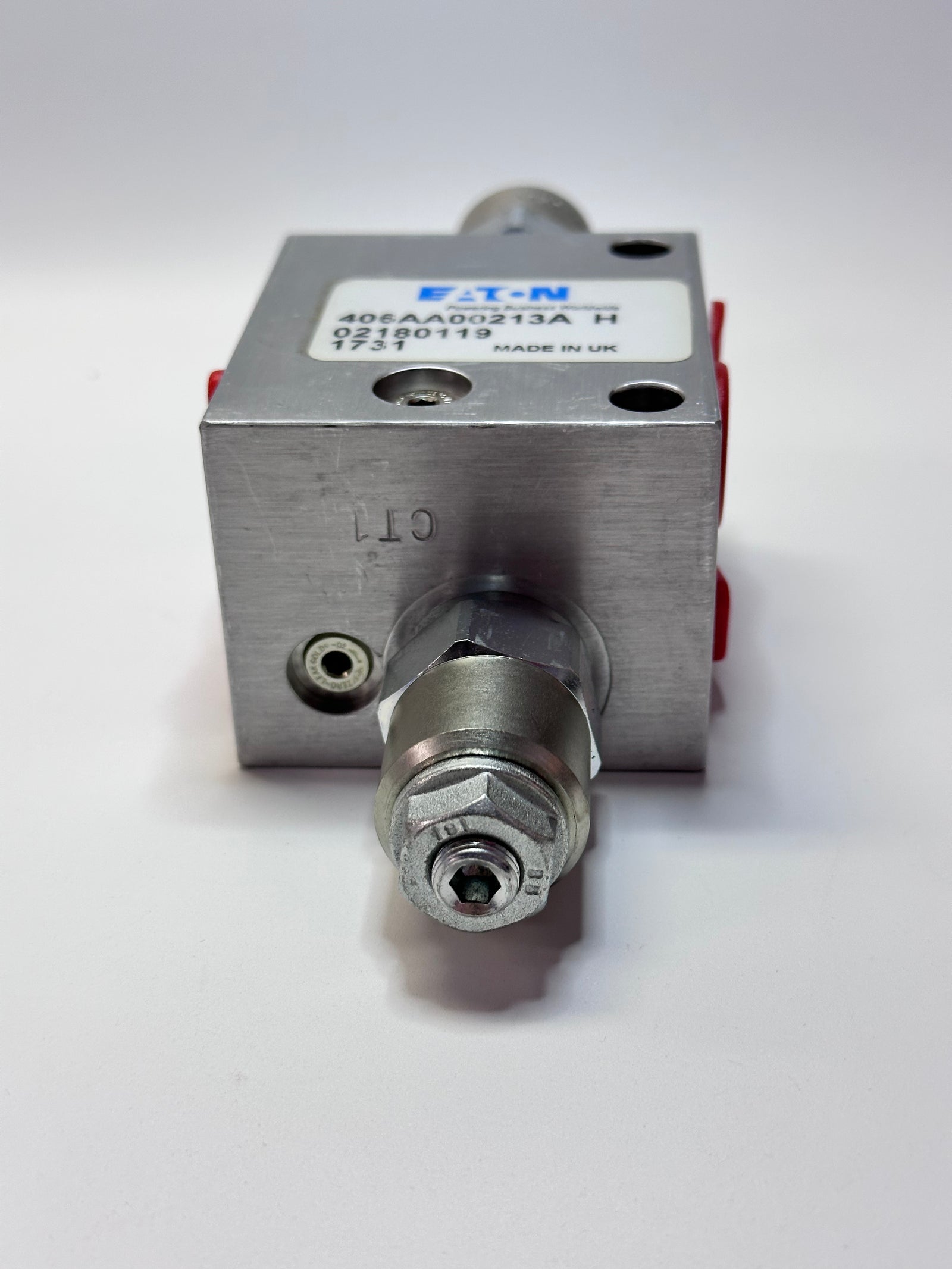

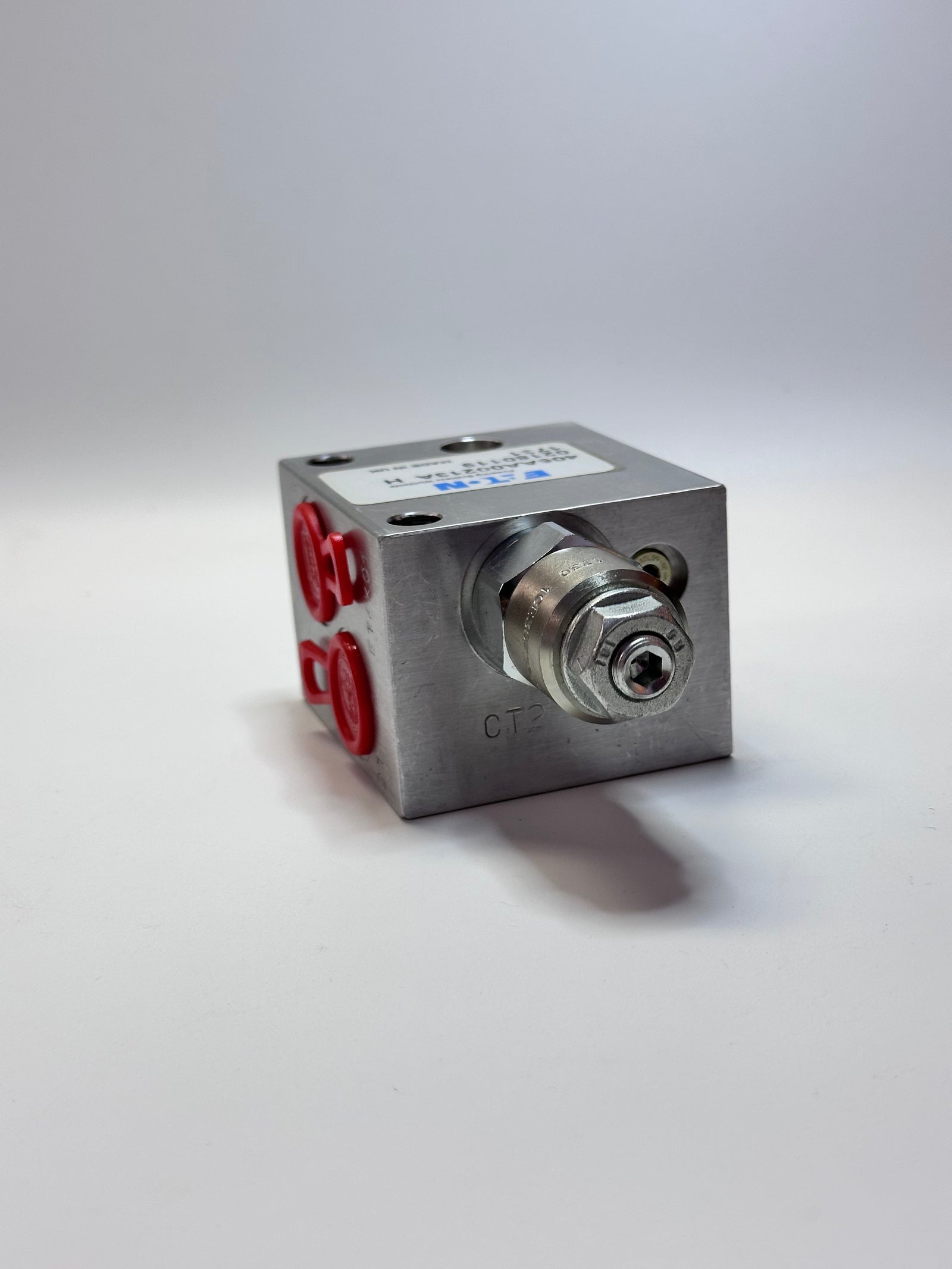

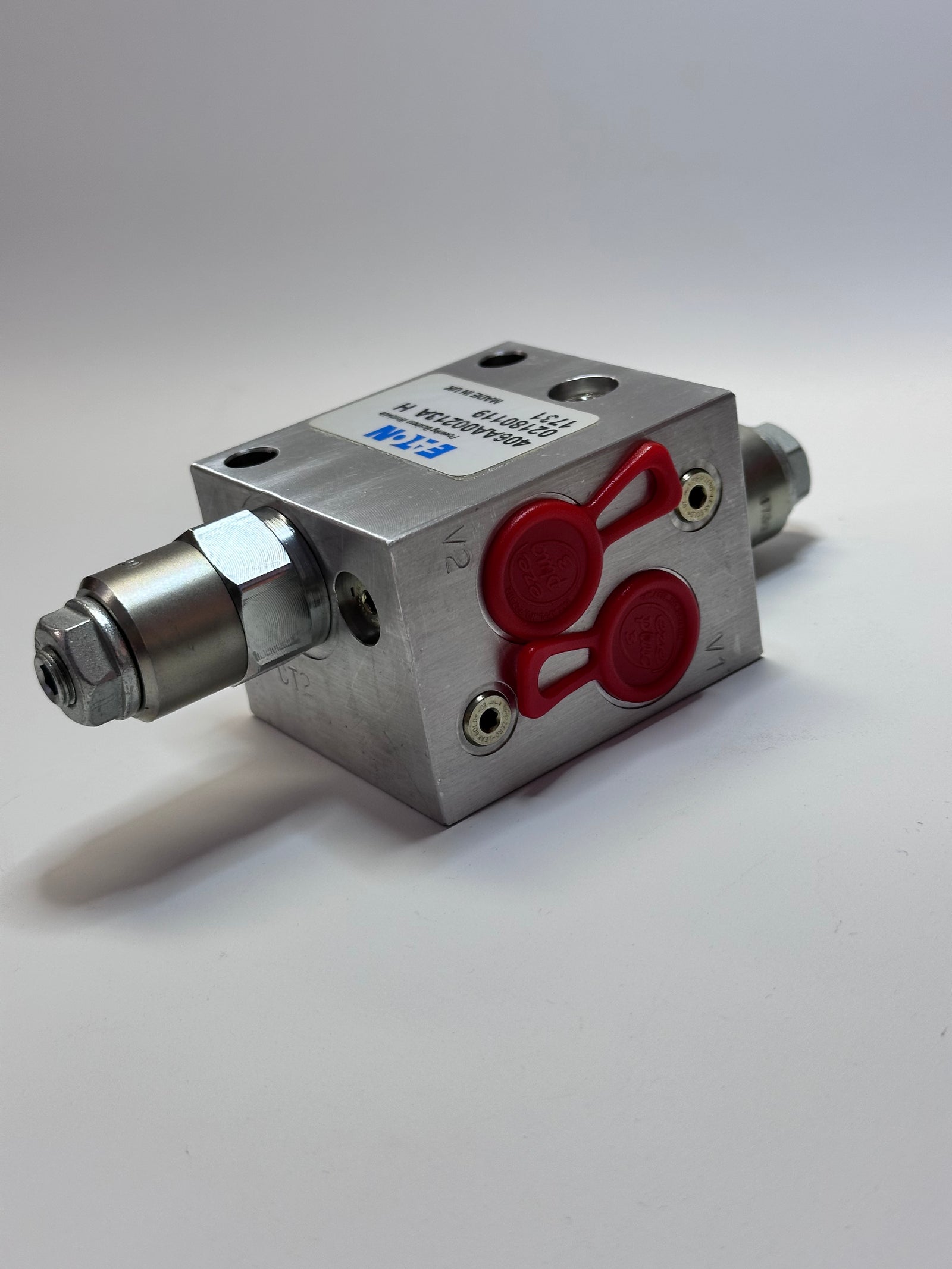

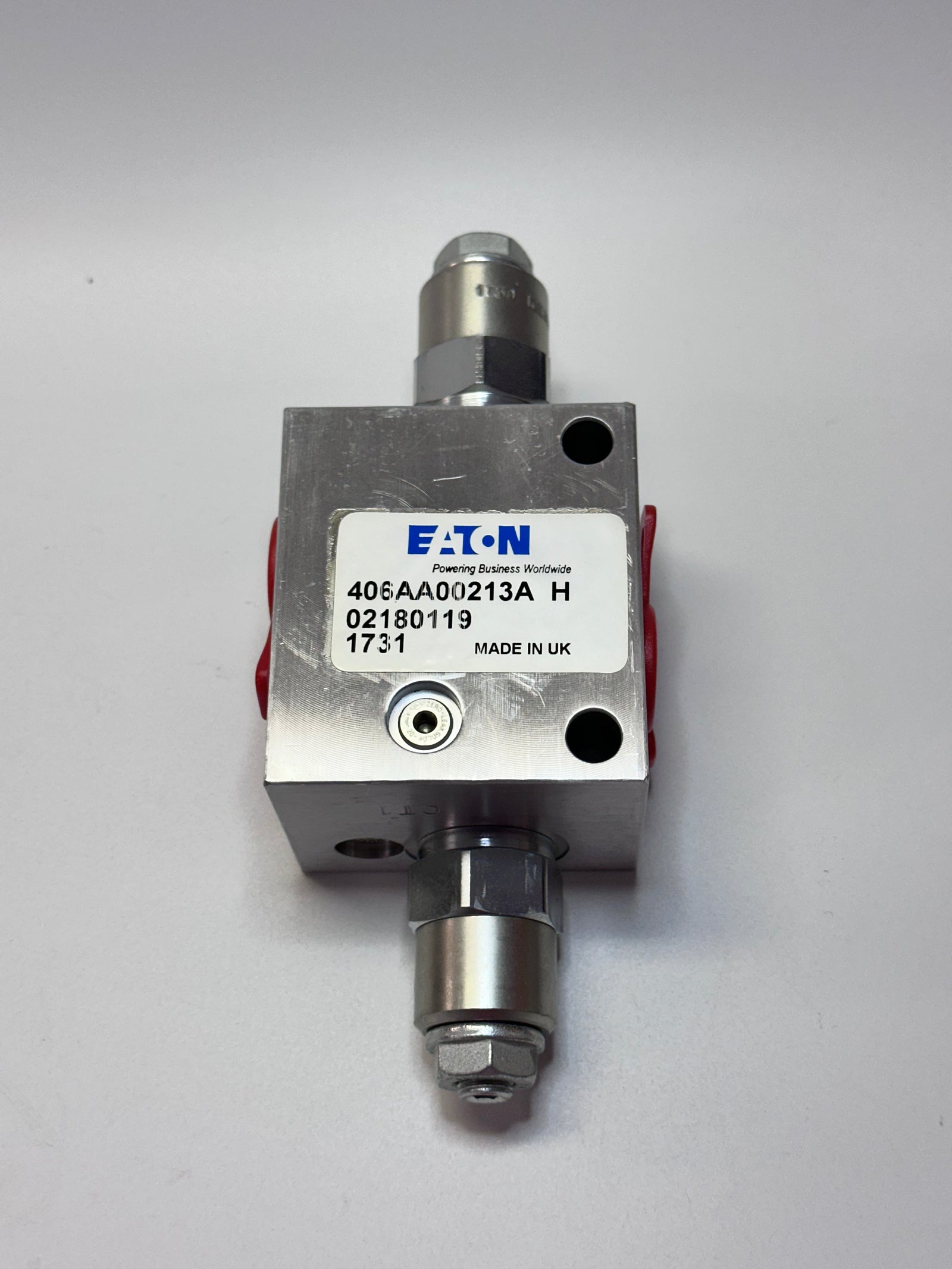

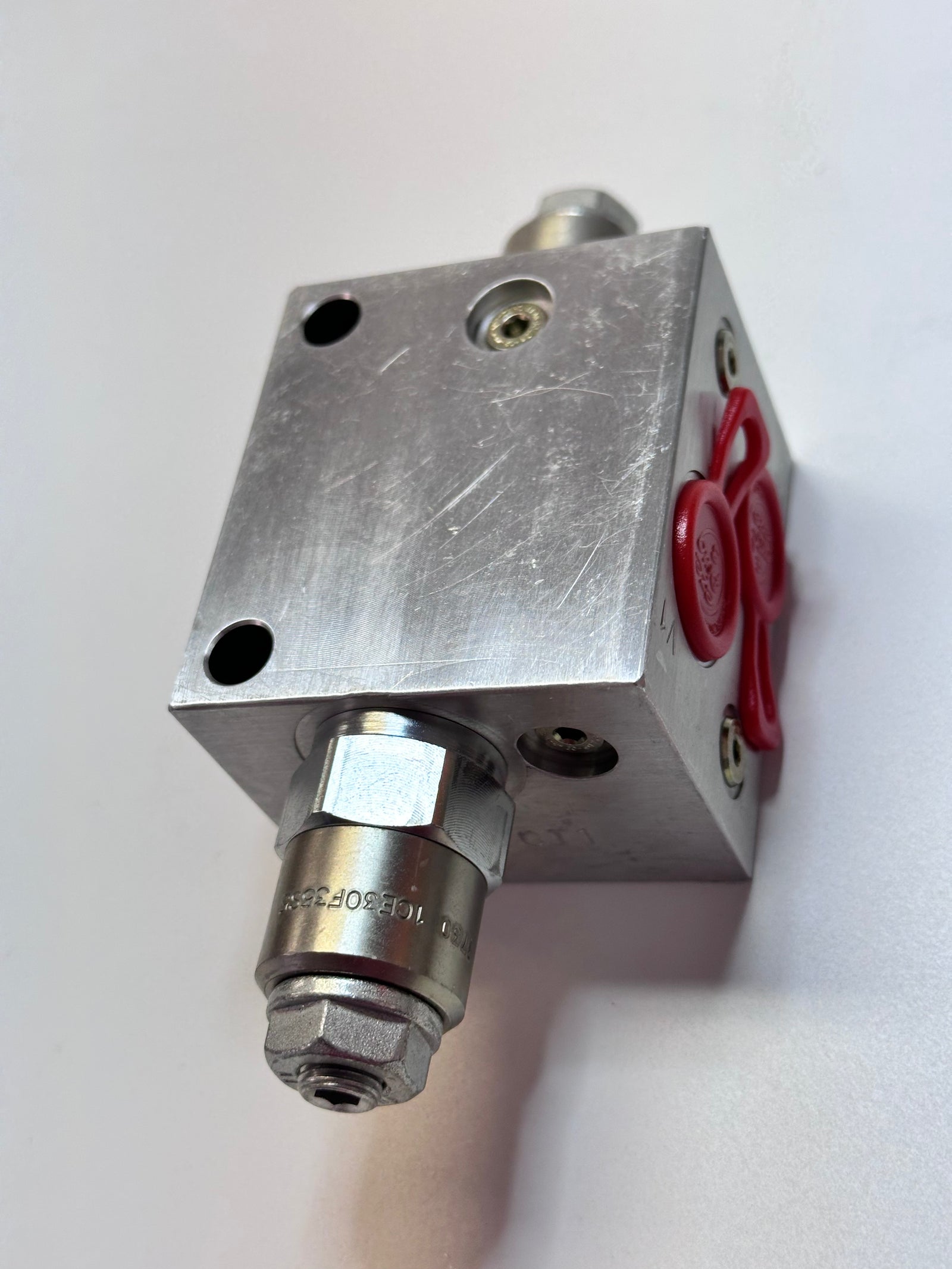

Eaton 406AA00213A H 1731 Overcentre Valve — 88366329
- SKU
- P-AA-E-7349
- Weight
- 5.0 kg
Specifications
| Manufacturer | EATON |
|---|---|
| Product type | VALVES |
| SKU | P-AA-E-7349 |
| Weight | 5.0 kg |
Description
Eaton 406AA00213A H 1731 overcentre valve, also referenced as 406AA00213A and 88366329.
Configuration and ratings require confirmation: the source specification block identifies model 1CEE35-F3W-35S-5. Its relationship to the title references is not explained. Original tags also state 143 USgpm, 350 bar and 5000psi; these have not been assigned as confirmed ratings for the supplied valve.
Specifications recorded in the source
| Adjustment type: | Screw |
| Application: | Harvesters, refuse haulers, mobile and industrial applications |
| Eccn: | EAR99 |
| Fluid compatibility 13: | MIL H 5606, SAE 10, SAE 20, etc |
| Function: | Overcenter Valve |
| Icc2: | SICV Motion Control Valves |
| Installation type: | Screw-in Cartridge |
| Leakage: | 0.25 cc/min |
| Model Code: | 1CEE35-F3W-35S-5 |
| Operating temperature: | -30°C to +90°C |
| Operation: | Pilot Operated |
| Product height: | 2.50 |
| Product height uom: | inch |
| Product length: | 7.35 |
| Product length uom: | inch |
| Product trade name: | 1CE Series |
| Product weight: | 2.00 |
| Product weight uom: | pound |
| Product width: | 2.00 |
| Product width uom: | inch |
| Recommended filtration level: | 18/13 |
| Special features 17: | None |
| Style: | Pilot assisted relief with check |
Source field labels containing 13 or 17 are retained without interpreting them as ratings. The 18/13 filtration entry is not a micron value, and EAR99 is an unverified source classification, not an export-compliance determination.
Sandvik is an additional source tag, not confirmed equipment fitment. Confirm the exact valve identification, cavity, pressure/flow limits and pilot arrangement before ordering.
