3M

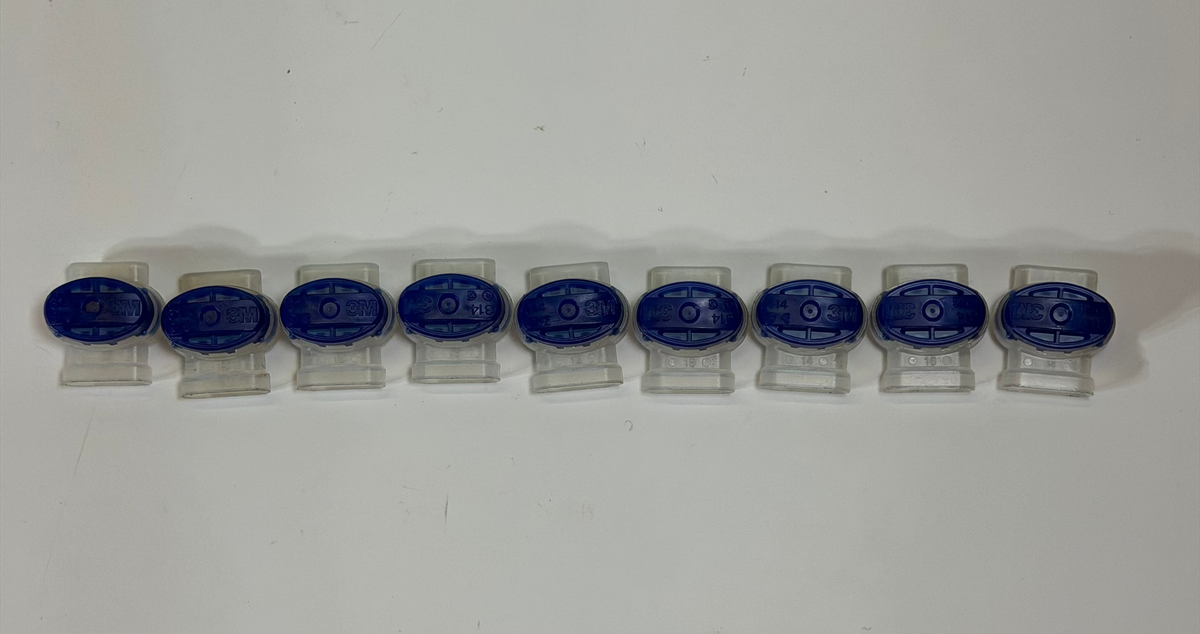

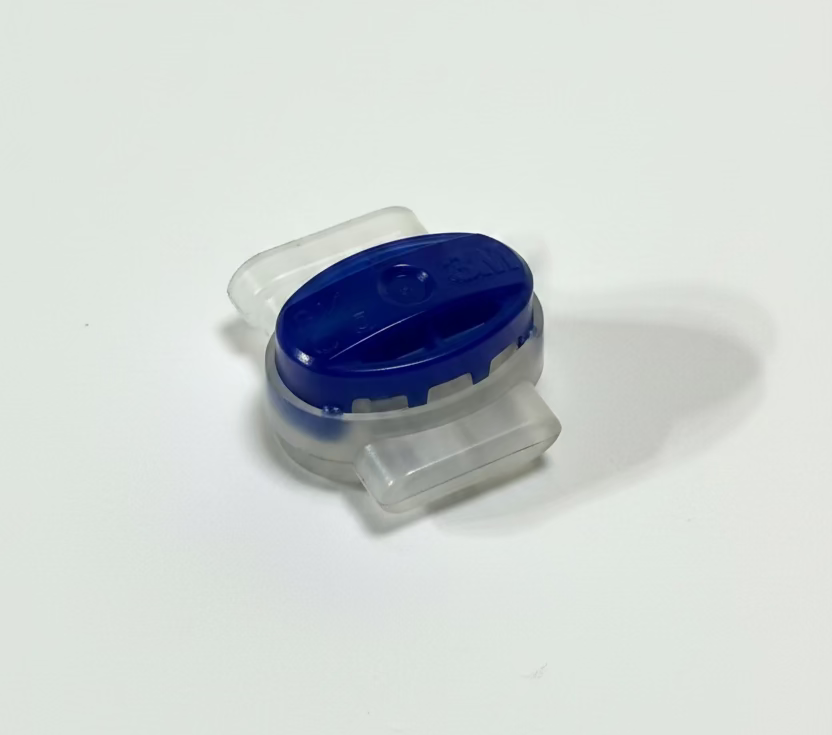

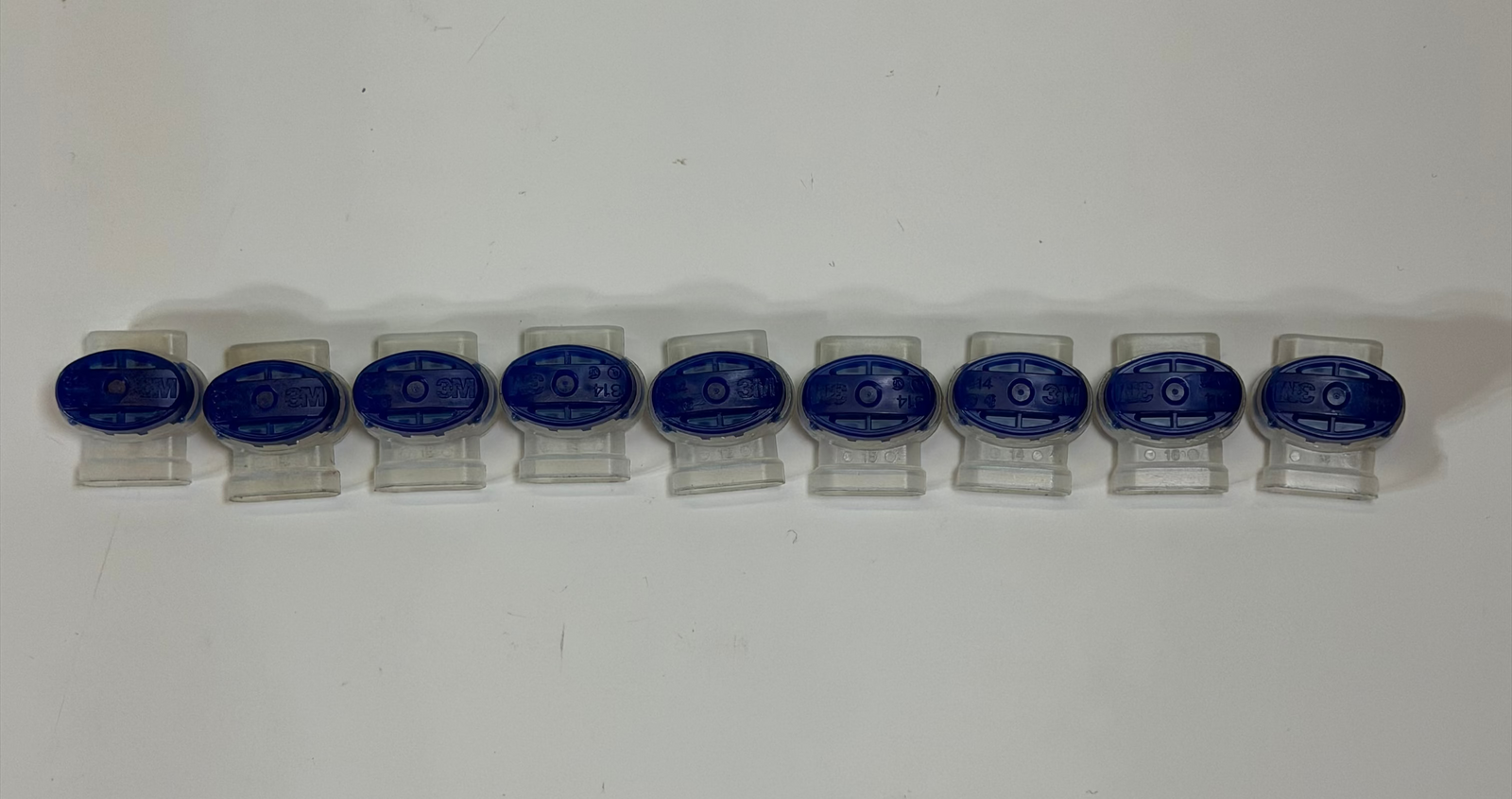

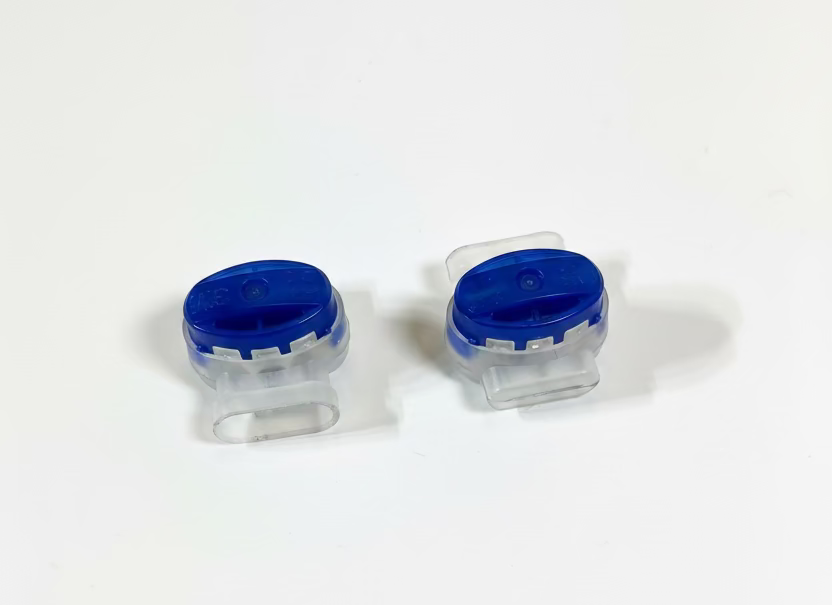

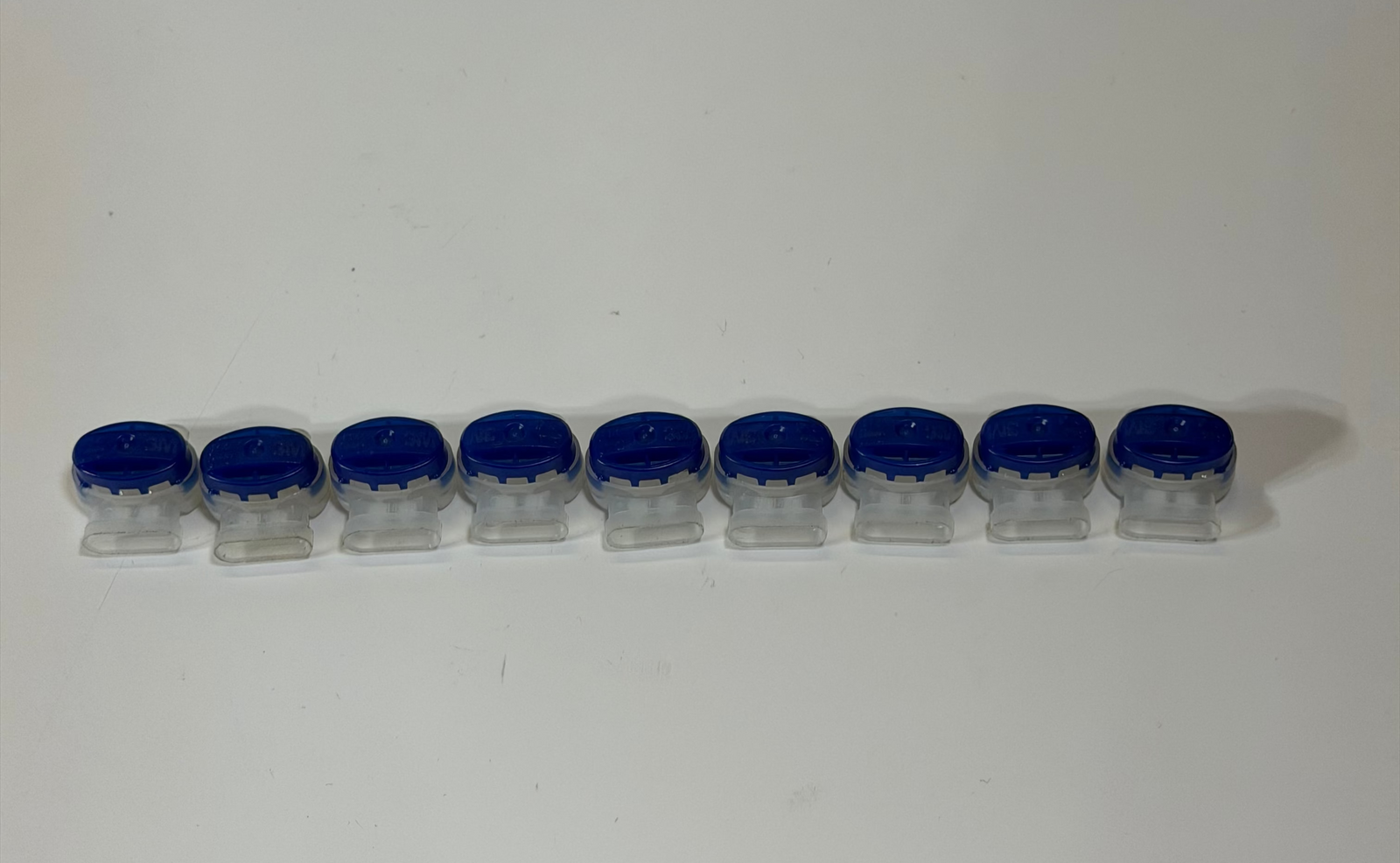

3M 314 Scotchlok Self-Stripping Pigtail Connector, bag of 9
- SKU
- P-MS-3-8601
$6.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 0.5 kg
Specifications
| Manufacturer | 3M |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-MS-3-8601 |
| Weight | 0.5 kg |
Description
-
Wire Splice, Scotchlok Series, IDC / IDT, 22 AWG, 14 AWG, Quick Blade Splice
- 3M 314: Blue cap – suited for standard low-voltage joins with 0.5–1.5 mm² copper wires (commonly used for solenoids and lighting)
- Self-stripping: No need to strip wires – insert and crimp
- Moisture-resistant seal: Filled with mineral oil-based gel to prevent corrosion
- Supports: 2 or 3 solid or stranded copper wires
- Wire Range: 22–16 AWG (0.5–1.5 mm²)
- Voltage Rating: 600 V max (low-voltage only)
- Temperature Rating: 105°C
- Installation: Use standard slip-joint pliers or 3M E-9BM crimping tool
- UL Listed: Yes – meets UL Standard 486C
