EPIROC

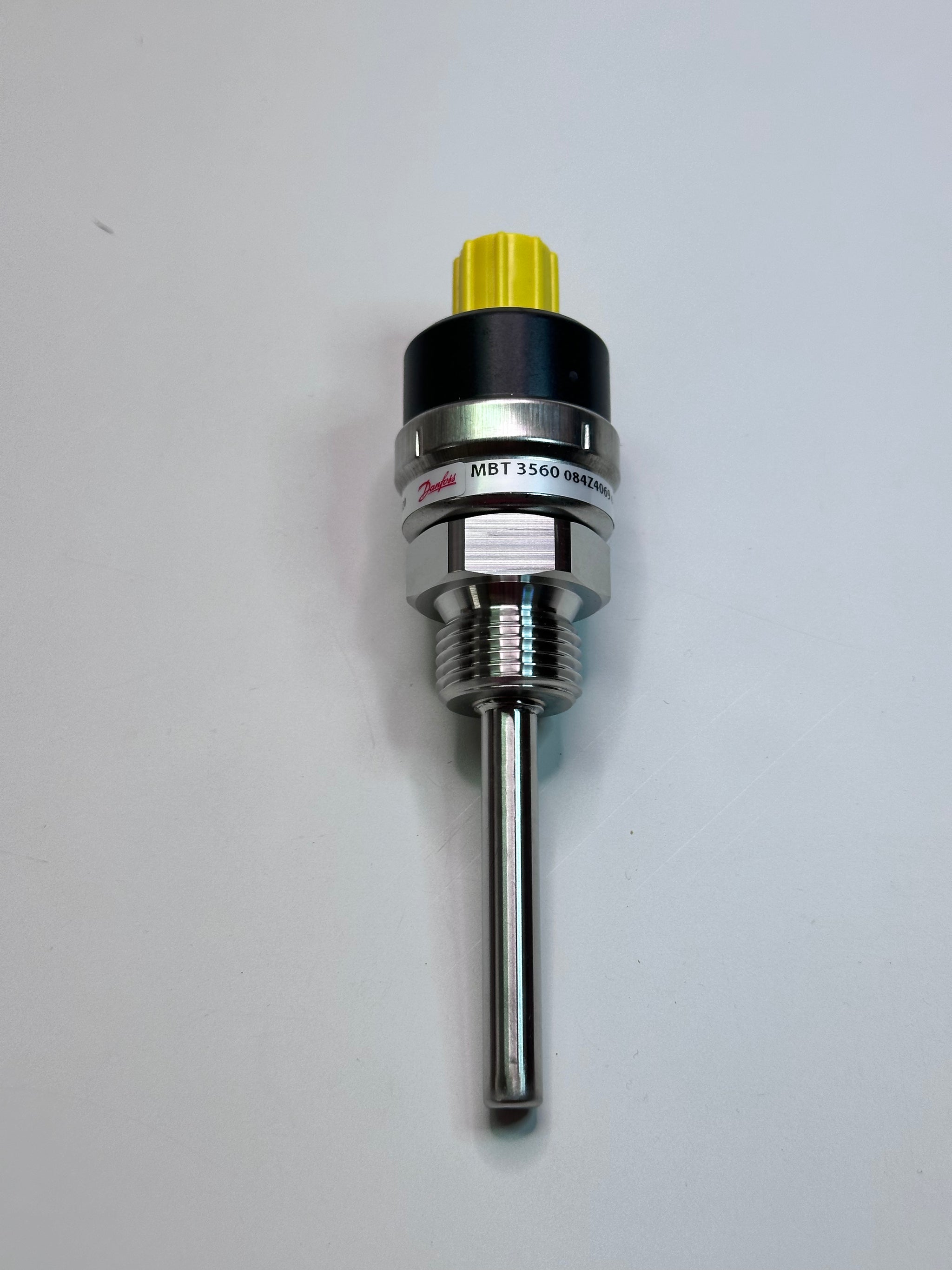

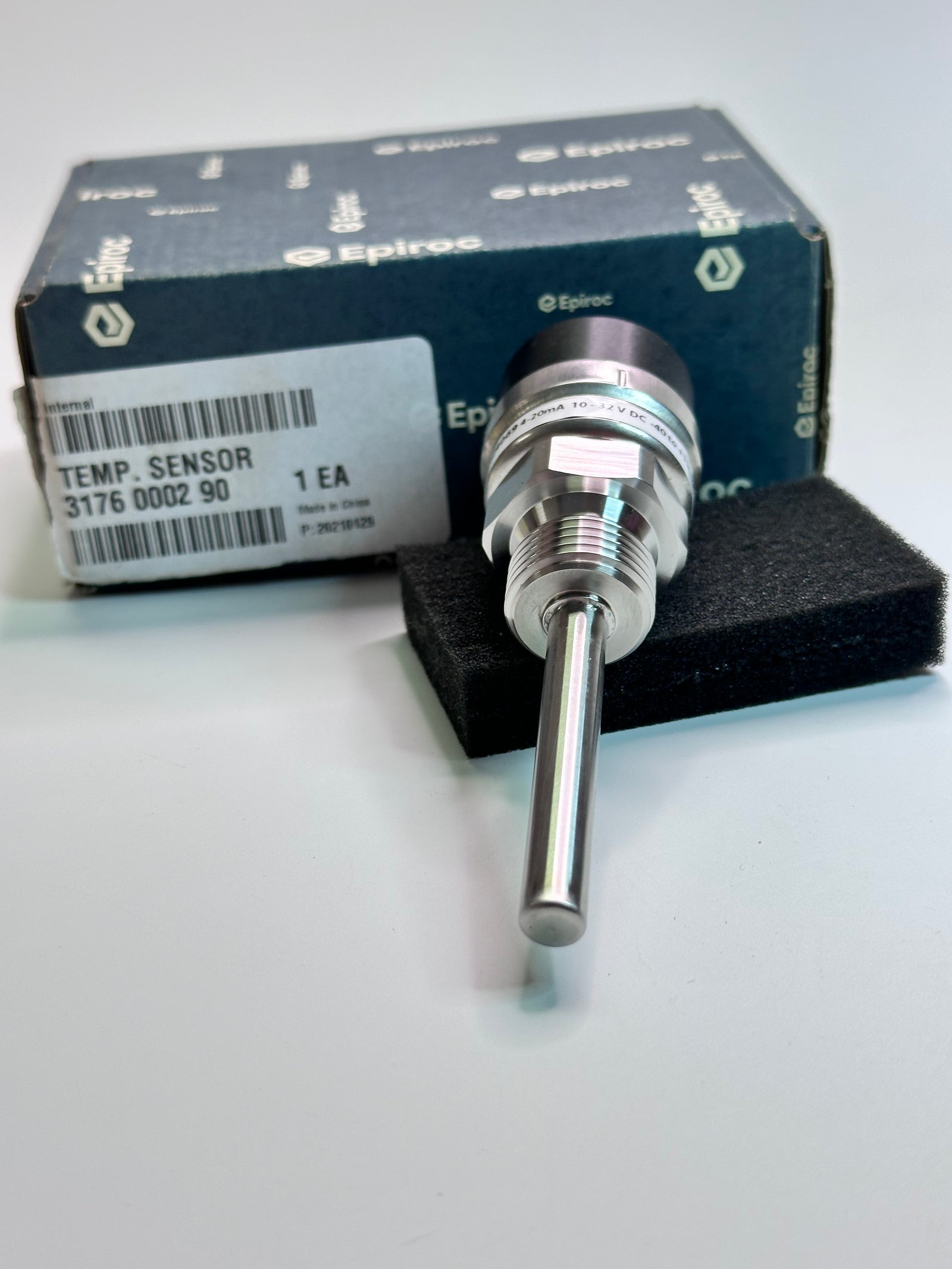

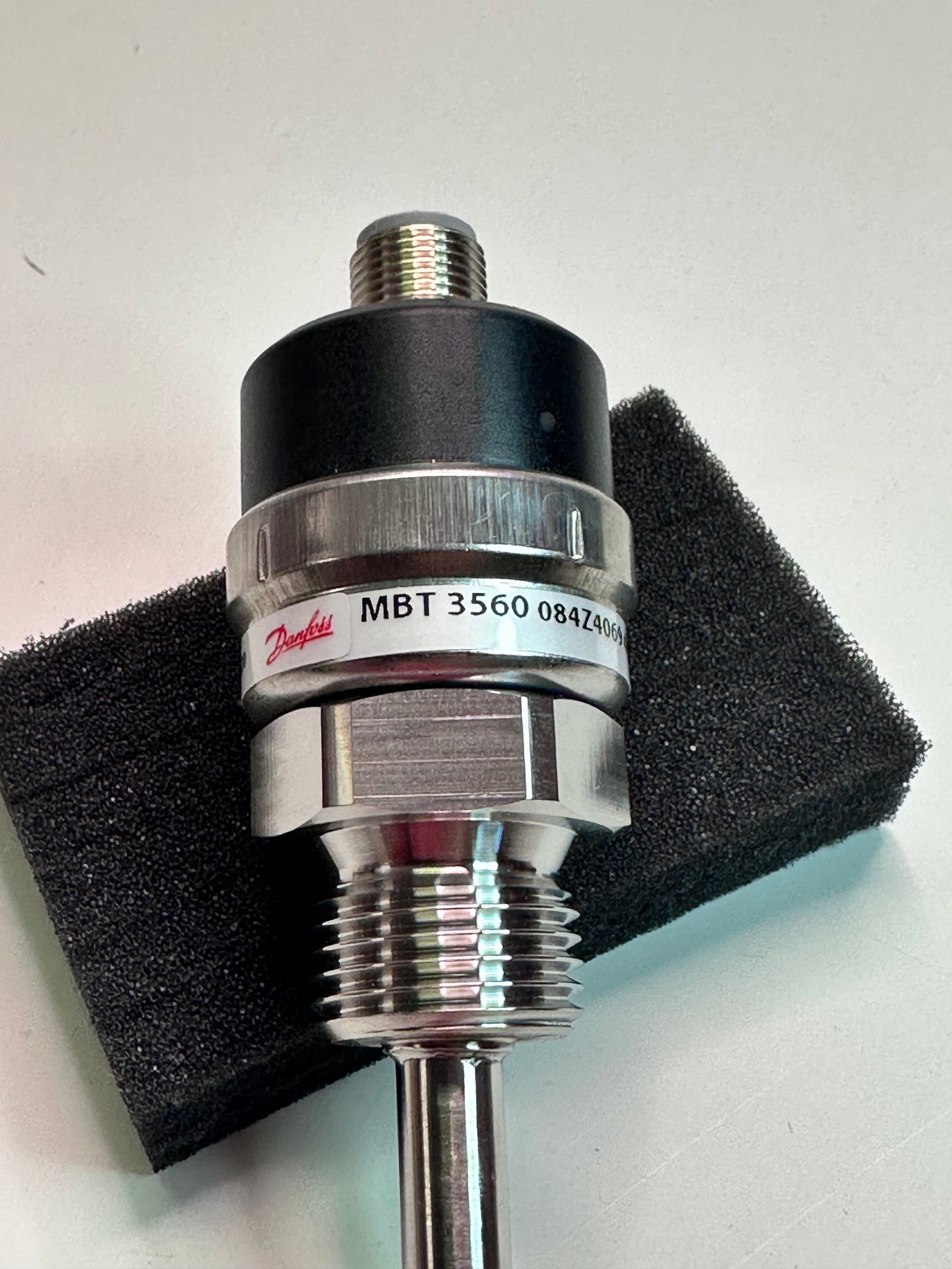

3176000290 Temperature Sensor for Epiroc, MBT 3560 084Z4069
- SKU
- P-TE-E-7651
$350.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 1.5 kg
Specifications
| Manufacturer | EPIROC |
|---|---|
| Product type | EARTHMOVING PARTS |
| SKU | P-TE-E-7651 |
| Weight | 1.5 kg |
Description
Cop 3060 Rock Drill & Drifter
simba m7c, boomer m2c, boltec mc Underground Drill Rig
roc d7 11, roc l8, flexiroc t40, flexiroc t35, roc l6, flexiroc d60sf, flexiroc d60lf, roc l8lf, roc d7 11+ Surface Drill Rig Models.
| Type | MBT 3560 |
| Product group | Sensors |
| Product Name Description | Temperature transmitter |
| Ambient temperature max. [°C] | 85 °C |
| Ambient temperature max. [°F] | 185 °F |
| Approval | CE |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Connection material | Stainless steel |
| Connection standard | ISO 228 |
| Connection type | G |
| Contains batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical conn. Male/Female | Male |

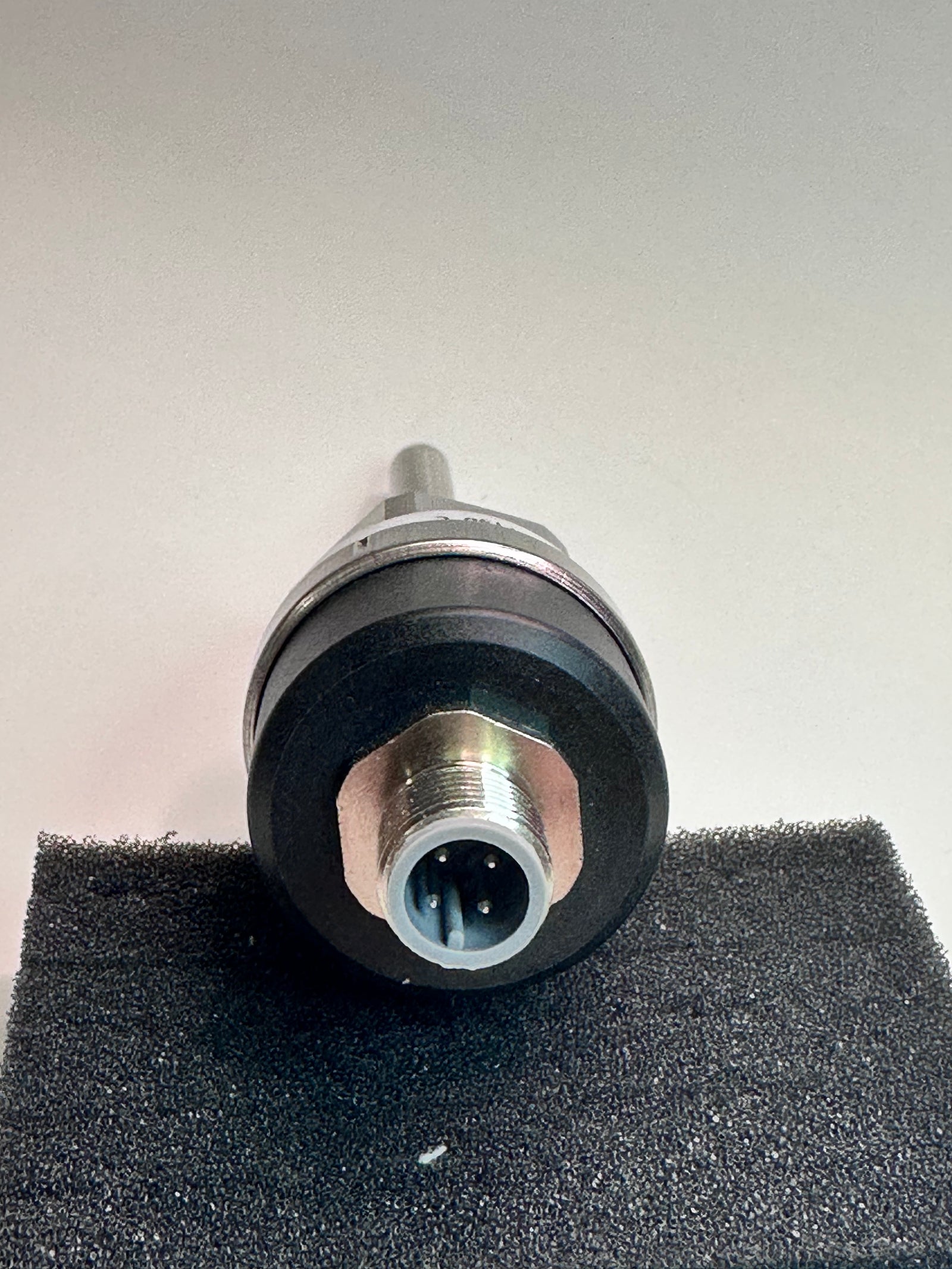

| Electrical connection | M12 x 1 |
| Electrical connection size | 4 pin |
| Electrical connection standard | IEC 61076-2-101 |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| In scope of WEEE | Yes |

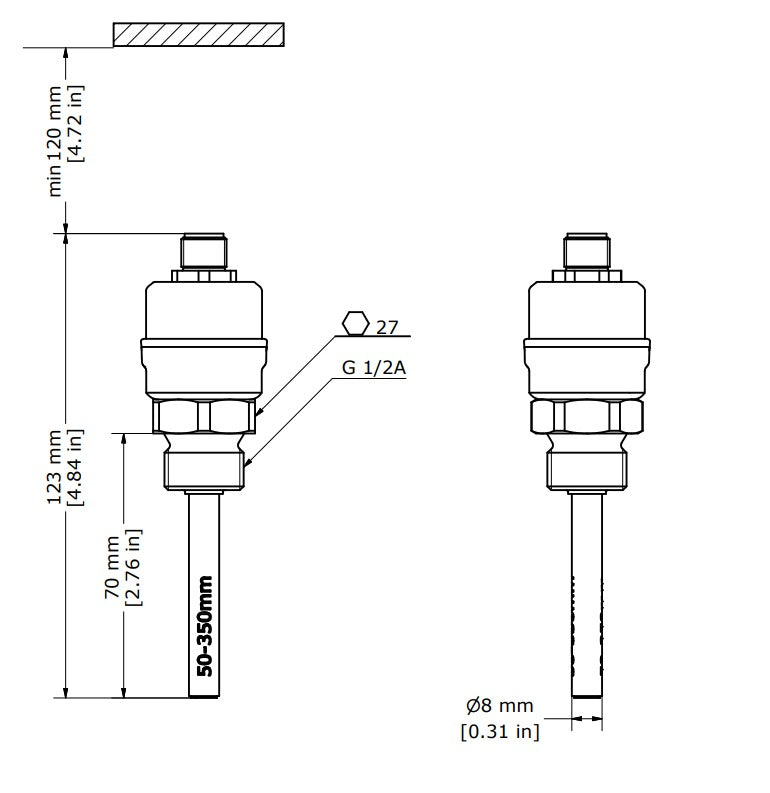

| Insertion length [in] | 2.76 in |
| Insertion length [mm] | 70 mm |
| Insertion type | Fixed |
| Measuring range [°C] [max] | 150 °C |
| Measuring range [°C] [min] | -40 °C |
| Measuring range [°F] [max] | 302 °F |
| Measuring range [°F] [min] | -40 °F |

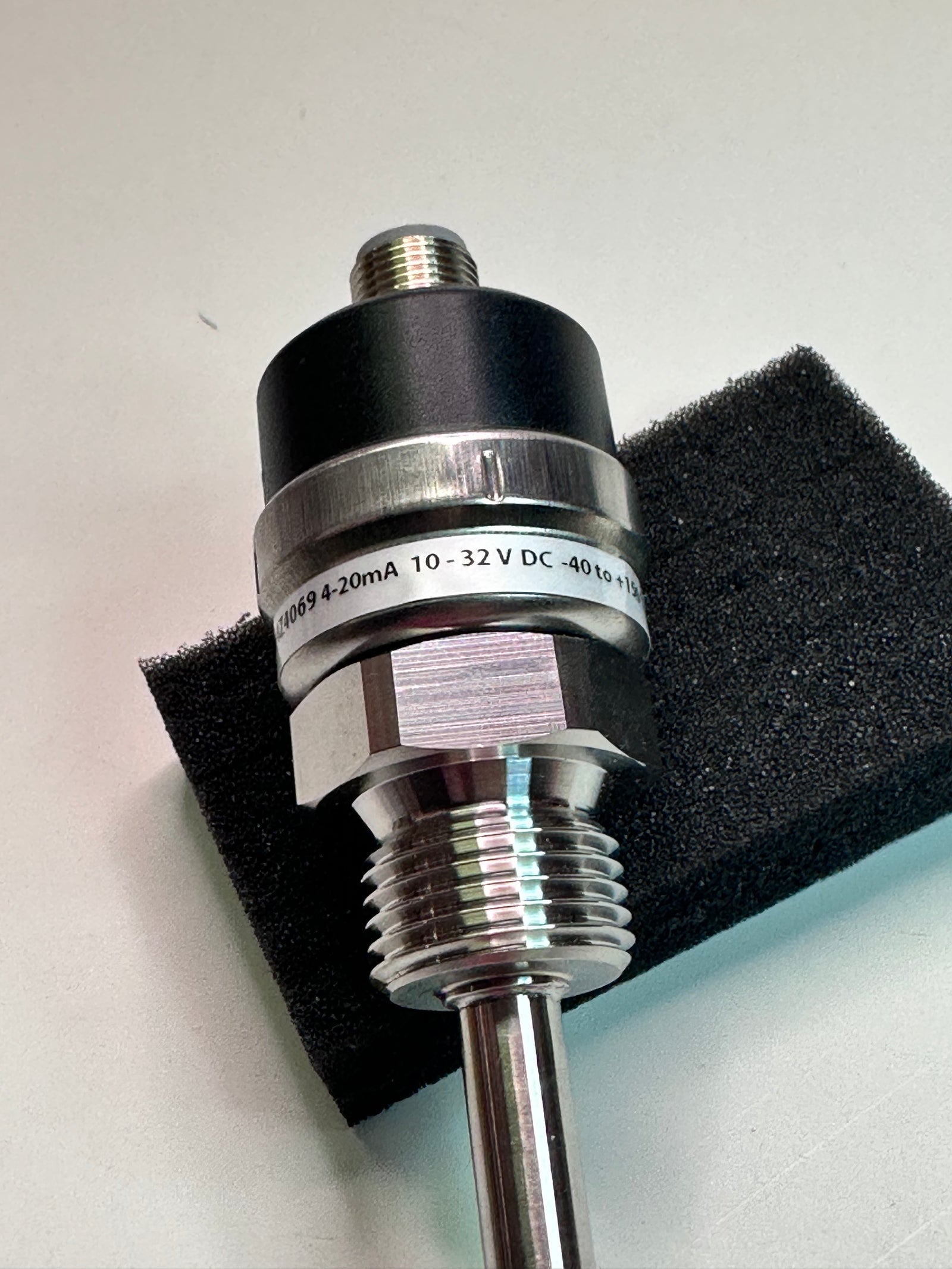

| Output signal [mA] [max] | 20 mA |
| Output signal [mA] [min] | 4 mA |
| Packing format | Single |
| Process connection Male/Female | Male |
| Process connection material | Stainless steel |
| Process connection size | 1/2 |
| Process connection standard | ISO 228-1-A |
| Process connection type | G |
| Protection tube diameter [in] | 0.315 in |
| Protection tube diameter [mm] | 8 mm |
| Protection tube material | AISI 316 TI |
| Quantity per packing format | 13 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 8127e7d9-3431-4421-a02a-bab746bc2e4f |
| SCIP dossier product name | Sensor MBT 3560 |
| Sensor elem. resistance [Ohm] | 1000 Ohm |
| Sensor element tolerance | < ± 1% FS |
| Sensor element type | Pt |
| Sensor Insert | Fixed |
| Supply voltage [V] DC [max] | 32 V |
| Supply voltage [V] DC [min] | 10 V |
| Temperature range [°C] [max] | 200 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 392 °F |
| Temperature range [°F] [min] | -58 °F |
| Transmitter setting range [°C] [max] | 150 °C |
| Transmitter setting range [°C] [min] | -40 °C |
| Transmitter setting range [°F] [max] | 302 °F |
| Transmitter setting range [°F] [min] | -40 °F |
| Transmitter type | Integrated |
| Type designation | MBT 3560-0000-0070-62-815 |
