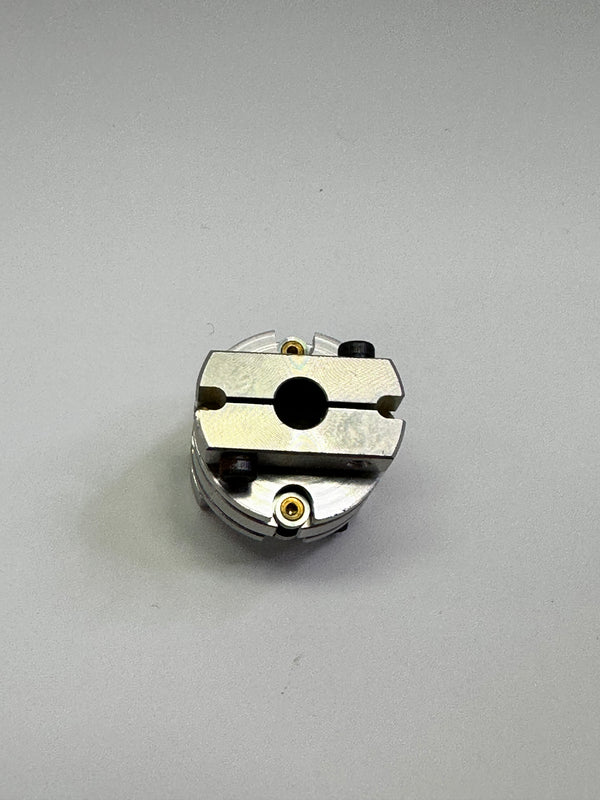

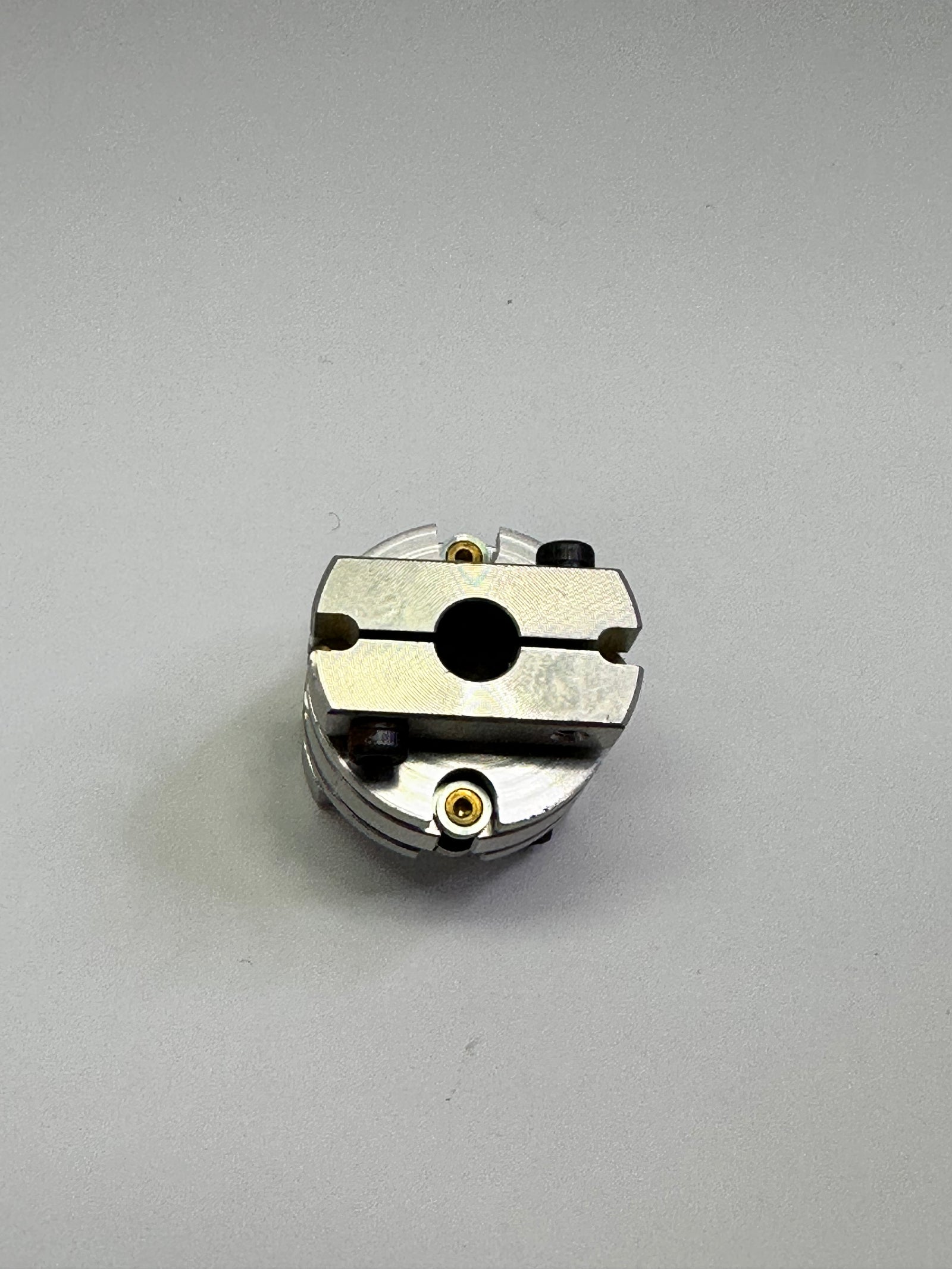

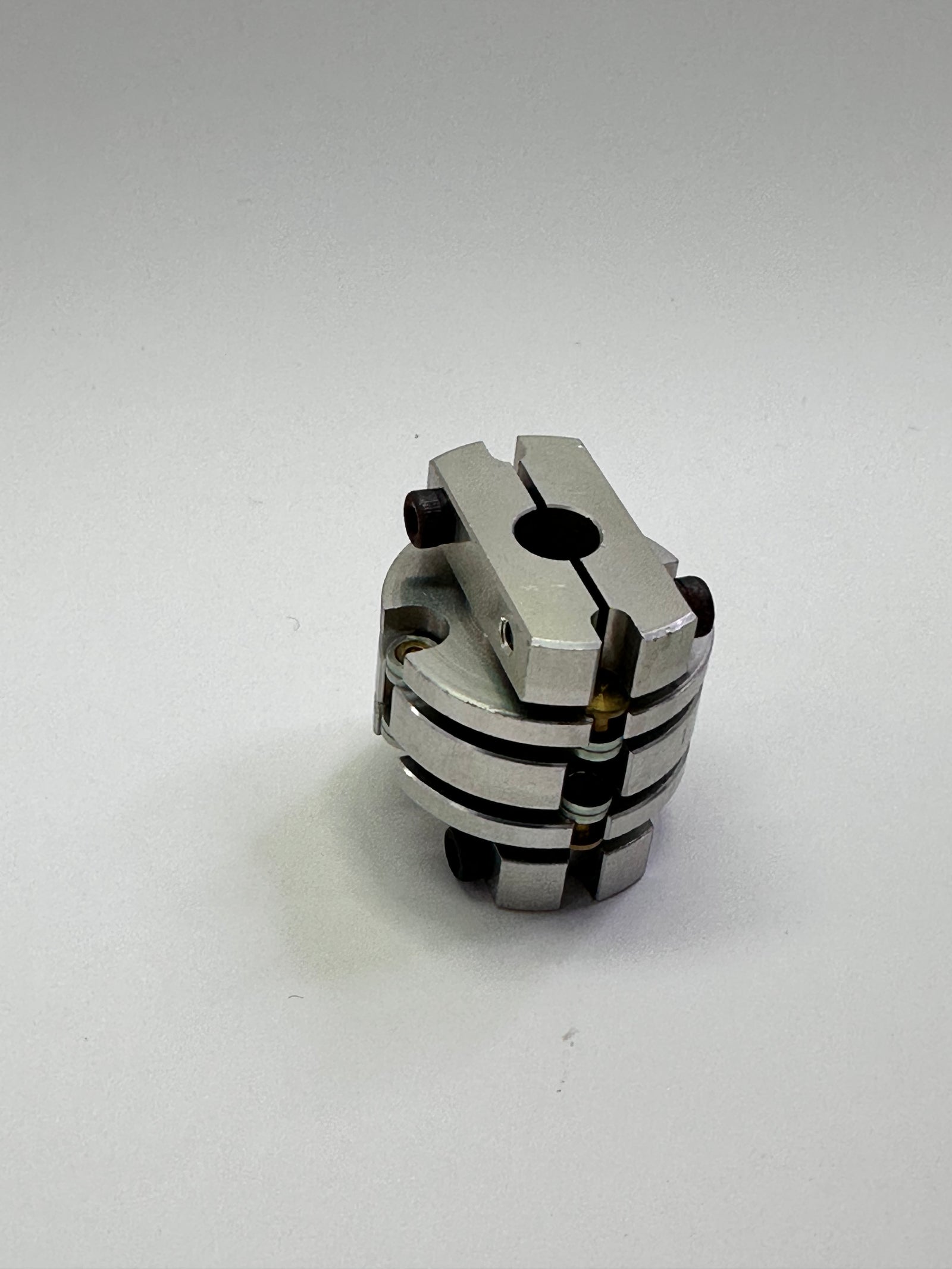

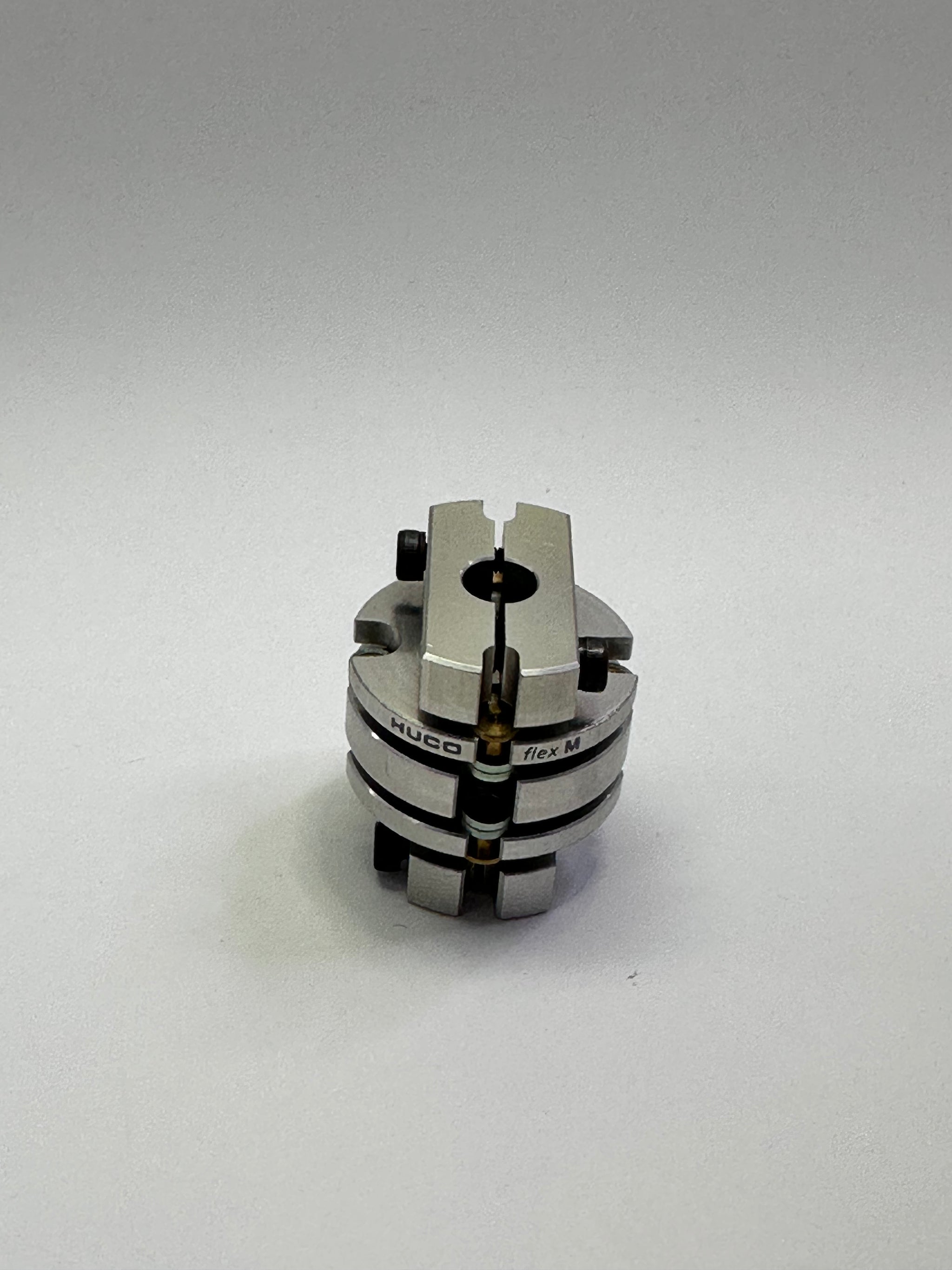

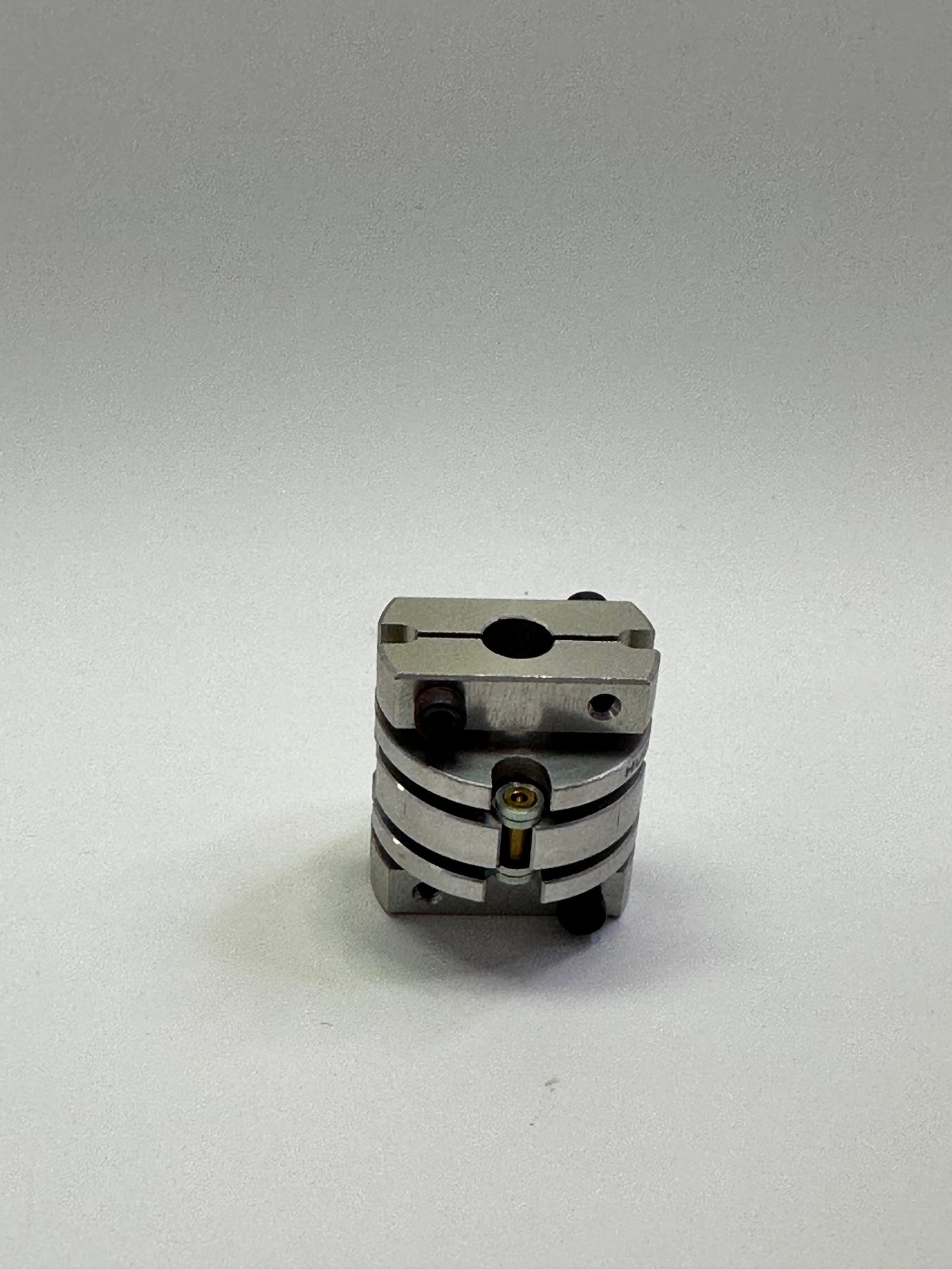

Huco 466.26.2424 Flex-M Disc Coupling, 1/4" x 1/4", 229-497
- SKU
- P--H-H-7233
$75.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 1.5 kg
Specifications
| Manufacturer | HUCO |
|---|---|
| Product type | MECHANICAL DRIVE PARTS |
| SKU | P--H-H-7233 |
| Weight | 1.5 kg |
Description

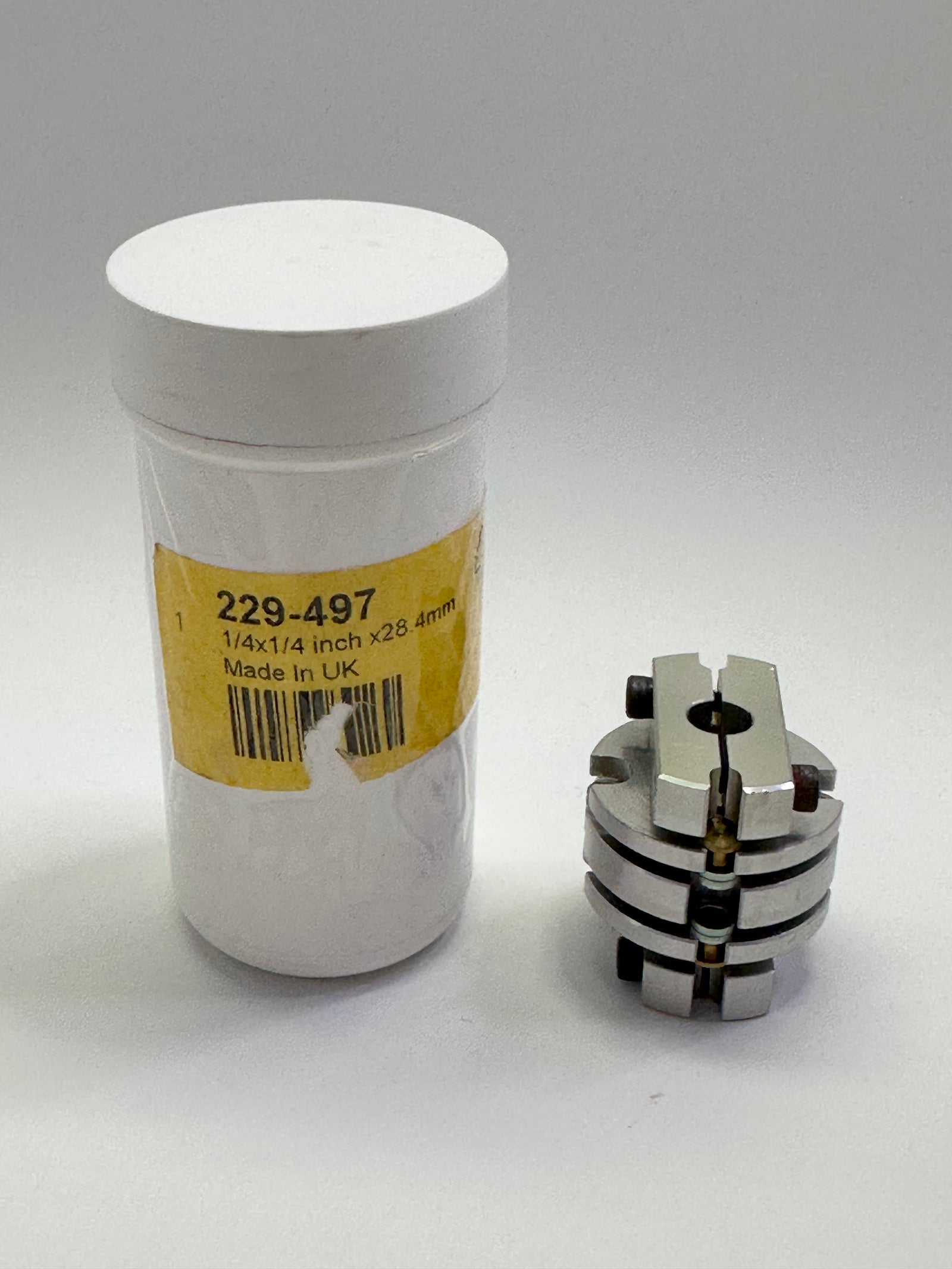

Huco 466.26.2424 Flex-M two-stage disc coupling, additional reference 229-497. The source specifies 1/4" x 1/4" x 28.4mm, with double-riveted construction and clamp shaft connections.
Size 26 is the listed size designation; the specification table gives an outside diameter of 25.6mm. The B1/B2 minimum and maximum bore values are range information, not four alternative measured bores on this coupling.
Listed specifications
| Specification | Value |
|---|---|
| Coupling Type | Disc Coupling - Flex-M |
| Configuration | Double - Riveted |
| Size | 26 |
| Material | Aluminium |
| Max Bore B1 (mm) | 10 |
| Min Bore B1 (mm) | 4 |
| Max Bore B2 (mm) | 10 |
| Min Bore B2 (mm) | 4 |
| Angular Compensation, Max (degrees) | 4 |
| Angular Stiffness (N/degree) | 0.5 |
| Axial Compensation, Max (mm) | +/- 0.2 |
| Axial Stiffness (N/mm) | < 7 |
| Bore Tolerance (mm) | +0.03 / -0.00 |
| Fastener Screw Size | M2.5 |
| Fastener Screw Torque (Nm) | 1.32 |
| Fastener Wrench Size (mm) | 2 |
| Max Speed (rpm) | 8000 |
| Operating Temperature (°C) | -40 to +120 |
| Peak Torque (Nm) | 2.3 |
| Radial Compensation, Max (mm) | 0.2 |
| Radial Stiffness (N/mm) | 37 |
| Resists Axial Load | Yes |
| Shaft Connection | Clamp |
| Torsional Stiffness (Nm/rad) | 385 |
| Mass (Weight) (g) | 20 |
| [B3] Clearance Bore (mm) | 11 |
| [D] Outside Diameter (mm) | 25.6 |
| L1 Dimension (mm) | 10 |
| [L] Length (mm) | 28.4 |
| [L] Overall Length (mm) | 28.4 |
Confirm shaft sizes and operating requirements before ordering. Peak torque is not a continuous-duty torque rating, and the listed compensation limits should not be assumed to apply simultaneously.
