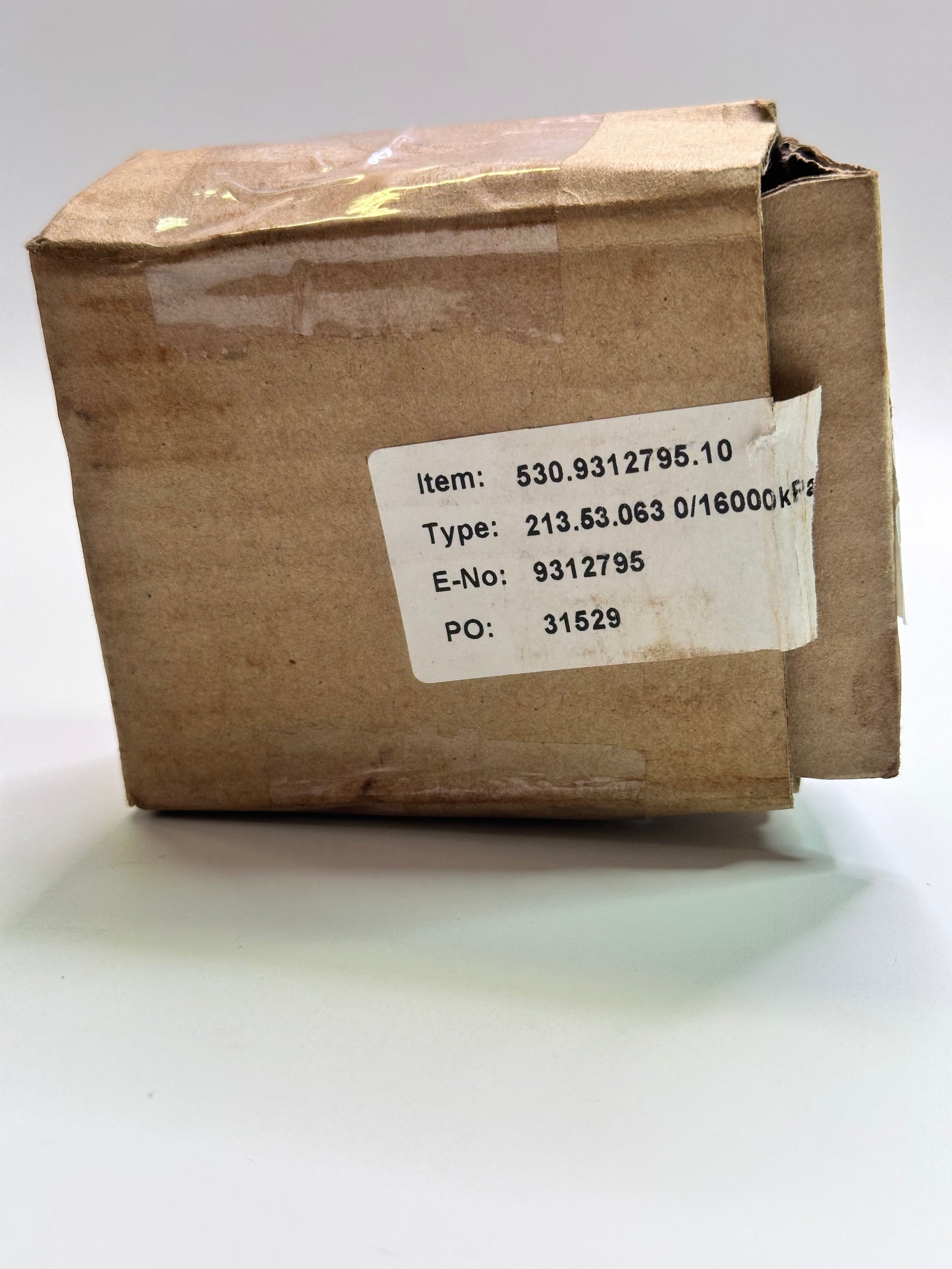

WIKA 213.53.063 Glycerin-Filled Pressure Gauge, 0–16000kPa — 63mm
- SKU
- P-..-W-7533
$45.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 2.0 kg
Specifications
| Manufacturer | WIKA |
|---|---|
| Product type | GAUGES |
| SKU | P-..-W-7533 |
| Weight | 2.0 kg |
Description

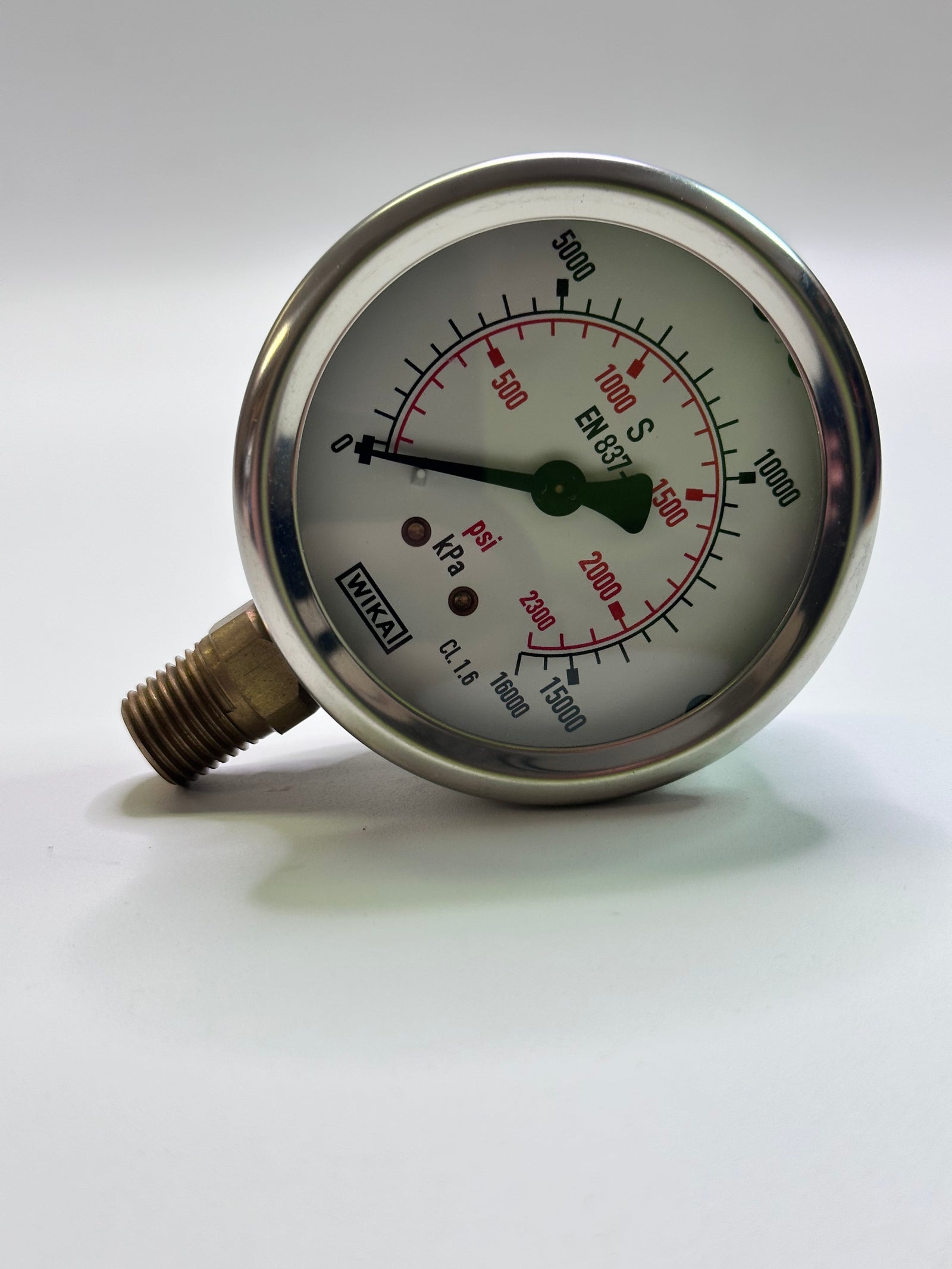

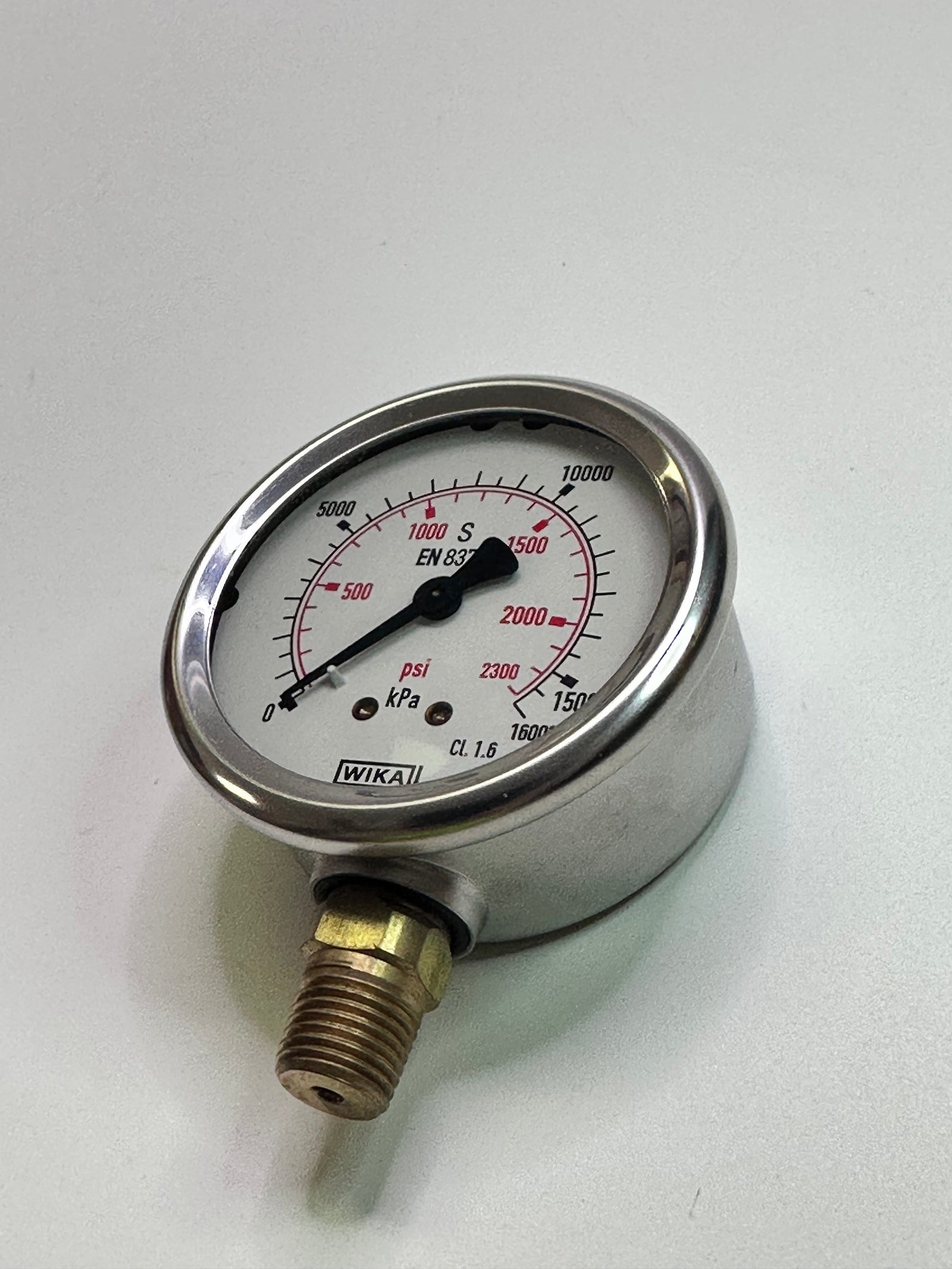

WIKA 213.53.063 glycerin-filled Bourdon-tube pressure gauge, nominal size 63mm, with a 0–16000kPa scale and secondary psi scale.

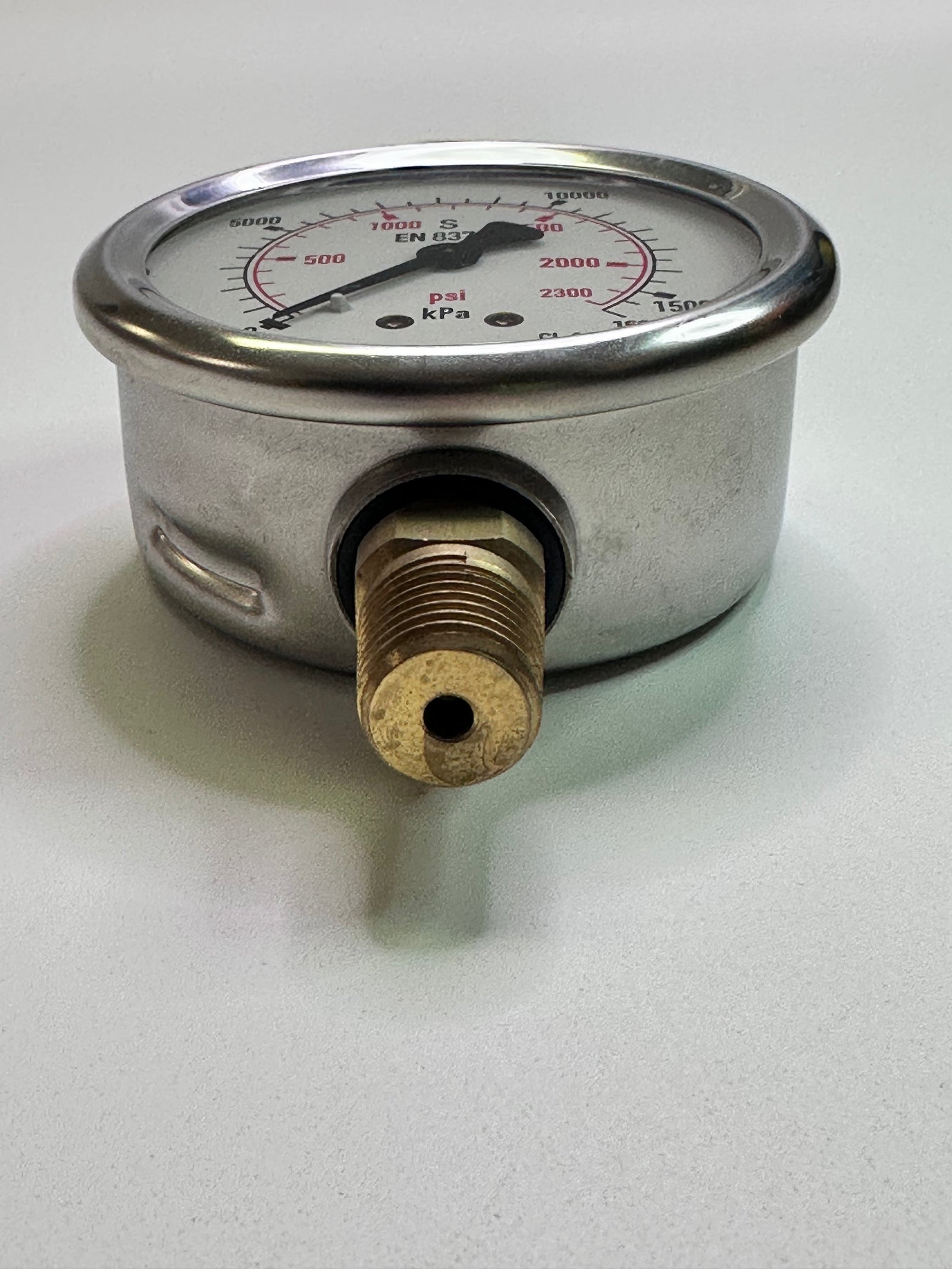

- Connection: R 1/4-ISO7 (DIN2999), lower mount.

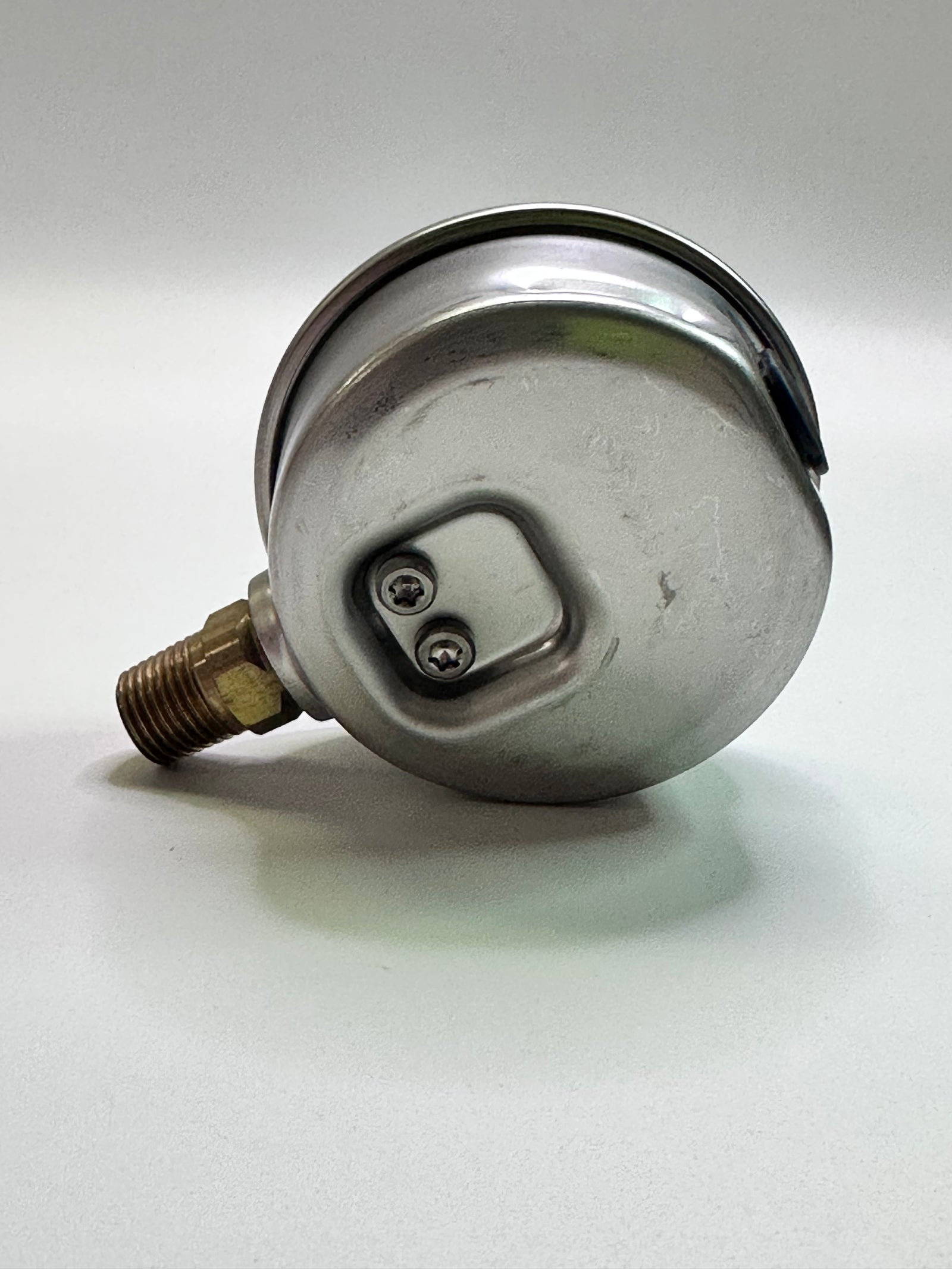

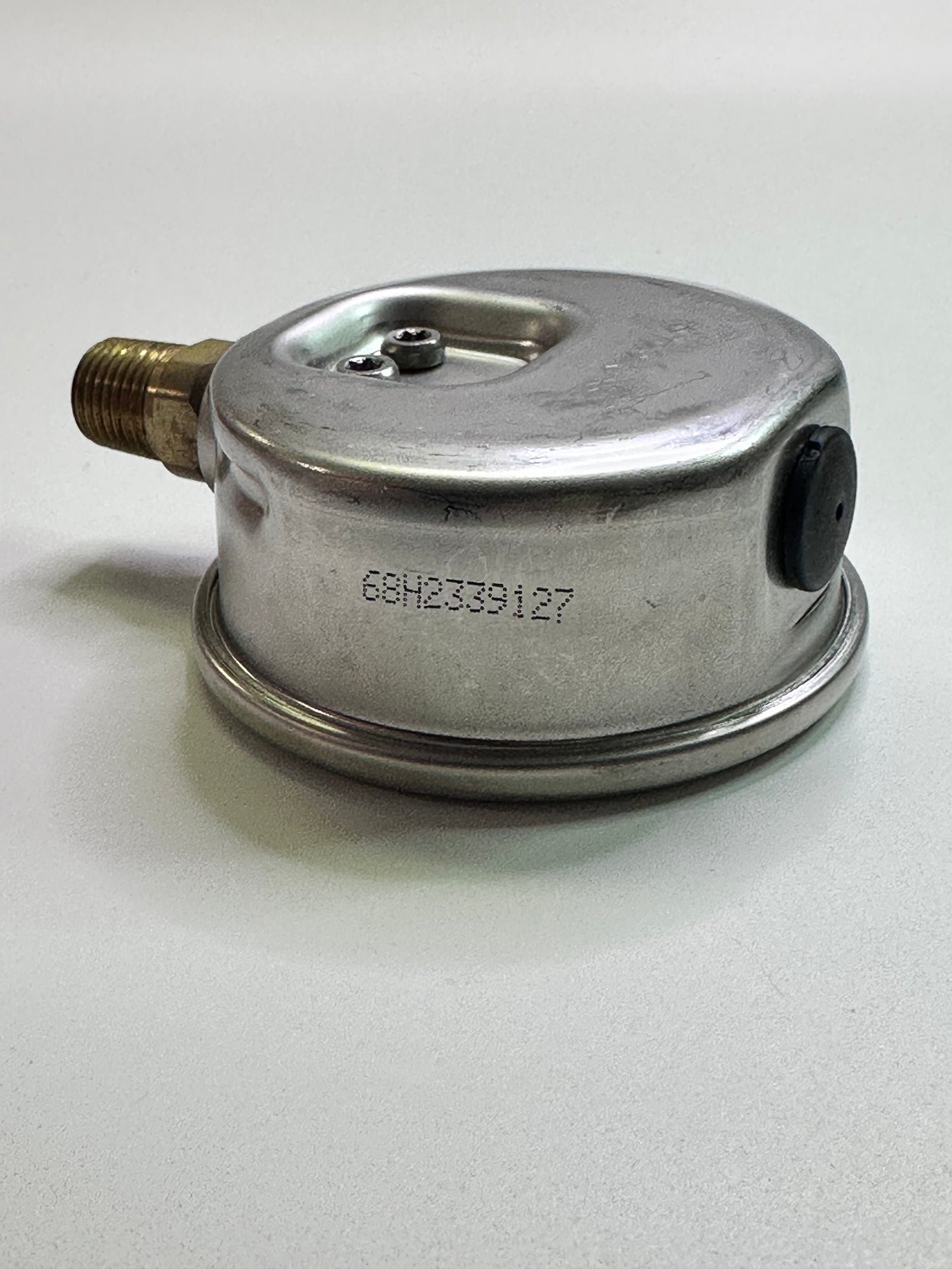

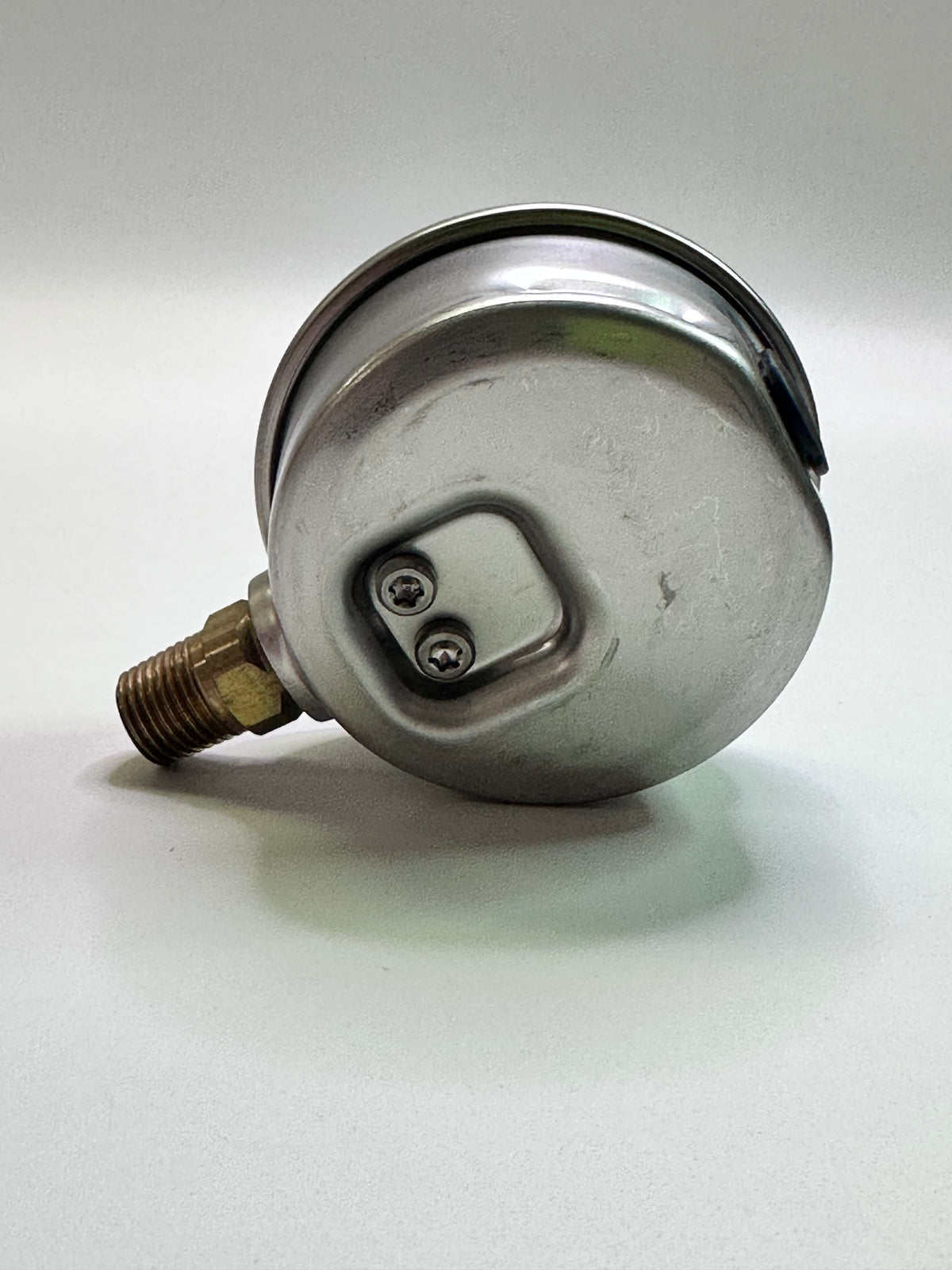

- Measuring system: copper alloy; case: stainless steel 1.4301, crimp-ring version 53.
- Restrictor: brass, D 0.5 as recorded; units are not specified.
- Accuracy class: 1.6; source overpressure entry: standard.

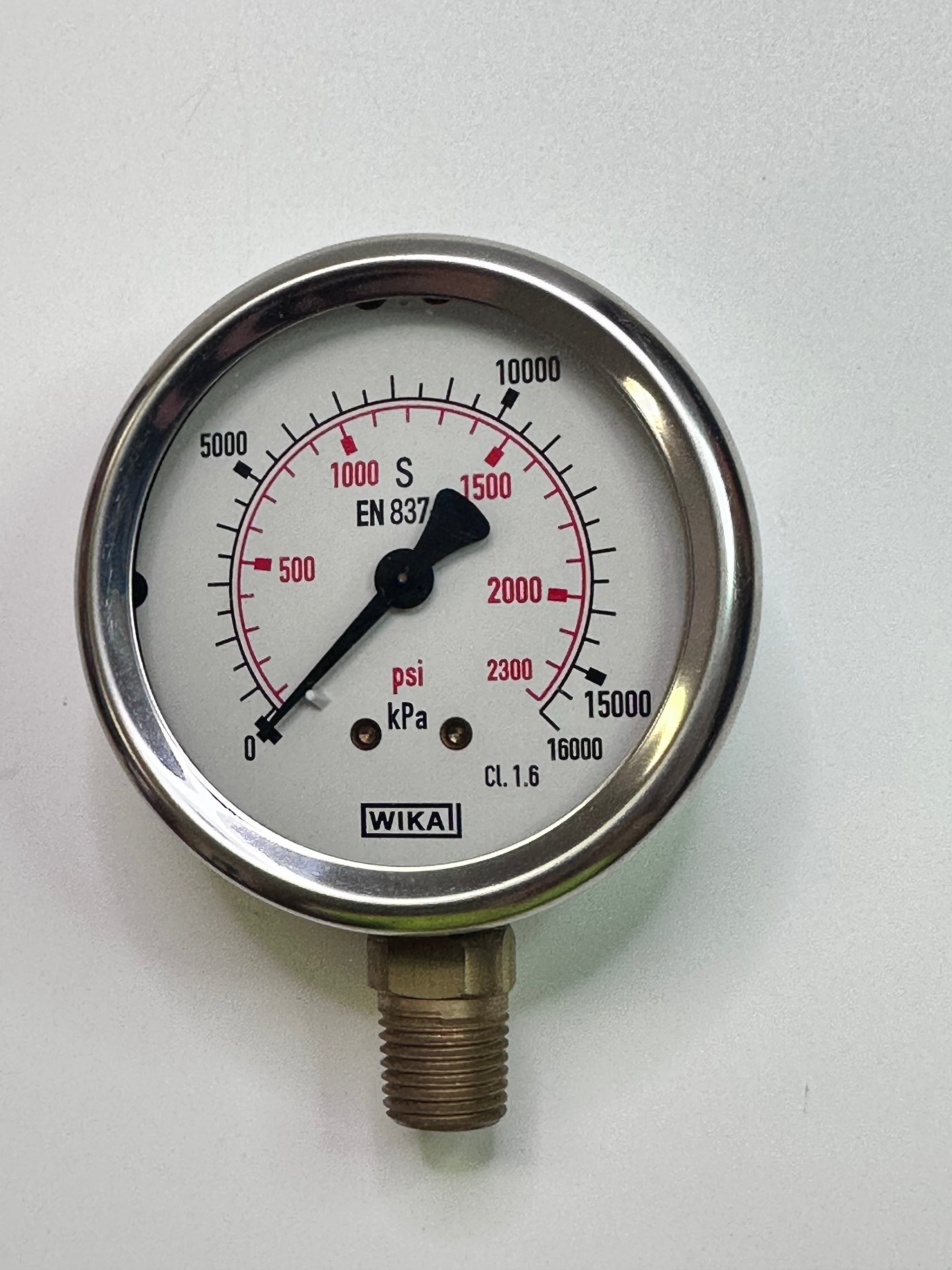

- Clear plastic window; black plastic pointer (double division); white plastic dial with zero stop pin.
- Outside kPa scale black; inside secondary scale red RAL 3020.
- Dial markings recorded: WIKA, EN 837-1, S and Cl.1.6.
The original source references model family 213.53.050/063 and data sheet PM 02.12, with International (standard Europe) configuration and standard packing. These are specification entries, not a current calibration certificate or verified safety approval for a particular installation.
Confirm the pressure range, connection and medium compatibility before ordering. Secondary psi full-scale value is not provided and has not been calculated into a dial claim.
