DANFOSS

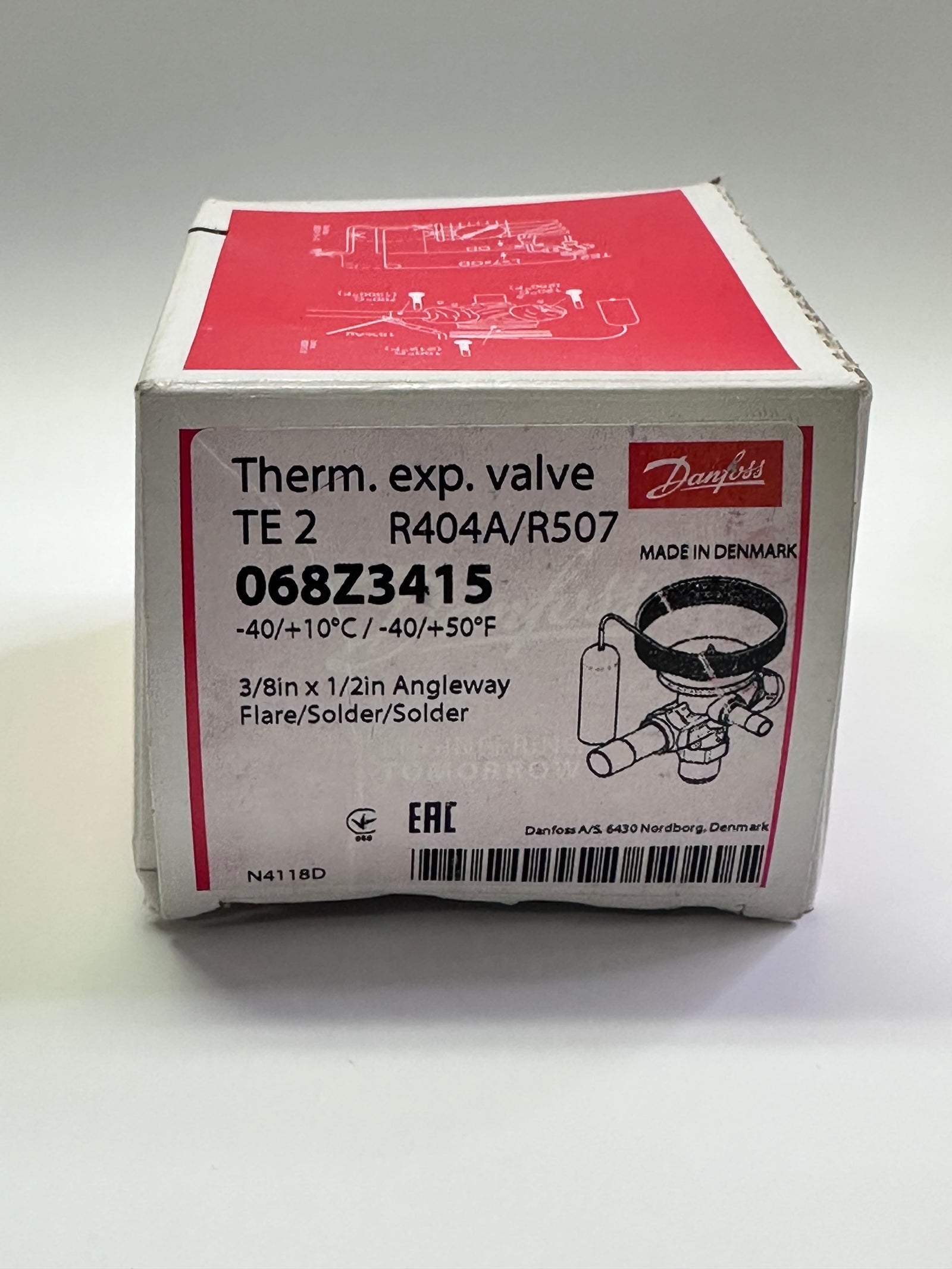

Danfoss 068Z3415 TE2 (TES2) Thermal Expansion Valve - Angleway
- SKU
- P-ZT-D-7153
$79.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 2.5 kg
Specifications
| Manufacturer | DANFOSS |
|---|---|
| Product type | VALVES |
| SKU | P-ZT-D-7153 |
| Weight | 2.5 kg |
Description

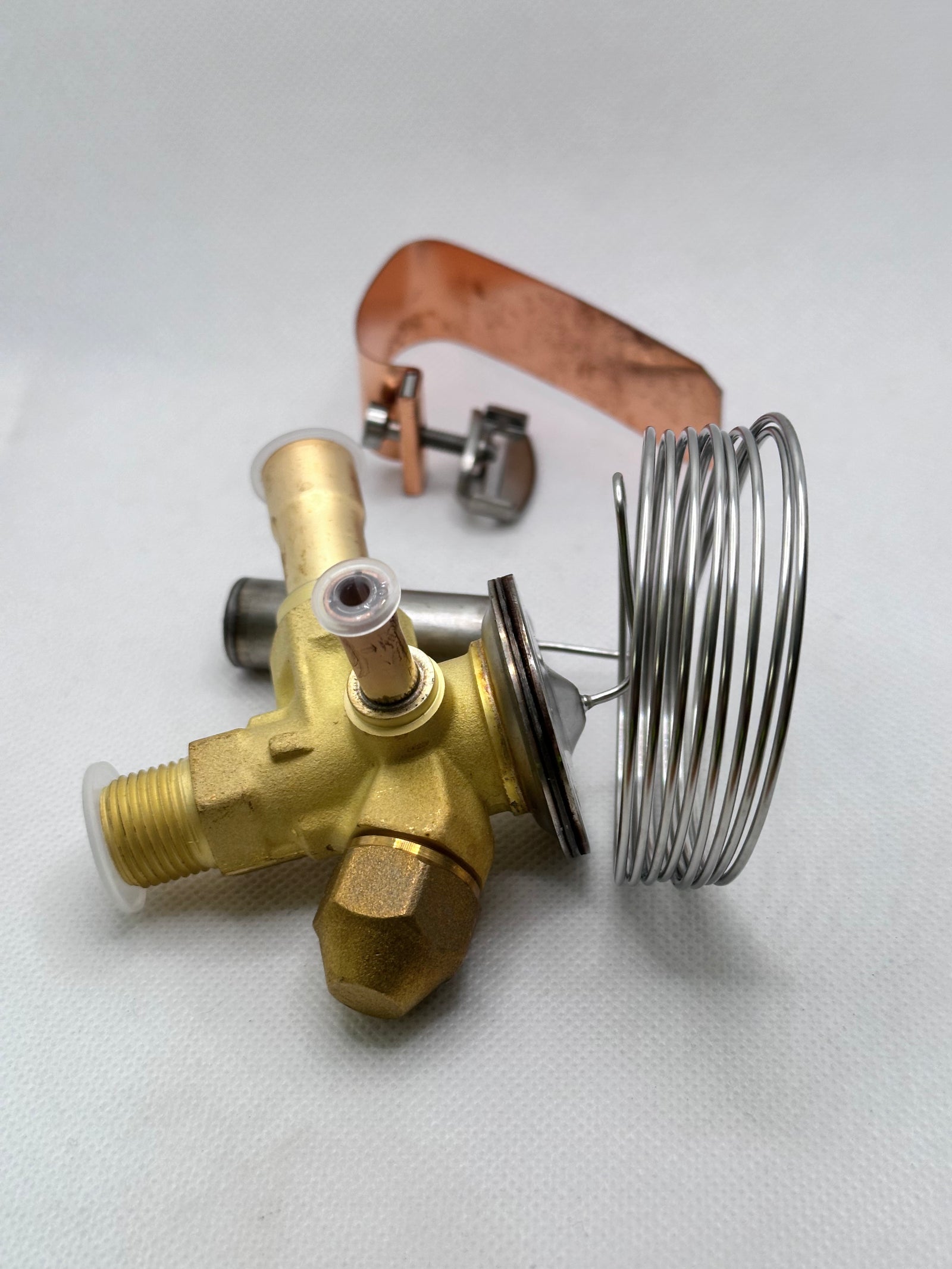

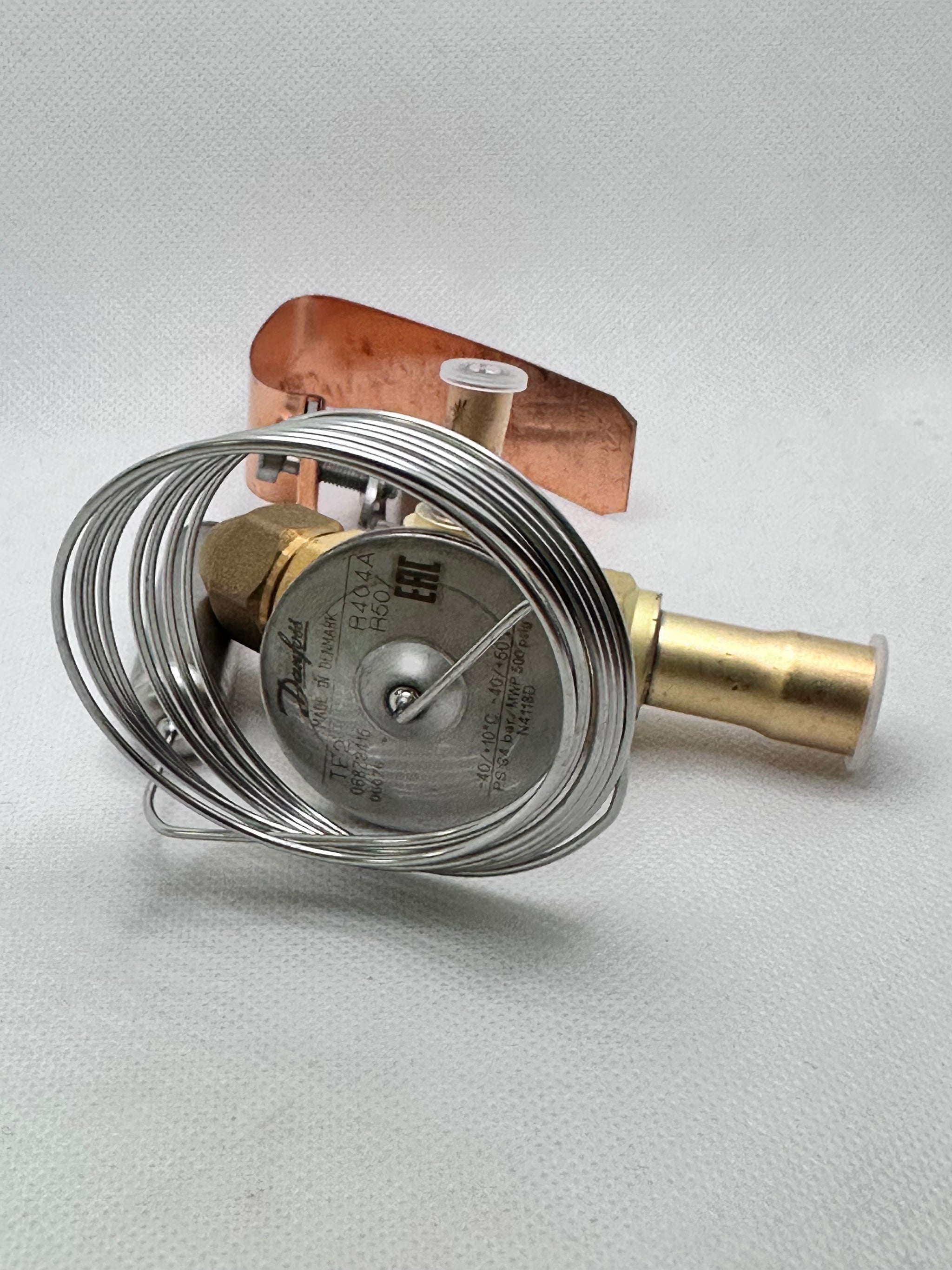

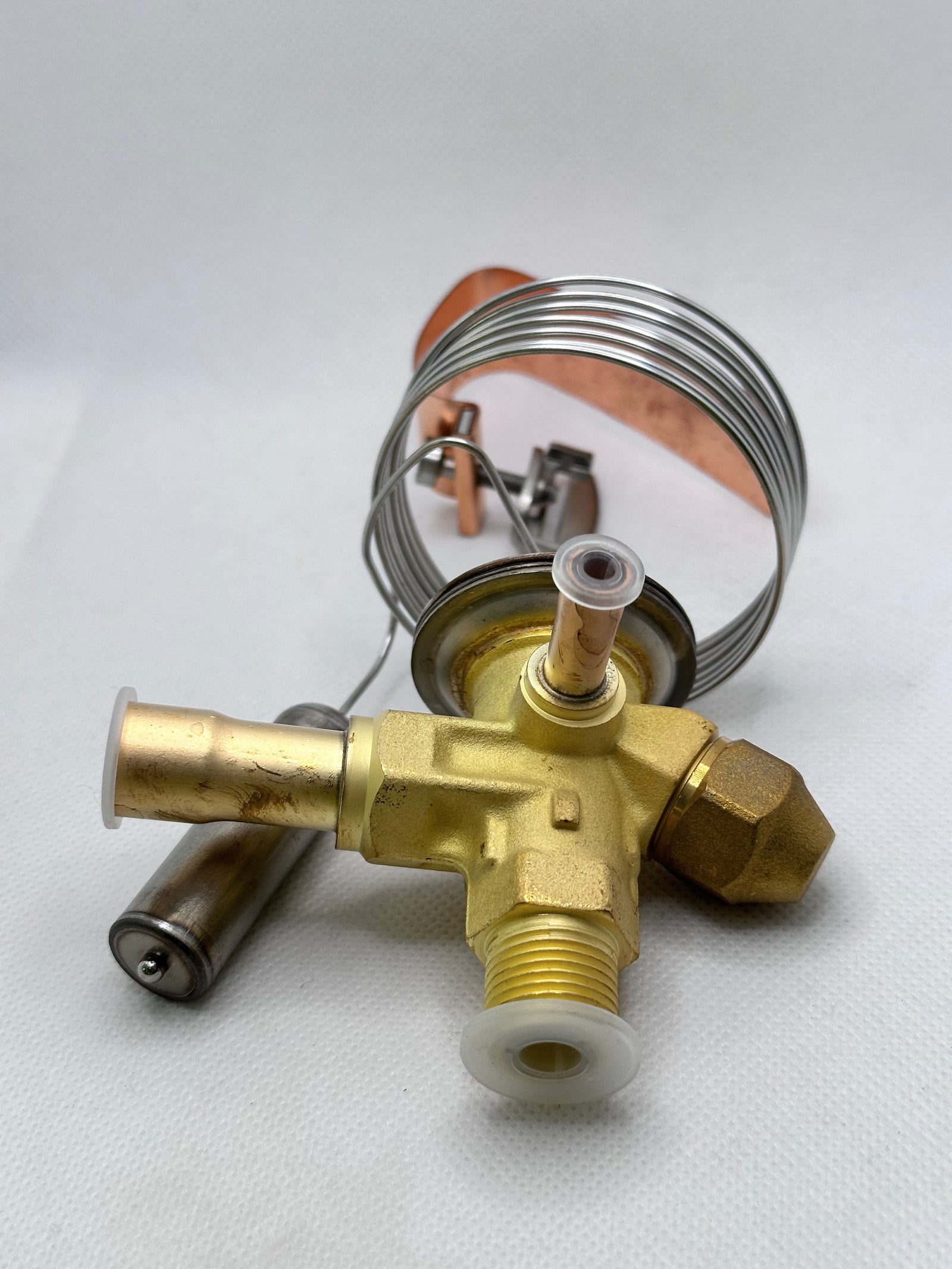

Danfoss 068Z3415 TE2 (TES2) thermal expansion valve with an angleway body, 3/8-inch male flare inlet and 1/2-inch ODF solder outlet.
Interchangeable orifice: purchase separately.
Listed specifications
| Balanced Port | No |
| Bi-flow | No |
| Brand | Danfoss |

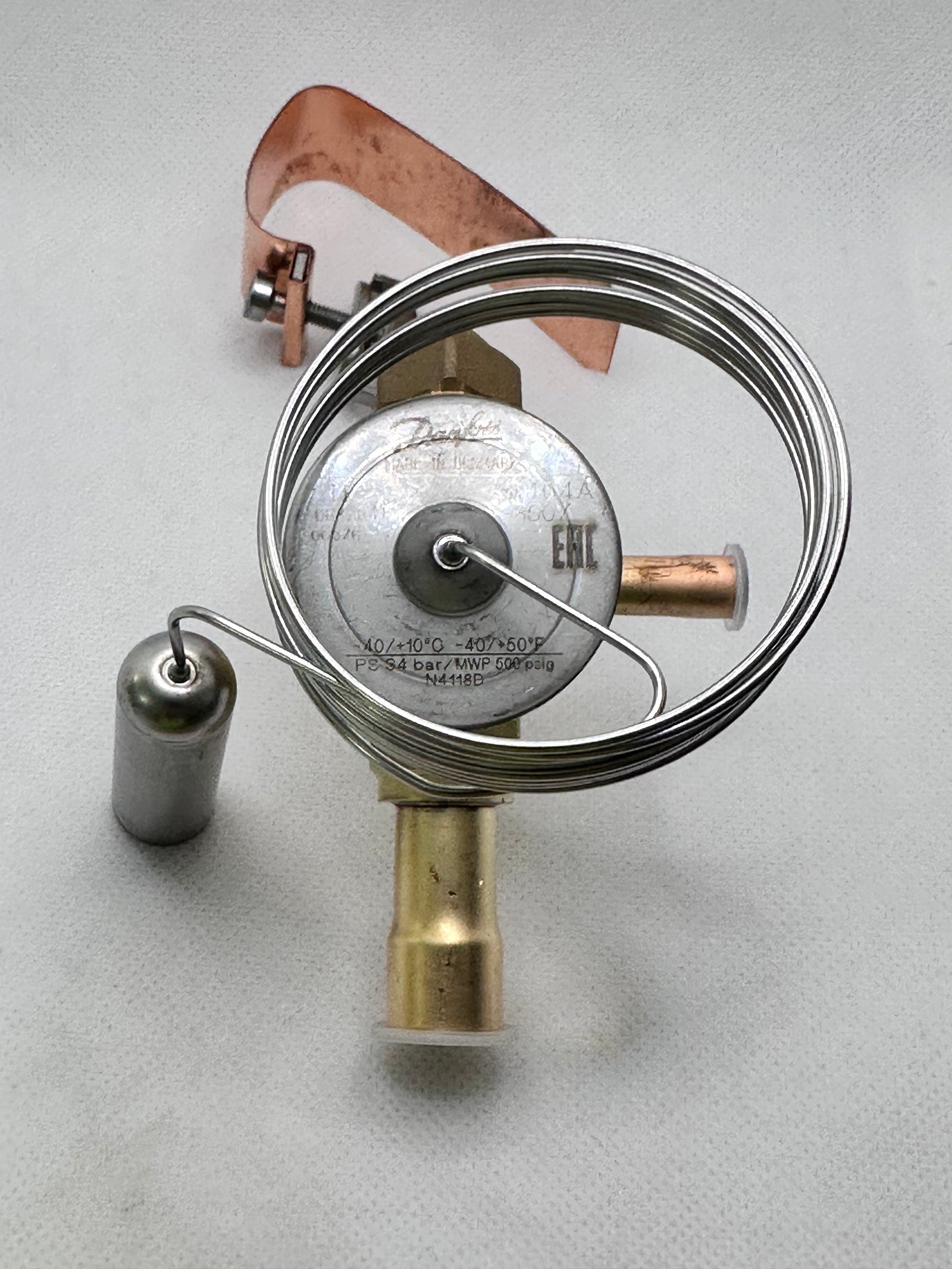

| Capillary Tube Length | 1.5M |
| Danfoss Code Number | 068Z3415 |
| External Equalised (Yes / No) | Yes |
| External Equaliser Connection | 1/4" ODF |
| Inlet Connection | 3/8" Male Flare |
| Interchangeable Orifice | Purchase Separately |
| Maximum Working Pressure | 34 bar (500 psig) |
| Operating Temperature Range | -40°C to +10°C |
| Outlet Connection | 1/2" ODF Solder |
| Refrigerant | R404A / R507 |
| Supplied with MOP | n/a |
| TX Valve with Interchangeable Orifice - Type | TE2 (TES2) |
| Valve Body | Angleway |

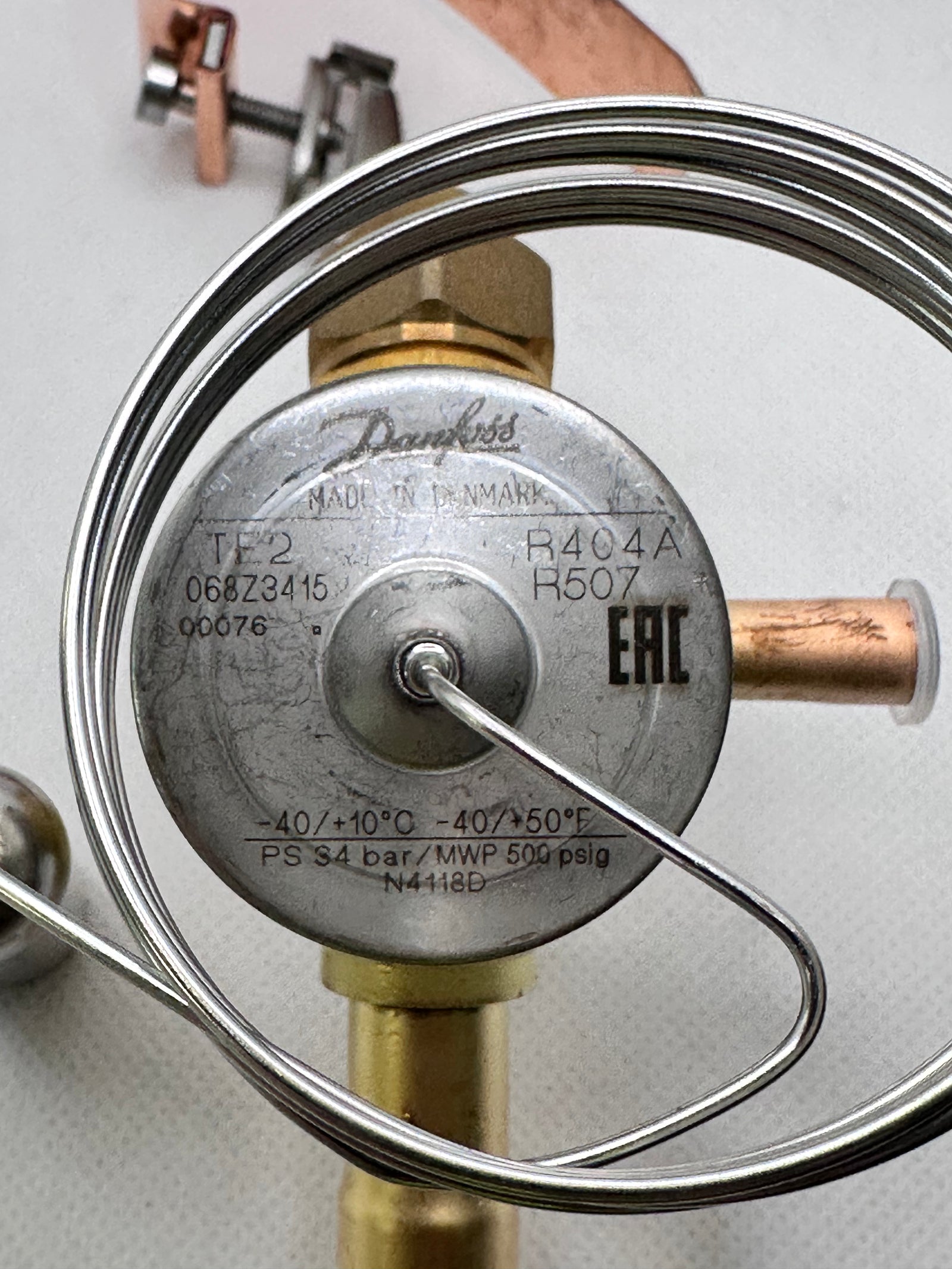

Original tag reference: 68Z3415. The source code 068Z3415 retains its leading zero; neither form is substituted for the other. The tags use R507A while the specification table says R507; confirm the refrigerant designation and required valve/orifice selection for the system.
The MOP field is recorded as n/a, not a confirmed MOP setting. Verify application and connection requirements before ordering; no specific vehicle fitment is supplied.
