DANFOSS
Danfoss 032L1212 EVR 6 Solenoid Valve, 3/8-Inch ODF, No Coil
- SKU
- P-LS-D-7154
$95.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 2.5 kg
Specifications
| Manufacturer | DANFOSS |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-LS-D-7154 |
| Weight | 2.5 kg |
Description

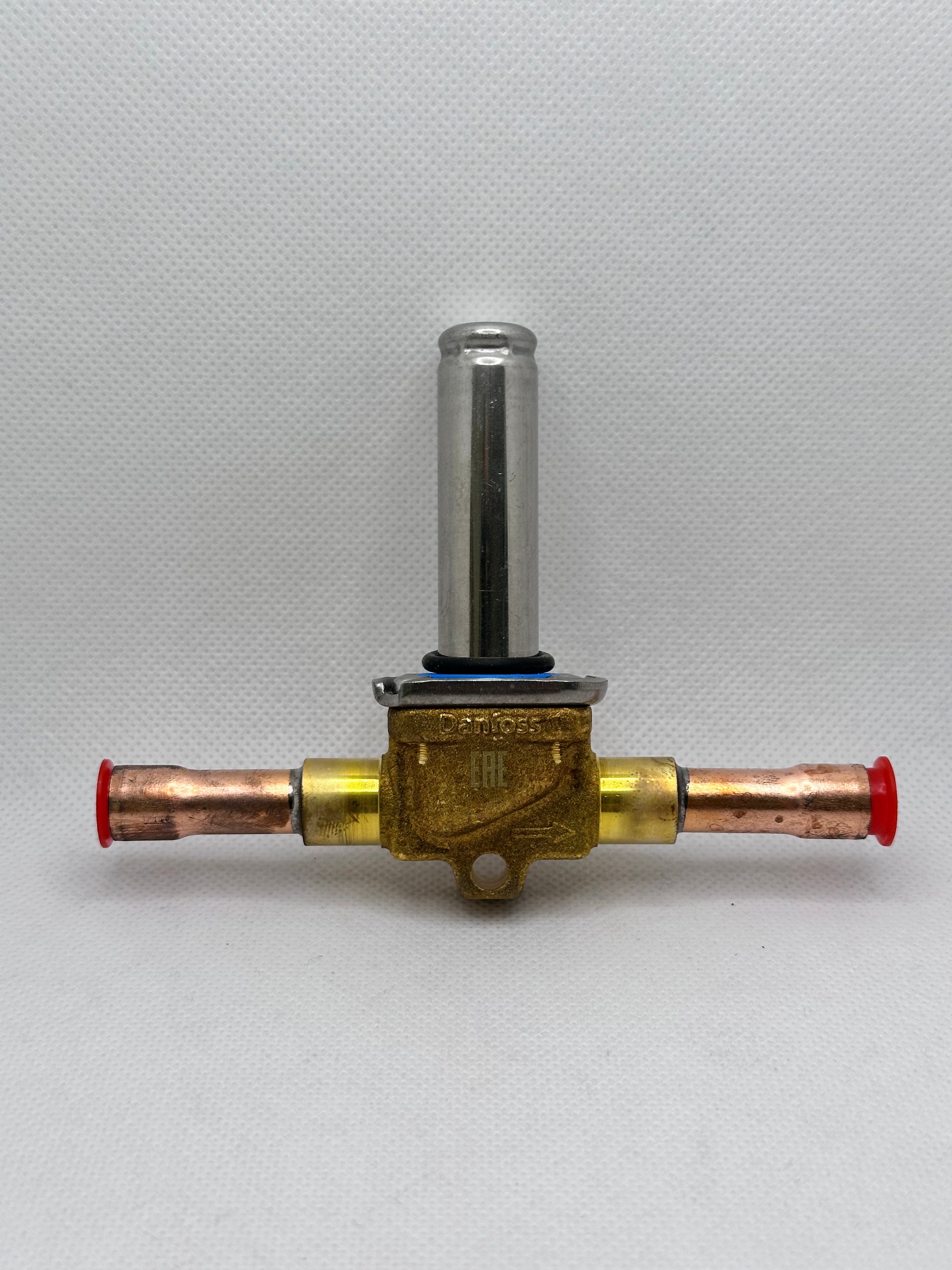

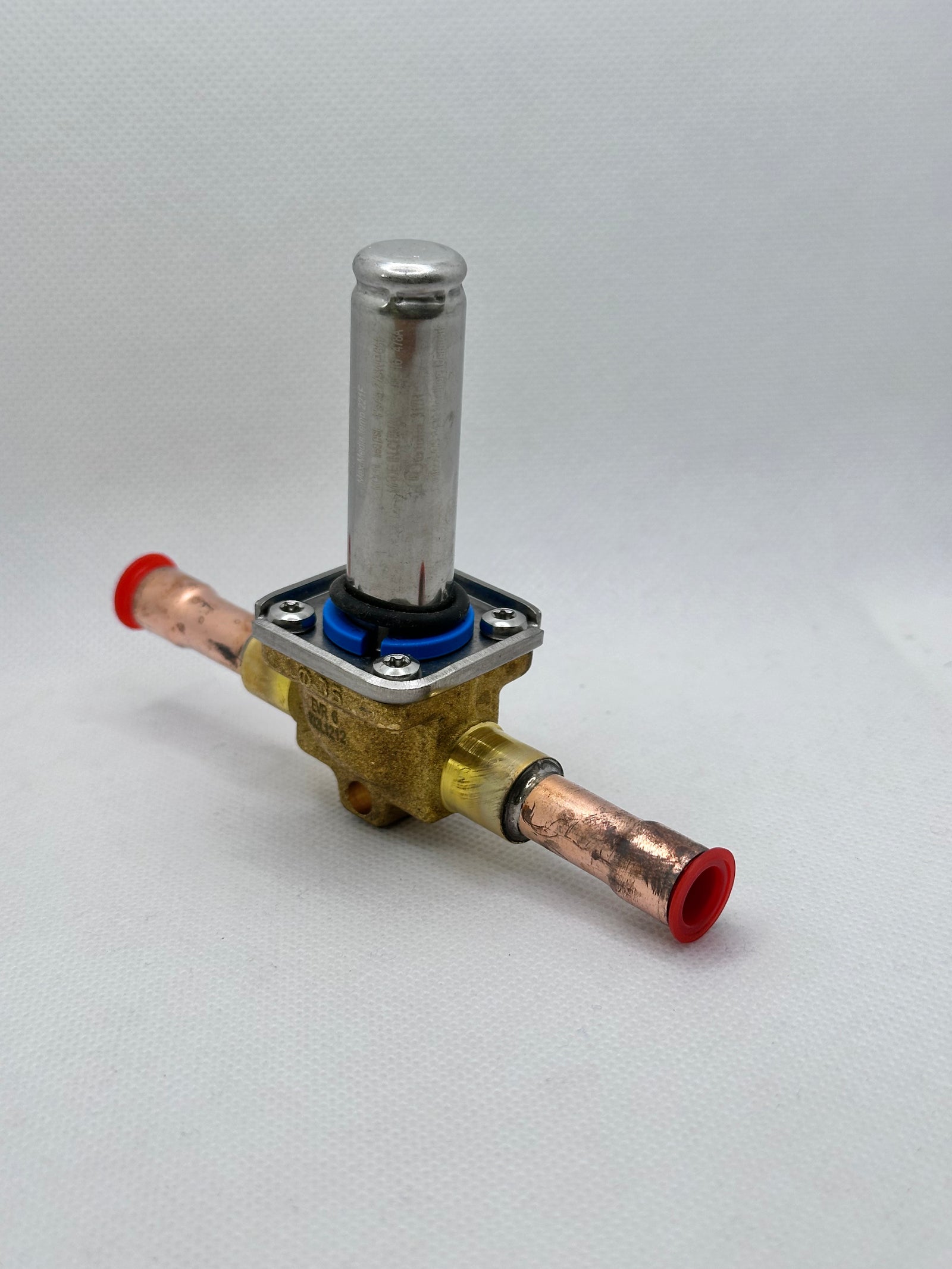

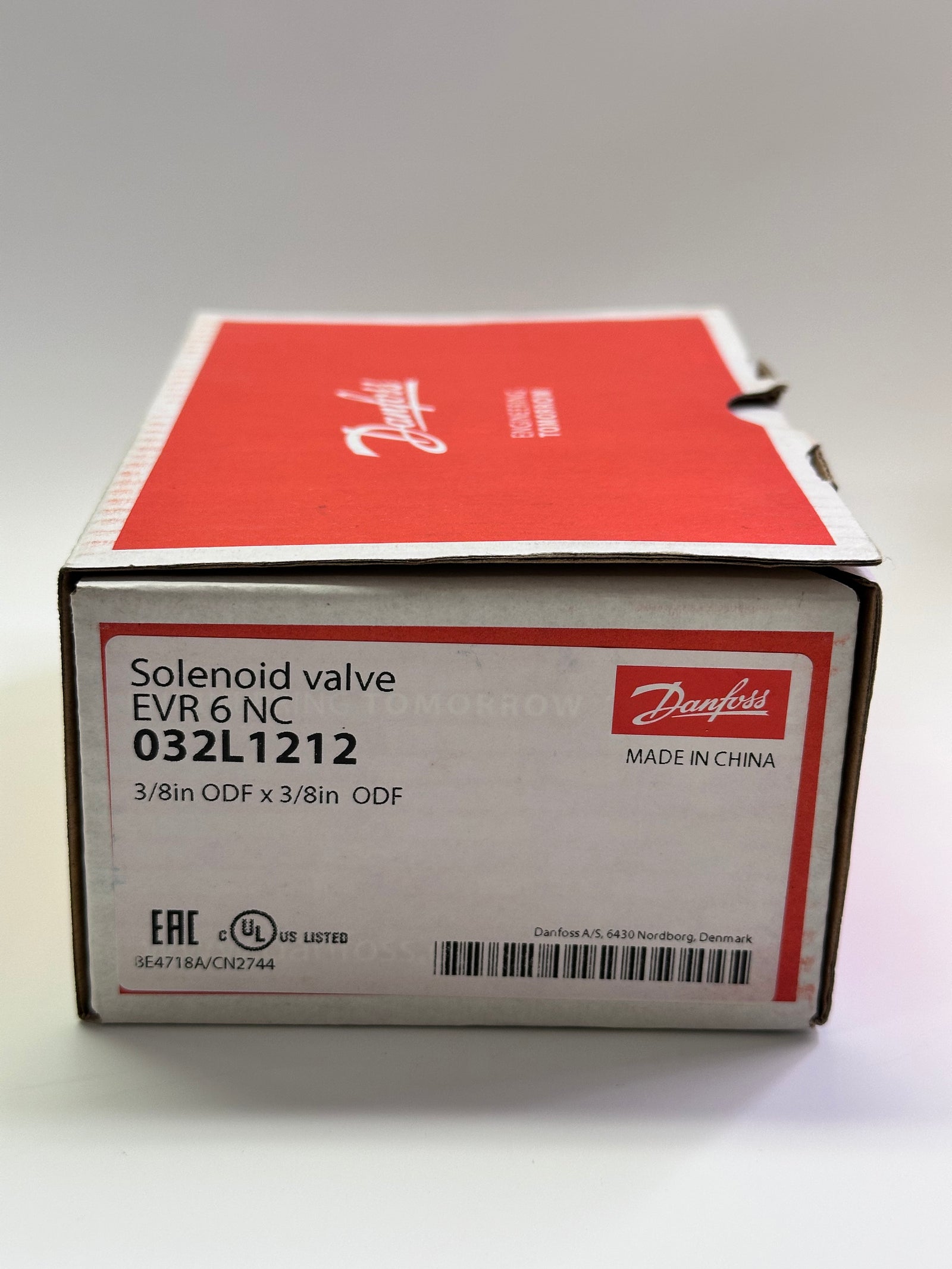

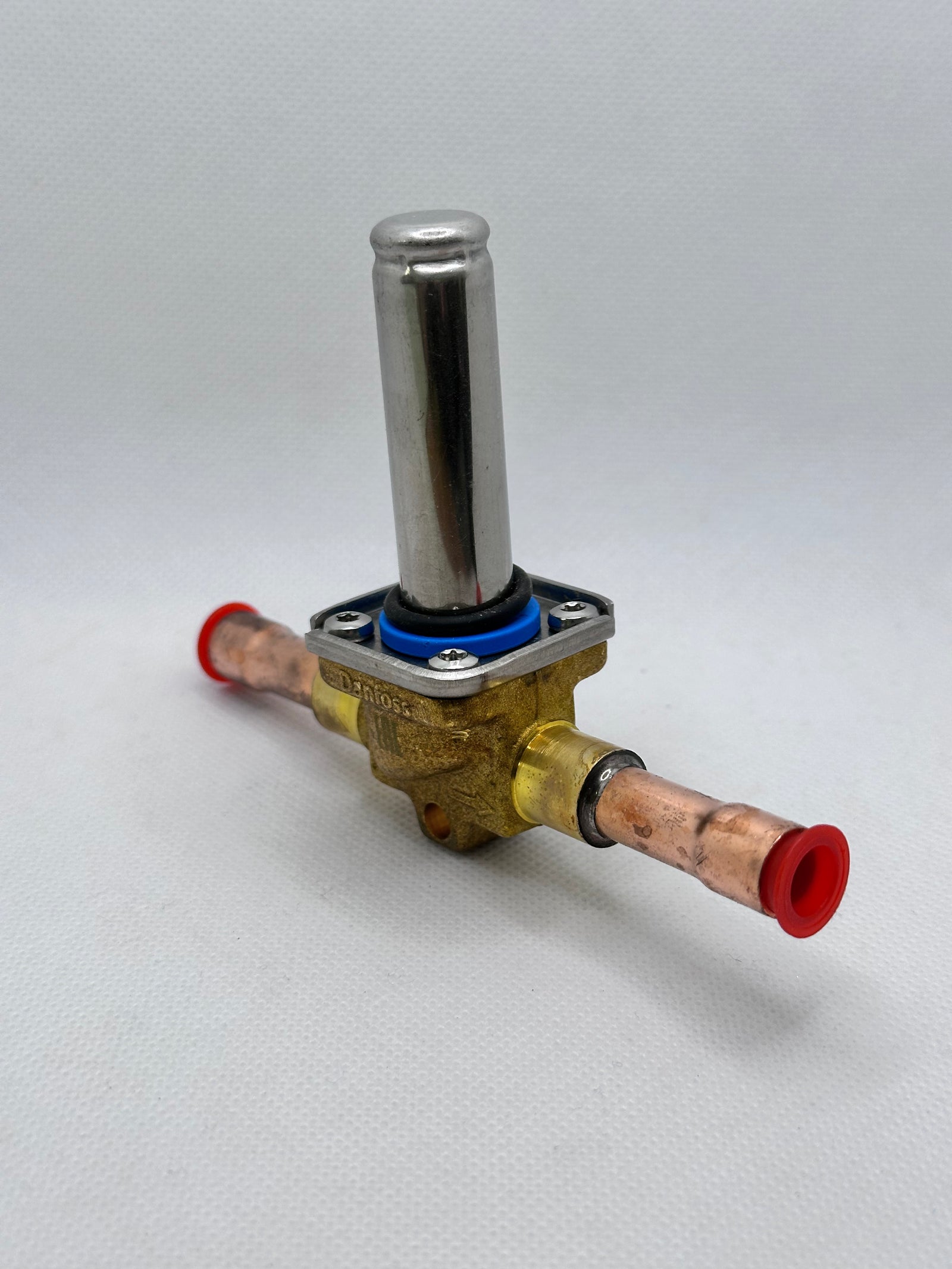

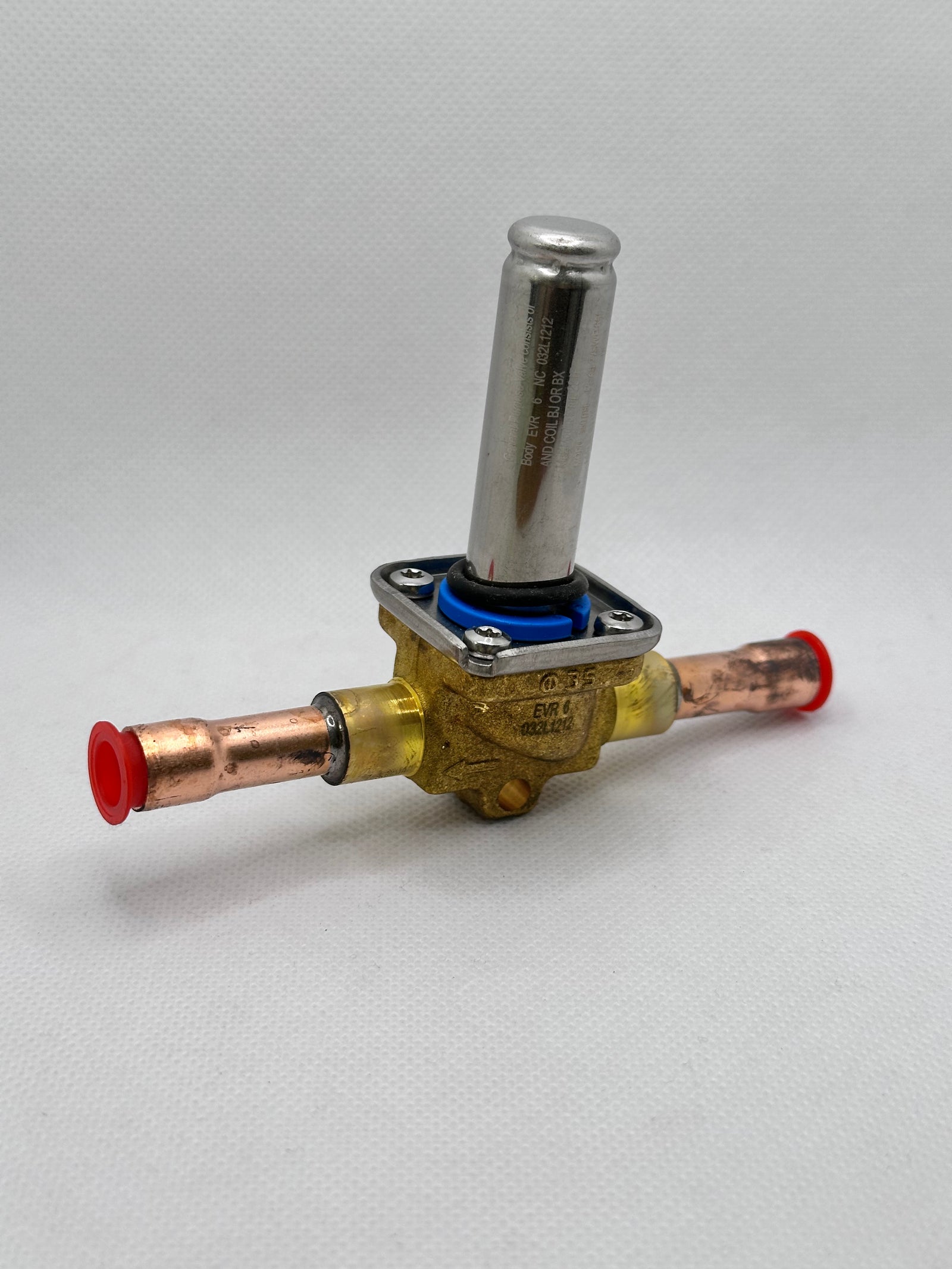

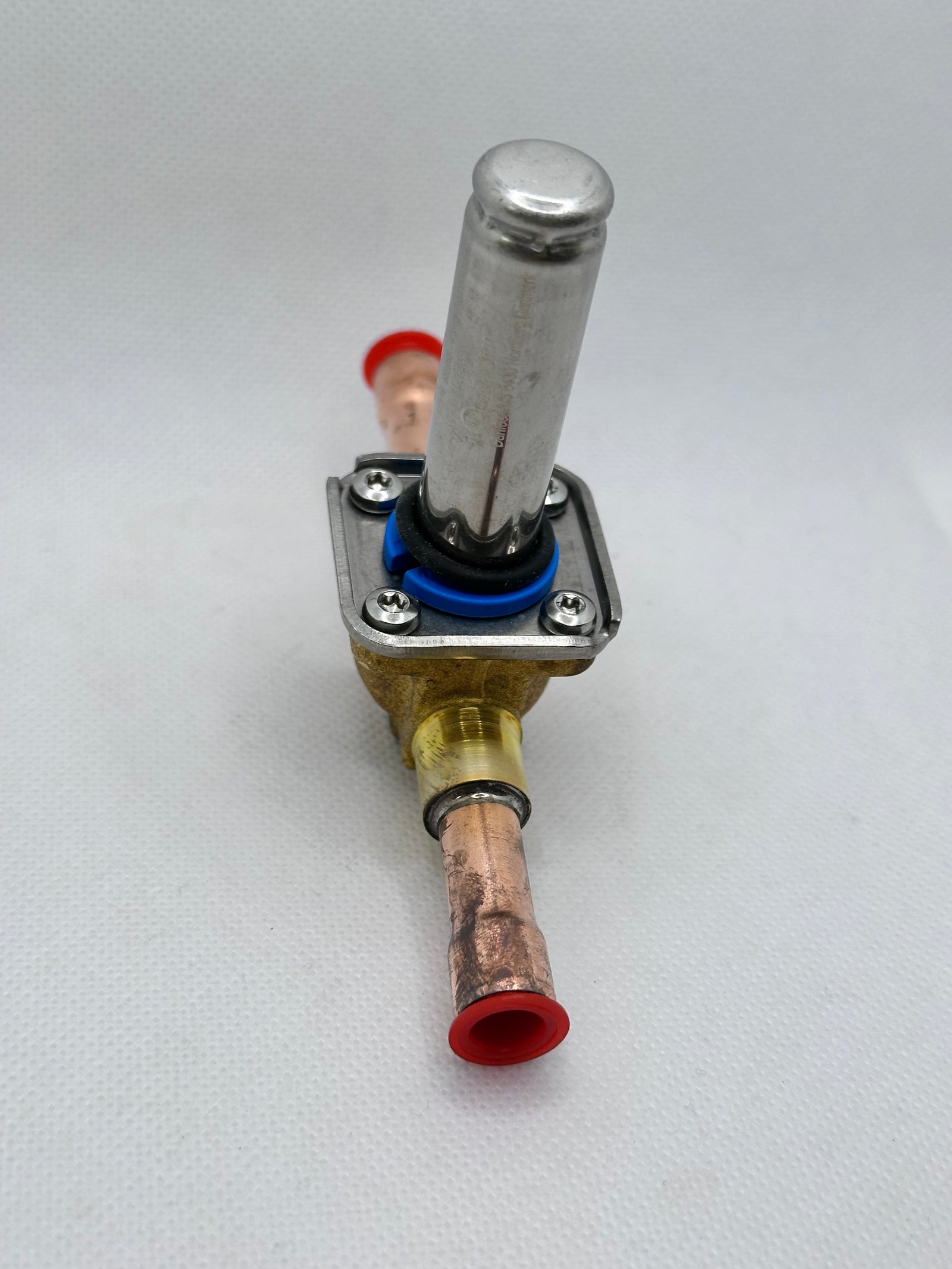

Danfoss 032L1212 EVR 6 normally closed refrigerant solenoid valve with 3/8-inch ODF solder connections. No coil supplied.
The source identifies 032L5219 as an identical product reference. Confirm the exact refrigerant, operating pressures, temperatures and suitable coil before installation. The source table's packing quantity is not a statement of the quantity included in this listing.
EVR is a direct or servo operated solenoid valve suitable for liquid, suction, and hot gas lines with most refrigerants, including flammable refrigerants.
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -40 - Coil dependent |
| Ambient temperature range [°F] [max] | 175 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | EAC LLC CDC EURO-TYSK UL |
| Body material | Brass |
| China RoHS compliance | Yes with exemptions |
| Coil | No |
| Contains batteries | No |
| Cv value [gal/min] | 1.15 gal/min |
| Direction | Straightway |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a) 6(c) |
| Fluid Group | 1 2 |
| Function | NC |
| Identical product | 032L5219 |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 3/8 in |
| Kv value [m³/h] | 1 m³/h |
| Lubricants compatibility | AB MO PAG PAO POE PVE |
| Manual operation option | No |
| Max. Working Pressure [bar] | 45.2 bar |
| Max. Working Pressure [psig] | 655 psig |
| MaxOPD[bar] 10W AC | 38 bar |
| MaxOPD[bar] 20W DC | 28 bar |
| MaxOPD[bar] coil BJ/BX | 38 bar |
| MaxOPD[psi] 10W AC | 550 psi |
| MaxOPD[psi] 20W DC | 406 psi |
| MaxOPD[psi] coil BJ/BX | 550 psi |
| Medium temp. range note | Defrost max 130°C/265°F |
| Medium temperature range [°C] [max] | 105 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 221 °F |
| Medium temperature range [°F] [min] | -40 °F |
| MinODP [bar] | 0.03 bar |
| MinODP [psi] | 0.44 psi |
| MOPD[bar/psi] | Coil Dependent |
| MWP [bar] PED compliant | 49 bar |
| Orifice size [mm] | 6 mm |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 3/8 in |
| Parts Program name | EVR |
| PED category | Art. 4, par. 3 |
| Product accessories | Solenoid valve accessories |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R1234yf R1234ze(E) R125 R134a R152a R22 R290 R32 R404A R407A R407C R407F R407H R410A R413A R417A R422A R422B R422D R438A R442A R444B R447A R447B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R507A R512A R513A R513B R515A R515B R516A R600 R600a |
