| Coil Voltage | 220 → 240 V ac/dc |
| Number of Poles | 3 |
| Contact Current Rating | 300 A |
| Power Rating | 160 kW |
| Range | SIRIUS |
| Function | Reversing |
| Normal State Configuration | 2NO + 2NC |

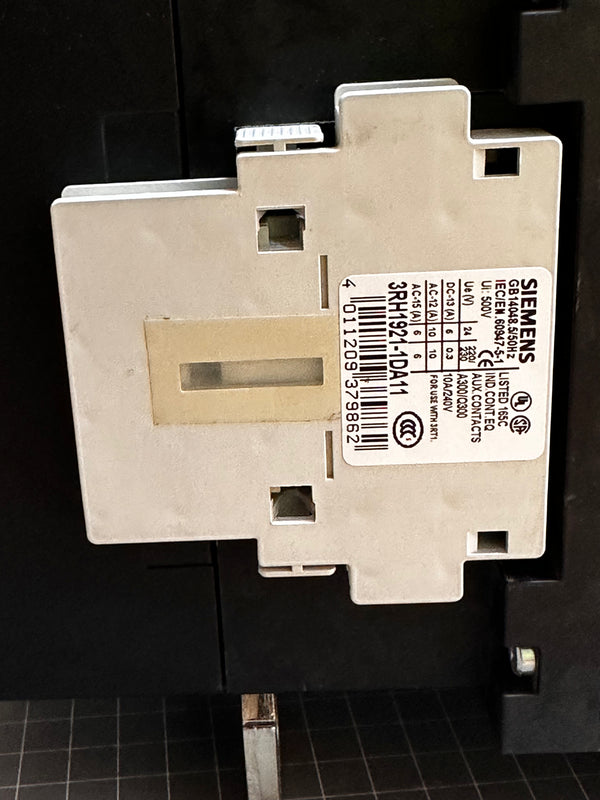

| Auxiliary Contact Configuration | 2NO + 2NC |
| Number Of Auxiliary Contacts | 4 |
| Terminal Type | Screw |
| Length | 210mm |
| Width | 145mm |
| Depth | 202mm |
| Better World Product | Yes |
| Better World Claim | Extended product life |
| Maximum Operating Temperature | +60°C |
| Pole and Throw Configuration | 3P |
| Control Voltage | 220 → 240 V |
| Load Current | 289 A, 302 A |
| Minimum Operating Temperature | -25°C |
| Mounting Style | Screw Fixing, Side By Side Mounting, Vertical Mounting |
