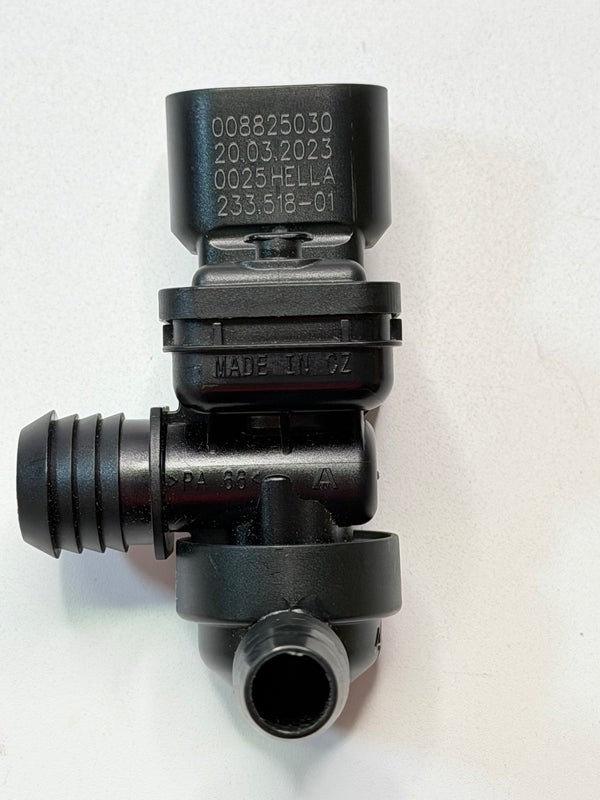

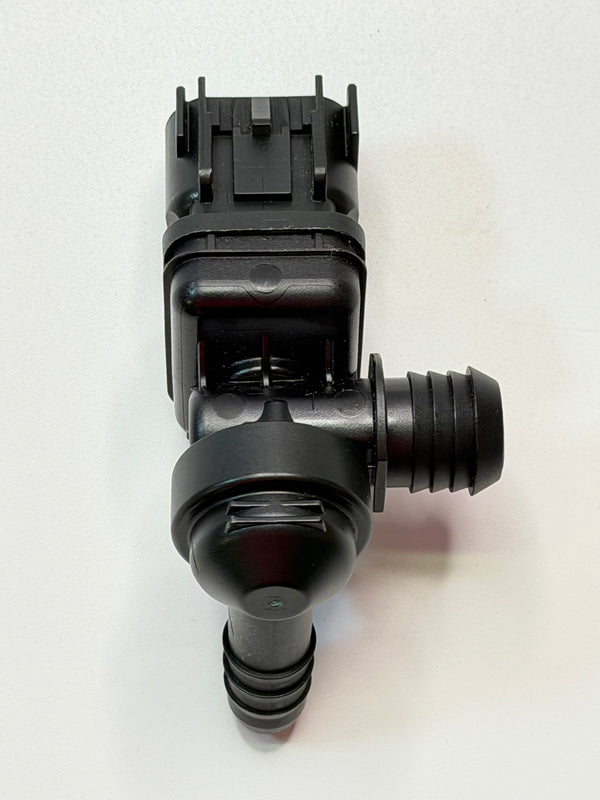

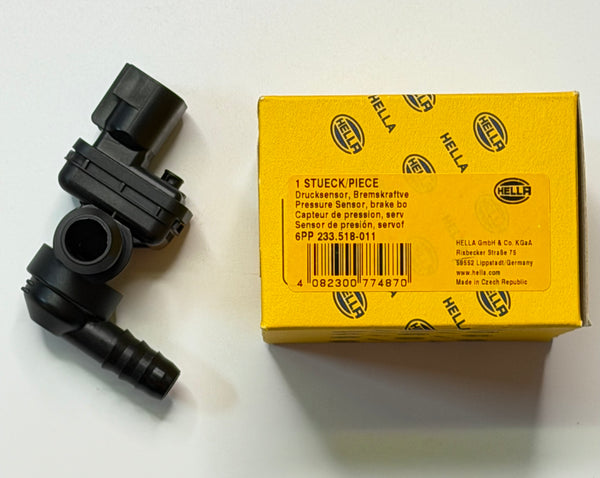

Hella 6PP233518011 Pressure Sensor, Brake Booster

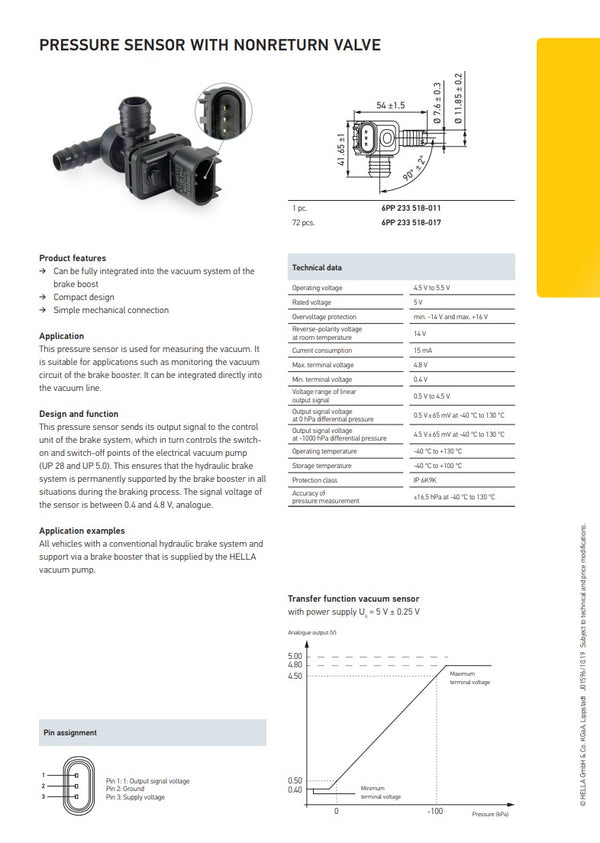

6PP 233 518-011, 6PP 233 518-017. Pressure Sensor with non-return valve.

Technical data
Operating voltage 4.5 V to 5.5 V
Rated voltage 5 V
Overvoltage protection min. -14 V and max. +16 V
Reverse-polarity voltage
at room temperature 14 V
Current consumption 15 mA
Max. terminal voltage 4.8 V
Min. terminal voltage 0.4 V
Voltage range of linear
output signal 0.5 V to 4.5 V
Output signal voltage
at 0 hPa differential pressure 0.5 V± 65 mV at -40 °C to 130 °C
Output signal voltage
at -1000 hPa differential pressure 4.5 V± 65 mV at -40 °C to 130 °C
Operating temperature -40 °C to +130 °C
Storage temperature -40 °C to +100 °C
Protection class IP 6K9K
Accuracy of
pressure measurement ±16.5 hPa at -40 °C to 130 °C
