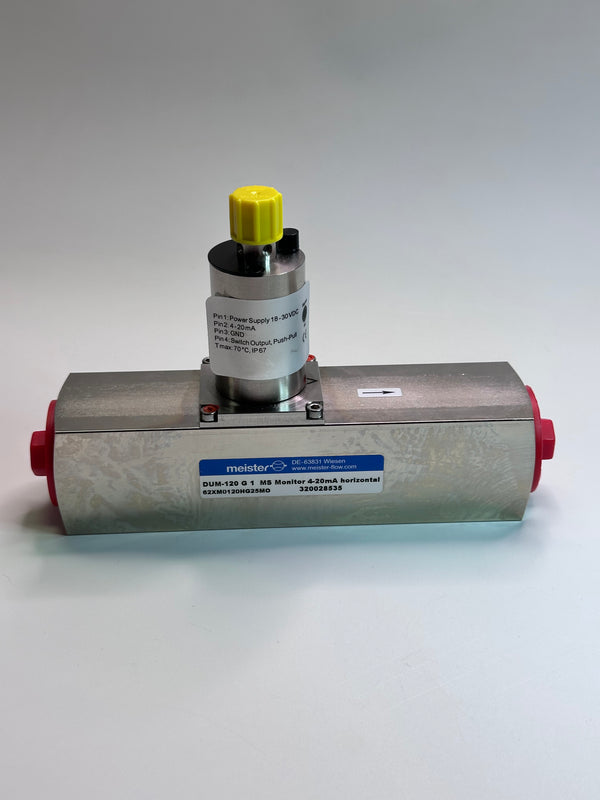

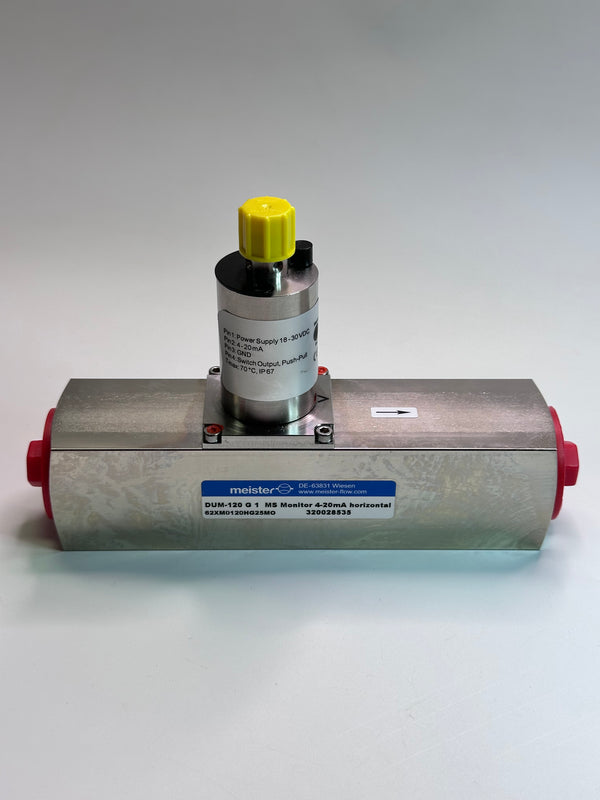

Sandvik 55046954 Flowmeter - Meister DUM-120 G1 MS

DUM is a floatmeter (flow switch) for liquids in an all-metal housing. The unit is factory calibrated for upward flow in vertical installation. However, it is equipped with a spring loaded float, which allows installation in any spatial position, including horizontal or vertical with flow in the opposite direction. In this case, on-site calibration may be necessary to compensate for the weight of the float.

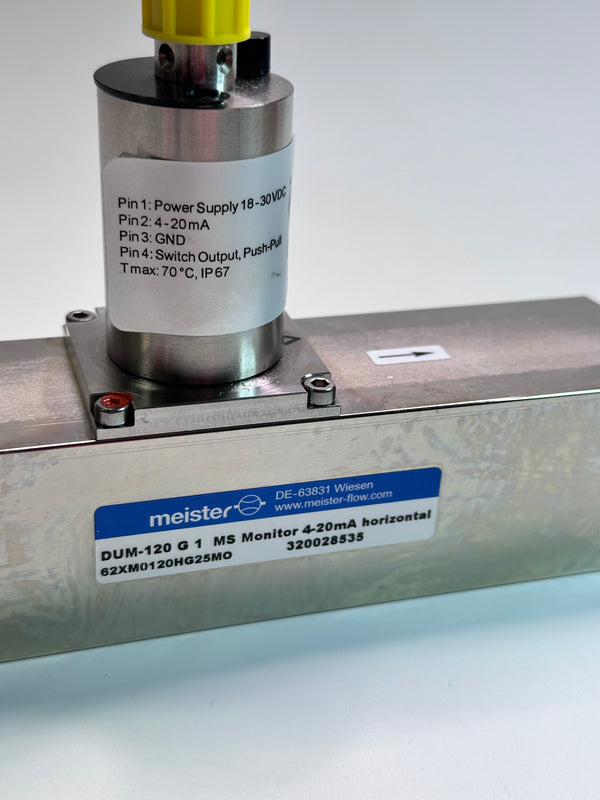

Pin 1: Power Supply 18-32VDC

Pin 2: 4-20mA

Pin 3: GND

Pin: 4: Switch Output, Push-Pull T max: 70°C, IP67
