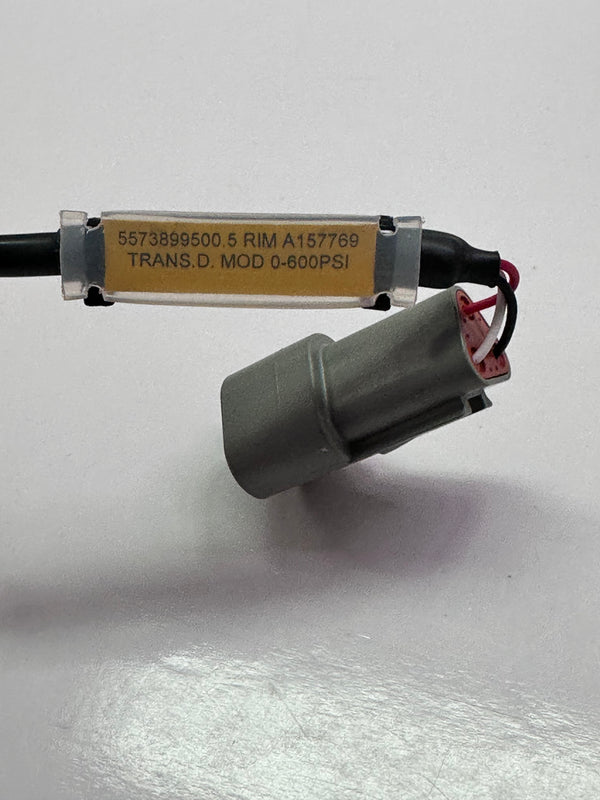

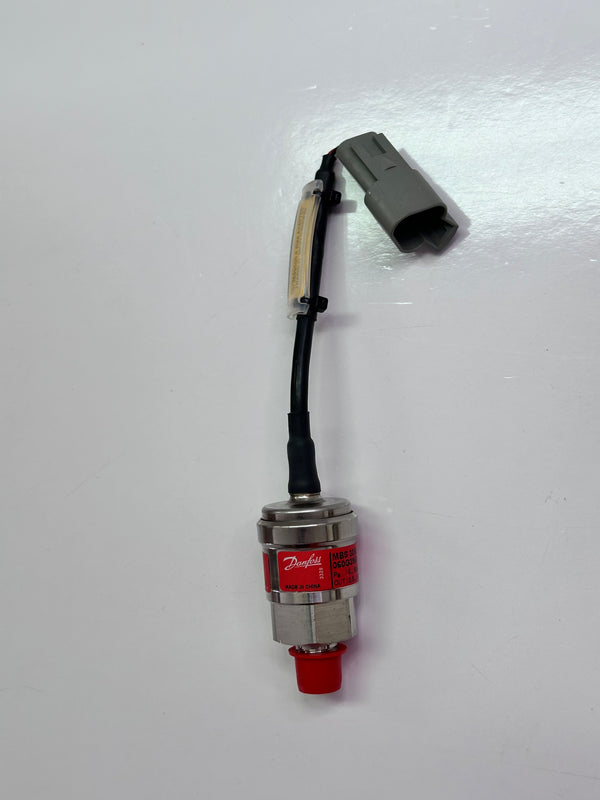

Atlas Copco 5573899500 Pressure Transducer Assembly

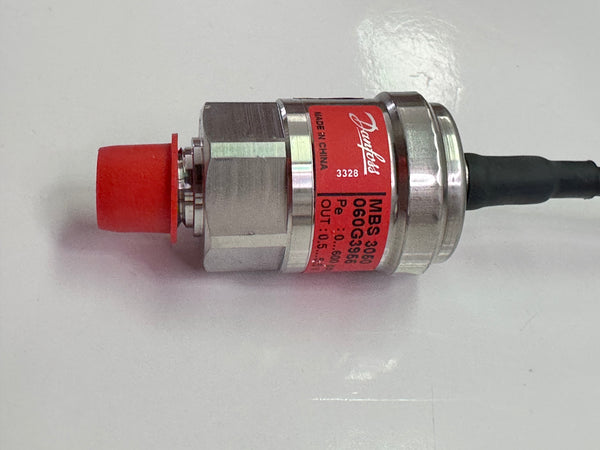

Danfoss MBS 3050 0-600 Psi - High-quality Danfoss product for industrial applications.

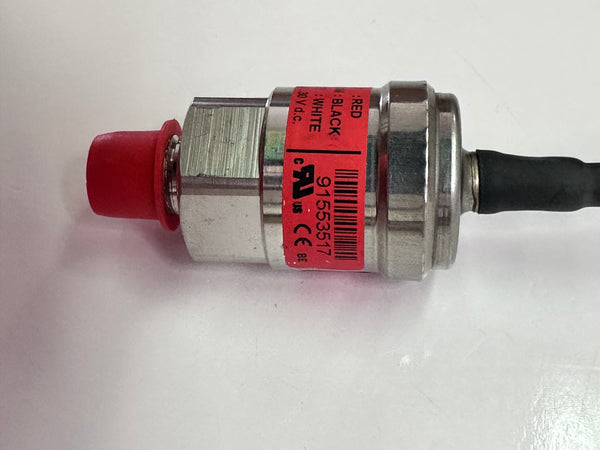

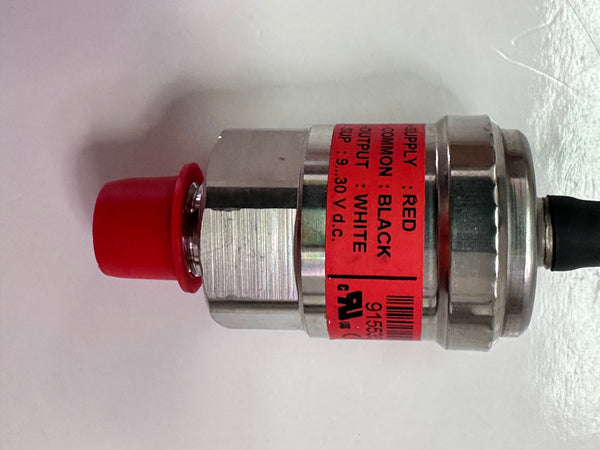

| + output | White |
| + supply | Red |
| - common | Black |
| Accuracy, max. [±FS%] | 1 % |
| Accuracy, typical [±FS%] | 0.5 % |
| Adj. zero point and span | No |
| Ambient temperature range [°C] [max] | 85 °C |
| Ambient temperature range [°C] [min] | -30 °C |
| Ambient temperature range [°F] [max] | 185 °F |
| Ambient temperature range [°F] [min] | -22 °F |
| Approval | ATEX CE C UL US UL Recognized |
| Approval comments | ATEX Ex ec IIA T4 Gc |
| Cable length [in] | 79 in |
| Cable length [m] | 2 m |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Compensated temp. range [°C] [max] | 80 °C |
| Compensated temp. range [°C] [min] | 0 °C |
| Compensated temp. range [°F] [max] | 176 °F |
| Compensated temp. range [°F] [min] | 32 °F |
| Contains batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical conn. comments | Screened |

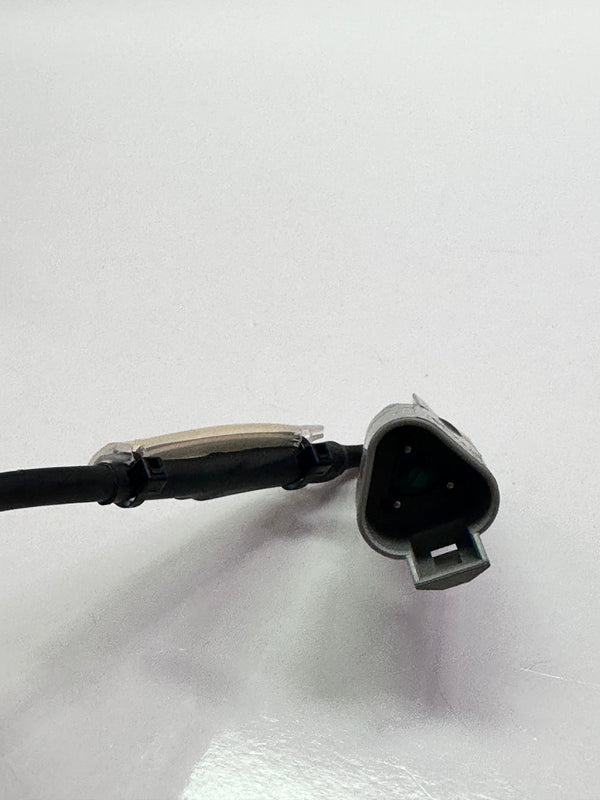

| Electrical connection | Cable |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flush diaphragm | No |
| High Clipping Level | 6.25 |
| In scope of WEEE | Yes |
| International Article Number | 5702423225682 |
| Intrinsically safe | No |
| Low Clipping level | 0.1 |
| Medium temperature range [°C] [max] | 85 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 185 °F |
| Medium temperature range [°F] [min] | -40 °F |
| Non-linearity BFSL [±FS%] | 0.5 % |
| Output signal | Voltage |
| Output signal [V] [max] | 5.5 V |
| Output signal [V] [min] | 0.5 V |
| Overload pressure max. [psi] | 4350 psi |
| Packing format | Single |
| Pressure connection HEX [mm] | 27 mm |
| Pressure connection size | 1/4-18 |
| Pressure connection standard | ANSI/ASME B1.20.1 |
| Pressure connection type | NPT |
| Pressure Male/Female | Male |
| Pressure range [bar] [max] | 41.4 bar |
| Pressure range [bar] [min] | 0 bar |
| Pressure range [psi] [max] | 600 psi |
| Pressure range [psi] [min] | 0 psi |
| Pressure reference | Sealed gauge |
| Pulse-snubber | Yes |
| Quantity per packing format | 1 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Response time max. [ms] | 4 ms |
| SCIP dossier no. | 16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d |
| SCIP dossier product name | AKS/MBS |
| Specification key | MBS 3050-CH3D-A3AC04-0 |
| Supply voltage [V] DC [max] | 32 V |
| Supply voltage [V] DC [min] | 9 V |
| UL mark | Yes |
