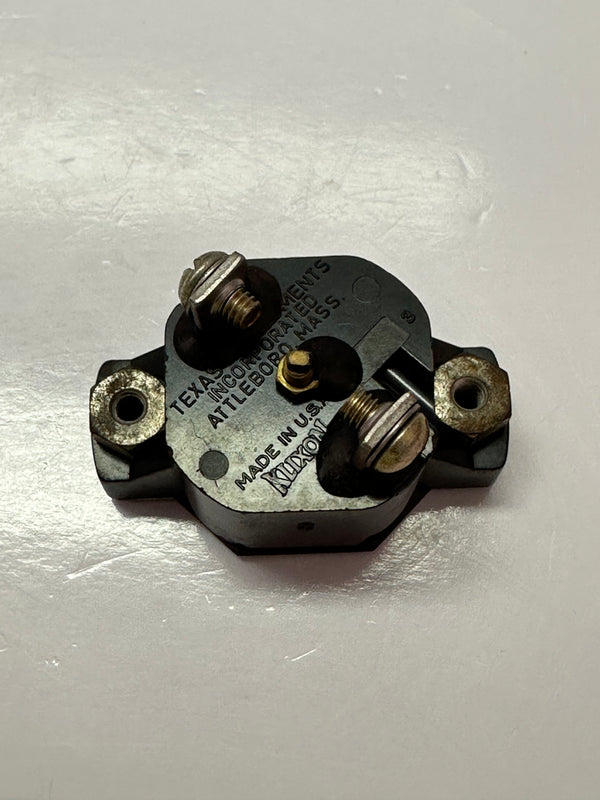

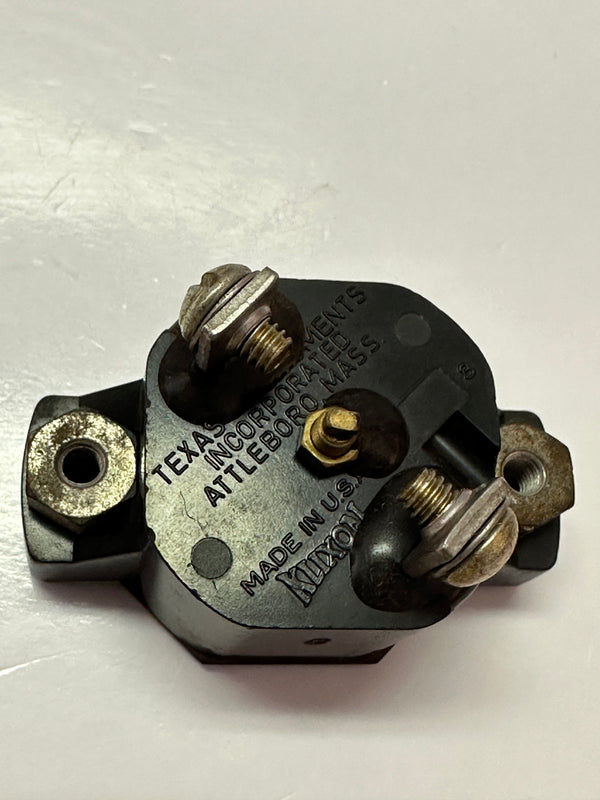

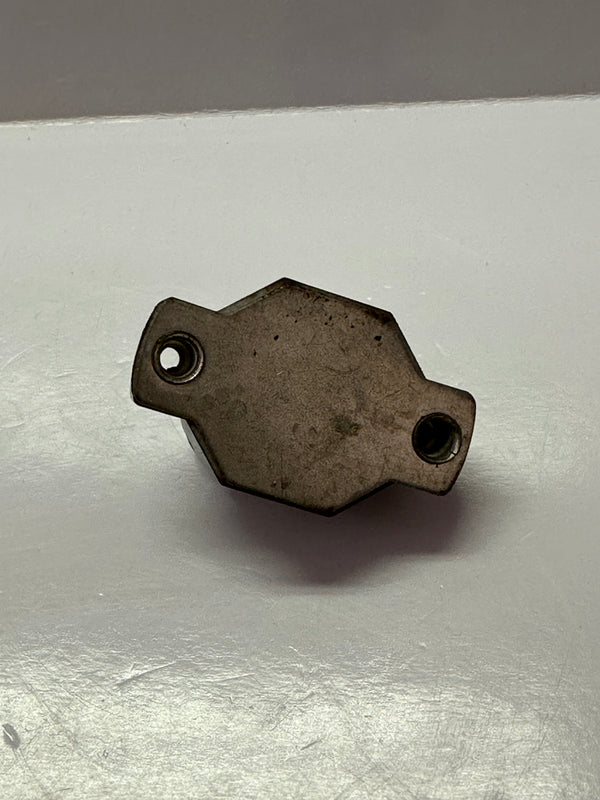

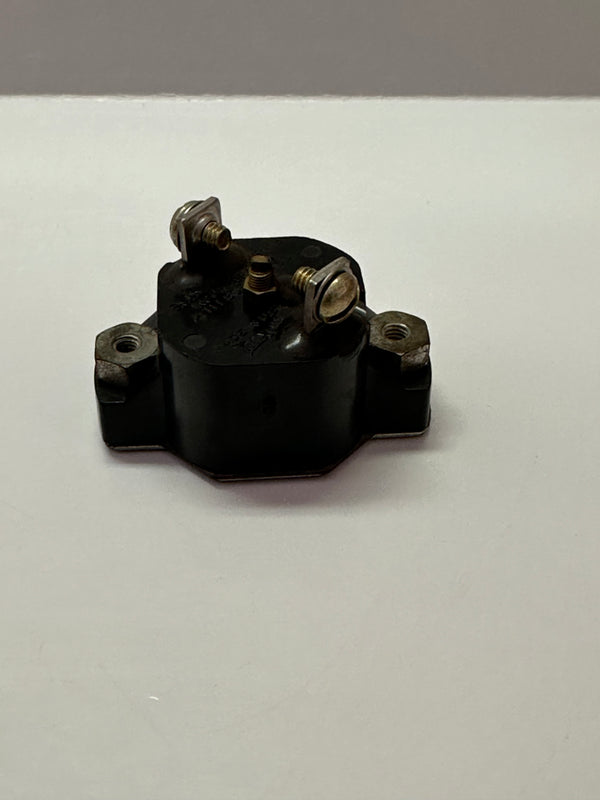

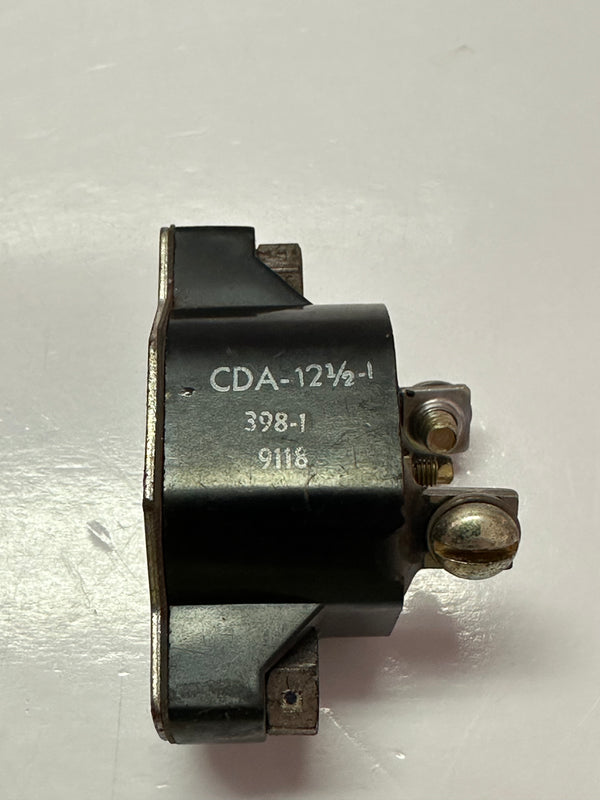

12.5A Circuit Breaker
The KLIXON® C series thermal breakers are designed to protect wiring and meet the harshest environmental requirements. The C series closed construction circuit breakers are weatherproof sealed for protection against moisture, dust, grease, fuel vapours and other harsh environments. The C series breakers are compact, lightweight and designed to interrupt short circuits or overloads, and combine trip-free protection with fast response time. Typical applications are protection of wire cable of accessory circuits, equipment and battery protection in construction and off-road equipment, marine, recreational vehicles (RV’s), mining, agricultural equipment and electric (hybrid) vehicles.
| Calibration: 200% rated current, 77°F (25°C) | 2 to 10 Amps: 20 to 150 seconds 12.5 to 50 amps: 5 to 55 seconds |
| Ultimate Trip at 77°F (25C) | Must hold 100%, Must trip 135% |
| Endurance | Per SAE J553 |
| Interrupt Current Capacity | Per SAE J553 and ABYC E-11 |
| Vibration | 10G MIL-STD-202 Method 204, Condition A |
| Mechanical Shock | MIL-STD-202 Method 101D (sealed only) |
| Dielectric Strength | MIL-STD-202 Method 301, 1500VAC min |
| Insulation Resistance | MIL-STD-202 Method 302, Condition B, 100MΩ min |
Likely CAT 1N-9770
