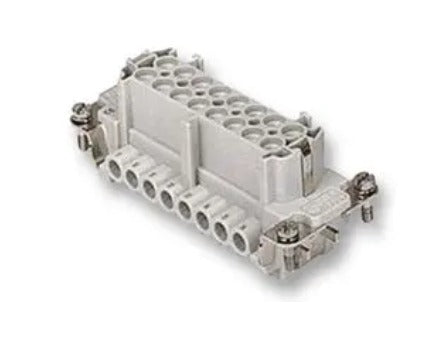

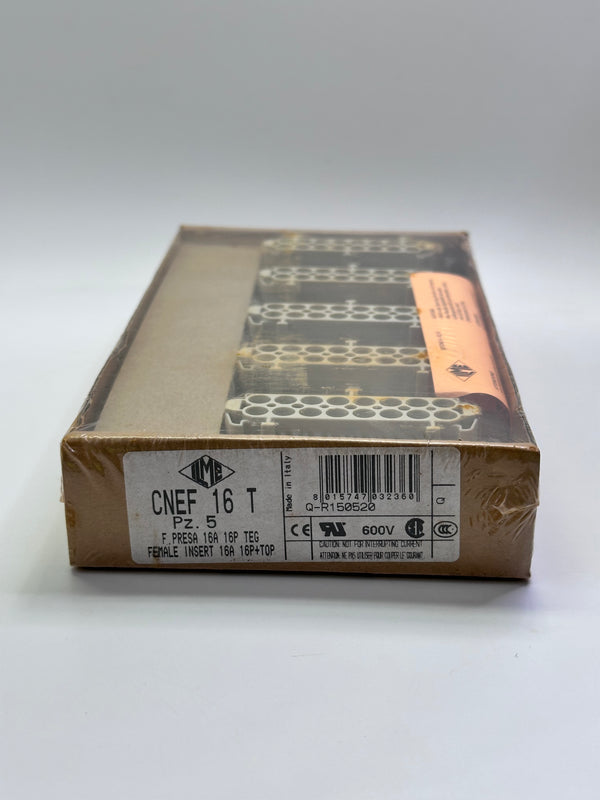

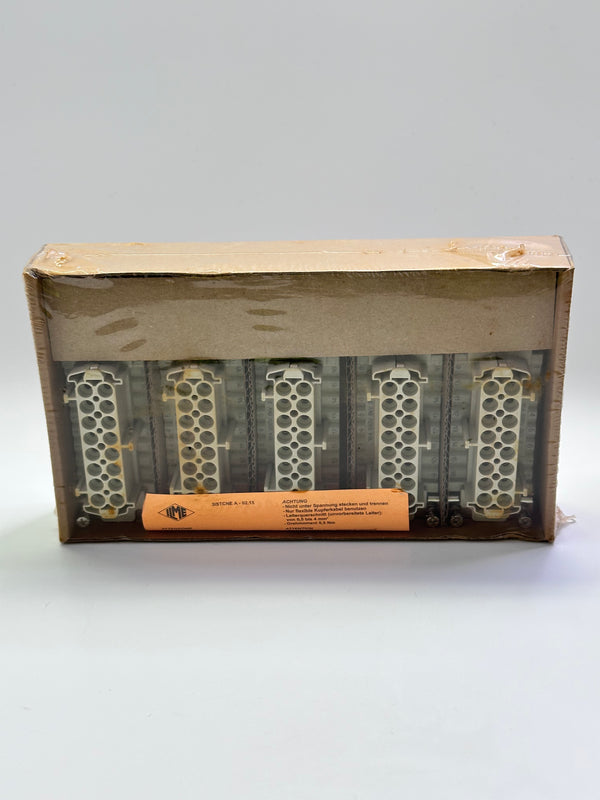

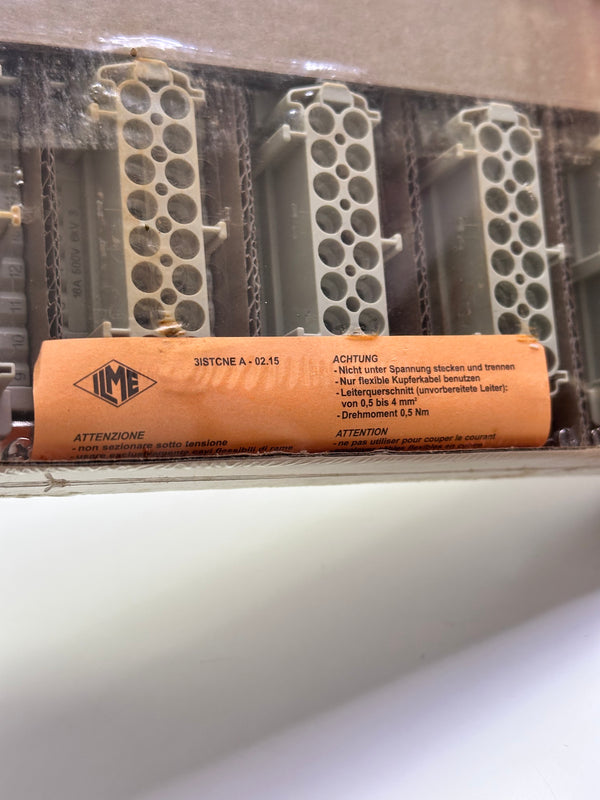

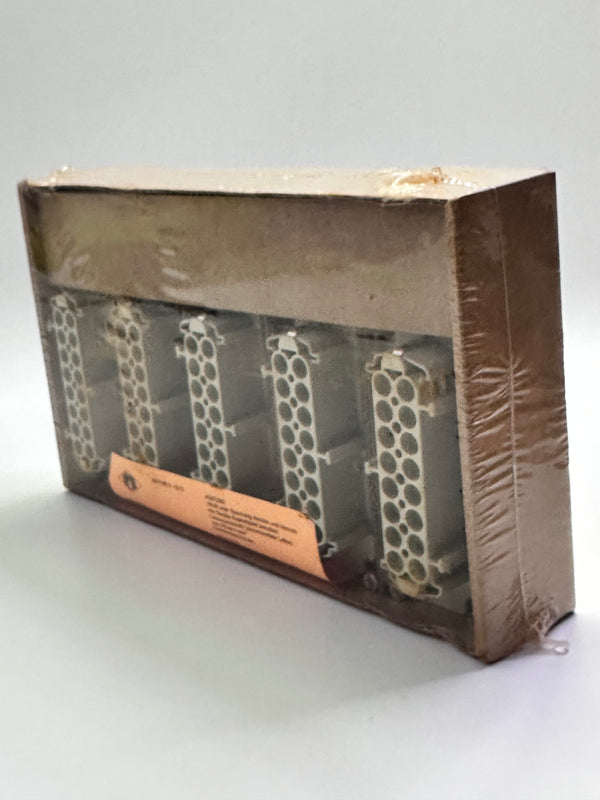

The CNEF16T is a 16-way Female Insert with silver-plated copper contacts. This CNE series insert is made of made of self-extinguishing thermoplastic resin. It accepts 20 to 12AWG wire range.
- 10GR insulation resistance
- EN61984 Reference standard
- -40 to +125°C Ambient temperature range
- UL94V-0 Flammability rating
|
Manufacturer
|
ILME | |
|
Type of connector
|
HDC | |
|
Kind of connector
|
female | |
|
Manufacturer series
|
CNE | |
|
Number of pins
|
16 | |
|
Current rating
|
16A | |
|
Connector pinout layout
|
16+PE | |
|
Case
|
size 77.27 | |
|
Electrical mounting
|
screw terminal | |
|
Mechanical mounting
|
for cable | |
|
Connector variant
|
with wire protector | |
|
Wire cross-section
|
0.5...2.5mm2 | |
|
Contact plating
|
silver plated | |
