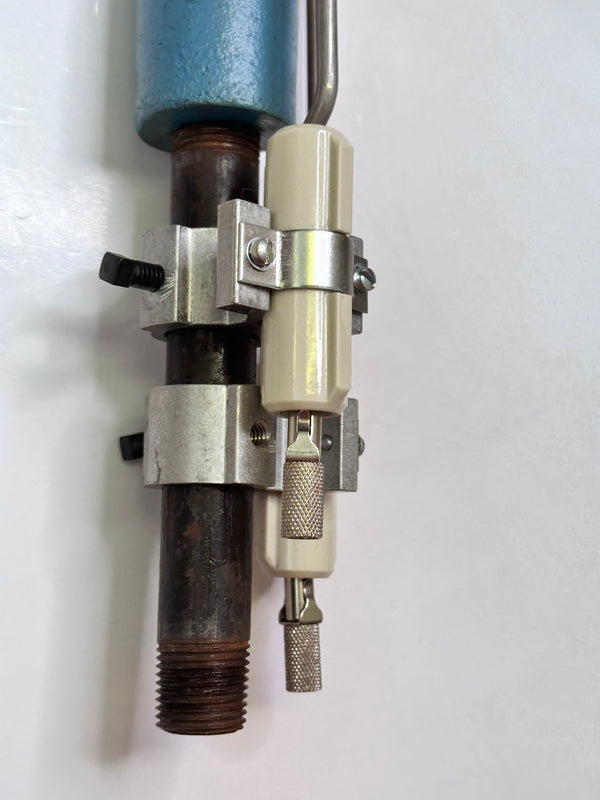

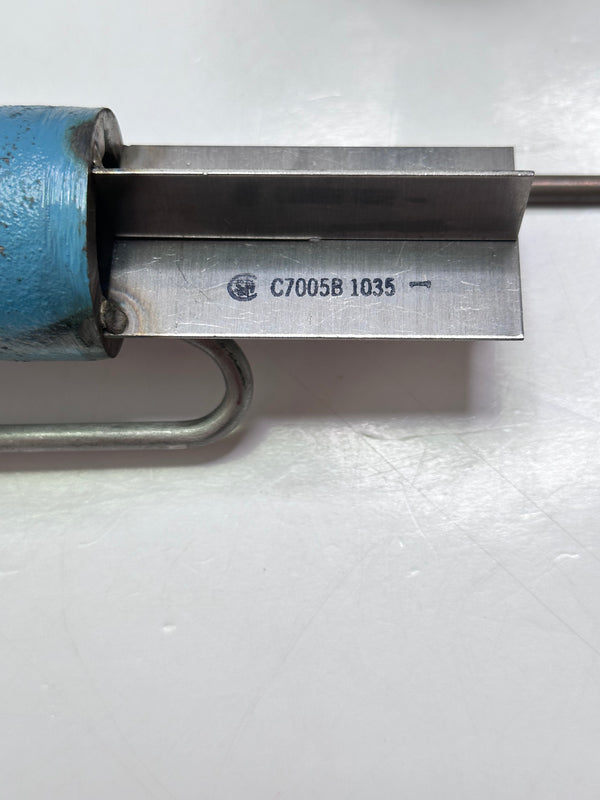

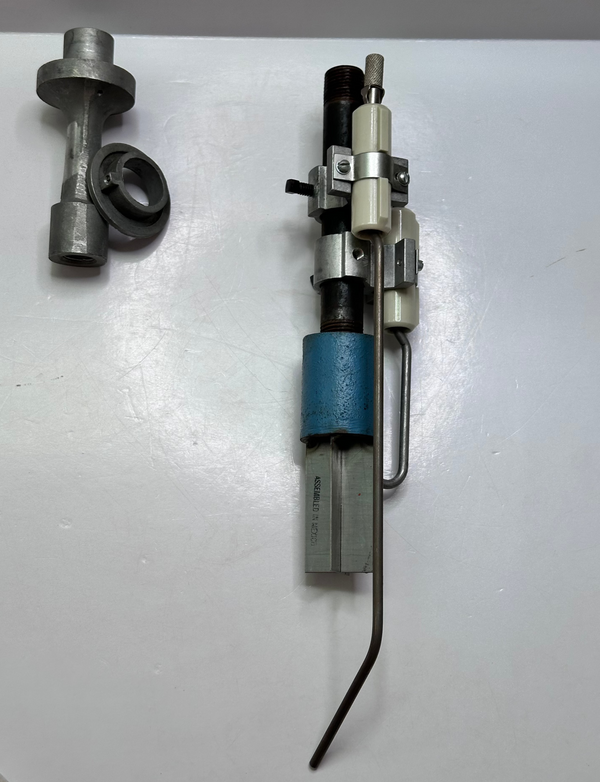

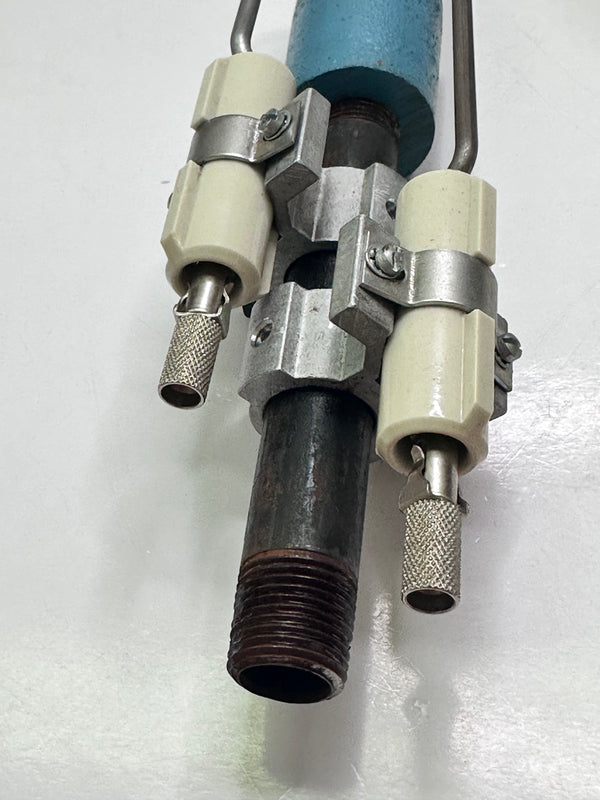

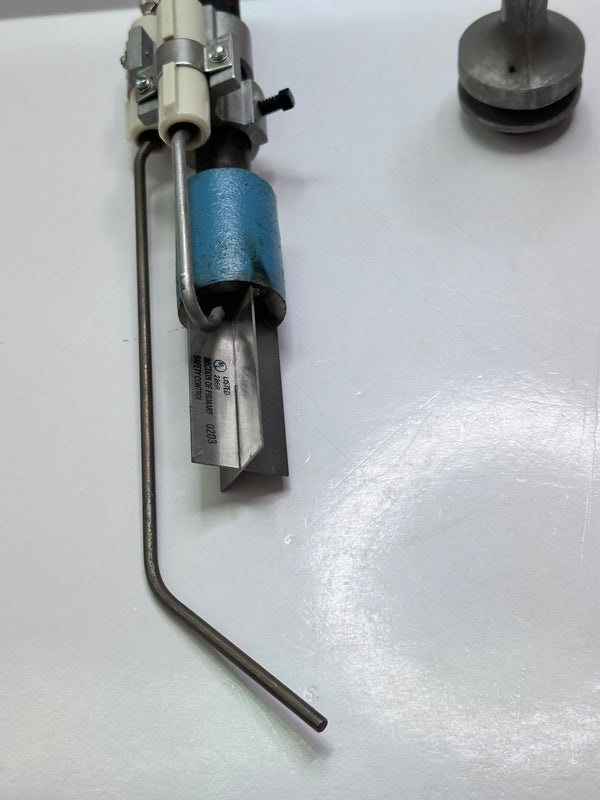

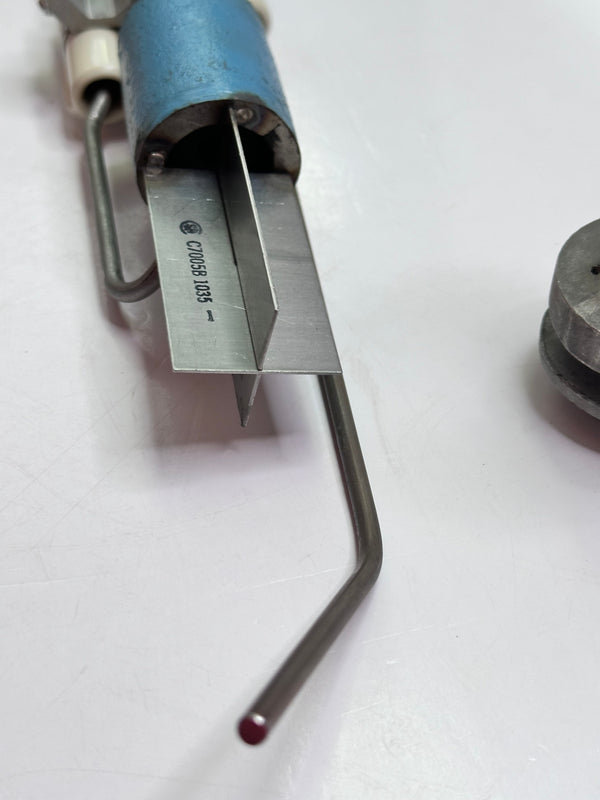

| Overview | Gas Pilot Burner Assemblies include a flame rod to prove the pilot flame. The assemblies are used with a suitable flame safeguard control on industrial or commercial gas burners or oil burners with gas pilots. |
|---|
| Includes | Ignition electrode |
|---|
| Used With | Q624 or other suitable ignition transformer. |
|---|
| Application | For automatic electrically ignited pilot |
|---|
| Type of Gas | Natural |
|---|
| Orifice | 0.052 in. dia. |
|---|
| Gas Fitting | 1/2 in. NPT male thread |
|---|
| Dimensions (in.) | 3 in. diameter x 3 1/2 in. deep |
|---|
| Dimensions (mm) | 76 mm diameter x 343 mm deep x |
|---|
| Approvals, Underwriters Laboratories Inc | Listed: File No. MP268, Guide No. MCCZ |
|---|
| Approvals, Canadian Standards Association | Certified: File No. LR1620, Guide No. 140-A-2 |
|---|
| Approvals, Factory Mutual | Approved: Report No. 24181.04 |
|---|
| Approvals, Swiss RE (formerly IRI) | Acceptable |
|---|
| Wiring Terminal Type | Rajah |
|---|
